Boky torolalana

Vita ny vokatraview

The Y DIANS S Solar Strobe Light HXA-X01 is a double-sided security alarm light designed for various applications including traffic, road construction, farms, and yards. It features high-brightness LED beads, a monocrystalline silicon solar panel for efficient charging, and robust IP65 waterproof and dustproof construction.

Sary 1: Tapitraview of the Y DIANS S Solar Strobe Light HXA-X01.

Lafin-javatra fototra:

• Fanorenana maharitra: Shell made of high-quality engineering PVC material for pressure and impact resistance.
• Paneau solaire mahomby: Monocrystalline silicon solar panel (6.6W rated power, 9.2V voltage) ensures reliable operation and charges the built-in 4500mAH battery for use in various weather conditions and at night.
• Famirapiratana avo: Features 160 LED beads and a highly transparent, aging-resistant GPPS material lampshade, providing a night visibility distance of up to 1000 meters.
• Dual Control Switches: Equipped with a power switch for overall control and a photoelectric switch for automatic day/night operation.
• tsy tantera-drano: IP65 high-performance protection ensures resistance to rain and dust.

Inona no ao anaty boaty

Upon unboxing, please ensure all components are present and undamaged:

• Paneau solaire
• Strobe lights unit

Note: Mounting bracket is not included and must be acquired separately.

Fametrahana sy fametrahana

Proper installation is crucial for optimal performance and safety. This device is designed for bottom mounting.

1. Fifidianana toerana fametrahana:

• Choose a location that receives direct sunlight for the majority of the day to ensure the solar panel can efficiently charge the battery.
• Ensure the mounting surface is stable and can support the weight of the unit (approximately 24.2 pounds).
• Consider the visibility requirements for the strobe light's intended warning purpose.

2. Attaching the Mounting Bracket (Not Included):

The strobe light unit attaches to a mounting pole or bracket via the bottom mounting position. Use appropriate M10*25 Hexagonal screws for secure attachment.

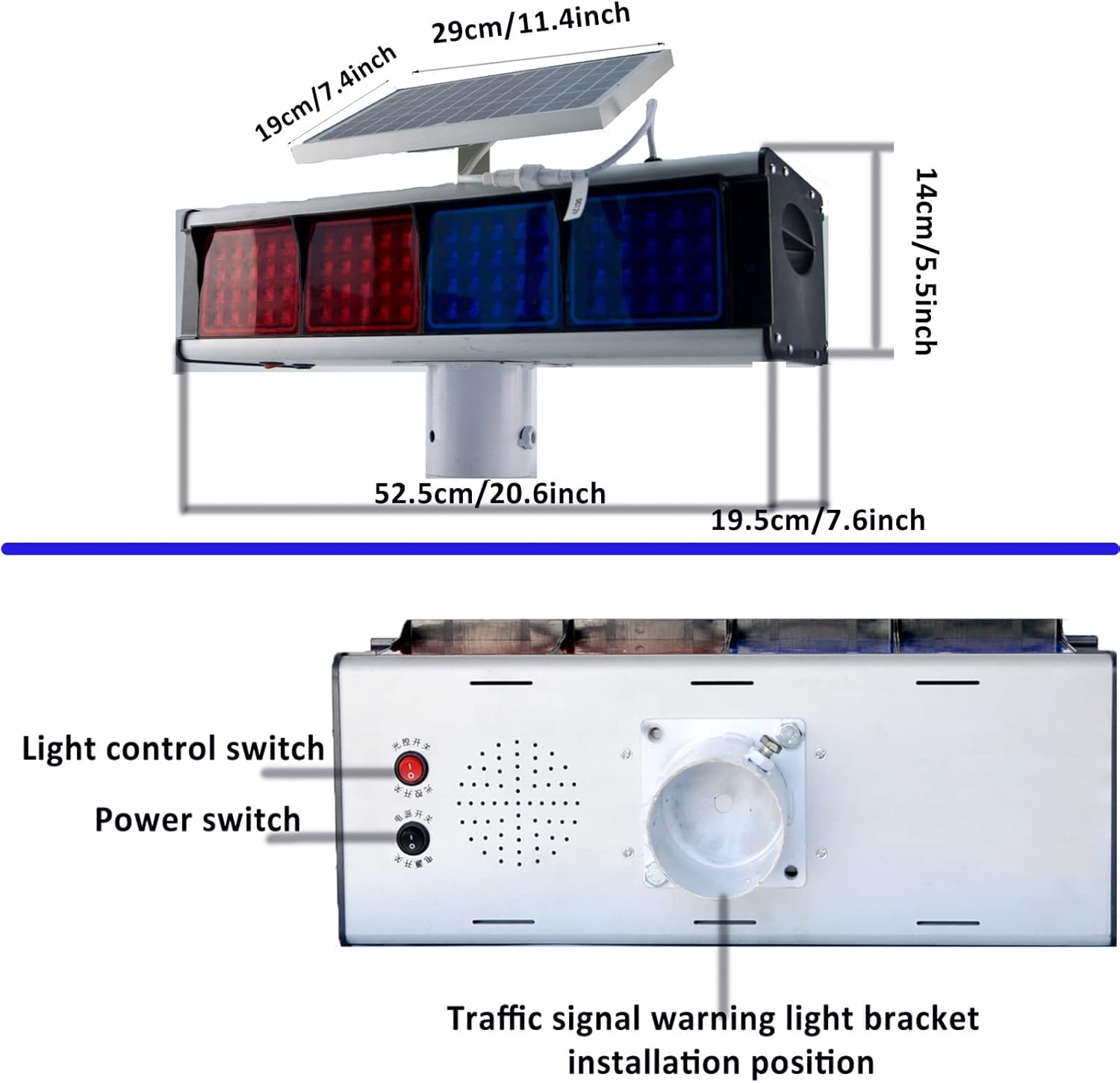

Figure 2: Product dimensions and mounting bracket installation position. Note the power switch and light control switch locations on the back panel.

3. Fifandraisana amin'ny tontolon'ny masoandro:

Connect the solar panel to the main strobe light unit. Ensure the connection is secure and weatherproof. The solar panel can be adjusted to face the sun for maximum exposure.

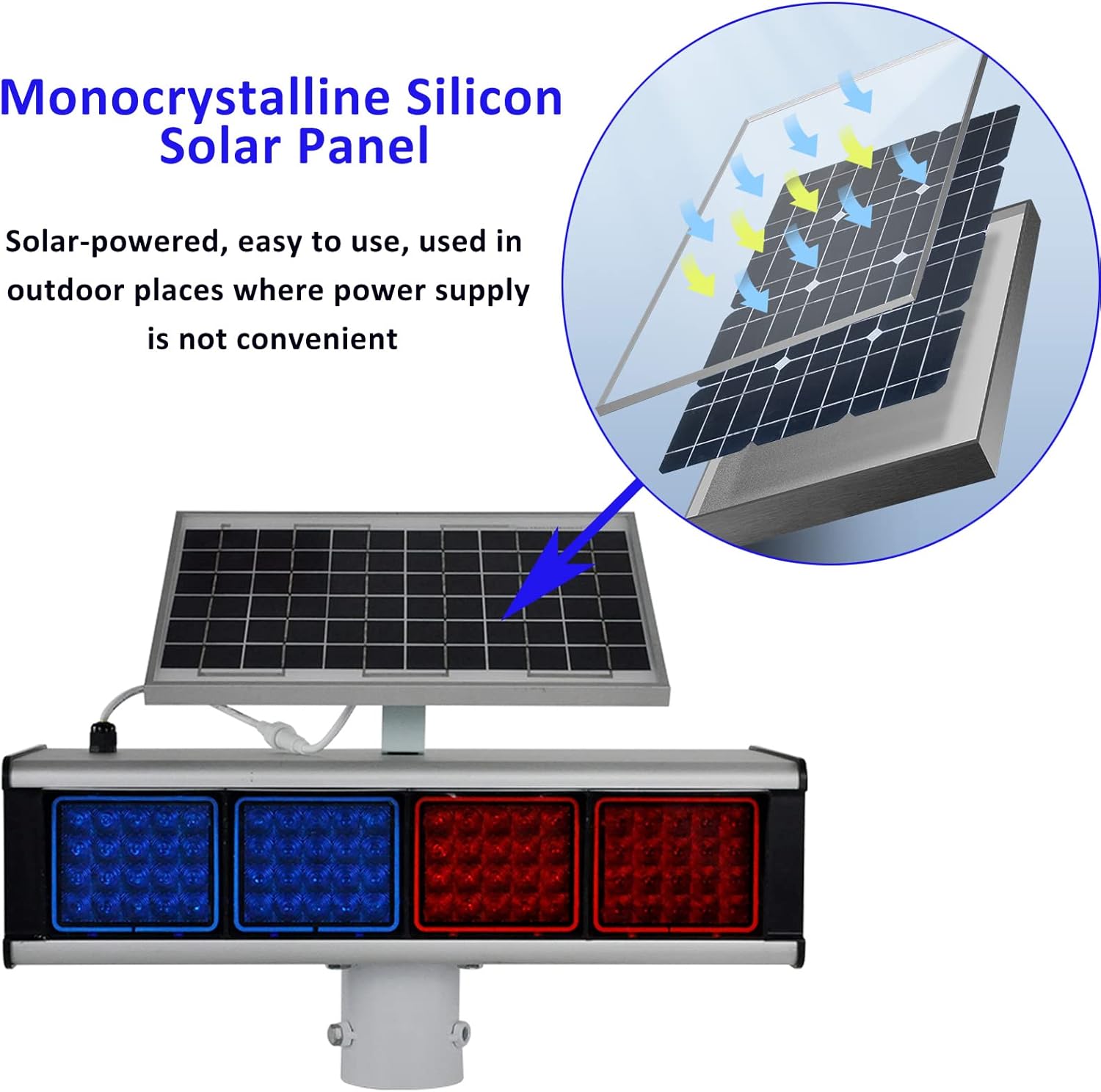

Figure 3: Detail of the monocrystalline silicon solar panel, designed for efficient outdoor charging.

Torolàlana miasa

The Solar Strobe Light HXA-X01 features two main switches for controlling its operation:

• Hery Switch: This switch controls the overall power to the solar flashing warning light.
  • To turn the unit ON, flip the power switch to the 'ON' position.
  • To turn the unit OFF, flip the power switch to the 'OFF' position.
• Photoelectric Switch (Light Control Switch): This switch determines the light's operational mode based on ambient light conditions.
  • Photoelectric Switch ON: In this mode, the warning light will automatically activate and flash during nighttime hours and remain off during the day. This conserves battery life and ensures operation when visibility is low.
  • Photoelectric Switch OFF: In this mode, the warning light will flash continuously for 24 hours a day, regardless of ambient light conditions. This is suitable for situations requiring constant visibility.

Figure 5: High brightness flashing beacon warning light in action, showcasing its 160 LED light beads.

Figure 6: The light demonstrating its IP65 waterproof and dustproof capabilities under simulated rain.

Figure 7: The double-sided red and blue flashing warning lights, visible from a long distance.

fikarakarana

To ensure the longevity and optimal performance of your Solar Strobe Light, follow these maintenance guidelines:

• Manadio ny panneau solaire: Regularly wipe the surface of the solar panel with a soft, damp lamba hanalana vovoka, loto, ravina, na lanezy. Ny tontonana madio dia miantoka ny fisondrotry ny masoandro ambony indrindra sy ny fahombiazan'ny fiampangana.
• Jereo raha misy fahasimbana: Periodically check the unit for any physical damage, loose connections, or signs of wear. Address any issues promptly.
• Fikarakarana bateria: While the unit has a built-in battery, prolonged periods of low sunlight or storage may affect its charge. Ensure the unit receives adequate sunlight exposure.
• Fafao ny sakana: Ensure no new obstructions (e.g., growing tree branches, new structures) block sunlight from reaching the solar panel.

Fanamboarana

If your Solar Strobe Light is not functioning as expected, consider the following common issues and solutions:

If problems persist after trying these solutions, please contact customer support.

fepetra arahana

Warranty sy fanohanana

Specific warranty details for the Y DIANS S Solar Strobe Light HXA-X01 are typically provided with your purchase documentation or can be obtained directly from the manufacturer or seller.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please refer to the contact information provided by your retailer or the manufacturer, Hangzhou YASONG Electronic Co.,Ltd.

Azonao atao ihany koa ny mitsidika ny Y DIANS S Store on Amazon ho fampahalalana fanampiny momba ny vokatra sy loharano fanohanana.
