1. Fampidirana
Thank you for choosing the Arcchio Karam LED Wall Lamp. This modern, black and gold aluminum fixture is designed to provide efficient and atmospheric lighting for indoor spaces such as living rooms, dining rooms, hallways, kitchens, and bathrooms. Featuring integrated LED technology, it offers a pleasant up and down light distribution and is dimmable with a suitable external triac dimmer. Please read this manual carefully before installation and use to ensure safe and optimal operation.
Figure 1: Arcchio Karam LED Wall Lamp installed in a modern living room setting.
2. Torolàlana momba ny fiarovana
- Fiarovana herinaratra: Installation must be performed by a qualified electrician in accordance with local wiring regulations. Always switch off the main power supply before installation, maintenance, or cleaning.
- Fampiasana anatiny ihany: This product is rated IP20 and is suitable for dry indoor environments only. Do not expose to water or high humidity.
- Fiarovana kilasy I: This luminaire requires a protective earth connection. Ensure proper grounding during installation.
- LED Integrated: The LED light source is integrated and not user-replaceable. Do not attempt to open or modify the light source.
- Manjavozavo: Use only a compatible external triac dimmer (phase cut-off recommended) for dimming functionality.
- Fikarakarana: Mitantana ny lamp with care to avoid damage. Do not apply excessive force.
- Fanadiovana: Diovy amin'ny lamba malefaka sy maina ihany. Aza mampiasa mpanadio na solvents mikikisana.
3. Ny votoatin'ny fonosana
Carefully unpack the box and ensure all components are present and undamaged.
- Arcchio Karam LED Wall Lamp (with integrated LED light source)
- Fametahana
- Fitaovana fametahana (screws, plugs amin'ny rindrina) - typically included, verify upon unpacking
- Boky torolàlana (torolàlana ity)
Sary 2: Nipoaka view of the Arcchio Karam LED Wall Lamp, showing the main housing, integrated LED, and mounting bracket.
4. Fametrahana sy fametrahana
Zava-dehibe: Ataovy azo antoka fa tapaka ny herinaratra lehibe eo amin'ny "circuit breaker" alohan'ny hanombohana ny fametrahana azy.
- Omano ny faritra fametrahana: Choose a suitable indoor wall location. Ensure there are no hidden electrical wires or pipes in the wall where you plan to drill.
- Remove Mounting Bracket: Carefully detach the mounting bracket from the lamp housing. This is usually secured with small screws on the side or back.
- Marka fandavahana: Hold the mounting bracket against the wall at the desired installation height. Use a pencil to mark the positions for drilling holes.
- Fandavahana lavaka (Drill holes): Drill holes at the marked positions using an appropriate drill bit for your wall type. Insert the provided wall plugs into the drilled holes.
- Fametrahana bracket azo antoka: Ampifandraiso amin'ny rindrina ny bracket fametrahana amin'ny alalan'ny visy omena. Ataovy azo antoka fa voafatotra tsara izy io.
- Fifandraisana elektrika: Connect the mains electrical wires to the terminal block inside the lamp trano fonenana.
- Connect the Live (L) wire (usually brown or black) to the terminal marked 'L'.
- Connect the Neutral (N) wire (usually blue) to the terminal marked 'N'.
- Connect the Earth (PE) wire (usually green/yellow) to the terminal marked with the earth symbol (⚡).
- Ampifandraiso amin'ny Lamp Trano: Ampifanaraho tsara ny lamp housing with the mounting bracket and secure it using the screws removed earlier. Ensure no wires are pinched.
- Ampodio hery: Indray mandeha ny lamp is securely installed and wired, restore power at the main circuit breaker.
Figure 3: Detached mounting bracket.
Figure 4: Internal wiring connections. Ensure Live, Neutral, and Earth wires are correctly connected.
5. Torolàlana miasa
- Mihodina / miala: The Arcchio Karam LED Wall Lamp is operated via a standard wall switch connected to your mains power supply.
- Fandevenana Function: If you have installed a compatible external triac dimmer (phase cut-off recommended) in your electrical circuit, you can adjust the brightness of the lamp using the dimmer switch. Follow the instructions provided with your dimmer for its specific operation.
6. Fikojakojana
- Fanadiovana: Mba hanadiovana ny lamp, ensure the power is switched off. Use a soft, dry, lint-free cloth to gently wipe the surfaces. Do not use liquid cleaners, abrasive materials, or chemical solvents, as these can damage the finish.
- Loharano hazavana: The LED light source is integrated and designed for a long lifespan. It is not user-replaceable. If the light source fails, the entire fixture must be replaced.
- Fanaraha-maso: Jereo tsindraindray ny lamp for any signs of damage or loose connections. If any issues are found, switch off the power and consult a qualified electrician.
7. Famahana olana
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Lamp tsy mirehitra. |
|
|
| Lamp mitsilopilopy na manjavozavo tsy mifanaraka. |
|
|
| Lamp dia simba. | Physical impact or manufacturing defect. | Do not attempt to repair. Contact your retailer or a qualified electrician for assistance. |
8. Famaritana
| Marika | Arcchio |
| Laharana modely | 9626362 |
| refy (L x W x H) | 53 sm x 10 sm x 8 sm (20.9 x 3.9 x 3.1 santimetatra) |
| lanja | 1.39 kg (3.06 lbs) |
| KEVITRA | Aluminum, vy |
| loko | Black (exterior), Gold (interior) |
| Loharanon-jiro | LED Integrated |
| Total Wattage | 13.7 W (or 15 W, as per energy label) |
| Luminous Flux | 1690 Lumen |
| Temperature loko | 3000 Kelvin (Fotsy mafana) |
| BOKYtage | 230 V |
| IP Rating | IP20 (fampiasana anatiny ihany) |
| Kilasy fiarovana | I (Requires Earth Connection) |
| Dimmable | Yes, via external triac dimmer (phase cut-off recommended) |
| Fampiasana manokana | Living room, dining room, hallway, kitchen, bathroom (indoor) |
| Kilasy fahaiza-manao angovo | F (New Label) / A (Old Label) |
Sary 5: Ny refin'ny vokatra.

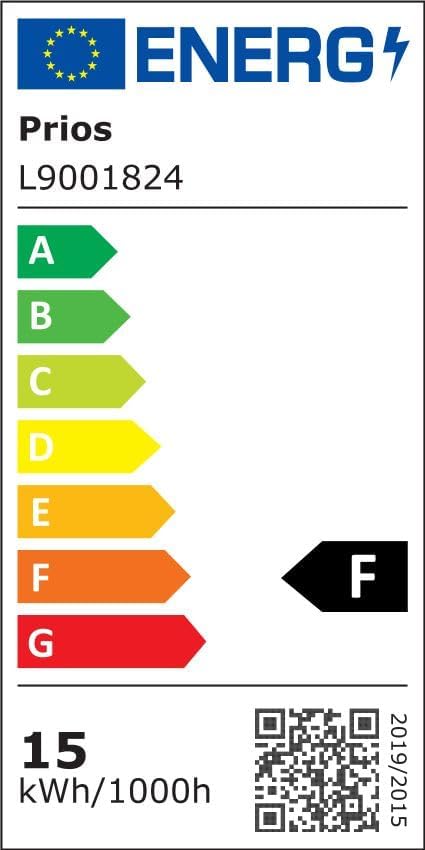

Figure 6: New EU Energy Label (Class F, 15 kWh/1000h). For more details, visit Takelaka data EPREL.
Figure 7: Old EU Energy Label (Class A on A++ to E scale).
9. Warranty sy fanohanana
Arcchio products are manufactured to high-quality standards. For information regarding warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact your retailer.
For technical support or inquiries, please contact your point of purchase or visit the official Arcchio website.
