PIONEER AVH-Z5200DAB Multimedia Receiver User Manual

1. Fampidirana

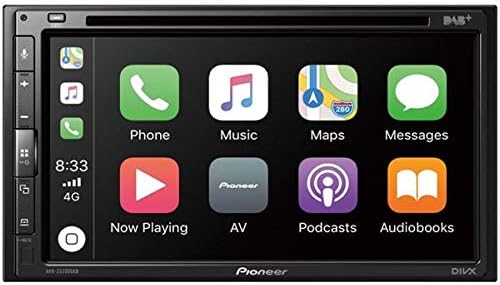

This manual provides detailed instructions for the installation, operation, and maintenance of your PIONEER AVH-Z5200DAB multimedia receiver. Designed for in-car entertainment, this 2-DIN unit features a 6.8-inch touchscreen, DVD playback, and seamless smartphone integration with Apple CarPlay and Android Auto.

Key features include DAB/DAB+ digital radio, Waze navigation compatibility, Bluetooth for music streaming and hands-free calls, Spotify integration, dual camera input, multi-color illumination, and advanced audio processing.

2. Inona no ao anaty boaty

Upon unpacking your PIONEER AVH-Z5200DAB, please ensure all components are present:

• Multimedia Display Unit
• Installation Anchors
• Boky torolalana
• Fitaovana fisintonana
• USB Extension Cable
• mikrô
• Screws

3. Fametrahana sy fametrahana

Proper installation is crucial for optimal performance. It is highly recommended to have this unit installed by a qualified professional.

3.1. Fanamarinana mialoha ny fametrahana

• Ensure your vehicle's electrical system is compatible.
• Esory ny bateria amin'ny fiara alohan'ny hanombohana ny fametrahana azy.
• Verify all included components are present.

3.2. Fampifandraisana tariby

Connect the main wiring harness to the corresponding ports on the back of the unit and to your vehicle's electrical system. Ensure secure connections for power, ground, speakers, and accessory wires. The unit features a universal ISO connector or vehicle-specific connector.

• Herinaratra/Tany: Connect the main power and ground wires securely.
• Fivoahan'ny mpandahateny: Connect to your vehicle's speakers.
• Fampidirana USB: Use the provided USB extension cable for connecting smartphones or USB storage devices.
• Fidirana mikrofona: Connect the external microphone for hands-free calling and voice commands.
• DAB Antenna Input: Connect an optional DAB antenna (CA-AN-DAB.001) for digital radio reception.
• GPS Antenna Input: For navigation features.
• Fakantsary fidirana: Supports dual camera input (e.g., rear-view camera ND-BC8).
• Fanaraha-maso ny familiana (SWC): Connect to your vehicle's steering wheel control interface for integrated control.

4. Torolàlana miasa

4.1. Fampandehanana fototra

• Herim-batana / maty: Tsindrio ary hazòny ny bokotra herinaratra.
• Fanaraha-maso ny feo: Use the on-screen controls or steering wheel controls (if connected).
• Fantenana loharano: Tap the 'Source' icon on the touchscreen to select between Radio, USB, Bluetooth, DVD, AUX, CarPlay, or Android Auto.

4.2. Efijery fikasihana Interface

The 6.8-inch capacitive touchscreen allows for intuitive control. Swipe left/right to navigate menus, tap icons to select functions, and use pinch-to-zoom gestures where applicable.

4.3. Apple CarPlay sy Android Auto

Connect your iPhone or Android smartphone via USB to access Apple CarPlay or Android Auto. This allows you to use compatible apps, navigation, make calls, and send messages through the receiver's interface.

• Apple CarPlay: Connect your iPhone using a Lightning to USB cable (CA-IU.52C optional).
• Android Auto: Connect your Android smartphone using a USB cable.

4.4. Bluetooth Connectivity

Pair your smartphone via Bluetooth for hands-free calling and wireless audio streaming.

1. Go to the Bluetooth settings on your smartphone and enable Bluetooth.
2. On the AVH-Z5200DAB, navigate to the Bluetooth menu.
3. Select 'Pair New Device' and choose your smartphone from the list.
4. Hamafiso ny kaody fampiarahana amin'ny fitaovana roa.

4.5. Radio (DAB/DAB+)

Access digital radio stations with superior sound quality. An optional DAB antenna (CA-AN-DAB.001) is required.

4.6. Famerenana DVD

Insert a DVD-Video disc into the slot to enjoy movies. The unit supports MP3, WMA, AAC, DivX, and MPEG-1 formats.

4.7. Fanovana Audio

Customize your audio experience with advanced settings:

• Equalizer: Adjust sound frequencies to your preference.
• Fanaraha-maso Subwoofer: Manage subwoofer output levels.
• Fanodinana feo avo lenta: Fine-tune your sound.

5. Fikojakojana

5.1. Fanadiovana ny Unit

Use a soft, dry cloth to wipe the display and unit housing. For stubborn dirt, dampen the cloth with a small amount of neutral detergent. Avoid abrasive cleaners or solvents.

5.2. Fikarakarana ankapobeny

• Fadio ny mampiharihary ny fitaovana amin'ny hafanana tafahoatra na ny tara-masoandro mivantana mandritra ny fotoana maharitra.
• Aza sakanana ny fisokafan'ny rivotra.
• Ensure all connections are secure to prevent intermittent issues.

6. Famahana olana

Raha sendra olana ianao dia jereo ireto olana sy vahaolana mahazatra ireto:

For further assistance, please contact Pioneer customer support.

7. Famaritana

8. Warranty sy fanohanana

8.1. Garantie vokatra

Ity vokatra ity dia miaraka amin'ny a Garantie mpanamboatra 1 taona manomboka amin'ny datin'ny fividianana.

8.2. Fifandraisana amin'ny mpanamboatra

For any inquiries or support, please contact Pioneer Customer Service:

• Telefaonina: +34 93 554 30 19
• Ora fiasana: Monday to Thursday: 9:00 AM to 2:00 PM and 3:00 PM to 6:00 PM. Friday: 9:00 AM to 2:30 PM. (Excluding holidays)
