Sochef Golosone 4 Barbecue User Manual

Sava lalana

Thank you for choosing the Sochef Golosone 4 Barbecue. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new gas barbecue. Please read this manual thoroughly before assembly and use, and retain it for future reference.

Information momba ny fiarovana

Always follow these safety guidelines to prevent injury or damage to property:

• Fampiasana an-kalamanjana ihany: This barbecue is designed for outdoor use only. Do not operate indoors or in enclosed spaces.
• rivotra: Ensure adequate ventilation around the barbecue.
• Fanalana: Maintain a minimum distance of 1 meter from combustible materials (walls, fences, trees, etc.).
• Mitsoka entona: Check for gas leaks regularly using a soapy water solution. Never use an open flame to check for leaks.
• Ankizy sy biby fiompy: Arovy tsy ho azon'ny ankizy sy ny biby fiompy ny lafaoro fanaovana barbecue mafana.
• Toerana mafana: Surfaces will become very hot during operation. Use heat-resistant gloves when handling hot components.
• Fat Fires: Be aware of potential fat fires, especially with fatty foods. Keep a fire extinguisher or sand nearby.
• Vary entona: Store gas cylinders upright and away from heat sources. Ensure the gas hose is not kinked or damaged.
• Fivoriambe: Hamarino tsara fa tafapetraka sy henjana tsara ny faritra rehetra alohan'ny hampiasana azy.

Component Overview

The Sochef Golosone 4 Barbecue includes the following main components:

• Sarony: Stainless steel lid with integrated temperature indicator.
• Sakafo mahandro: Two enameled iron grates and one cast iron plate.
• Fandoroana: Four stainless steel main burners and one side burner.
• Takelaka fikirakirana: Stainless steel control panel with individual burner controls.
• Talantalana eo anilany: Two side shelves, one with an integrated side burner.
• Kabinetra: Enclosed cabinet with doors for gas cylinder storage and additional storage.
• Kodiarana: Ho mora mivezivezy.
• Lava Rock/Australian Cooking System: Both systems are included.

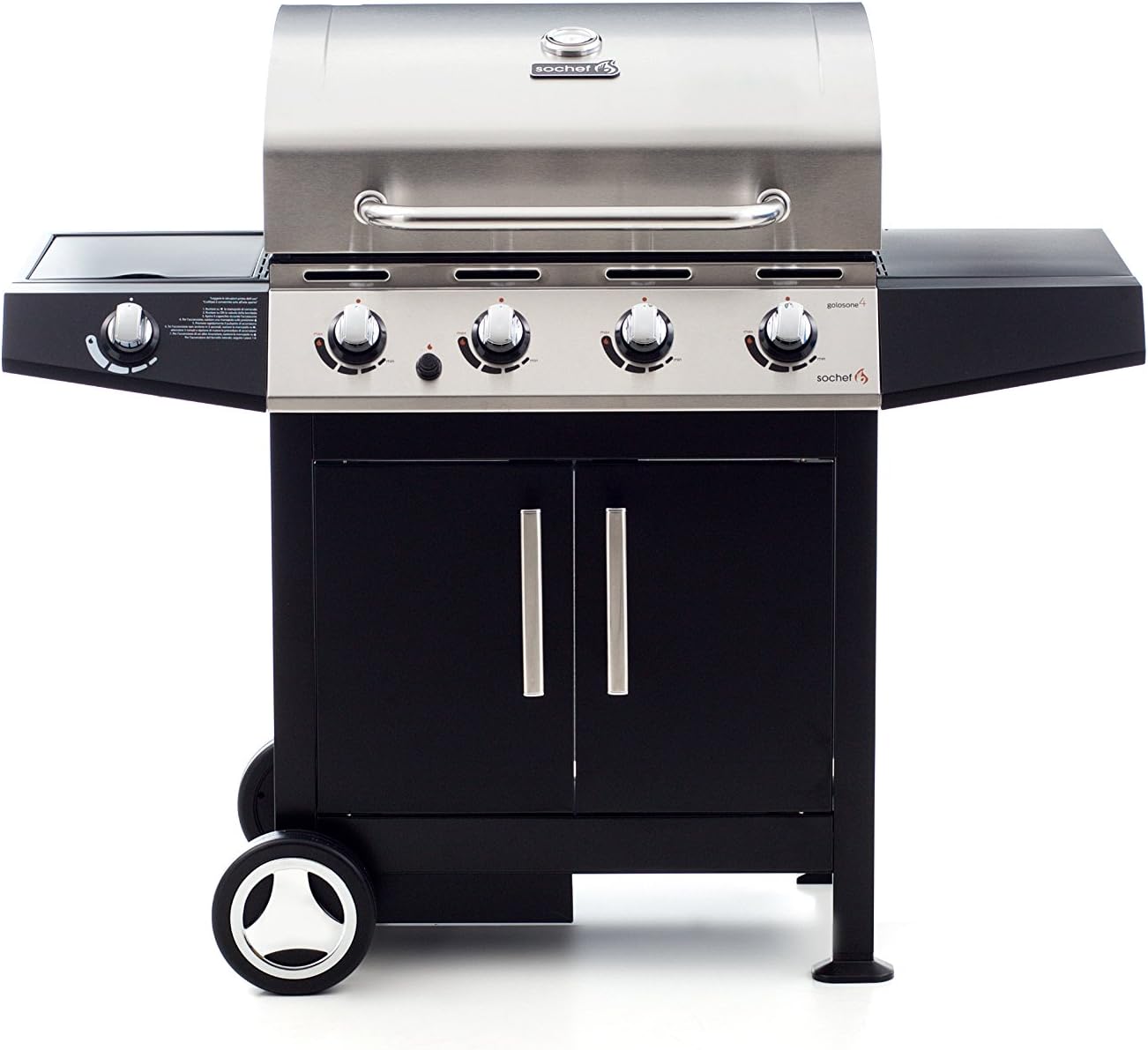

Sary 1: Eo anoloana view of the Sochef Golosone 4 Barbecue. Shows the stainless steel lid, control panel, side shelves, and cabinet with doors.

Sary 2: Ambony midina view of the Sochef Golosone 4 Barbecue with the lid open, revealing the cooking grates and cast iron plate.

Setup sy Assembly

Assembly of the Sochef Golosone 4 Barbecue requires patience and attention to detail. It is recommended to have at least two people for assembly.

Fitaovana ilaina:

• Screwdriver (Phillips head)
• Adjustable wrench or spanner set
• Gloves (for handling metal parts)

Dingan'ny fivoriambe:

1. Esory ny singa: Carefully unpack all parts and verify against the parts list provided in the separate assembly guide.
2. Assemble Base Frame: Connect the base frame components, ensuring all screws are finger-tight before final tightening.
3. Attach Wheels: Securely attach the wheels to the designated points on the base.
4. Mametraha Takelaka Kabinetra: Slide or screw the cabinet side and back panels into place.
5. Mount Burner Box: Carefully place and secure the main burner box onto the assembled base.
6. Ampifandraiso ireo talantalana eo anilany: Secure the left and right side shelves, including the side burner unit, to the main body.
7. Install Burners and Grates: Place the stainless steel burners, heat diffusers, and cooking grates/plate into the burner box.
8. Connect Gas Hose: Connect the gas hose and regulator (if supplied) to the barbecue's gas inlet and the gas cylinder. Ensure all connections are tight. Perform a leak test with soapy water.
9. Fanamafisana farany: Once all components are in place, systematically tighten all screws and bolts. Do not overtighten.

Note: Some users have reported minor alignment issues during assembly. If parts do not align perfectly, gently adjust or apply slight pressure to ensure a proper fit before tightening. Refer to the detailed assembly instructions provided with your product for specific diagrams and part numbers.

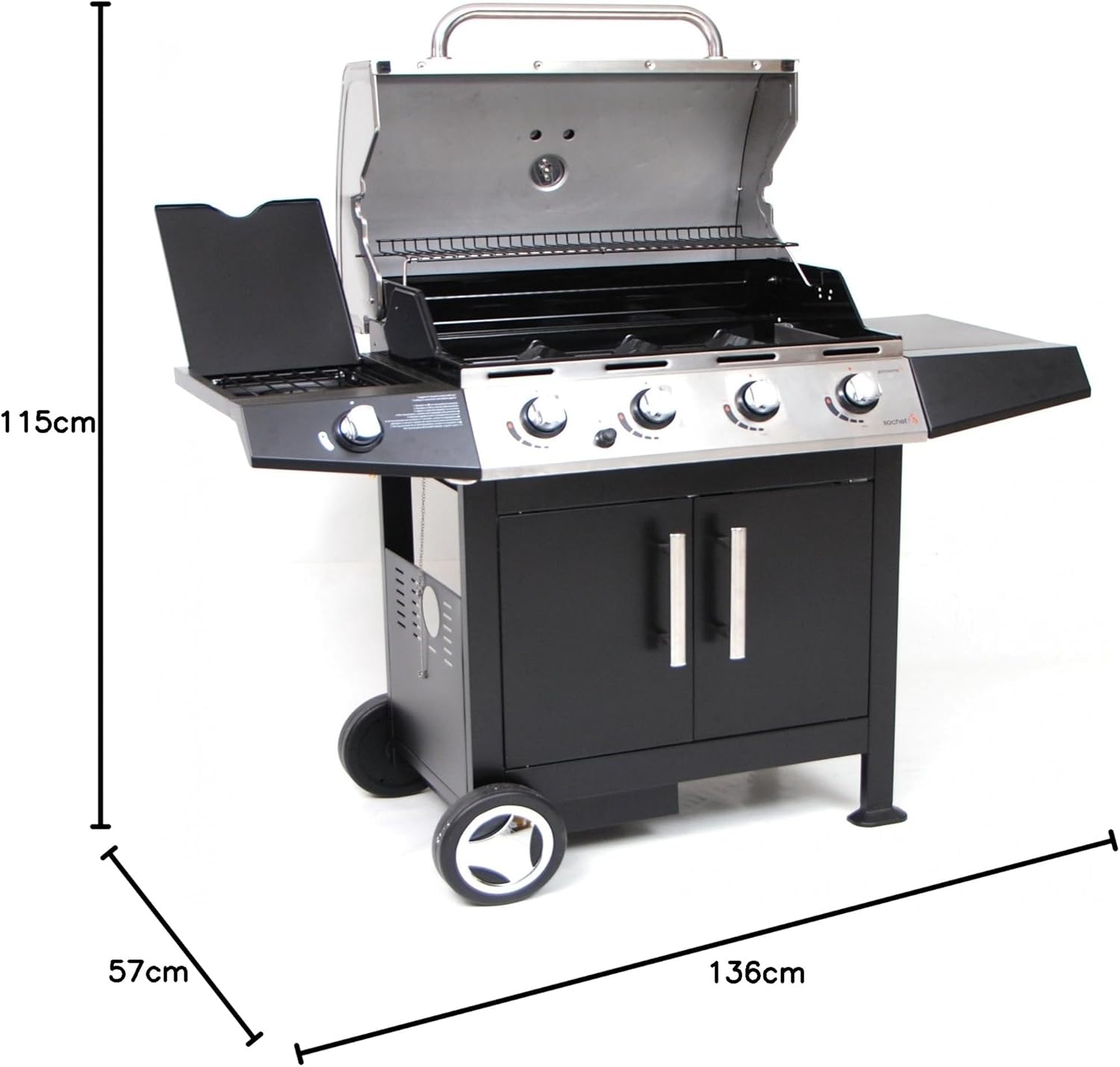

Figure 3: Dimensions of the Sochef Golosone 4 Barbecue, showing height, width, and depth.

Torolàlana miasa

Alohan'ny fampiasana voalohany:

• Ataovy azo antoka fa nesorina daholo ny fitaovana famonosana.
• Manaova fitiliana leak entona.
• Burn off any manufacturing residues by heating the barbecue on high for 15-20 minutes with the lid closed.

Mandrehitra ny fandoroana lehibe (Mall the Main Burners):

1. Sokafy ny sarom-bilany.
2. Ensure all burner control knobs are in the "OFF" position.
3. Open the gas supply valve on the cylinder.
4. Push in and turn one main burner control knob to the "HIGH" position. You should hear a clicking sound from the igniter.
5. If the burner does not ignite within 5 seconds, turn the knob to "OFF", wait 5 minutes for gas to dissipate, and repeat the process.
6. Once one burner is lit, you can light additional burners by turning their respective knobs to "HIGH".
7. Adjust flame intensity by turning the control knobs between "HIGH" and "LOW".

Using the Side Burner:

1. Sokafy ny sarony burner lafiny.
2. Push in and turn the side burner control knob to the "HIGH" position.
3. If the burner does not ignite, repeat the process after waiting 5 minutes.

Rafitra nahandro:

The Golosone 4 offers both Lava Rock and Australian cooking systems. The lava rocks distribute heat evenly and absorb drippings, reducing flare-ups. The Australian system uses direct heat from the burners. Choose the system based on your cooking preference and food type.

Figure 4: The Sochef Golosone 4 Barbecue in an outdoor setting, actively grilling food.

Fikojakojana sy fanadiovana

Regular cleaning and maintenance will extend the life of your barbecue.

• Aorian'ny fampiasana tsirairay:
  • Burn off excess food residue by turning burners to high for 5-10 minutes.
  • Once cooled, brush cooking grates with a wire brush.
  • Foana ary diovy ny lovia misy menaka.
• Fanadiovana tsy tapaka (Isam-bolana/Ara-potoana):
  • Clean the interior of the firebox and burner covers.
  • Inspect burners for blockages (e.g., spider webs). Clean with a soft brush if necessary.
  • Fafao ny faritra ivelany amin'ny dokaamp cloth and mild detergent. For stainless steel, use a specialized stainless steel cleaner.
  • Check gas hose and connections for cracks or damage. Replace if necessary.
• fitahirizana: Store the barbecue in a dry, sheltered area when not in use for extended periods. Disconnect the gas cylinder.

Fanamboarana

fepetra arahana

Warranty sy fanohanana

For warranty information, please refer to the warranty card included with your purchase or contact Sochef customer support. Keep your proof of purchase for any warranty claims.

For technical assistance, spare parts, or further inquiries, please visit the official Sochef website or contact their customer service department. Contact details can typically be found on the product packaging or the Sochef brand store page on Amazon.
