1. Įvadas
This manual provides comprehensive instructions for the safe and efficient installation, operation, and maintenance of the BINELUCOLU SMSM-01 600W Brushless Servo Motor. This motor is designed for industrial sewing machines, offering precise speed control and energy efficiency. Please read this manual thoroughly before using the product to ensure proper function and longevity.
1 pav. Baigtaview of the BINELUCOLU SMSM-01 Brushless Servo Motor and Controller.
2. Saugos instrukcijos
Visada laikykitės šių saugos priemonių, kad išvengtumėte sužalojimų ar įrangos sugadinimo:
- Prieš montuodami ir naudodami atidžiai perskaitykite visas instrukcijas.
- Užtikrinkite maitinimo šaltinio ttage matches the motor's specifications (110V).
- Prieš atlikdami bet kokius techninės priežiūros, valymo ar reguliavimo darbus, atjunkite maitinimą.
- Eksploatacijos metu laikykite rankas, plaukus ir laisvus drabužius atokiai nuo judančių dalių.
- Nenaudokite variklio šlapioje arba damp sąlygas.
- Užtikrinkite tinkamą įžeminimą, kad išvengtumėte elektros smūgio.
- Only qualified personnel should perform repairs or complex installations.
3. Pakuotės turinys
Patikrinkite, ar pakuotėje yra visi reikalingi daiktai:
- 1x Brushless Motor
- 1x valdiklis
- 1x anglų kalbos vadovas (šis dokumentas)
- All Accessories for Assembly (e.g., mounting hardware, cables)
4. Specifikacijos
| Funkcija | Specifikacija |
|---|---|
| Spalva | Sidabras, baltas |
| Medžiaga | Copper, Aluminum, Plastic |
| Kištuko tipas | JAV standartas |
| ttage | 110 V |
| Greičio diapazonas | 500-4500 aps./min |
| Step Adjustment | 100 Stitches/Min |
| Galia | 600W |
| Controller Power Cord Length | 85 cm / 33.46 colių |
| Servo Motor Size | 28 x 10.5 x 20 cm / 11 x 4.1 x 7.9 colio |
| Valdiklio dydis | 16 x 6 x 19 cm / 6.3 x 2.4 x 7.5 colio |
| Grynasis svoris | 5kg / 11lbs |
The motor features a high-quality pure copper coil for durability and efficient performance. The controller includes an LED screen and touch-sensitive buttons for intuitive operation.
5. Diegimas ir sąranka
Follow these steps to install your brushless servo motor:
5.1 Variklio tvirtinimas
- Ensure the sewing machine is powered off and unplugged.
- Remove the old motor (if applicable) from the sewing machine table.
- Position the new servo motor on the mounting bracket. The motor is designed to be fixed with four screws in two directions for enhanced stability.
- Secure the motor to the sewing machine table using the provided mounting hardware. Ensure it is firmly attached and aligned with the machine's drive wheel.
- Attach the drive belt from the motor pulley to the sewing machine's handwheel. Adjust belt tension as needed.
Figure 2: The motor's mounting bracket, designed for stable attachment with four screws.

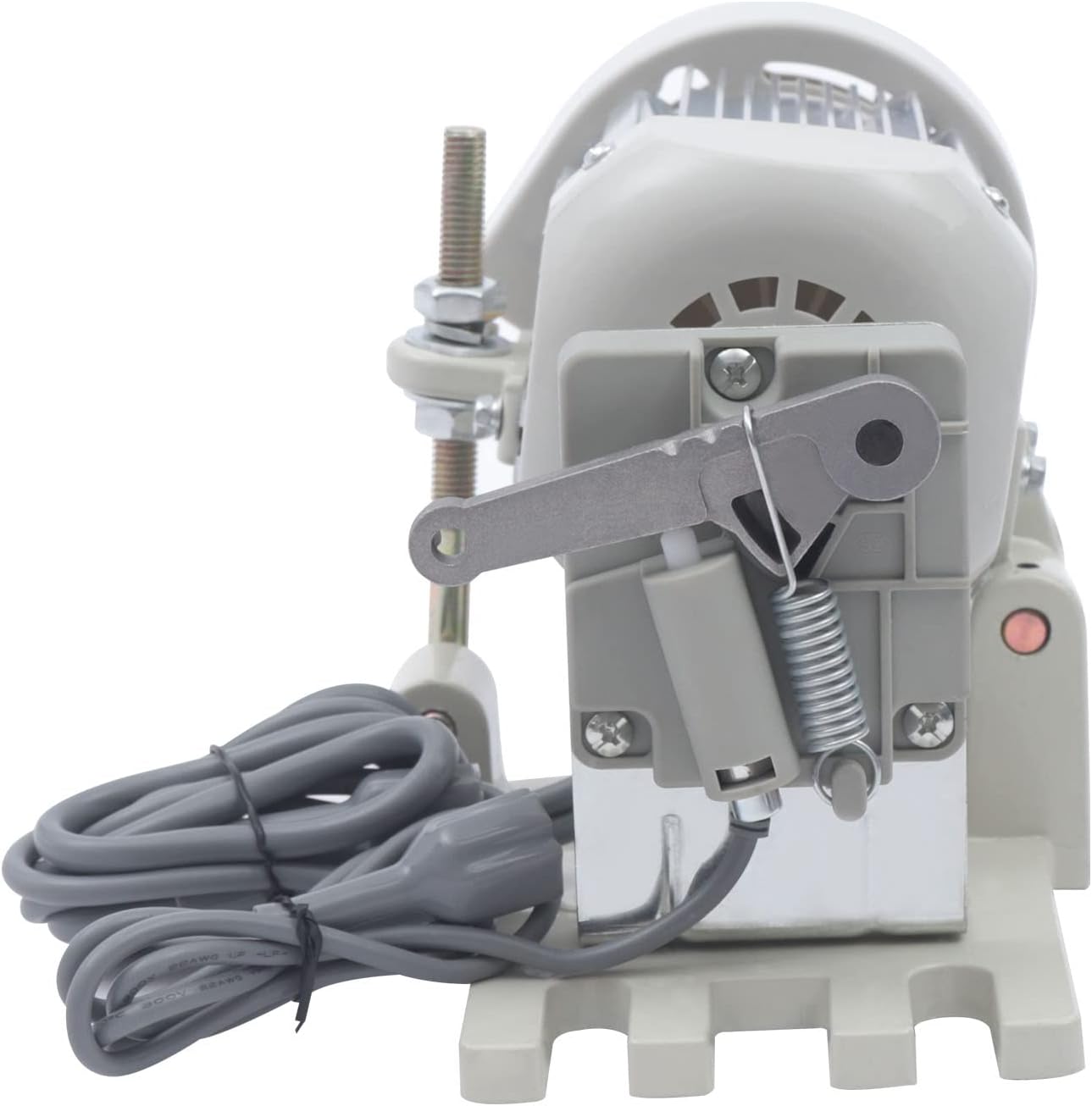

Figure 3: The motor features an independent stepless speed adjustment lever for precise control.
5.2 Valdiklio jungtis
- Mount the controller unit in a convenient location near the sewing machine, typically under the table.
- Connect the motor cable to the appropriate socket on the back of the controller. The controller has different wiring sockets to accommodate various working needs.
- Connect the foot pedal cable to its designated socket on the controller.
- If using an optional LED light (not included), connect it to the designated LED light port on the controller.
- Plug the controller's power cord into a standard 110V electrical outlet.
4 pav.: galinis view of the controller showing various wiring sockets for different connections.
6. Operacija
This section details how to operate your BINELUCOLU servo motor.
6.1 Maitinimo įjungimas/išjungimas
- To power on, flip the red switch on the controller to the 'ON' position. The LED display will illuminate.
- To power off, flip the red switch to the 'OFF' position.

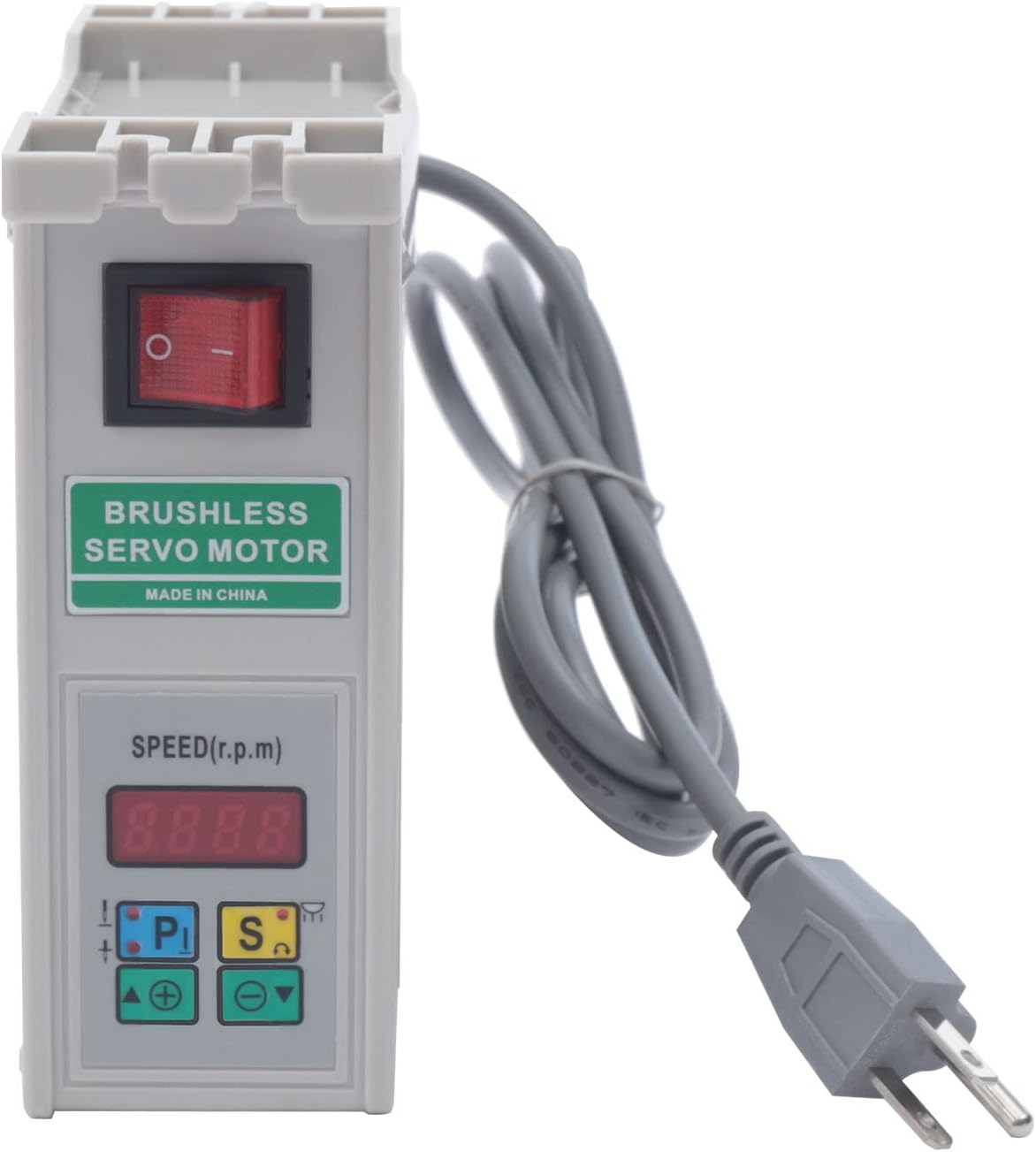

Figure 5: The controller's front panel, featuring the LED screen and red power switch for easy operation.
6.2 greičio reguliavimas
- The controller features an LED screen and touch-sensitive buttons for speed adjustment.
- Use the '+' and '-' buttons to increase or decrease the motor speed. The speed can be adjusted in steps of 100 stitches/minute within the 500-4500 RPM range.
- The independent speed control lever on the motor allows for fine-tuning and increased pedal sensitivity. Adjust the spring position on the lever to modify elasticity and responsiveness.
6.3 Krypties keitimas
The motor supports both clockwise and anti-clockwise rotation. Refer to the controller's specific buttons (e.g., 'P' or 'S' buttons, if indicated on the device) or the detailed English manual included in the package for instructions on how to change the rotation direction.
6.4 LED Light Control (Optional)
If an LED light is connected, the controller offers five adjustable brightness options. Consult the controller's interface or the detailed manual for specific button functions to control the LED light.
6.5 Veiklos pabaigaview
Peržiūrėkite šį vaizdo įrašą, kad gautumėte vaizdinę apžvalgąview of the servo motor's features and operation.
Video 1: Features of the 110V Energy Saving Brushless Servo Motor. This video demonstrates the LED screen, touch-sensitive buttons for intuitive operation, the red power switch, various wiring sockets on the back for different needs, the magnetic steel sleeve for high-speed rotation stability, the four-screw fixing mechanism for stability, the stepless speed adjustment lever, vibration-absorbing pads to reduce noise and wear, and the high-quality copper wire motor.
7. Priežiūra
Regular maintenance ensures optimal performance and extends the lifespan of your servo motor:
- Valymas: Periodically wipe down the motor and controller with a dry, soft cloth. Do not use liquid cleaners or solvents.
- Patikra: Regularly check all connections and mounting screws to ensure they are secure. Inspect the drive belt for wear and tear.
- Vėdinimas: Ensure the motor's cooling vents are free from dust and debris to prevent overheating.
- Vibration-absorbing pads: The motor is equipped with vibration-absorbing pads to reduce motor vibration, noise, wear, and tear. Inspect these pads periodically for damage and replace if necessary.
8. Problemų sprendimas
Jei kyla problemų, žr. toliau pateiktas dažniausiai pasitaikančias problemas ir sprendimus:
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Variklis neužsiveda | Nėra maitinimo, atsilaisvinęs kontaktas, išjungtas maitinimo jungiklis | Check power cord, ensure all cables are securely connected, turn on the power switch. |
| Irregular speed or poor control | Incorrect speed setting, foot pedal issue, motor lever adjustment | Adjust speed using controller buttons, check foot pedal connection, adjust the motor's speed control lever. |
| Neįprastas triukšmas ar vibracija | Loose mounting, worn belt, foreign object | Tighten mounting screws, inspect and replace belt if worn, check for obstructions. |
| Perkaitimas | Blocked ventilation, prolonged heavy use | Clear vents, allow motor to cool down, reduce load if consistently overheating. |
Jei problema išlieka ir išbandžius šiuos sprendimus, susisiekite su klientų aptarnavimo tarnyba.
9. Garantija ir palaikymas
The BINELUCOLU SMSM-01 600W Brushless Servo Motor comes with a standard manufacturer's warranty. For specific warranty terms, please refer to the warranty card included with your product or contact BINELUCOLU customer service. For technical support, troubleshooting assistance, or spare parts, please reach out to your retailer or the manufacturer directly.
