ROARBATT 2300W galios keitiklio naudotojo vadovas

1. Įvadas

Thank you for choosing the ROARBATT 2300W Power Inverter. This device is designed to convert 12V DC power from your vehicle battery or solar system into 110V/120V AC household power, providing a reliable energy source for various electronic devices during outdoor activities, emergencies, or while on the go. This manual provides essential information for the safe and efficient operation of your inverter.

2. Pakuotės turinys

Atidarę pakuotę, patikrinkite, ar yra visi toliau išvardyti daiktai ir ar jie yra geros būklės:

• 1 x ROARBATT 2300W Power Inverter
• 1 x Pair of Battery Cables (Red and Black)
• 1 x Vartotojo vadovas

3. Sąranka ir diegimas

Proper installation is crucial for the safe and optimal performance of your power inverter. Please follow these steps carefully:

1. Paruoškite keitiklį: Įsitikinkite, kad keitiklio maitinimo jungiklis yra padėtyje „OFF“ (išjungta).
2. Prijunkite akumuliatoriaus laidus prie keitiklio:

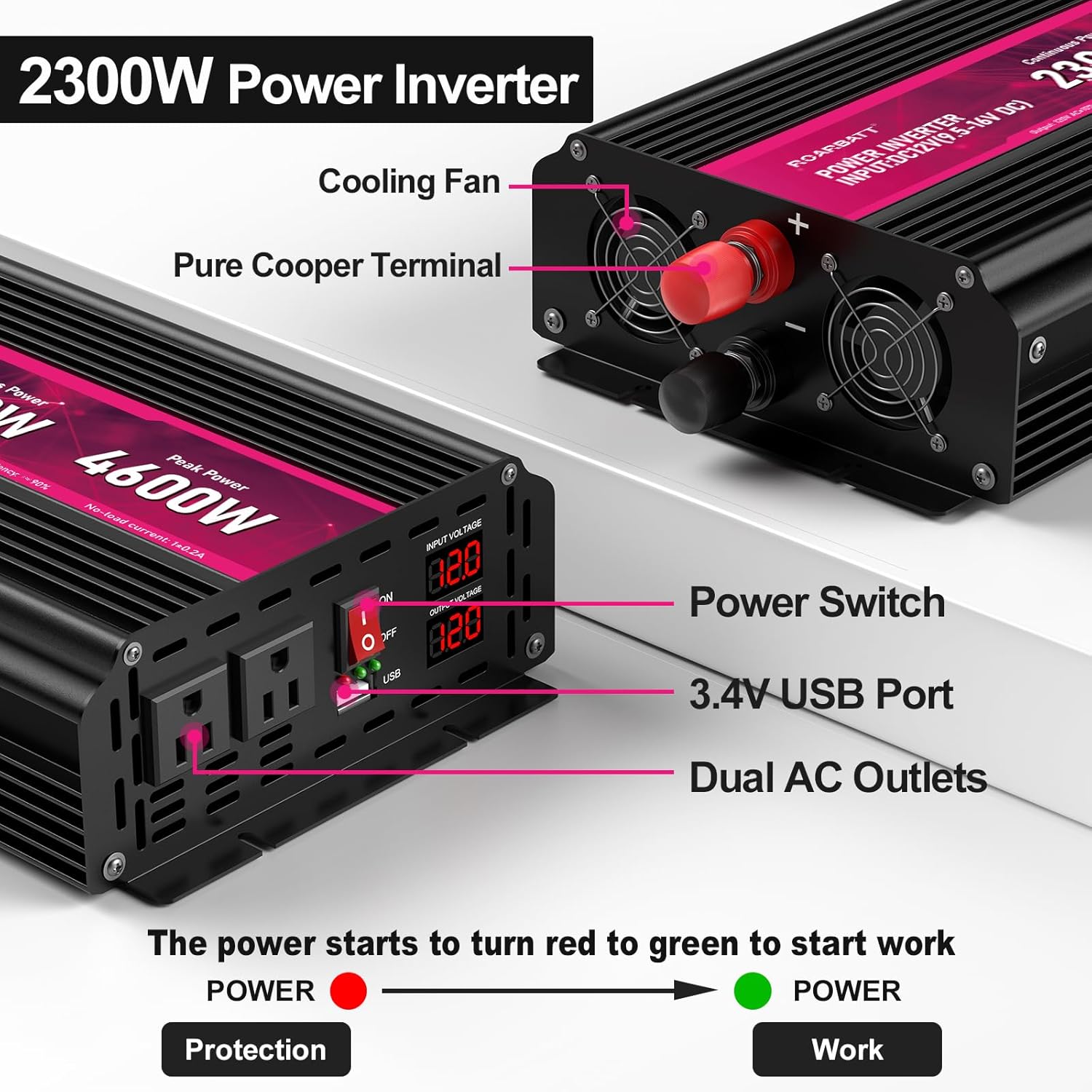

   Vaizdas: Stambus planas view of the inverter's rear panel showing the positive (red) and negative (black) terminals, along with the cooling fans. The image illustrates where the battery cables should be connected.


   Connect the red battery cable to the positive (+) terminal on the inverter and the black battery cable to the negative (-) terminal on the inverter. Ensure connections are tight and secure to prevent overheating and power loss.
3. Prijunkite akumuliatoriaus laidus prie akumuliatoriaus:
   Connect the other end of the red battery cable to the positive (+) terminal of your 12V battery. Connect the other end of the black battery cable to the negative (-) terminal of your 12V battery. Again, ensure all connections are firm and secure.
4. Vėdinimas: Place the inverter in a well-ventilated area, away from direct sunlight, heat sources, and flammable materials. Ensure the cooling fans are not obstructed.

For a visual guide on the connection process, please refer to the video below:

4. Naudojimo instrukcijos

Once the inverter is properly installed, you can begin using it to power your devices.

4.1 Įjungimas / išjungimas

• To turn on the inverter, switch the power button to the "ON" position. The LCD display will illuminate, showing input and output voltage.
• To turn off the inverter, switch the power button to the "OFF" position.

4.2 Using AC Outlets and USB Ports

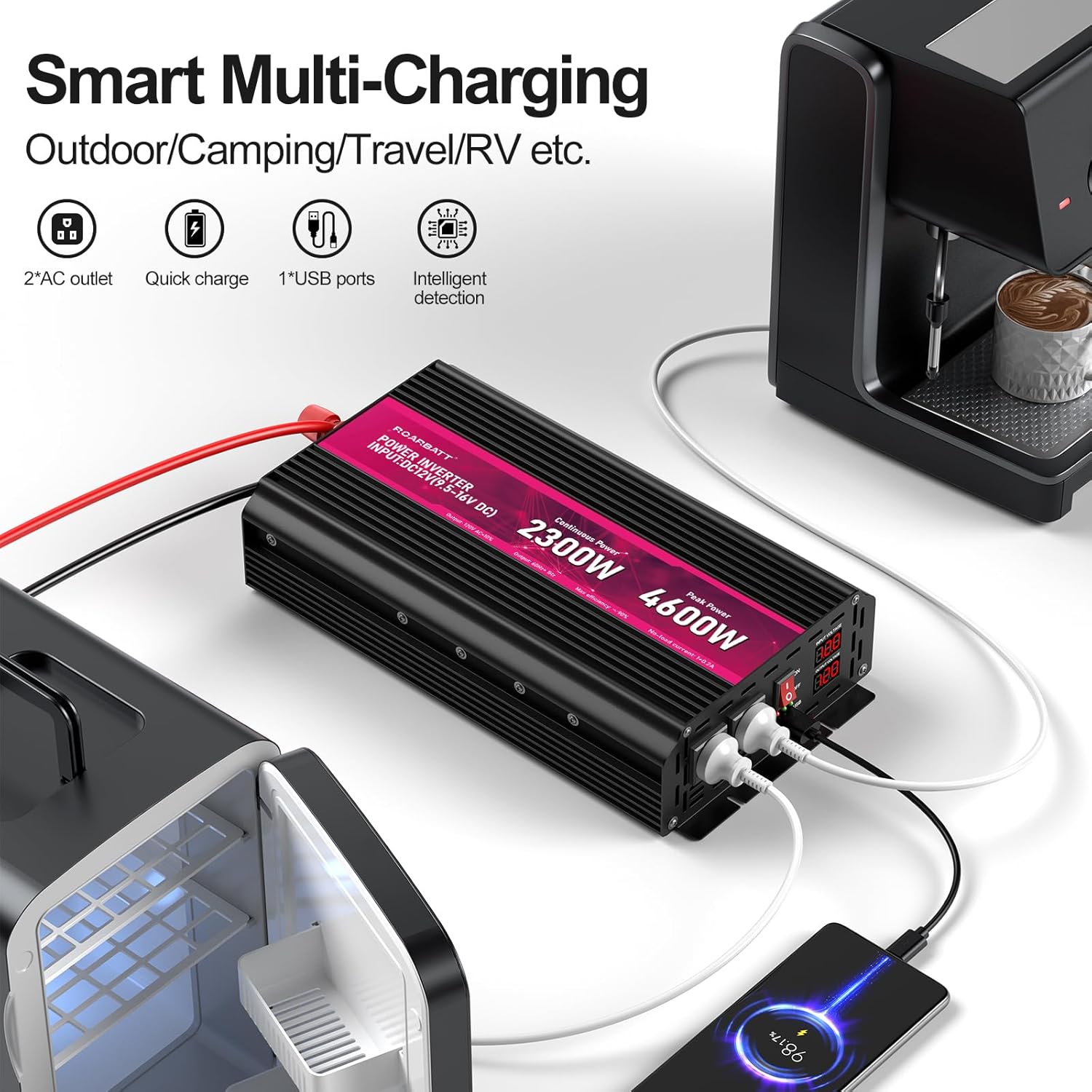

Image: The inverter connected to a battery, powering a smartphone via USB and a small refrigerator and coffee maker via AC outlets, demonstrating its multi-charging capabilities for outdoor and campnaudojant.

• Plug your 110V/120V AC devices into the two AC outlets on the inverter.
• Connect your USB-powered devices to the 2.4A USB port for charging.
• Ensure the total power consumption of all connected devices does not exceed the inverter's continuous rated power of 2300W.

4.3 LCD ekrano funkcijos

Image: The inverter's LCD display showing input and output voltage readings, along with indicators for various protection features such as overvoltage, overload, overcurrent, short circuit, low voltage, and abnormal temperature.

LCD ekrane pateikiama realiuoju laiku informacija apie keitiklio būseną:

• Įvesties tomastage: Rodo dabartinį nuolatinės srovės įvesties garsumątage iš akumuliatoriaus.
• Išėjimas ttage: Rodo esamą kintamosios srovės išėjimo tūrįtage.
• Apsaugos indikatoriai: The display will show error codes (e.g., LO for low input voltage, OH for overheat, HI for over input voltage, OL for overload) to indicate protection activation.

4.4 Wide Application

Image: A collage showing the inverter powering various household and portable electronic devices, including a hot pot, handheld vacuum, camera, smartphone, hair dryer, and a portable refrigerator, illustrating its versatility.

The 2300W inverter is suitable for a wide range of applications, including:

• Powering small appliances and electronics in RVs, trucks, and cars.
• Atsarginės energijos tiekimas darbo metutages ar ekstremaliomis situacijomis.
• Supporting solar power generation systems.
• Idealiai tinka camping, outdoor activities, and remote work setups.

5. Saugos priemonės

To ensure safe operation and prolong the life of your inverter, please observe the following precautions:

• Neatidarykite keitiklio casing. Viduje nėra dalių, kurias galėtų aptarnauti vartotojas.
• Keep the inverter away from water, moisture, and extreme temperatures.
• Ensure adequate ventilation around the inverter to prevent overheating. Do not block the cooling fan vents.


  Image: An illustration highlighting the built-in cooling fans of the inverter, showing air circulation to effectively dissipate heat and ensure safe operation.
• Do not connect the inverter to AC power sources. It is designed for DC input only.
• Always connect the inverter to a 12V DC power source. Connecting to other voltaggali sugadinti įrenginį.
• Avoid overloading the inverter. The continuous power rating is 2300W, with a peak power of 4600W. Consider the starting (surge) power of appliances, especially those with motors.
• Kai nenaudojate, atjunkite keitiklį nuo akumuliatoriaus, kad išvengtumėte akumuliatoriaus išsikrovimo.
• Laikyti vaikams nepasiekiamoje vietoje.

6. Priežiūra

Regular maintenance helps ensure the longevity and reliable performance of your inverter:

• Valymas: Periodically wipe the exterior of the inverter with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Jungtys: Regularly check all cable connections to ensure they are tight and free from corrosion. Loose connections can lead to power loss and overheating.
• Vėdinimas: Ensure the cooling vents are clear of dust and debris. Use compressed air to clean the fan area if necessary.
• Saugykla: Jei keitiklį ketinate laikyti ilgesnį laiką, atjunkite jį nuo akumuliatoriaus ir laikykite vėsioje, sausoje vietoje.

7. Problemų sprendimas

If you encounter issues with your ROARBATT Power Inverter, refer to the following common problems and solutions:

8. Specifikacijos

Key technical specifications for the ROARBATT 2300W Power Inverter:

Image: A diagram illustrating the physical dimensions of the inverter, showing its length (12.3 inches), width (7 inches), and height (2.9 inches).

9. Garantija ir palaikymas

ROARBATT is committed to providing high-quality products and excellent customer service. Your 2300W Power Inverter comes with a standard warranty. Please refer to the product packaging or contact ROARBATT customer service for specific warranty details.

If you have any questions, require technical assistance, or need to report an issue, please contact our customer service team. We offer 24-hour customer service support to ensure your satisfaction.

Kontaktinė informacija:

• Please refer to your purchase platform or product packaging for the most current contact details.
