EcoChannels 17 x 19 Inch Drop-in Bar Sink Instruction Manual

Įvadas

This manual provides essential information for the proper installation, operation, and maintenance of your EcoChannels 17 x 19 Inch Drop-in Bar Sink. Please read these instructions thoroughly before beginning installation or use to ensure optimal performance and longevity of your product.

The EcoChannels workstation sink is crafted from T304 stainless steel with an 18% chromium content, featuring a nano PVD gunmetal black finish for enhanced durability and resistance to scratches and fading. Its design includes a single-level track for accessories, an R10 smooth arc surface for easy cleaning, and anti-condensation/acoustic coatings for improved functionality.

Pakuotės turinys

Prieš pradėdami diegti, patikrinkite, ar yra visi komponentai:

• 17" W x 19" D Single Bowl Topmount Sink
• Drenažo sietelis
• Bottom Rinse Grid
• Pjovimo lenta
• Iškirpimo šablonas
• Montavimo laikikliai
• Diegimo vadovas (šis dokumentas)

Image: The EcoChannels 17x19 Inch Drop-in Bar Sink shown with its complete set of accessories, including the cutting board, drain strainer, and bottom rinse grid.

Sąranka ir diegimas

This section outlines the general steps for installing your drop-in sink. Professional installation is recommended.

1. Paruoškite stalviršį: Use the provided cutout template to mark and cut the opening in your countertop. Ensure the dimensions match the sink's exterior measurements (17" W x 19" D).
2. Užtepkite sandariklį: Apply a bead of silicone sealant around the perimeter of the countertop cutout.
3. Kriauklės padėtis: Carefully lower the sink into the cutout, ensuring it is properly aligned. Press down firmly to create a seal with the sealant.
4. Sumontuokite tvirtinimo kronšteinus: Attach the mounting brackets to the underside of the sink rim and tighten them against the countertop. There are 10 mounting clips around the sink. Refer to the installation video for detailed steps on securing the clips.
5. Santechnikos prijungimas: Connect the drain strainer to your plumbing system. Ensure all connections are secure and watertight.
6. Įdiekite maišytuvą: Install your chosen faucet according to its manufacturer's instructions, using the pre-drilled hole in the sink.

Mounting Clip Installation Video

Video: This video demonstrates the correct method for bending and securing the mounting clips to install the sink to the countertop.

Image: A detailed diagram illustrating the exterior and interior dimensions of the EcoChannels 17x19 Inch Stainless Steel Kitchen Sink, including the cutout size for installation.

Operating the Workstation Sink

Your EcoChannels workstation sink is designed for versatility and efficiency in your kitchen tasks.

• Workstation Track: The integrated single-level track allows you to slide accessories such as the cutting board and colander across the sink, maximizing your countertop space.
• Pjovimo lenta: Use the solid wood cutting board directly over the sink for food preparation, allowing scraps to be easily swept into the sink.
• Bottom Rinse Grid: Place the bottom rinse grid in the sink to protect the sink's surface from scratches and allow water to drain freely beneath dishes.
• Drain Strainer: The standard 3.5-inch drain strainer effectively catches food debris, preventing clogs.

Workstation Sink Features in Use Video

Video: This video demonstrates the practical use of the workstation sink, showcasing the sliding accessories like the colander and cutting board for various kitchen tasks.

Image: The EcoChannels 17x19 Inch Drop-in Bar Sink seamlessly integrated into a kitchen countertop, featuring the cutting board in place and a modern faucet.

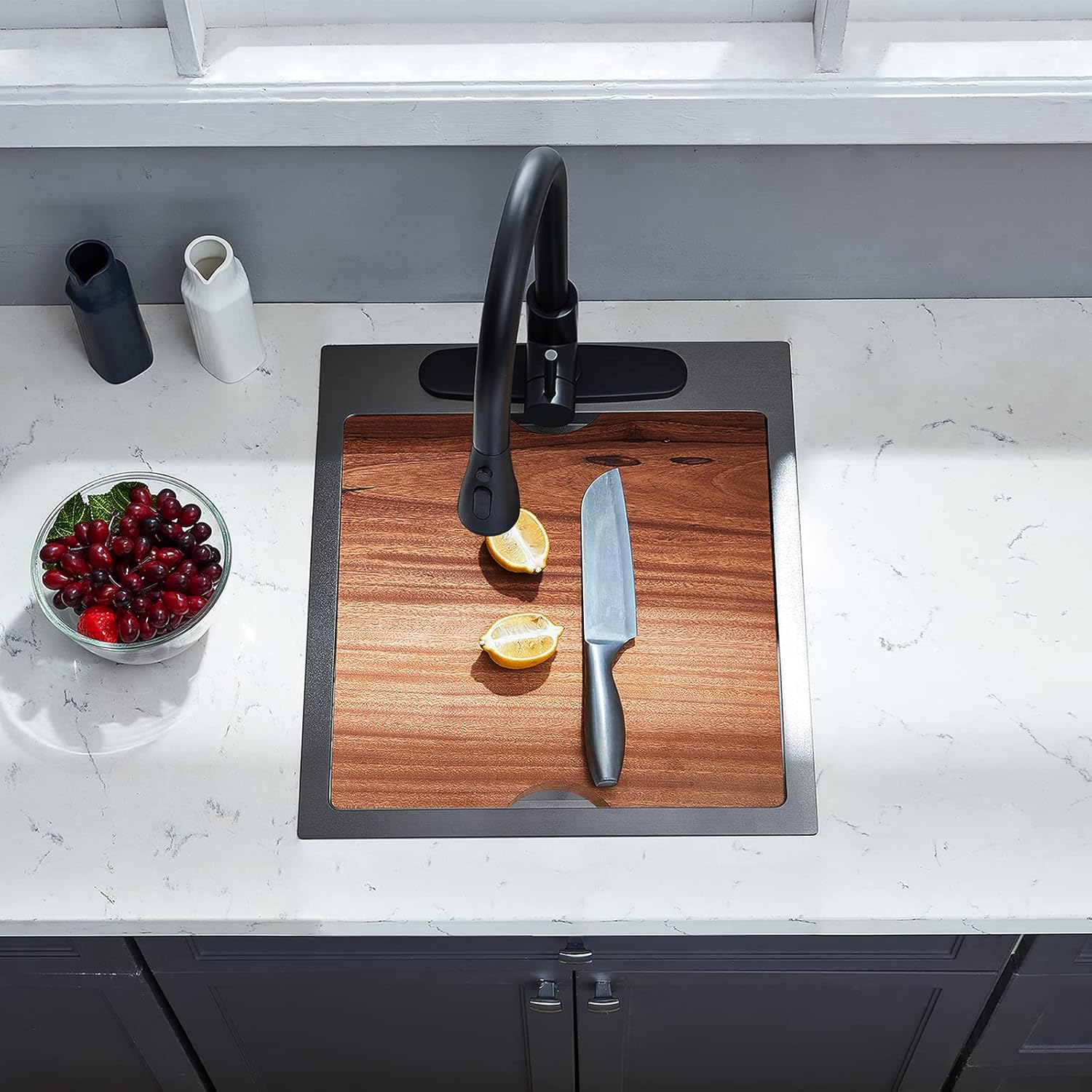

Paveikslėlis: Viršutinė dalis view of the EcoChannels 17x19 Inch Drop-in Bar Sink with the cutting board positioned over the basin, ready for food preparation.

Image: The EcoChannels 17x19 Inch Drop-in Bar Sink shown with the bottom rinse grid installed, protecting the sink's base and facilitating drainage.

Priežiūra ir priežiūra

Proper care will maintain the appearance and functionality of your EcoChannels sink.

• Kasdienis valymas: Use a soft towel and warm water to wipe the sink after each use. For stubborn spots, a mild dish soap can be used.
• Venkite abrazyvų: Do not use abrasive cleaners, steel wool, or harsh chemicals, as these can damage the nano PVD finish.
• Apsaugokite nuo įbrėžimų: Avoid scratching the sink with sharp utensils. The bottom rinse grid helps protect the sink's base.
• Cutting Board Care: The solid wood cutting board should be hand-washed and dried immediately after use. Periodically oil the cutting board to maintain its condition and prevent warping.
• Anti-Condensation: The anti-condensation coating helps protect your cabinet from moisture, but it is still advisable to ensure good ventilation under the sink.

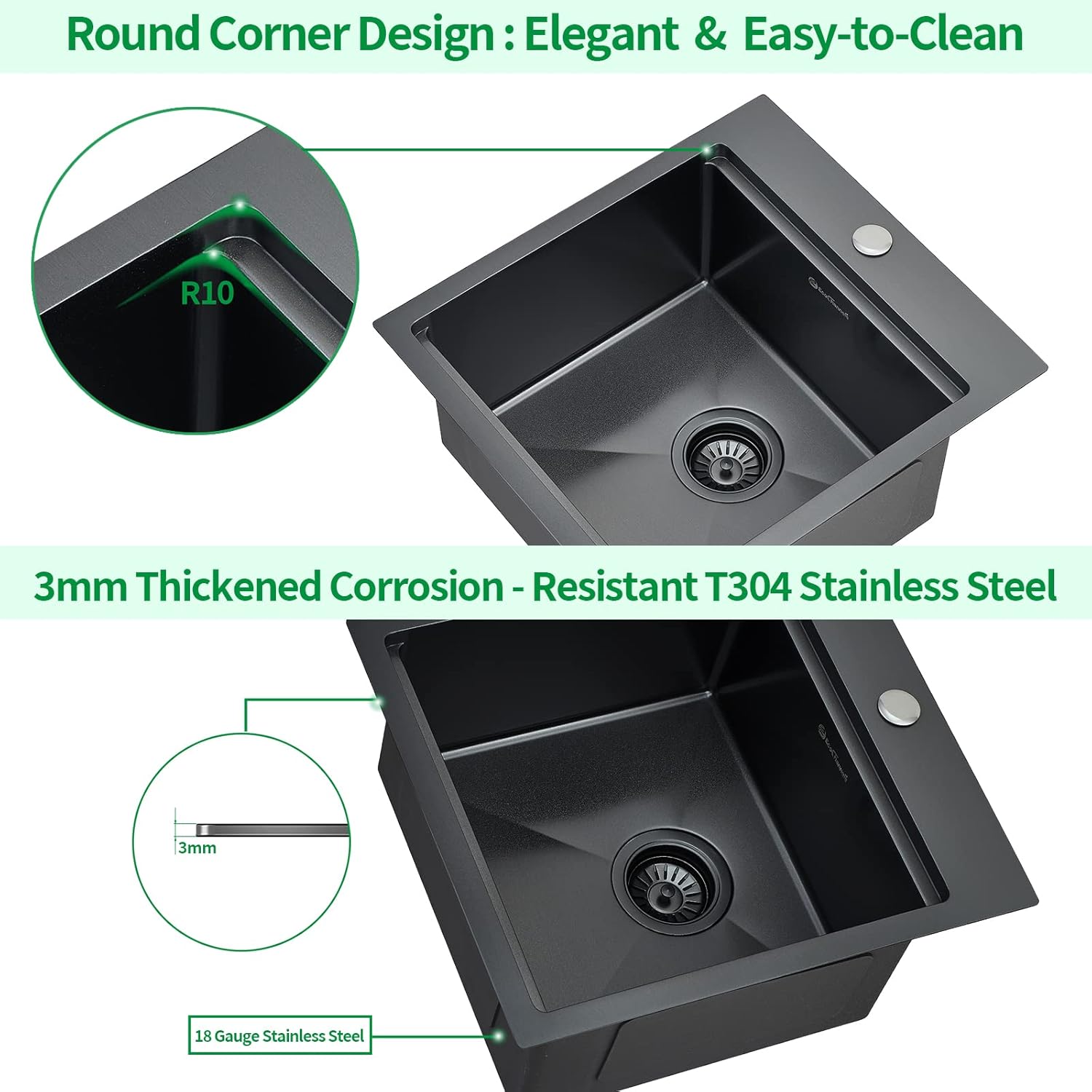

Vaizdas: Stambus planas view highlighting the R10 rounded corner design for easy cleaning and the 3mm thickened T304 stainless steel construction of the EcoChannels sink.

Image: Visual representation of the sink's fast and complete drainage system, featuring the X-innovation drainage groove, bottom slope design, and the hydrophobic Nano-PVD black coating.

Image: An illustration of the underside of the EcoChannels sink, pointing out the rubber mute pads for noise reduction and the non-toxic, odorless anti-condensation coating.

Trikčių šalinimas

If you encounter any issues with your EcoChannels sink, please review the installation steps and ensure all connections are secure. For persistent problems or concerns, contact EcoChannels customer support for assistance.

Specifikacijos

Garantija ir palaikymas

Garantija: The EcoChannels 17 x 19 Inch Drop-in Bar Sink comes with a Limited Lifetime Warranty. Please retain your proof of purchase for warranty claims.

Klientų aptarnavimas: For any questions, technical assistance, or warranty inquiries, please contact EcoChannels customer support. Refer to the product packaging or the official EcoChannels websvetainė kontaktinei informacijai.
