TBVECHI 125CC 4-Stroke Engine (1P52FMI) Instruction Manual

1. Įvadas

This manual provides essential information for the proper installation, operation, and maintenance of your TBVECHI 125CC 4-Stroke Engine (model 1P52FMI). Please read this manual thoroughly before attempting any installation or operation to ensure safety and optimal performance. This engine is designed for compatibility with various Honda models, including the XR50 and XR70.

2. Saugos informacija

WARNING: Professional installation is highly recommended for this product. Improper installation or use can lead to serious injury or damage to the engine and vehicle.

• Always wear appropriate personal protective equipment (PPE) including gloves and eye protection during installation and maintenance.
• Ensure the vehicle is stable and secured before beginning any work.
• Prieš atlikdami elektros darbus, atjunkite akumuliatorių.
• Allow the engine to cool completely before performing maintenance to avoid burns.
• Handle fuel with extreme care in a well-ventilated area, away from open flames or sparks.
• Vaikus ir gyvūnus laikykite toliau nuo darbo zonos.

3. Pakuotės turinys

Verify that all components listed below are present in your package. If any parts are missing or damaged, contact your seller immediately.

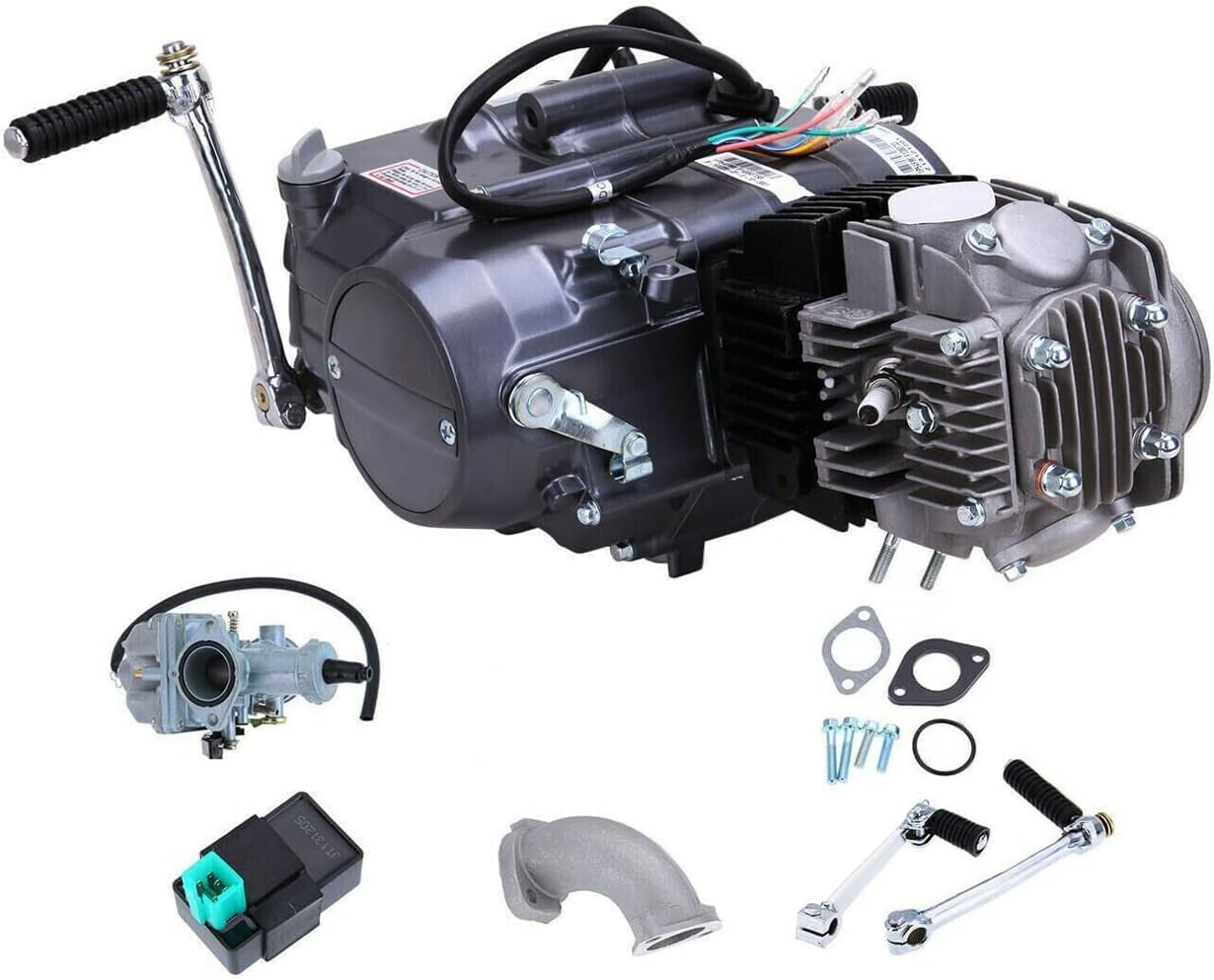

Image: The TBVECHI 125CC engine shown with its accompanying parts, including the carburetor, CDI unit, intake manifold, kick starter lever, gear shift lever, and various gaskets and screws.

• 1 x 125CC Engine (1P52FMI)
• 1 x Kick Starter Lever
• 1 x Gear Shift Lever
• 1 x Carburetor (PZ16J type)
• 1 x Intake Manifold
• 1 x CDI (Capacitor Discharge Ignition) Unit
• 2 x Intake Gaskets
• Įvairūs varžtai ir tvirtinimo detalės

4. Produktas baigtasview

The TBVECHI 125CC 4-Stroke Engine is a single-cylinder, air-cooled unit designed for various small motorcycles and powersports applications. It features a hand-operated clutch and a kick-starter ignition system.

Paveikslėlis: Detalus šoninis vaizdas view of the TBVECHI 125CC engine, highlighting the magneto cover and the drive sprocket area.

4.1 Pagrindinės savybės

• Variklio tipas: Single cylinder, 4-stroke, air-cooled with hand-operated clutch.
• Uždegimo sistema: CDI (Capacitor Discharge Ignition).
• Pradinis režimas: Kick-starter.
• Sankaba: Wet multi-plate.
• Carburetor Type: PZ16J.

4.2 Suderinamumas

This engine is compatible with a wide range of Honda models. Please verify fitment with your specific vehicle before purchase and installation. Professional consultation is recommended if unsure.

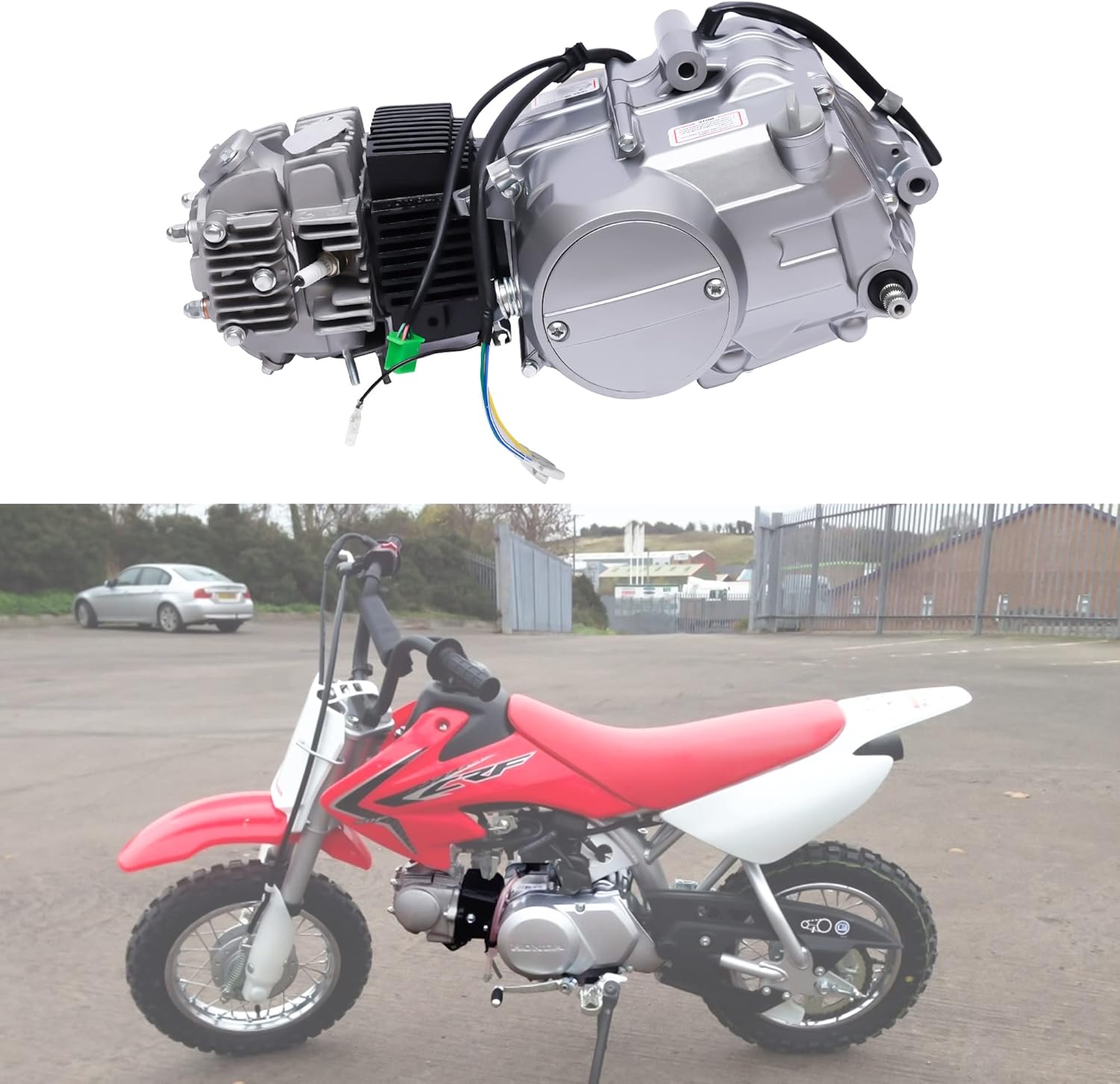

Image: The TBVECHI 125CC engine displayed alongside a dirt bike, illustrating a typical application for this engine type.

Žinomi suderinami modeliai:

• Honda CRF50 / CRF70 / XR50 / XR70
• Honda Z50 / Z50R / CT70 Mini Trail / Minitrail Monkey
• Honda XL70 / ST70 / QA50 / QR50 / CL70 / SL70
• Honda 70 Passport / ST 90K2 / ST 90K1 / CS 90 / SL 90 / ZB 50

4.3 produkto vaizdo įrašas

5. Sąranka ir diegimas

Installation of an engine requires mechanical expertise. If you are not confident in your abilities, seek assistance from a qualified mechanic.

5.1 Bendrieji diegimo veiksmai (santrauka)

1. Paruošimas: Ensure the vehicle is clean and stable. Remove the old engine if applicable.
2. Montavimas: Carefully position the new engine into the frame. Secure it using appropriate mounting hardware.
3. Carburetor Installation: Attach the carburetor to the intake manifold, ensuring all gaskets are properly seated. Connect the fuel line and throttle cable.
4. Išmetimo sistema: Connect the exhaust pipe to the engine.
5. Elektros jungtys: Norėdami sužinoti teisingas jungtis, žiūrėkite laidų schemą.
6. Skysčio užpildymas: Fill the engine with the recommended type and amount of engine oil.
7. Patikrinimai prieš paleidimą: Double-check all connections, fluid levels, and ensure no tools or debris are left in the engine area.

5.2 Sujungimo schema

The following diagram illustrates the typical wiring connections for the CDI ignition system. Ensure all connections are secure and correctly matched to prevent electrical issues.

Image: A visual guide detailing the wiring connections for the engine's electrical components, including trigger, ground, ignition, and lighting lines.

Vaizdas: Stambus planas view of the engine's wiring harness and connector, showing the individual wires and their connection points.

6. Naudojimo instrukcijos

Once the engine is installed and all pre-start checks are complete, you can proceed with starting and operating the engine.

6.1 Variklio užvedimas

1. Ensure the fuel petcock is open.
2. Jei variklis šaltas, prireikus paspauskite droselį.
3. Engage the kick-starter firmly and smoothly until the engine starts.
4. Once started, gradually disengage the choke as the engine warms up.

6.2 Pavarų perjungimas

This engine features a 4-speed transmission. The gear shift pattern is typically 1-N-2-3-4 (all up or 1 down, 3 up). Refer to the gear position indicator on the engine casing.

Image: A sticker on the engine casing indicating the gear shift pattern and a warning that gear shifting is prohibited unless the accelerator is loosened.

Important: Gear shifting is prohibited unless the accelerator is loosened to prevent damage to the transmission.

7. Priežiūra

Regular maintenance is crucial for the longevity and reliable performance of your engine.

• Alyvos keitimai: Check engine oil level regularly and change oil according to the vehicle manufacturer's recommendations or every 10-20 hours of operation for new engines, then every 50 hours. Use recommended 4-stroke engine oil.
• Uždegimo žvakė: Inspect and clean the spark plug periodically. Replace if worn or fouled. Recommended spark plug: A7TC.
• Oro filtras: Clean or replace the air filter element regularly, especially when operating in dusty conditions.
• Grandinės priežiūra: Keep the drive chain properly tensioned and lubricated.
• Tvirtinimo detalės: Periodiškai patikrinkite ir priveržkite visas veržles, varžtus ir tvirtinimo detales.

8. Specifikacijos

9. Problemų sprendimas

This section addresses common issues you might encounter. For complex problems, consult a professional mechanic.

• Variklis neužsiveda:
  • Check fuel level and ensure petcock is open.
  • Verify spark plug is clean and producing spark.
  • Ensure carburetor is receiving fuel and not clogged.
  • Check CDI unit and wiring connections.
• Galios praradimas:
  • Patikrinkite oro filtrą, ar nėra užsikimšimų.
  • Check fuel quality and delivery.
  • Examine spark plug condition.
• Per didelis dūmų kiekis:
  • Blue smoke indicates oil burning (check oil level, piston rings).
  • Black smoke indicates rich fuel mixture (check carburetor adjustment, air filter).

10. Garantija ir palaikymas

For warranty information, returns, or technical support, please contact the seller or manufacturer directly. Keep your purchase receipt and product details readily available when contacting support.

Manufacturer: TBVECHI

Model Number: BGV35HA
