Bacharach Water Trap Filters User Manual

1. Įvadas

This manual provides essential information for the proper use, installation, and maintenance of Bacharach Water Trap Filters. Please read this manual thoroughly before using the product to ensure safe and efficient operation. Retain this manual for future reference.

2. Produktas baigtasview

Bacharach Water Trap Filters are designed to protect sensitive equipment by effectively removing moisture and particulate matter from gas streams. These filters are crucial for maintaining the accuracy and longevity of various analytical instruments.

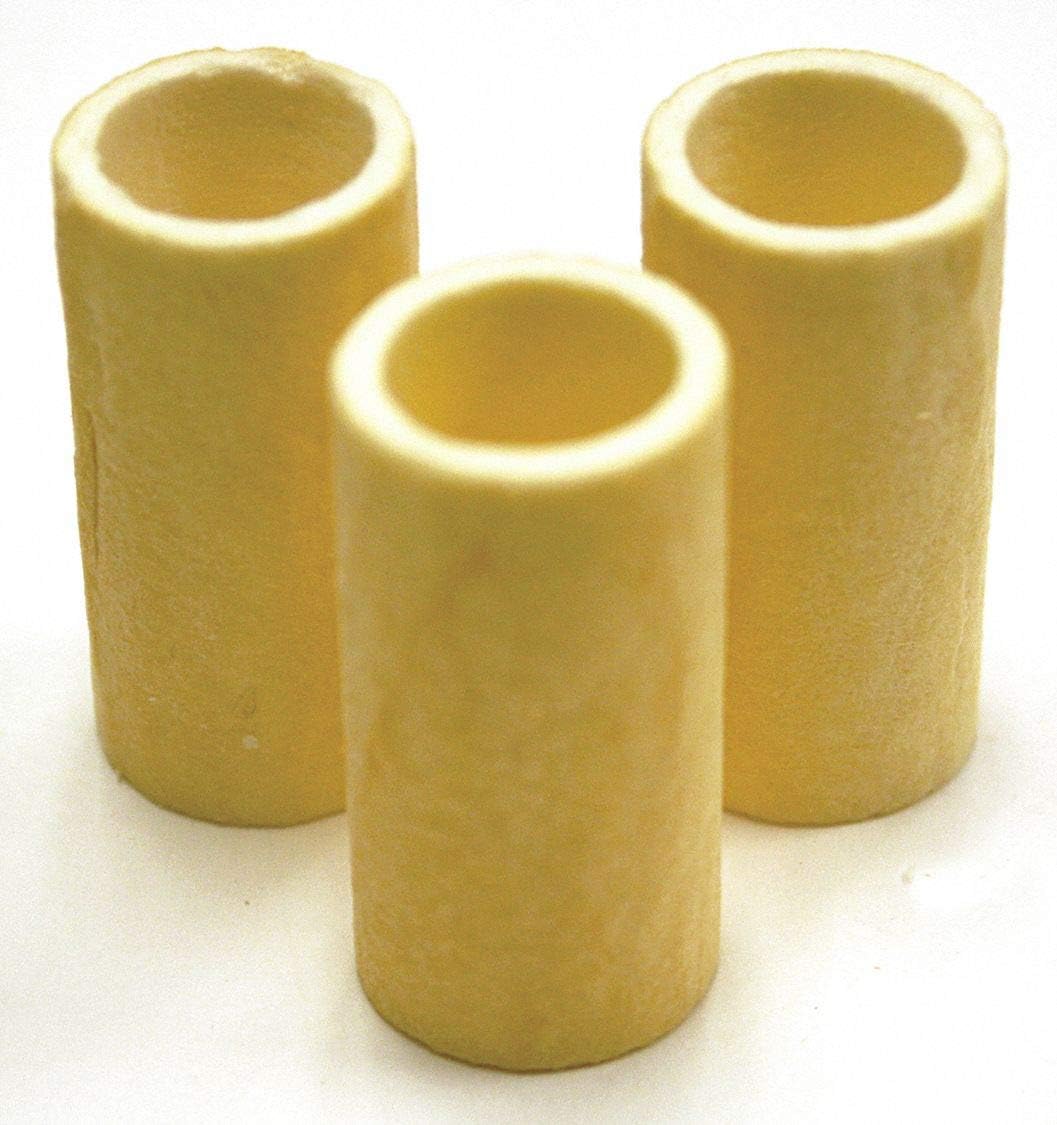

Figure 2.1: Three Bacharach Water Trap Filters. These cylindrical, porous filters are designed to absorb moisture and trap particulates from gas samples, ensuring clean flow to analytical instruments.

3. Sąranka ir diegimas

Proper installation of the water trap filter is critical for optimal performance. Follow these steps carefully:

1. Identify the Water Trap Housing: Locate the designated water trap housing or filter compartment on your Bacharach instrument. Refer to your instrument's specific user manual for its exact location.
2. Paruoškite plotą: Ensure the instrument is powered off and disconnected from any gas sources before proceeding. Work in a clean, dry environment to prevent contamination.
3. Išimkite seną filtrą (jei taikoma): Carefully open the water trap housing. If an old filter is present, gently remove it, noting its orientation. Dispose of used filters according to local regulations.
4. Įterpti naują filtrą: Take a new Bacharach Water Trap Filter. Insert the filter into the housing, ensuring it is seated correctly and securely. The filter should fit snugly without excessive force.
5. Uždaryti būstą: Securely close the water trap housing. Ensure all seals are properly seated to prevent leaks.
6. Prijunkite iš naujo ir patikrinkite: Reconnect the instrument to its gas source and power. Perform a system check as per your instrument's manual to confirm proper installation and leak-free operation.

Pastaba: Always handle filters with clean hands or gloves to avoid introducing contaminants.

4. Veikimo aspektai

Once installed, the water trap filter operates passively as part of your instrument's gas path. No direct user interaction is required during normal operation. The filter continuously removes moisture and particulates from the gas stream.

• Aplinkos sąlygos: Ensure the instrument and filter operate within the recommended environmental conditions specified in your instrument's manual. Extreme humidity or temperature fluctuations can affect filter lifespan.
• Dujų srautas: Maintain gas flow rates within the instrument's specified limits. Excessive flow can reduce filtration efficiency or damage the filter.

5. Priežiūra ir keitimas

Water trap filters are consumable items and require periodic replacement to ensure optimal instrument performance and prevent damage from moisture or particulates. The replacement interval depends on usage and environmental conditions.

5.1. Pakeitimo grafikas

Refer to your specific Bacharach instrument's user manual for the recommended filter replacement schedule. General guidelines include:

• Routine Replacement: Replace filters at the intervals recommended by Bacharach for your specific instrument model (e.g., every 3-6 months, or after a certain number of operating hours).
• Pagal poreikį: Replace filters immediately if you observe any signs of moisture breakthrough, reduced instrument performance, or if the filter appears discolored or saturated.

5.2. Pakeitimo procedūra

The replacement procedure is identical to the initial installation process described in Section 3. Always use genuine Bacharach replacement filters to ensure compatibility and performance.

6. Problemų sprendimas

Most issues related to water trap filters can be resolved by proper installation and timely replacement. If you encounter problems, consider the following:

If problems persist after following these steps, contact Bacharach technical support or your authorized service provider.

7. Specifikacijos

The following specifications apply to Bacharach Water Trap Filters (Model B07NS45MN4):

• Produkto tipas: Water Trap Filter
• Prekinis ženklas: Bacharach
• Modelio numeris: B07NS45MN4
• Funkcija: Removes moisture and particulates from gas streams
• Suderinamumas: Designed for use with compatible Bacharach analytical instruments. Refer to your instrument's manual for specific filter requirements.
• Medžiaga: Porous absorbent material (specific composition may vary by batch)
• Matmenys: (Approximate, refer to product packaging for precise measurements)

8. Garantija ir palaikymas

For information regarding product warranty, technical support, or to order replacement filters, please visit the official Bacharach website or contact their customer service department. Always provide the model number (B07NS45MN4) when seeking support.

Bacharach Official Websvetainė: www.bacharach.com
