Greenworks GD40LM46SP 40V Cordless Lawn Mower User Manual

1. Įvadas

Thank you for choosing the Greenworks GD40LM46SP 40V Cordless Lawn Mower. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new lawn mower. Please read this manual thoroughly before first use and keep it for future reference.

The Greenworks GD40LM46SP is a powerful 40V battery-powered lawn mower designed for medium to large lawns up to 600 m². It features a brushless motor for extended power and runtime, a 46 cm cutting width, and a 55-liter grass collection bag. This model offers 3-in-1 functionality: mulching, side discharge, and rear collection.

Figure 1.1: Greenworks GD40LM46SP 40V Cordless Lawn Mower.

2. Svarbi saugos informacija

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. Read all instructions before operating this product.

Bendrosios saugos taisyklės:

• Perskaitykite vadovą: Susipažinkite su visais valdikliais ir tinkamu jų naudojimu.
• Dėvėkite akių apsaugą: Dirbdami su žoliapjove, visada dėvėkite apsauginius akinius arba apsauginius akinius.
• Dėvėkite tinkamus drabužius: Do not wear loose clothing or jewelry. Wear sturdy footwear and long pants.
• Laikyti teritoriją švarią: Laikykite visus pašalinius asmenis, vaikus ir naminius gyvūnus bent 15 metrų (50 pėdų) atstumu nuo darbo zonos.
• Prieš naudodami patikrinkite: Check the mower for damaged parts, loose fasteners, or any other condition that may affect its operation.
• Remove Objects: Clear the area of objects such as rocks, wire, or toys that could be thrown by the blade.
• Nedirbkite drėgnomis sąlygomis: Avoid operating the mower in rain or wet grass.
• Avoid Slopes: Pjaukite skersai šlaitų, niekada aukštyn ir žemyn. Būkite ypač atsargūs keisdami kryptį šlaituose.
• Atjunkite akumuliatorių: Valydami, atlikdami techninę priežiūrą ar sandėliuodami vejapjovę, visada išimkite akumuliatorių.
• Saugiai laikykite: Store the mower in a dry, secure place out of reach of children.

3. Pakuotės turinys

Your Greenworks GD40LM46SP lawn mower package typically includes the following items. Please check to ensure all components are present and undamaged.

• Greenworks GD40LM46SP Lawn Mower Unit
• Grass Collection Bag (55 Liters)
• Mulching Plug (pre-installed)
• Šoninis išmetimo latakas
• Naudotojo vadovas (šis dokumentas)

Note: This model is sold as a "tool only" package. Battery and charger are not included and must be purchased separately.

Figure 3.1: This product does not include a battery or charger.

4. Sąranka ir surinkimas

Prieš pirmąjį naudojimą atlikite šiuos veiksmus, kad surinktumėte vejapjovę.

4.1 Rankenos surinkimas

1. Unfold the lower handle section and secure it in place.
2. Attach the upper handle section to the lower handle using the provided bolts and knobs. Ensure the handle is firmly secured.
3. Adjust the handle height if applicable, and lock it into your preferred position. The handle is foldable for convenient storage.

4.2 Žolės surinkimo krepšio surinkimas

1. Assemble the grass bag frame and attach the fabric bag.
2. Lift the rear discharge flap on the mower.
3. Užkabinkite žolės surinkimo maišą ant vejapjovės galinės išmetimo angos. Įsitikinkite, kad jis tvirtai pritvirtintas.

4.3 Akumuliatoriaus įdėjimas

The mower requires a Greenworks 40V battery (2Ah or 4Ah recommended, up to 6Ah supported). Ensure the battery is fully charged before installation.

1. Atidarykite akumuliatoriaus skyriaus dangtelį, esantį žoliapjovės viršuje.
2. Sulygiuokite akumuliatorių bloką su akumuliatoriaus prievadu skyriuje.
3. Įstumkite akumuliatorių į prievadą, kol jis spragtelės ir užsifiksuos vietoje.
4. Saugiai uždarykite akumuliatoriaus skyriaus dangtelį.

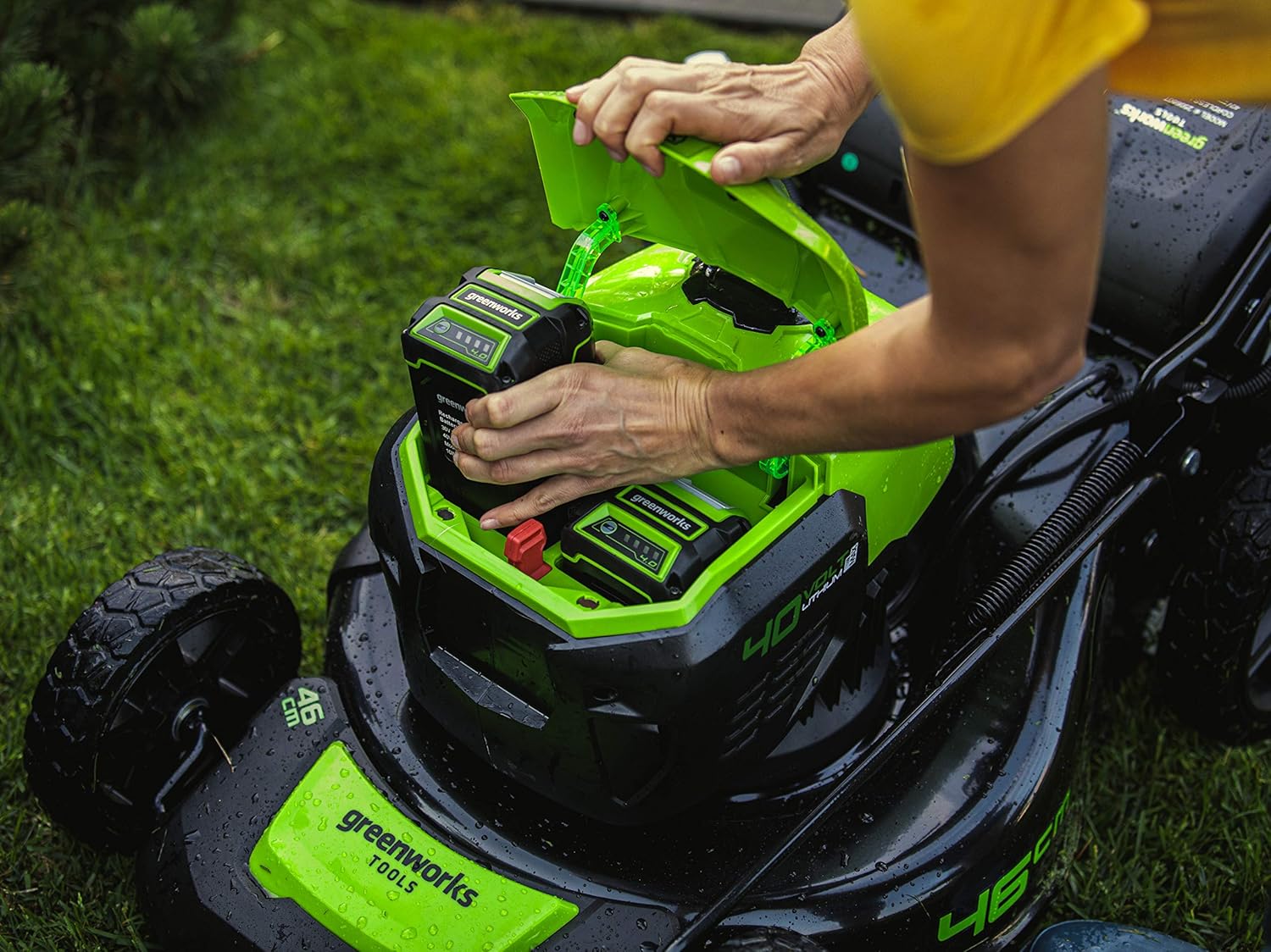

Figure 4.1: Correctly inserting the 40V battery into the mower's battery compartment.

5. Naudojimo instrukcijos

5.1 Vejapjovės paleidimas ir sustabdymas

1. Ensure the battery is installed and the battery compartment cover is closed.
2. Paspauskite ir palaikykite nuspaudę saugos mygtuką ant rankenos.
3. Laikydami nuspaustą saugos mygtuką, patraukite svirtį rankenos link. Variklis užsives.
4. To stop the mower, release the bail switch lever.

5.2 Pjovimo aukščio reguliavimas

The mower offers 7 cutting height positions, ranging from 25 mm to 80 mm.

1. Ensure the mower is off and the battery is removed for safety.
2. Locate the single-point height adjustment lever on the side of the mower.
3. Patraukite svirtį į išorę ir pastumkite ją pirmyn arba atgal, kad pasirinktumėte norimą pjovimo aukštį.
4. Atleiskite svirtį, kad užfiksuotumėte ją reikiamoje padėtyje.

5.3 Mowing Techniques (3-in-1 Functionality)

The GD40LM46SP supports mulching, side discharge, and rear collection.

Rear Collection:

• Ensure the mulching plug is removed and the grass collection bag is securely attached.
• Mow in overlapping rows, slightly overlapping the previous pass.
• Empty the grass bag when it is full to maintain optimal collection performance.

Figure 5.1: The 55-liter grass collection bag efficiently gathers clippings.

Mulčiavimas:

• Ensure the grass collection bag is removed and the mulching plug is securely inserted into the rear discharge opening.
• The mower will finely cut grass clippings and return them to the lawn as natural fertilizer.
• Mulching is most effective on dry grass and when only removing a small amount of grass height.

Šoninis išleidimas:

• Remove the grass collection bag and the mulching plug.
• Lift the side discharge cover and insert the side discharge chute.
• The mower will eject clippings from the side. This is useful for taller grass or when collection is not desired.

5.4 Savaeigė funkcija

The mower is equipped with a self-propelled drive system for easier operation, especially on larger lawns or slight inclines.

• To engage the self-propel, press the self-propel lever (usually located on the handle).
• The speed can often be adjusted by varying pressure on the lever or through a separate speed control.
• Release the lever to disengage the self-propel.

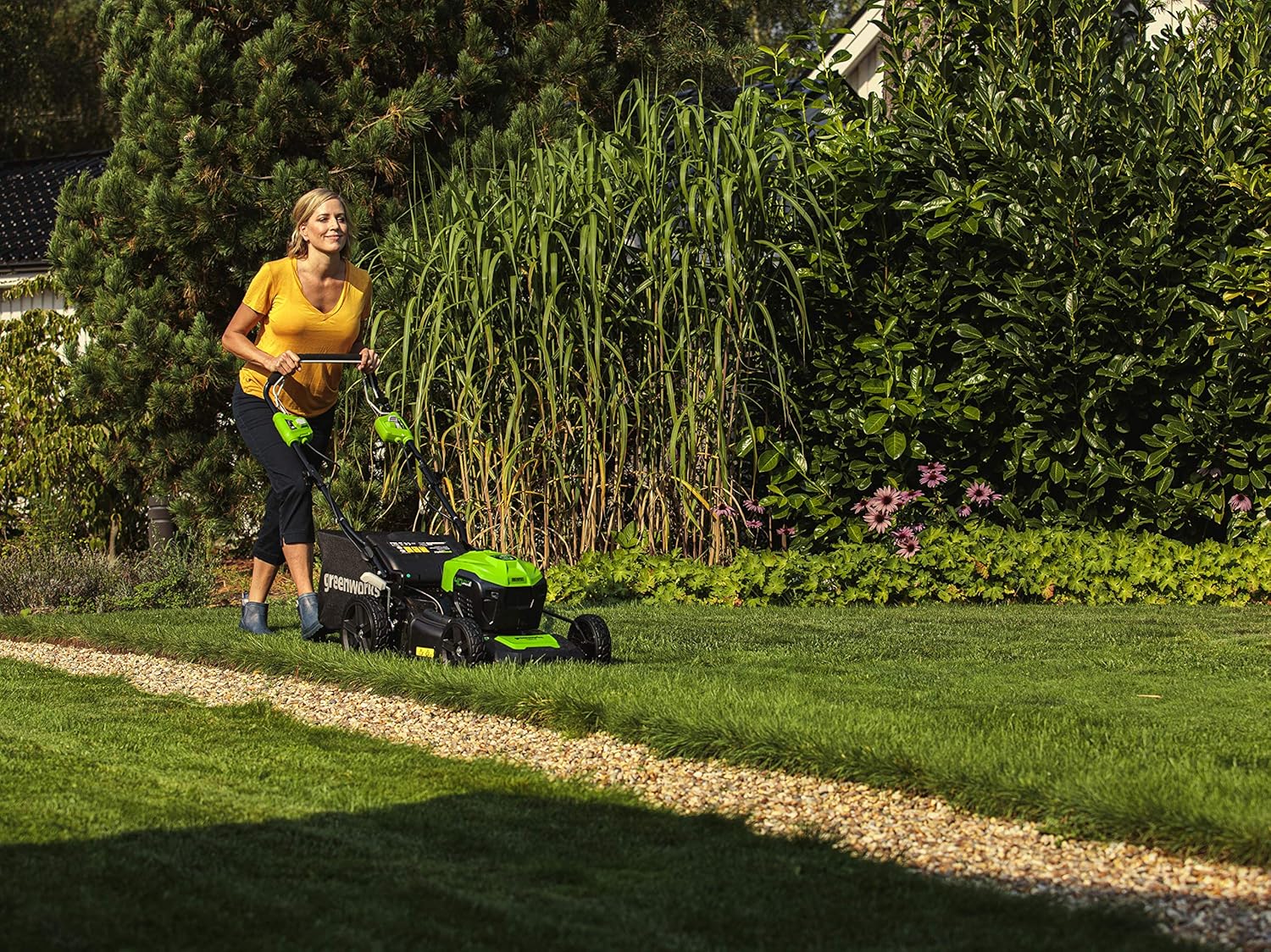

Figure 5.2: The self-propelled feature makes mowing large areas effortless.

6. Priežiūra

Regular maintenance ensures optimal performance and extends the life of your lawn mower. Always remove the battery before performing any maintenance.

6.1 Valymas

• After each use, clean the underside of the mower deck to prevent grass buildup, which can affect cutting performance. Use a brush or scraper.
• Nuvalykite vejapjovės išorę reklaminiu valikliu.amp šluoste. Nenaudokite vandens srovių ar slėginių plovimo įrenginių tiesiai ant vejapjovės.
• Clean the grass collection bag regularly to ensure proper airflow.

6.2 Peilių priežiūra

• Reguliariai tikrinkite peilio aštrumą ir pažeidimus. Atbukęs peilis plėšo žolę, todėl veja tampa nesveika.
• If the blade is dull, have it sharpened by a qualified service center or replace it with a genuine Greenworks replacement blade.
• Liesdami peilį, visada mūvėkite tvirtas pirštines.

6.3 Saugykla

• Remove the battery pack from the mower before storing.
• Kruopščiai išvalykite vejapjovę.
• Vejapjovę laikykite sausoje, gerai vėdinamoje vietoje, apsaugotoje nuo tiesioginių saulės spindulių ir drėgmės.
• The handle can be folded for compact, vertical storage, saving space.

7. Problemų sprendimas

This section provides solutions to common problems you might encounter. If you experience issues not listed here, contact Greenworks customer support.

8. Gaminio specifikacijos

Pastaba: Specifikacijos gali būti keičiamos be įspėjimo dėl gaminio tobulinimo.

9. Garantija ir palaikymas

Greenworks offers a comprehensive warranty for its products. For the GD40LM46SP lawn mower, a 3 metų garantija yra numatyta.

This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, neglect, accident, or unauthorized repair.

Klientų aptarnavimas:

For warranty claims, technical assistance, or to purchase replacement parts, please contact Greenworks customer support. Refer to the Greenworks official website or your purchase documentation for the most up-to-date contact information in your region.

When contacting support, please have your model number (GD40LM46SP or 2506807) and serial number (if applicable) ready.
