1. Įvadas
The Hailo Multi-Box Duo L is a compact and efficient pull-out trash bin system designed to maximize your kitchen's space. It features two removable bins for convenient waste and recycling separation, fitting seamlessly into 11.8-inch wide cabinets. Its durable construction ensures long-lasting performance and helps minimize odors.
1.1 vaizdas: Baigtaview of the Hailo Multi-Box Duo L highlighting its compact design, dual removable bins, effortless operation, and durable construction.
2. Kas yra dėžutėje
Išpakuodami įsitikinkite, kad yra visi komponentai ir jie nepažeisti:
- 1 x Waste Bin System (includes frame, slide mechanism, and lid)
- 2 x 3.7-gallon (14L) Plastic Inner Bins
- Tvirtinimo detalės (varžtai ir kt.)
- Instrukcijų vadovas
3. Montavimas
The Hailo Multi-Box Duo L is designed for effortless installation in hinged-door cabinets. It can be mounted to the left, right, or center of the cabinet base.
3.1 Paruošimas
- Ensure your cabinet has a minimum width of 11.8 inches (30 cm) to accommodate the unit.
- Clear the installation area within the cabinet.
- Surinkite reikiamus įrankius: atsuktuvą, matavimo juostą, pieštuką.
3.2 Montavimo žingsniai
- Position the pull-out frame inside the cabinet at your desired location (left, right, or center). Ensure it is flush against the back wall and aligned properly.
- Mark the screw holes through the pre-drilled holes in the base of the frame onto the cabinet floor using a pencil.
- Secure the frame to the cabinet floor using the provided screws. Ensure it is firmly attached.
- Insert the two plastic inner bins into the frame.
- Test the pull-out mechanism to ensure smooth operation.
Image 3.1: The pull-out system is designed for quick and easy assembly, allowing for installation in minutes.

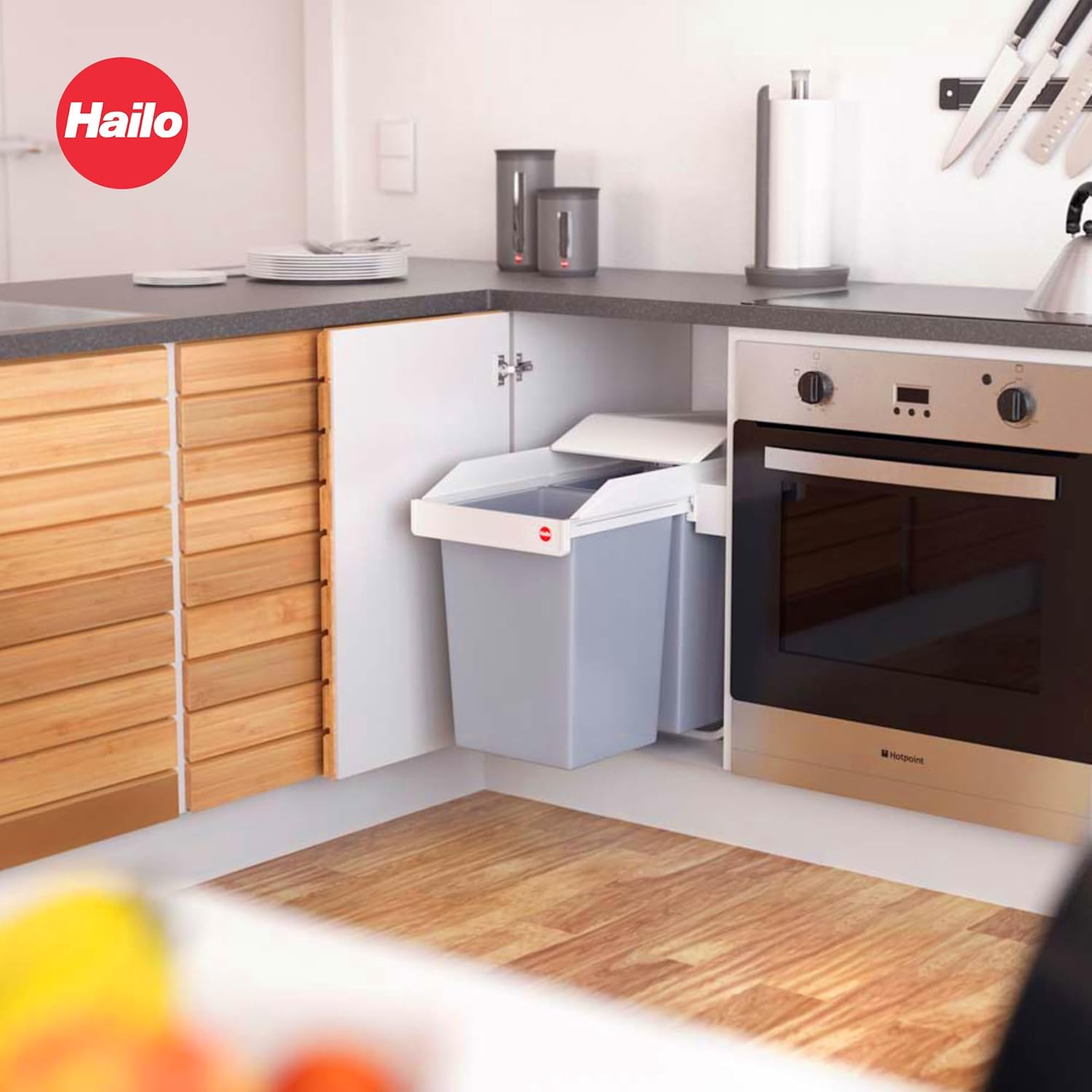

Image 3.2: The installed unit fits neatly into a standard kitchen cabinet, providing discreet waste storage.
4. Naudojimo instrukcijos
Using your Hailo Multi-Box Duo L is straightforward and designed for convenience.
4.1 Pull-Out Function
- To access the bins, gently pull the front of the unit outwards. The smooth slide system will extend the bins from the cabinet.
- To close, simply push the unit back into the cabinet until it is fully retracted.

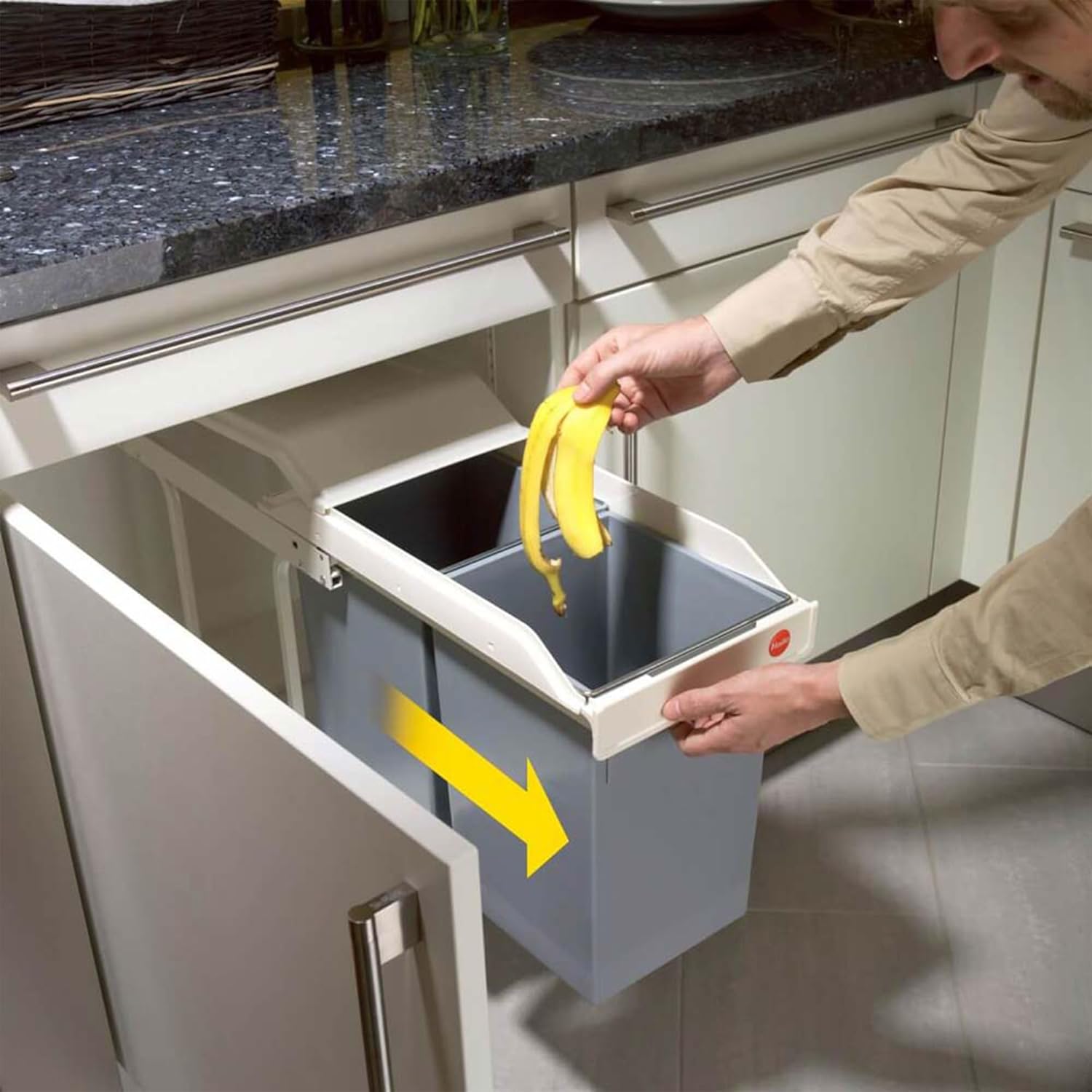

Image 4.1: The smooth pull-out mechanism allows easy access to the bins for waste disposal.
4.2 Using the Dual Bins
- The system includes two separate 3.7-gallon bins, ideal for separating general waste from recyclables or compost.
- Place standard trash bags into each bin. The design includes clamps to securely hold the trash bags to the rim, preventing slipping.
4.3 Slidable Lid
- The unit features a slidable white plastic lid that helps conceal waste and minimize odors.
- When the unit is pulled out, the lid slides back to allow access to the bins. When pushed back in, the lid covers the bins.
4.4 Removing and Replacing Bins
- To empty or clean a bin, simply lift it vertically out of the frame.
- After emptying or cleaning, place the bin back into its designated slot in the frame, ensuring it is seated correctly.
Image 4.2: The inner bins are easily removable for convenient emptying and cleaning.
5. Priežiūra
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Hailo Multi-Box Duo L.
5.1 Cleaning the Bins
- The plastic inner bins can be easily removed and washed with warm soapy water. Rinse thoroughly and allow to dry completely before reinserting.
- Užsispyrusiems kvapams galima naudoti sodos ir vandens tirpalą.
5.2 Cleaning the Frame and Lid
- Wipe down the steel frame and plastic lid with a damp skudurėliu ir švelniu plovikliu.
- Venkite abrazyvinių valiklių ar stiprių cheminių medžiagų, nes jos gali pažeisti apdailą.
- Ensure the slide mechanism is free of debris. If necessary, wipe the rails clean.
6. Problemų sprendimas
Čia pateikiami dažniausiai pasitaikančių problemų, su kuriomis galite susidurti, sprendimai:
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Unit does not slide smoothly. | Debris on rails; loose mounting screws. | Clean the slide rails. Check and tighten all mounting screws. |
| Dangtis iki galo neužsidaro. | Bins are overfilled; debris obstructing lid path. | Do not overfill bins. Clear any obstructions from the lid's path. |
| Odor persists despite regular emptying. | Bins or lid require deeper cleaning. | Thoroughly clean bins and lid with a disinfectant or baking soda solution. Ensure waste bags are properly sealed. |
7. Specifikacijos
Detailed technical specifications for the Hailo Multi-Box Duo L:
| Atributas | Detalė |
|---|---|
| Gaminio matmenys (AxPxD) | 16.93 x 10.24 x 19.69 colio (43 x 26 x 50 cm) |
| Prekės svoris | 10.14 svarų (4.6 kg) |
| Modelio numeris | 3659-001 |
| Prekės ženklas | Sveiki |
| Talpa | 2 x 3.7 Gallons (2 x 14 Liters) |
| Spalva | Cremeweiß (Cream White) |
| Atidarymo mechanizmas | Ištraukimas |
| Medžiaga | Legiruotasis plienas, plastikas |
| Rekomenduojami naudojimo būdai | Virtuvė |
| Ypatinga funkcija | Anti-slip, Built-in pull-out |
| Forma | Stačiakampis |
Image 7.1: Detailed dimensions and load capacity for installation planning.
8. Garantija ir palaikymas
For warranty information, product support, or to inquire about replacement parts, please contact Hailo customer service. Refer to the official Hailo webNaujausią kontaktinę informaciją rasite svetainėje arba ant produkto pakuotės.
Hailo is committed to providing high-quality products and excellent customer service. If you experience any issues not covered in this manual, please reach out to our support team for assistance.
