LEA PROFESSIONAL LEA Connect 4.0.3.6 Firmware Update Readme Instructions

LEA PROFESSIONAL LEA Connect 4.0.3.6 Firmware Update Readme

NOTE – This firmware file is for 80, 160, 350, and 700 watt 2. Click ‘Update Amps’ models (not including –ADSP models).

Contents hide

1 Firmware Update Instructions

2 Features And Improvements In 4.0.3.6:

3 Documents / Resources

3.1 References

4 Related Posts

Firmware Update Instructions

The firmware updater is located in the WebUI in the top right corner. Click the Hamburger Menu, Choose File, and then Update Firmware.
Click ‘Choose Firmware File’ – unzip the firmware update file and select .tar.xz file (ASBT-4-0-3-6-V2.tar.xz.enc) then click “update amps”

NOTE: All amplifiers on the same network will be updated.
The shark fin will turn magenta during the update process, please do not turn off or power cycle the amplifier until the firmware update is complete.

Once the shark fin is blue and the LCD screen is illuminated, the firmware update process is complete.
While not required, it is recommended to power cycle the amp with the power cord after the firmware update is complete.

350W and 700W models will take ~5 minutes to update firmware
80W and 160W models may take up to 15 minutes to update firmware

To Confirm the update was successful, click on the and then Amp Settings.
Scroll down to Device Information and you should have the following Firmware versions:

350W and 700W Models:	80W and 160W Models:
Firmware Version: 4.0.3.6	Firmware Version: 4.0.3.6
Power Supply Version: 4.0.3.0	Power Supply Version: 4.0.3.1
Amp1234 Version: 4.0.3.0	Amp1-8 Version: 4.0.3.2

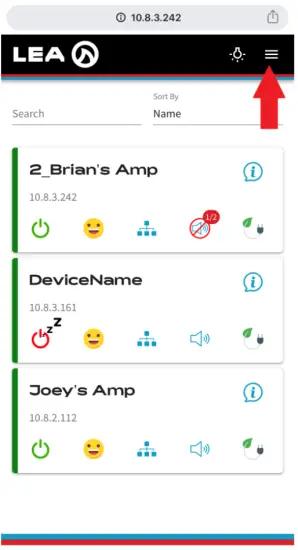

Click the Hamburger Menu

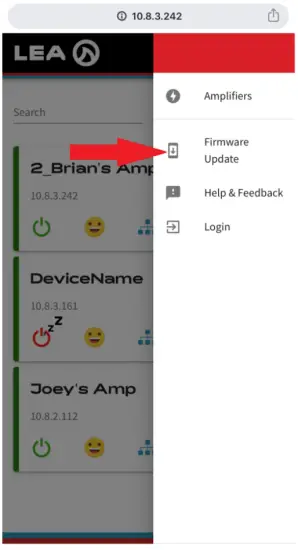

Click ‘Firmware Update’
1. Choose file: ASBT-4-0-3-6-V2.tar.xz.enc
2. Click ‘Update Amps’

Features And Improvements In 4.0.3.6:

WebUI and General Updates

Added Input Mixer Functionality

Added Chinese and Spanish Language Support
Added CS Touch configuration via WebUI

Sharkware Specific Updates

Added User Access Control of the WebUI to lock out specific parameters

Amplifier Updates

Resolves an issue with 80/160 that may report AC current draw incorrectly

Documents / Resources

LEA PROFESSIONAL LEA Connect 4.0.3.6 Firmware Update Readme [pdf] Instructions
80, 160, 350, 700, LEA Connect 4.0.3.6 Firmware Update Readme, Connect 4.0.3.6 Firmware Update Readme, Firmware Update Readme, Update Readme, Readme
