Hurom E30ST Electric Slow Juicer Instruction Manual

1. 중요 안전 지침

Please read all instructions carefully before using your Hurom E30ST Slow Juicer. Keep this manual for future reference.

• Always unplug the juicer from the power outlet before assembly, disassembly, or cleaning.
• 작동 중에는 부상을 방지하기 위해 손과 도구를 움직이는 부품에서 멀리하십시오.
• Do not operate the juicer if the power cord or plug is damaged, or if the appliance malfunctions or is dropped. Contact customer support for assistance.
• 착즙기를 작동하기 전에 모든 부품이 올바르게 조립되었는지 확인하십시오.
• Do not process ingredients with hard pits or seeds (e.g., peaches, mangoes, cherries) without removing them first, as this can damage the appliance.
• 이 기기는 가정용으로만 사용하세요. 실외에서 사용하지 마세요.
• 모터 베이스를 물이나 기타 액체에 담그지 마십시오.
• 어린이의 손이 닿지 않는 곳에 보관하세요.

2. 제품 오버view

The Hurom E30ST Slow Juicer is designed for efficient and gentle juice extraction, preserving nutrients and flavor. Familiarize yourself with its components:

• 모터 베이스: 모터와 제어 버튼이 포함되어 있습니다.
• 방: 재료가 가공되는 곳.
• 도래 송곳: Slowly presses ingredients.
• Strainers (Fine and Coarse): For different pulp levels.
• 홉 따는 기계: For feeding ingredients.
• 펄프 배출구: For expelling pulp.
• 주스 아울렛: For dispensing juice.
• 과육 용기 및 주스 용기: For collecting pulp and juice.

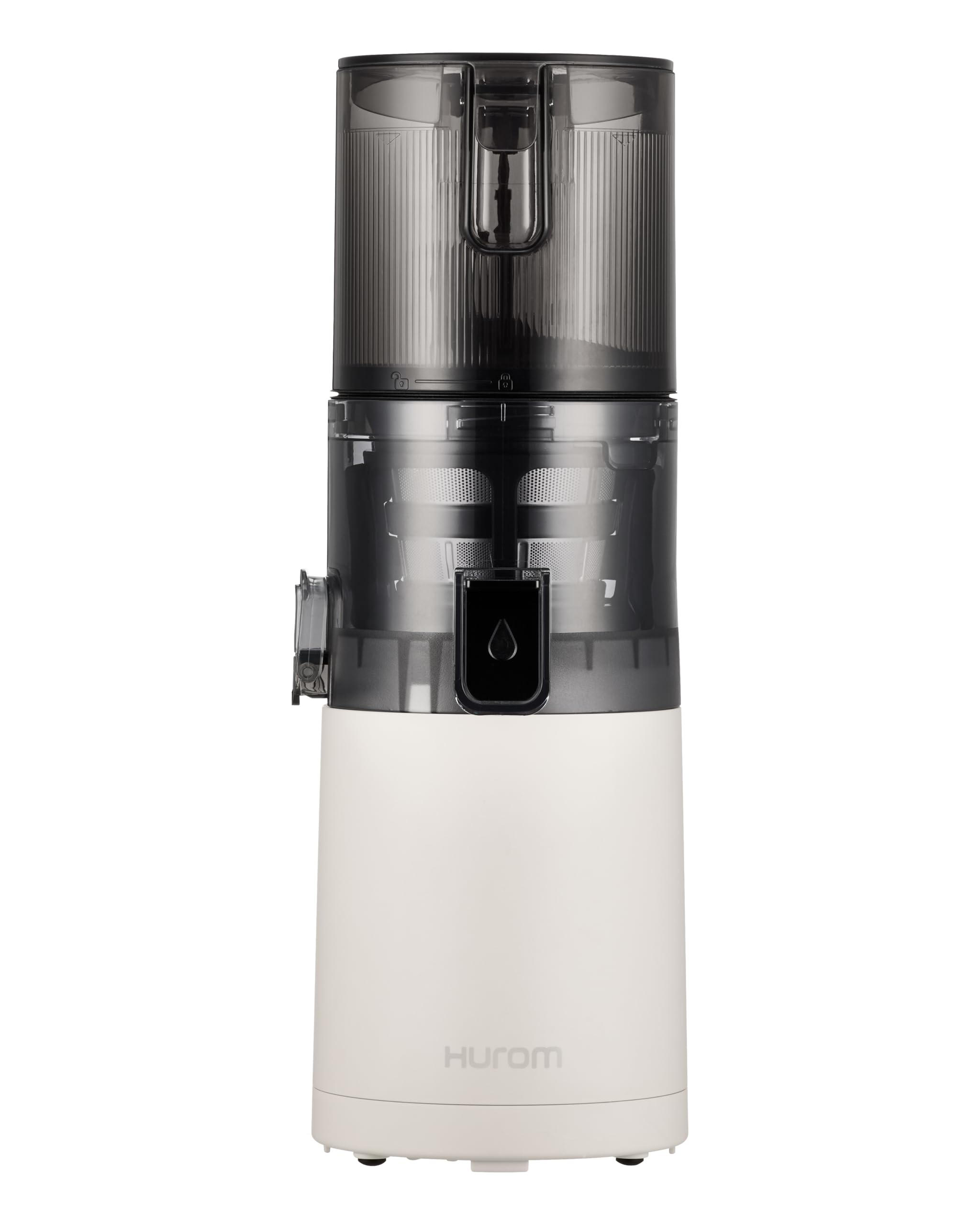

그림 2.1: 전면 view of the assembled Hurom E30ST Slow Juicer.

그림 2.2: 뒤로 view of the Hurom E30ST Slow Juicer, showing the 'ON' and 'REV' buttons.

3. 조립 및 설정

처음 사용하기 전에 다음 단계를 따라 착즙기를 조립하십시오.

1. 모터 베이스를 안정적이고 평평한 표면에 놓으세요.
2. Align the chamber with the motor base and rotate it clockwise until it locks into place.
3. Insert the desired strainer (fine or coarse) into the chamber.
4. Place the auger into the center of the strainer, rotating it slightly until it settles firmly.
5. Attach the hopper to the top of the chamber, ensuring it is securely seated.
6. 주스 용기는 주스 배출구 아래에, 과육 용기는 과육 배출구 아래에 놓으십시오.
7. 전원 코드를 접지된 콘센트에 꽂으세요.

4. 사용 설명서

4.1 재료 준비

• 모든 과일과 채소를 깨끗이 씻으세요.
• Peel fruits with thick skins (e.g., oranges, pineapples).
• Remove hard pits, seeds, or large stems from ingredients.
• Cut ingredients into pieces small enough to fit into the hopper opening.

4.2 착즙 과정

1. Ensure the juicer is properly assembled and the containers are in place.
2. 착즙기를 작동시키려면 'ON' 버튼을 누르세요.
3. Slowly feed prepared ingredients into the hopper. The automatic cutting blade will process them.
4. The juicer will extract juice and separate pulp into their respective containers.
5. 착즙이 완료되면 'OFF' 버튼을 누르세요.
6. For continuous juicing, ensure the pulp and juice containers do not overflow.

Figure 4.1: Adding ingredients to the juicer.

Figure 4.2: The juicer in operation, extracting juice.

4.3 Using Different Strainers

The Hurom E30ST comes with two strainers to customize your juice texture:

• Fine Strainer: For a smooth, pulp-free juice. Ideal for most fruits and vegetables.
• Coarse Strainer: For a richer, more textured juice with some pulp. Suitable for softer fruits or when you prefer more fiber.

Figure 4.3: Choose between fine and coarse strainers for desired juice texture.

5. 유지관리 및 청소

정기적인 청소는 주서기의 최적의 성능과 수명을 보장합니다.

5.1 청소를 위한 분해

1. 전원 콘센트에서 주서기의 플러그를 뽑습니다.
2. 주스와 과육 용기를 제거합니다.
3. 호퍼를 제거하십시오.
4. Lift out the auger.
5. Remove the strainer from the chamber.
6. Unlock and remove the chamber from the motor base.

5.2 청소 지침

• Rinse all removable parts (chamber, auger, strainers, hopper, containers) under running water immediately after use to prevent pulp from drying.
• Use the included cleaning brush to remove any stubborn pulp from the strainers and other components.
• 따뜻한 비눗물로 모든 분리 가능한 부품을 세척하십시오.
• 중요한: The Hurom E30ST is 식기 세척기 사용 불가. Hand wash all components.
• 광고로 모터 베이스 닦기amp 천으로 닦아주세요. 모터 본체를 물에 담그지 마세요.
• 재조립하거나 보관하기 전에 모든 부품을 완전히 건조시키십시오.

6. 문제 해결

If you encounter issues with your Hurom E30ST, refer to the following common problems and solutions:

6.1 Specific Q&A from Manufacturer

• 질문: 주서기는 어떻게 청소해야 하나요?
  A: We recommend hand washing all components of the Hurom E30ST, as it is not suitable for dishwashers. Use warm, soapy water and the provided cleaning brush.
• Q: Is it possible to use hard seed components?
  A: Ingredients with hard pits or large seeds like peaches, mangoes, cherries, etc., should have their pits/seeds removed before juicing. Failure to do so can damage the appliance.

7. 사양

Key technical details for the Hurom E30ST Slow Juicer:

7.1 주요 특징

• 컴팩트한 디자인: Lightweight (4.3 kg) and compact, designed to take up less space.
• Low Pulp Juice: Produces a fine, refreshing juice with minimal pulp.
• 슬로우 스퀴즈 기술: Gently presses ingredients to preserve vitamins and nutrients.
• BPA가 없는 재료: Constructed from safe, BPA-free materials for health and safety.
• Dual Strainers: Includes two strainers for a variety of juice textures, from smooth to rich.

Figure 7.1: Hurom Slow Juicer model comparison, highlighting E30ST specifications.

8. 보증 및 지원

8.1 보증 정보

The Hurom E30ST Slow Juicer comes with a 10년 보증 covering the motor and other parts. Consumable items such as silicone parts and juice/pulp containers are excluded from this warranty.

8.2 반품 정책

This product is eligible for a refund or replacement within 30일 구매하신 제품은 소매업체의 반품 정책에 따라 반품하실 수 있습니다.

8.3 고객 지원

For any questions, technical assistance, or warranty claims, please contact Hurom customer support through your retailer or the official Hurom website. Please have your model number (E30ST-BEM02MM) and proof of purchase ready.
