이무토(imuto) 충전식 AA 및 AAA 배터리(8슬롯 충전기 포함) 사용 설명서

1. 서론

Thank you for choosing the imuto Rechargeable AA and AAA Battery Set with 8-Slot Charger. This manual provides essential information for the safe and efficient use of your new battery charging system. Please read it thoroughly before first use and retain it for future reference.

2. 패키지 내용

Carefully unpack the box and ensure all items are present and in good condition. If any items are missing or damaged, please contact imuto customer support.

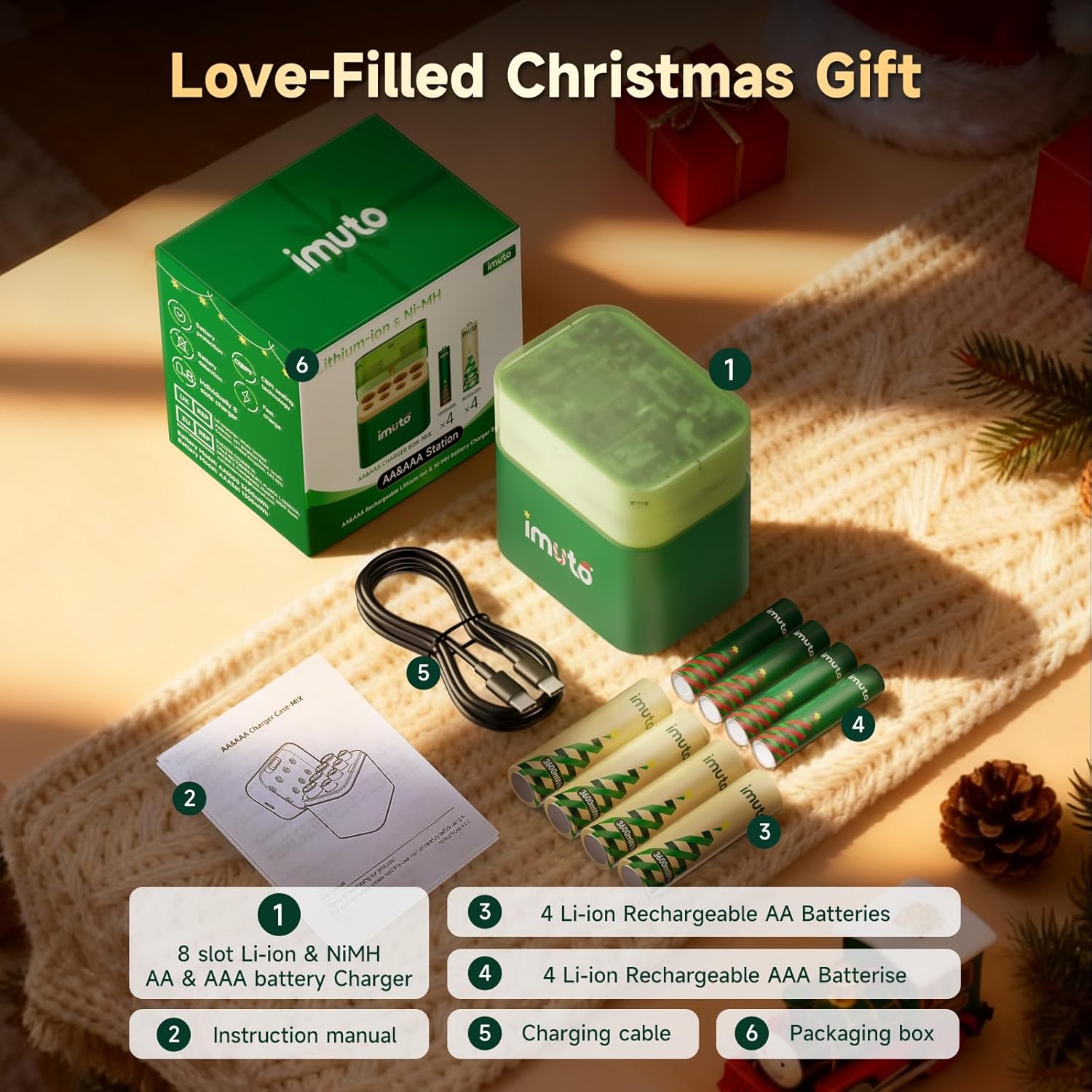

영상: The image displays the complete package contents, including the charger, AA and AAA batteries, charging cable, and instruction manual.

• 1 x imuto 8-Slot Li-ion & Ni-MH AA & AAA Battery Charger
• 4 x imuto 3600mWh Li-ion Rechargeable AA Batteries
• 4 x imuto 1300mWh Li-ion Rechargeable AAA Batteries
• 1 x USB 충전 케이블
• 1 x 사용 설명서

3. 안전 정보

경고: 이 안전 지침을 따르지 않을 경우 화재, 감전, 부상 또는 제품이나 재산 피해가 발생할 수 있습니다.

• Use only the provided charger or a compatible 5V/3A adapter for charging.
• 충전이 불가능한 배터리를 충전하려고 하지 마세요.
• Do not charge batteries that are damaged, leaking, or show signs of swelling.
• Do not short-circuit, disassemble, or expose batteries to fire or extreme temperatures.
• 충전기와 배터리는 어린이의 손이 닿지 않는 곳에 보관하십시오.
• Ensure proper battery polarity (+/-) when inserting into the charger.
• Do not mix different types or brands of batteries in the charger simultaneously unless explicitly supported (this charger supports Li-ion and Ni-MH AA/AAA).
• The charger is designed for indoor use only. Avoid exposure to moisture or extreme environments.
• The batteries are designed with CBPI sealing technology for leak-proof performance and do not contain harmful substances like lead, mercury, or cadmium.

영상: This image highlights the safety certifications (CE, FCC, RoHS) and specifications printed on the product packaging, emphasizing compliance with international standards.

4. 제품 오버view

The imuto battery charging kit provides a versatile solution for powering your devices. It includes high-capacity lithium AA and AAA batteries and an intelligent 8-slot charger compatible with both Li-ion and Ni-MH battery types.

4.1. imuto 8-Slot Battery Charger

This charger features 8 independent charging slots, allowing you to charge AA and AAA batteries simultaneously. It automatically detects battery type (Li-ion or Ni-MH) and applies the appropriate charging protocol. The charger requires a 5V/3A power adapter (not included) for optimal fast charging.

4.2. imuto Rechargeable Batteries

• AA Lithium Batteries: 3600mWh capacity, 1.5V constant output.
• AAA Lithium Batteries: 1300mWh capacity, 1.5V constant output.
• 사이클 수명: Up to 1600 recharge cycles, offering long-term value.
• 온도 범위: -40°F에서 140°F(-40°C에서 60°C)에 이르는 극한 온도에서도 효과적으로 작동합니다.

영상: 명확한 view of the imuto 8-slot charger with both AA and AAA rechargeable batteries, showcasin제품 디자인.

5. 설정

1. 풀다: 포장에서 모든 구성품을 꺼냅니다.
2. 전원 연결: Connect the provided USB charging cable to the charger's USB-C port. Plug the other end into a 5V/3A USB power adapter (not included). For optimal fast charging, a 5V/3A adapter is recommended.
3. 초기 확인: The charger's indicator lights may briefly illuminate upon power connection.

6. 사용 설명서

6.1. 배터리 충전

1. 배터리 삽입: Carefully insert AA or AAA rechargeable batteries into the charging slots, ensuring correct polarity (+ and - ends match the markings in the slot). The charger can accommodate a mix of AA and AAA batteries, and both Li-ion and Ni-MH types.
2. 충전 프로세스: Once batteries are correctly inserted, the corresponding indicator light for each slot will begin to blink, indicating that charging has started.
3. 완성: When a battery is fully charged, its indicator light will turn solid.
4. 배터리 제거: 충전이 완료되면 충전기에서 배터리를 제거하세요.

영상: This diagram illustrates how to insert both Lithium-ion and Ni-MH batteries into the charger, along with detailed input and output specifications for different battery types.

7. 상태 표시기

The charger features LED indicators for each slot to communicate the charging status:

영상: This image clearly labels the LED status indicators on the imuto charger, explaining what each color and state (blinking/solid) signifies for both Li-ion and Ni-MH batteries.

• Blink Green: Li-ion battery is charging.
• 솔리드 그린: Li-ion battery is fully charged.
• 파란색으로 깜박임: Ni-MH battery is charging.
• 솔리드 블루: Ni-MH battery is fully charged.
• 빨간색으로 깜박임: Battery failure or incompatible battery detected. Remove the battery immediately.
• 빛 없음: Charger failure or no battery inserted.

8. 유지관리

• 청소: Disconnect the charger from power before cleaning. Use a soft, dry cloth to wipe the charger and batteries. Do not use harsh chemicals or abrasive materials.
• 저장: Store the charger and batteries in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, it is recommended to charge batteries to about 50% capacity.
• 배터리 관리 : Avoid completely draining lithium batteries for extended periods to prolong their lifespan.

9. 문제 해결

• 배터리가 충전되지 않음:
  • Ensure the charger is properly connected to a working power source (5V/3A adapter recommended).
  • 배터리가 극성대로 삽입되었는지 확인하십시오.
  • Verify that the batteries are rechargeable and not damaged. If the indicator blinks red, the battery may be faulty or incompatible.
• Indicator light blinking red:
  • This indicates a battery error or incompatibility. Remove the battery from the slot. Do not attempt to charge it further.
• 느린 충전:
  • Ensure you are using a 5V/3A power adapter. Lower amperage adapters may result in slower charging times.

10. 사양

11. 보증 및 지원

imuto products are designed for reliability and performance. For warranty information, technical support, or any questions regarding your product, please contact imuto customer service through the retailer's platform or the official imuto website. Please have your product model number (B0FP56HSRC) and purchase date available when contacting support.
