FUNCRECOL Upgraded Standard Photopolymer Resin

FUNCRECOL 3D 프린터 레진 사용 설명서

Model: Upgraded Standard Photopolymer Resin

1. 제품 오버view

The FUNCRECOL Upgraded Standard Photopolymer Resin is engineered for high-precision 3D printing, compatible with 4K/8K/10K LCD/DLP/MSLA resin 3D printers. This 405nm UV-curing resin offers fast curing times, excellent detail reproduction, and improved adhesion for reliable printing results.

FUNCRECOL 3D Printer Resin bottle next to a gray 3D printed bust model.

Image 1.1: FUNCRECOL 3D Printer Resin bottle and a samp3D 프린트.

주요 특징:

Optimized for Fine Details: Designed to reproduce intricate details with exceptional precision.
Improved Adhesion: Ensures strong adherence to the build platform, reducing print failures.
높은 호환성: Works with a wide range of LCD/DLP 3D printers.
Fast Curing Time: Accelerates the printing process without compromising quality.
품질 보증: Manufactured with high quality control for consistent results.
Low Odor: Formulated for a more pleasant printing experience.
수축률이 낮음: Achieves high precision prints with minimal deformation.
모양을 만들기 쉬움: Facilitates effortless post-processing and model formation.

Infographic showing key features of FUNCRECOL resin: Fast Curing, High Precision, No Cracking, Easy to Clean, Low Odor, Easy to Use, High Success Rate, Upgrade Formula.

이미지 1.2: 이상view of FUNCRECOL Upgraded Standard Resin features.

2. 설정 및 호환성

Before using the FUNCRECOL resin, ensure your workspace is prepared and you understand the compatibility requirements.

2.1 호환성

This resin is highly compatible with most 2K, 4K, 8K, 10K, 12K, and 14K LCD/DLP/MSLA resin 3D printers operating at a 405nm UV wavelength.

Various brands of 3D printers (Anycubic, Creality, Uniformation, Elegoo) displayed with FUNCRECOL resin bottles, illustrating wide compatibility.

Image 2.1: FUNCRECOL resin's wide compatibility with various 3D printer brands.

2.2 작업 공간 준비

Ensure your printing area is well-ventilated.
Maintain a room temperature of 25°C (77°F) or higher for optimal resin performance.
Prepare necessary safety equipment, including gloves and a mask, to avoid direct skin contact and inhalation of fumes.
Keep the resin away from direct light sources, especially UV light.

3. 사용 설명서

Follow these guidelines for optimal printing results with FUNCRECOL resin.

3.1 Before Printing

잘 흔들어주세요: Before each use, shake the resin bottle thoroughly for at least 1 minute to ensure all components are evenly mixed.
온도: For best results, use the resin at a temperature of 25°C (77°F) or higher.
붓는 것: Carefully pour the desired amount of resin into the printer's resin vat.

Image showing resin being poured into a 3D printer's vat, with green leaves indicating low odor.

Image 3.1: Pouring resin into the printer vat.

3.2 인쇄 공정

노출 설정: Calibrate your printer's exposure settings according to the specific requirements of your 3D printer model and the desired layer height. FUNCRECOL resin is designed for fast curing, which may allow for shorter exposure times.
부착: The resin features improved adhesion properties to ensure prints stick firmly to the build platform, minimizing print failures.
정도: Expect high precision and the ability to reproduce fine details due to the resin's optimized formulation.
Flowability: The resin's low viscosity and high flowability contribute to reduced curing times and easier model formation.

Close-up of resin in a 3D printer vat with icons representing Easy to Form, Easy to Clean, and High Precision, highlighting high flowability and success rate.

Image 3.2: Resin flowability and its benefits during printing.

3.3 후처리

청소: After printing, clean the printed model thoroughly using isopropyl alcohol (IPA) or a dedicated resin cleaner.
경화: Post-cure the cleaned model under a UV light source to achieve maximum hardness and strength.
지원 제거: The resin is designed to be easy to shape, facilitating the removal of supports.

3D printed models with supports still attached, illustrating the ease of shaping and support removal.

Image 3.3: Ease of shaping and support removal for printed models.

4. 유지 관리 및 보관

Proper maintenance and storage are crucial for the longevity and performance of your resin.

4.1 Resin Storage

Sealed Container: Always store unused resin in its original sealed bottle or an opaque, airtight container.
차갑고 어두운 곳: Keep the resin in a cool, dry place, away from direct sunlight and any UV light sources.
재사용하지 마십시오: Do not pour used or uncured resin from the vat back into the original bottle, as this can contaminate the fresh resin.

4.2 안전 예방 조치

개인 보호 장비(PPE): Always wear gloves and a mask when handling resin to avoid direct skin contact and inhalation of fumes.
통풍: Ensure adequate ventilation in your printing area.
손이 닿지 않는 곳에 보관하세요: Keep the resin out of reach of children and pets.
No Ingestion: Do not ingest the resin. Keep it away from food and drinks.
눈맞춤: Avoid contact with eyes. In case of contact, flush immediately with plenty of water and seek medical attention.

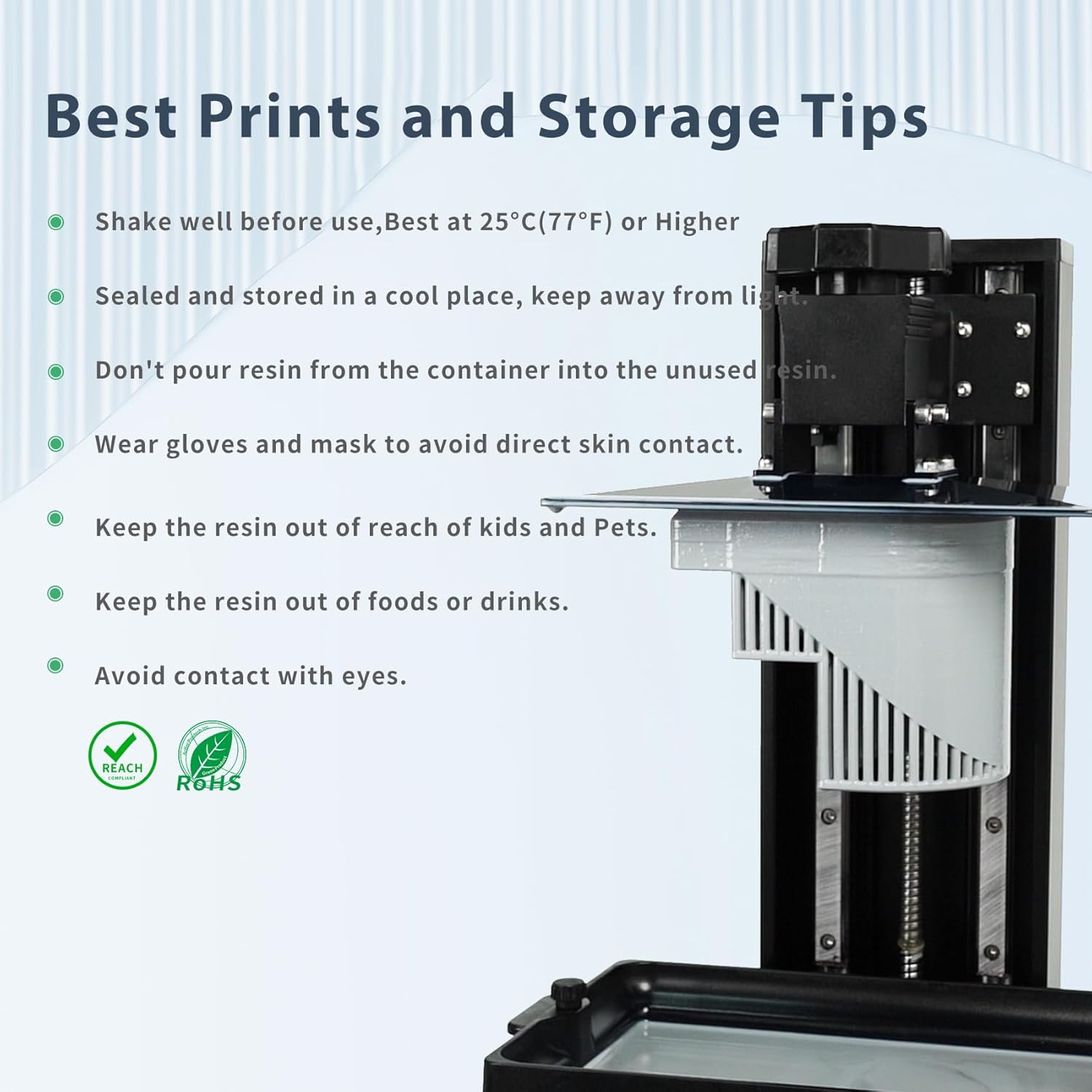

Image showing a 3D printer vat with text overlay providing best print and storage tips, including safety warnings like wearing gloves and keeping out of reach of children.

Image 4.1: Important safety and storage tips for FUNCRECOL resin.

5. 문제 해결

This section addresses common issues you might encounter during 3D printing with resin.

문제	가능한 원인	해결책
출력물이 빌드 플레이트에 붙지 않음	Insufficient exposure time; build plate not level; low room temperature; dirty build plate.	Increase bottom exposure time; re-level build plate; ensure room temperature is 25°C (77°F) or higher; clean build plate thoroughly.
Failed prints or partial prints	Incorrect exposure settings; insufficient supports; resin not mixed well; FEP film damage.	Adjust exposure time; add more or thicker supports; shake resin bottle thoroughly before use; inspect and replace FEP film if damaged.
Poor detail or blurry prints	Over-exposure; dirty LCD screen; unstable printer.	Decrease exposure time; clean LCD screen carefully; ensure printer is on a stable surface.
Resin curing too slowly	Low UV light intensity; low room temperature.	Check printer's UV light source; ensure room temperature is optimal.

6. 제품 사양

Detailed specifications for the FUNCRECOL Upgraded Standard Photopolymer Resin.

제품 유형: Upgraded Standard Photopolymer Resin
Curing Wavelength: 405nm UV
호환성: LCD/DLP/MSLA 3D Printers (4K/8K/10K/12K/14K)
색상: Gray (as per current product variant)
무게: 1000g (2.2 Pounds)
패키지 크기: 9.7 x 3.7 x 3.7 인치
제조업체: 푼크레콜
ASIN: B0CZ6T1RG7
첫 번째 이용 가능: 27년 2024월 XNUMX일

Close-up image showing a 3D printed test piece being measured with a digital caliper, demonstrating improved molding accuracy.

Image 6.1: Demonstration of improved molding accuracy.

Close-up images of a 3D printed model showing intricate wood grain and wheel details, illustrating higher precision.

이미지 6.2: Examples of higher precision and finer details achievable with the resin.

Image showing detailed sections of a 3D printed model, emphasizing low shrinkage and high precision.

Image 6.3: Visual representation of low shrinkage in printed models.

7. 보증 및 지원

For any questions, concerns, or support regarding your FUNCRECOL 3D Printer Resin, please contact the manufacturer directly.

While specific warranty details are not provided in this manual, FUNCRECOL maintains a high level of quality control and consistency in resin production. For product support, please refer to the contact information provided on the product packaging or the official FUNCRECOL web대지.

You can also visit the official FUNCRECOL store on Amazon for more information and product updates: FUNCRECOL Store
