Moimhear Bunk Bed with Trundle Bed and Stairs, Model WX000306-M - Instruction Manual

1. 서론

This instruction manual provides essential information for the safe assembly, operation, and maintenance of your Moimhear Bunk Bed with Trundle Bed and Stairs, Model WX000306-M. This versatile bed features an upper sleeping area of 90x200 cm, a lower sleeping area of 140x200 cm, a pull-out trundle bed for additional sleeping space, and integrated stairs with storage compartments. Please read this manual thoroughly before assembly and retain it for future reference.

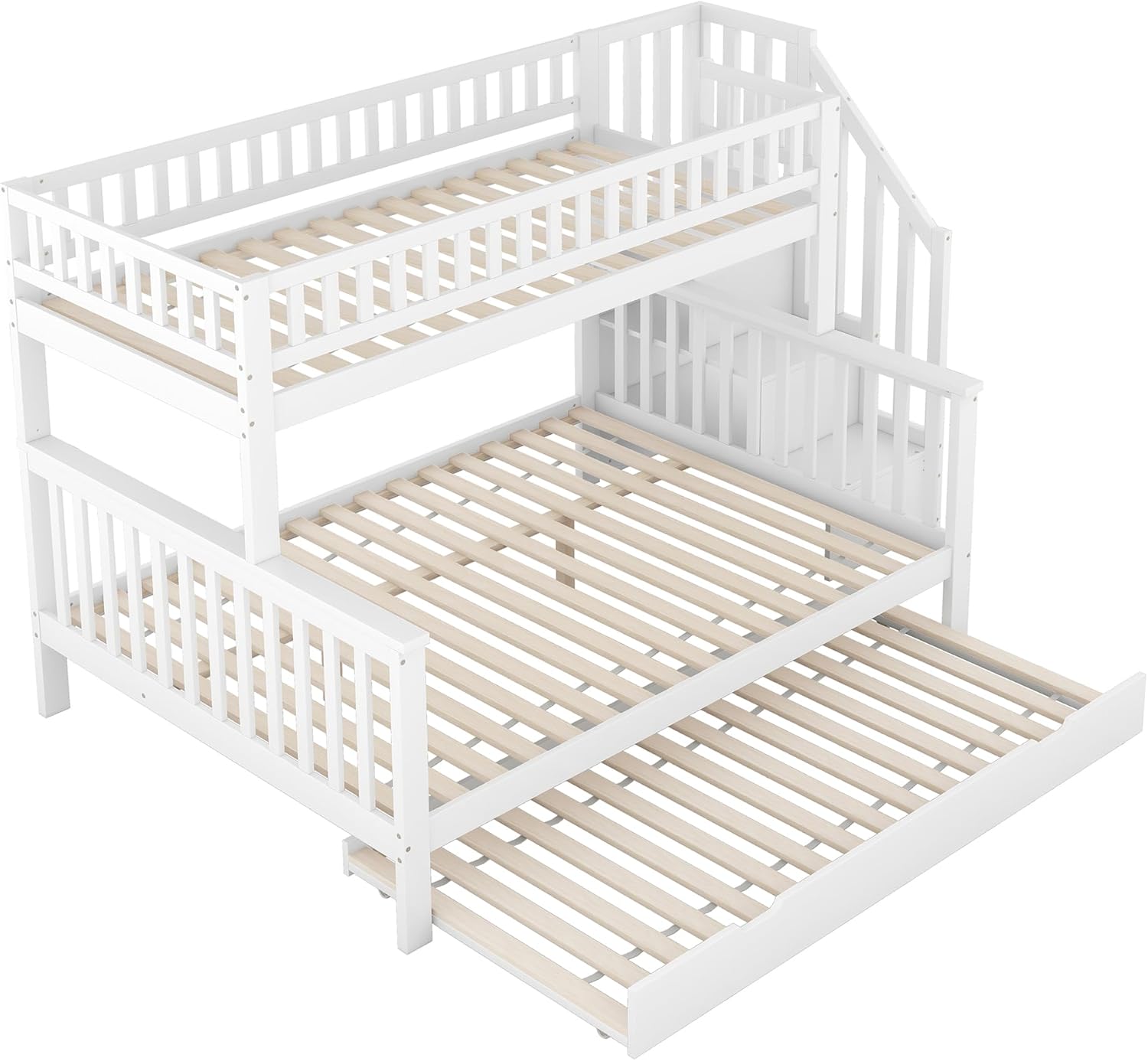

그림 1: 전체 view of the Moimhear Bunk Bed with trundle bed and integrated stairs.

2. 안전 정보

경고: 이 안전 지침을 따르지 않을 경우 심각한 부상을 입을 수 있습니다.

• Monitor the use of the bed by children.
• Ensure the bed is suitable for the child's age.
• Do not exceed the recommended maximum weight limit of 200 kg for any single bed section.
• Ensure proper installation and regularly check all connections to prevent collapse or tipping.
• Always use the provided safety rails on the upper bunk.
• 침대 위에서 점프하는 것을 허용하지 마십시오.
• Keep small children away from the assembly area during installation.

3. 패키지 내용

Before beginning assembly, verify that all components listed in the packing list are present and undamaged. The product is typically delivered in multiple packages. Ensure all packages have been received before starting assembly.

패키지에는 다음이 포함됩니다.

• Bed frame components (headboards, footboards, side rails for upper and lower beds)
• Wooden slats for all bed sections
• 이동식 침대 프레임 및 슬랫
• Stair unit with integrated storage shelves
• 조립용 하드웨어(나사, 볼트, 너트, 못 등)
• 설치 설명서(본 문서)

4. 설치 및 조립

Assembly typically requires two adults. Follow the detailed instructions provided in the separate installation guide included with your product. All necessary tools for assembly are usually provided.

1. 짐 풀고 정리하기: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Group similar parts and hardware.
2. 하드웨어 식별: Pay close attention to screw identification. While the manual provides clear diagrams, some screws may be mixed in packaging. Measure screws to ensure correct usage as indicated in the assembly guide.
3. Assemble Lower Bed: Begin by assembling the frame of the lower bed (140x200 cm) according to the instructions. Ensure all connections are secure but do not fully tighten until instructed.
4. Assemble Upper Bed: Assemble the frame of the upper bed (90x200 cm).
5. 트런들 침대 조립하기: Assemble the trundle bed frame and attach its wheels.
6. Assemble Stairs: Construct the stair unit, ensuring the storage shelves are correctly installed.
7. Attach Stairs to Bed: Securely attach the assembled stair unit to the main bed frame.
8. 슬랫 설치: Place and secure the wooden slats for all bed sections (upper, lower, and trundle).
9. 최종 조임: 모든 구성품을 제자리에 놓고 정렬한 후 모든 나사와 볼트를 완전히 조이세요. 너무 세게 조이지 마세요.

Figure 2: Bed frame components and slats before full assembly.

그림 3: 이상view of the bunk bed structure, illustrating the assembly stag에스.

5. 사용 설명서

The Moimhear Bunk Bed is designed for versatile use in children's rooms or guest rooms, accommodating up to four individuals comfortably.

• Upper Bunk (90x200 cm): Suitable for one child. Always ensure the safety rail is in place.
• Lower Bunk (140x200 cm): Provides a larger sleeping area, suitable for one or two children.
• 이동식 침대: The pull-out trundle bed offers an additional sleeping space. Simply pull it out from under the lower bunk when needed and push it back in for space-saving storage.

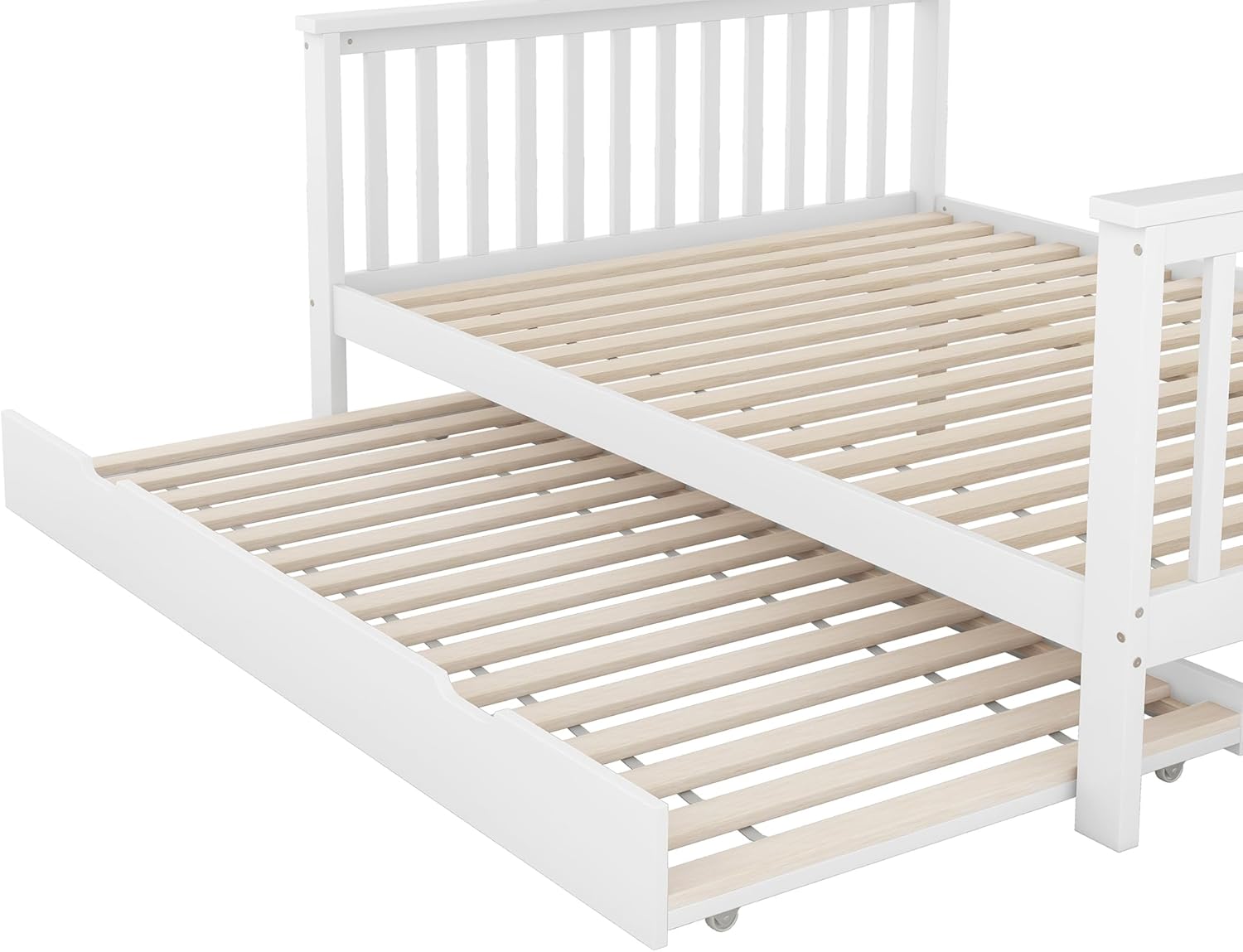

Figure 4: The trundle bed extended from beneath the lower bunk.

• Stairs with Storage: The integrated stairs provide safe access to the upper bunk. Each step also functions as a storage shelf, ideal for books, toys, or other small items.

그림 5: 클로즈업 view of the integrated stairs with functional storage compartments.

6. 유지관리

Proper maintenance will ensure the longevity and safety of your bunk bed.

• 청소: 부드러운 d로 표면을 닦으십시오.amp 천으로 닦으세요. 마감재를 손상시킬 수 있는 강한 화학 물질이나 연마성 세제는 사용하지 마세요.
• 정기 점검: 모든 볼트, 나사, 연결부가 단단히 조여져 있는지 정기적으로 점검하십시오. 필요에 따라 다시 조이십시오.
• 목재 관리: 목재가 휘거나 변색되는 것을 방지하기 위해 과도한 습기와 직사광선을 피하십시오.
• 무게 분포 : Ensure weight is distributed evenly across the bed sections and trundle.

7. 문제 해결

조립 또는 사용 중 문제가 발생하면 다음의 일반적인 해결 방법을 참조하십시오.

• 누락되거나 손상된 부품: If any components are missing or damaged upon delivery, do not proceed with assembly. Contact Moimhear customer service immediately for assistance.
• 조립 난이도: Review the assembly instructions carefully. Ensure you are using the correct hardware for each step. Sometimes, screws may be mixed; verify their size and type against the manual's diagrams.
• 불안정성/흔들림: Ensure all bolts and screws are fully tightened. If the bed still feels unstable, disassemble the affected section and reassemble, ensuring all parts are correctly aligned.
• Trundle Bed Not Sliding Smoothly: Check for any obstructions under the bed. Ensure the wheels are clean and free of debris. Verify that the trundle frame is assembled correctly and not warped.

8. 사양

Figure 6: Detailed dimensions of the Moimhear Bunk Bed.

9. 지원

For any questions, concerns, or to report missing/damaged parts, please contact Moimhear customer service. Refer to your purchase documentation for specific contact details or visit the official Moimhear web대지.
