DEEPOWER S20 전기 자전거 사용 설명서

1. 서론

This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your DEEPOWER S20 Electric Bike. Please read it thoroughly before your first ride and retain it for future reference.

Figure 1: DEEPOWER S20 Electric Bike

상자 안에 무엇이 들어있나요?

• DEEPOWER S20 Electric Bike (partially assembled)
• 충전기
• E Bike Accessory Kit (tools for assembly)
• 사용자 설명서

2. 안전 정보

Always prioritize safety when operating your electric bike. Failure to follow safety guidelines can result in serious injury or damage to the bike.

• 항상 헬멧과 적절한 안전 장비를 착용하십시오.
• 매 사용 전에 주행 전 점검을 실시하십시오.
• 모든 현지 교통 법규를 준수하십시오.
• 알코올이나 약물의 영향을 받은 상태에서는 주행하지 마십시오.
• 주행 전에 배터리가 단단히 잠겨 있는지 확인하십시오.
• 극한 기상 조건에서는 주행을 피하십시오.
• Familiarize yourself with the bike's controls before riding at speed.

3. 설치 및 조립

Your DEEPOWER S20 Electric Bike comes 90% pre-assembled. Follow these steps to complete the assembly.

3.1 언박싱 및 초기 검사

Carefully remove the bike and all components from the packaging. Inspect for any damage during shipping.

3.2 앞바퀴 설치

Attach the front wheel to the fork using the provided quick-release skewer or bolts. Ensure the brake rotor is correctly aligned within the caliper.

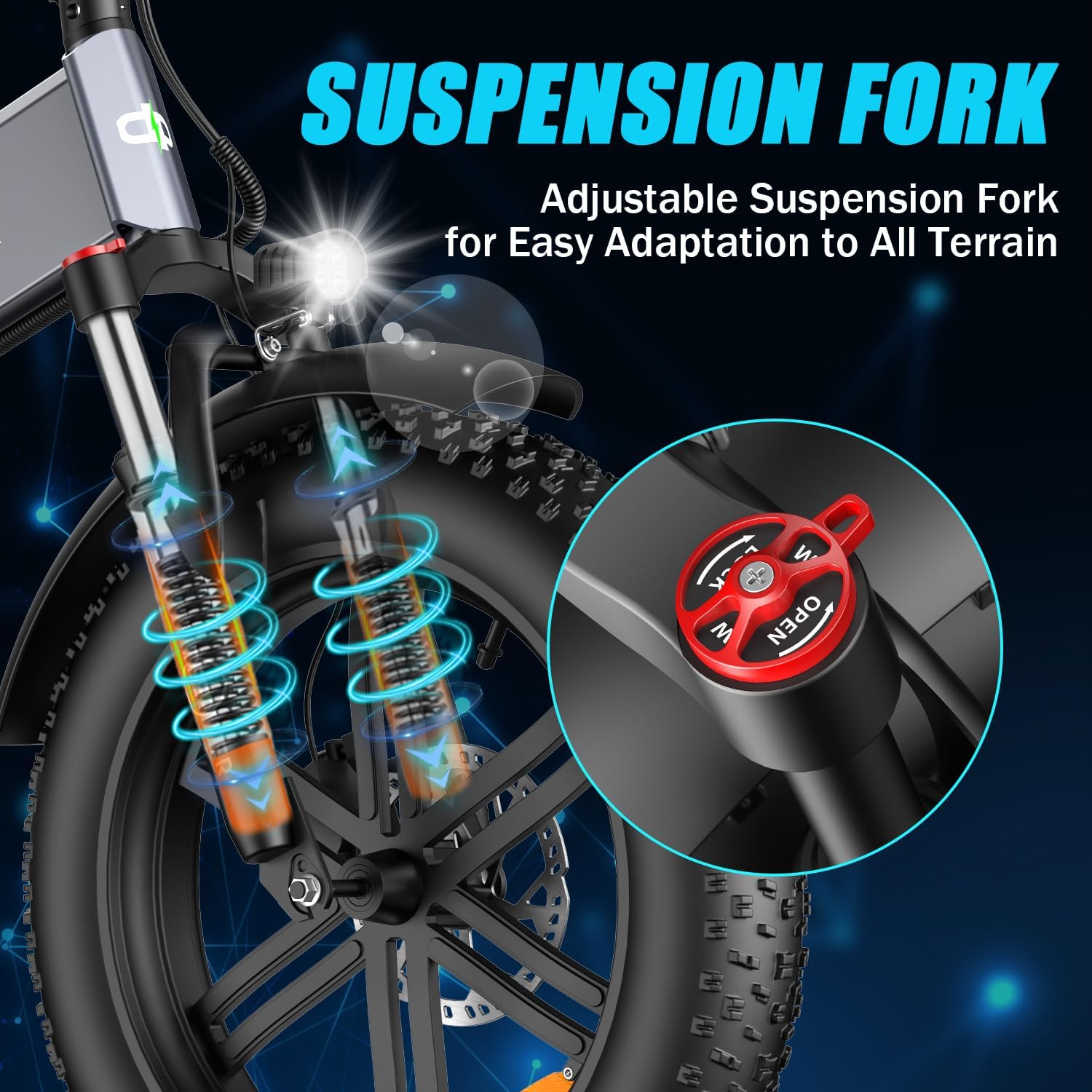

Figure 2: Front Suspension Fork

3.3 핸들바 및 시트포스트 조정

Adjust the handlebar and seatpost to a comfortable riding height. Ensure all quick-release levers are securely tightened.

그림 3: 조절 가능한 구성 요소

3.4 페달 설치

Identify the left (L) and right (R) pedals. Thread them into the crank arms by hand, then tighten securely with a wrench. Note that the left pedal threads counter-clockwise.

3.5 초기 배터리 충전

Before your first ride, fully charge the 48V 20AH removable battery. Connect the charger to the battery and then to a power outlet. The indicator light on the charger will change when fully charged.

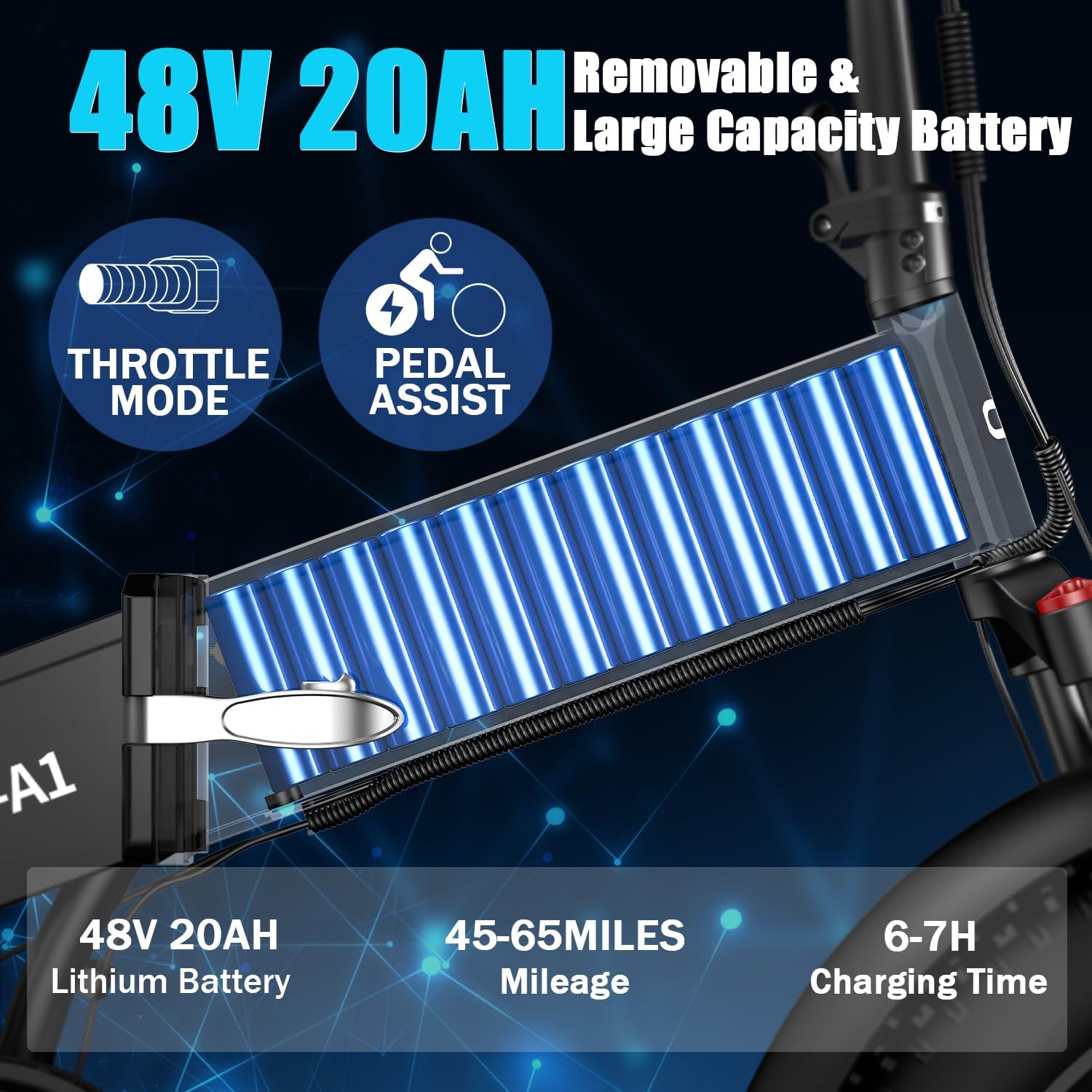

Figure 4: 48V 20AH Removable Battery

4. 사용 설명서

4.1 Power On/Off and Display Usage

To power on the bike, press and hold the power button on the display. The digital LCD display shows speed, battery level, pedal assist (PAS) level, and odometer mileage.

Figure 5: Digital LCD Display

4.2 Pedal Assist (PAS) and Throttle Modes

The bike offers multiple pedal assist levels, which can be adjusted via the display controls. The throttle provides power on demand without pedaling.

4.3 Unlocking Maximum Speed

To unlock the maximum speed, ensure the display is off. Twist the throttle to the bottom while simultaneously squeezing the right brake lever and holding it. Turn on the display, wait 5-8 seconds, then release the throttle and brake. The speed limit will be removed, and you can set the gear to the 5th gear (highest) to reach maximum speed.

4.4 조명 및 경적

The bike is equipped with an LED headlight and taillight for visibility. Use the handlebar controls to activate the lights and horn as needed.

5. 유지관리

정기적인 유지관리는 전기자전거의 수명과 안전한 작동을 보장합니다.

5.1 배터리 관리

Keep the battery charged, especially during long periods of storage. Store the battery in a cool, dry place. The battery can be removed for charging or storage.

5.2 브레이크 조정

Regularly check your mechanical disc brakes for proper function. If you hear a "rustling" sound from the wheels, the brake pads may need adjustment. Slightly loosen the two screws on the brake clamp, adjust the clamp so it does not contact the brake disc, then tighten the screws.

5.3 Suspension Fork Adjustment

The adjustable suspension fork can be locked or unlocked depending on the terrain. Lock the fork for efficient pedaling on smooth surfaces and unlock it for better shock absorption on rough terrain.

5.4 타이어 공기압

최적의 성능과 안전을 위해 권장 타이어 공기압을 유지하십시오. 정확한 공기압 범위는 타이어 측면을 참조하십시오.

Figure 6: 20" x 4 All Terrain Fat Tires

5.5 일반 청소

광고로 자전거를 정기적으로 청소하세요amp 천으로 닦으세요. 전기 부품에 고압 세척기를 직접 사용하지 마세요.

6. 문제 해결

This section addresses common issues you might encounter with your DEEPOWER S20 Electric Bike.

• 자전거가 켜지지 않음: Check battery connection and charge level. Ensure the power button on the display is pressed correctly.
• 모터가 작동하지 않음: Verify the pedal assist level on the display. Check for any error codes on the display.
• Brakes rubbing: Refer to Section 5.2 for brake adjustment instructions.
• 비정상적인 소음: Inspect for loose components, chain issues, or brake rubbing.

For issues not listed here, please contact DEEPOWER customer support.

7. 사양

그림 7: 제품 크기 및 라이더 사양

8. 보증 및 지원

DEEPOWER provides a limited warranty for its electric bikes. Please refer to the warranty card included with your purchase for specific terms and conditions.

고객 지원:

For technical assistance, parts, or warranty claims, please contact DEEPOWER customer service through the retailer where you purchased the product or visit the official DEEPOWER web연락처 정보 사이트.
