NXPGKEA 130W USB C Charger User Manual

소개

Thank you for choosing the NXPGKEA 130W USB C Charger. This powerful and compact GaN charger is designed to provide efficient and fast charging for a wide range of devices, including laptops, tablets, and smartphones. Featuring two USB-C ports and one USB-A port, it allows you to charge multiple devices simultaneously. This manual provides essential information for safe and optimal use of your charger.

Image: The NXPGKEA 130W USB C Charger, a compact black power adapter with three charging ports (two USB-C, one USB-A) and a foldable US plug, shown alongside a braided USB-C to USB-C charging cable.

패키지 내용

패키지에 모든 품목이 들어 있는지 확인하세요.

• 1x NXPGKEA 130W USB C Charger
• 1x 100W USB-C Charge Cable (2 meters)
• 1x 사용자 매뉴얼(이 문서)

설정

1. 플러그를 펼치세요: 충전기 본체에서 AC 단자를 조심스럽게 분리하세요.
2. 전원 콘센트에 연결: Insert the charger into a standard wall outlet (AC 100-240V).
3. 장치 연결: Use appropriate USB cables (such as the included 100W USB-C cable) to connect your devices to the charger's USB-C or USB-A ports.
4. 충전 시작: Your devices will automatically begin charging. The charger intelligently distributes power based on the connected devices' requirements.

Image: The 130W USB C Charger plugged into a wall socket, demonstrating its ability to charge a laptop, a tablet, and a smartphone concurrently, highlighting its multi-device charging capability.

작동 지침

The NXPGKEA 130W charger features intelligent power distribution across its three ports:

• USB-C1 and USB-C2 Ports: These are the primary high-power delivery ports, capable of up to 100W each when used individually. When both USB-C ports are used simultaneously, the power is dynamically distributed (e.g., 65W + 65W for laptops).
• USB-A 포트: This port provides up to 18W, suitable for smartphones, smartwatches, and other smaller devices.
• 동시 충전: You can charge up to three devices at once. The charger's internal chip optimizes power output for each connected device to ensure efficient and safe charging.

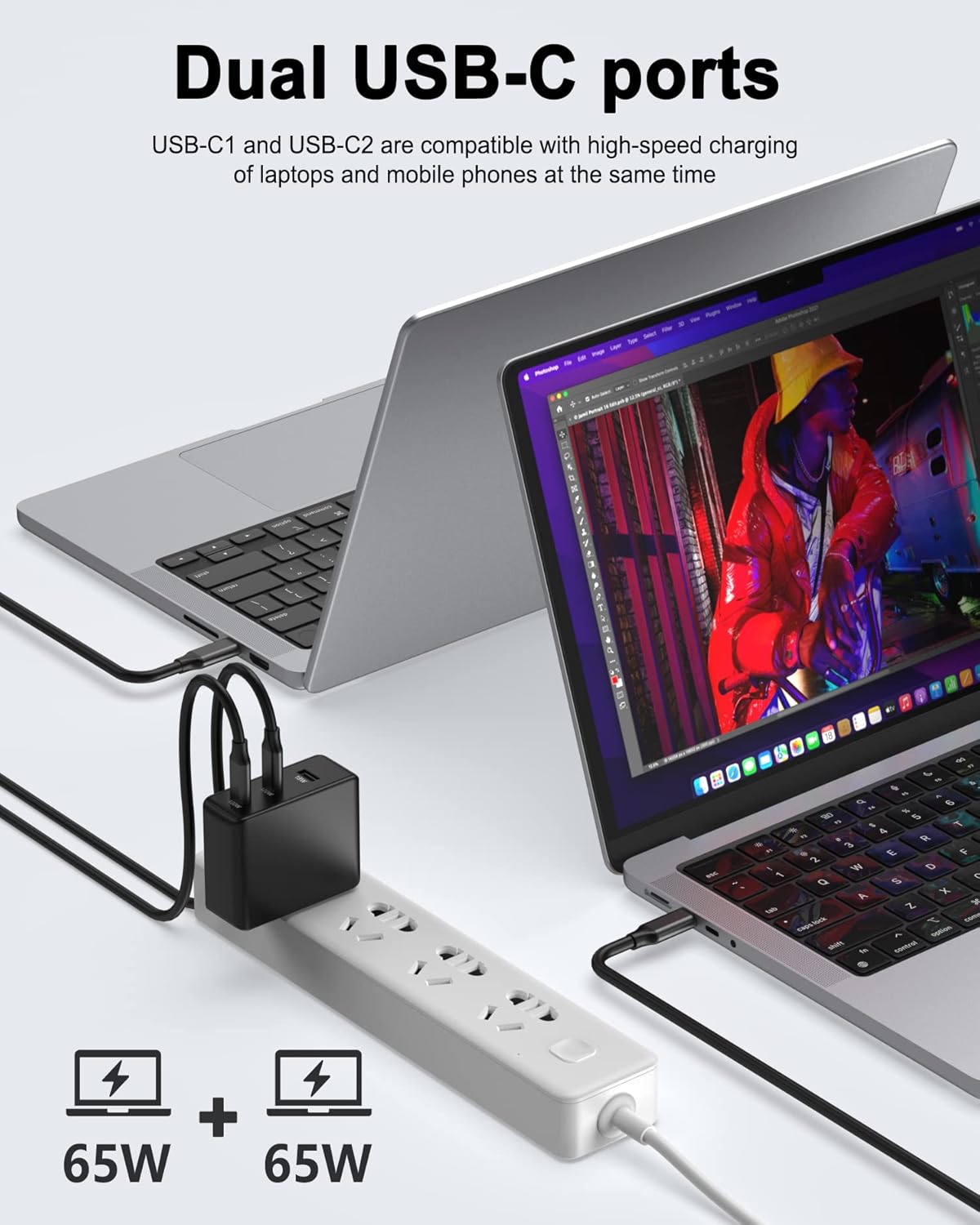

Image: The 130W USB C Charger connected to a power strip, simultaneously charging two laptops via its dual USB-C ports, indicating a 65W + 65W power split for efficient charging of multiple high-power devices.

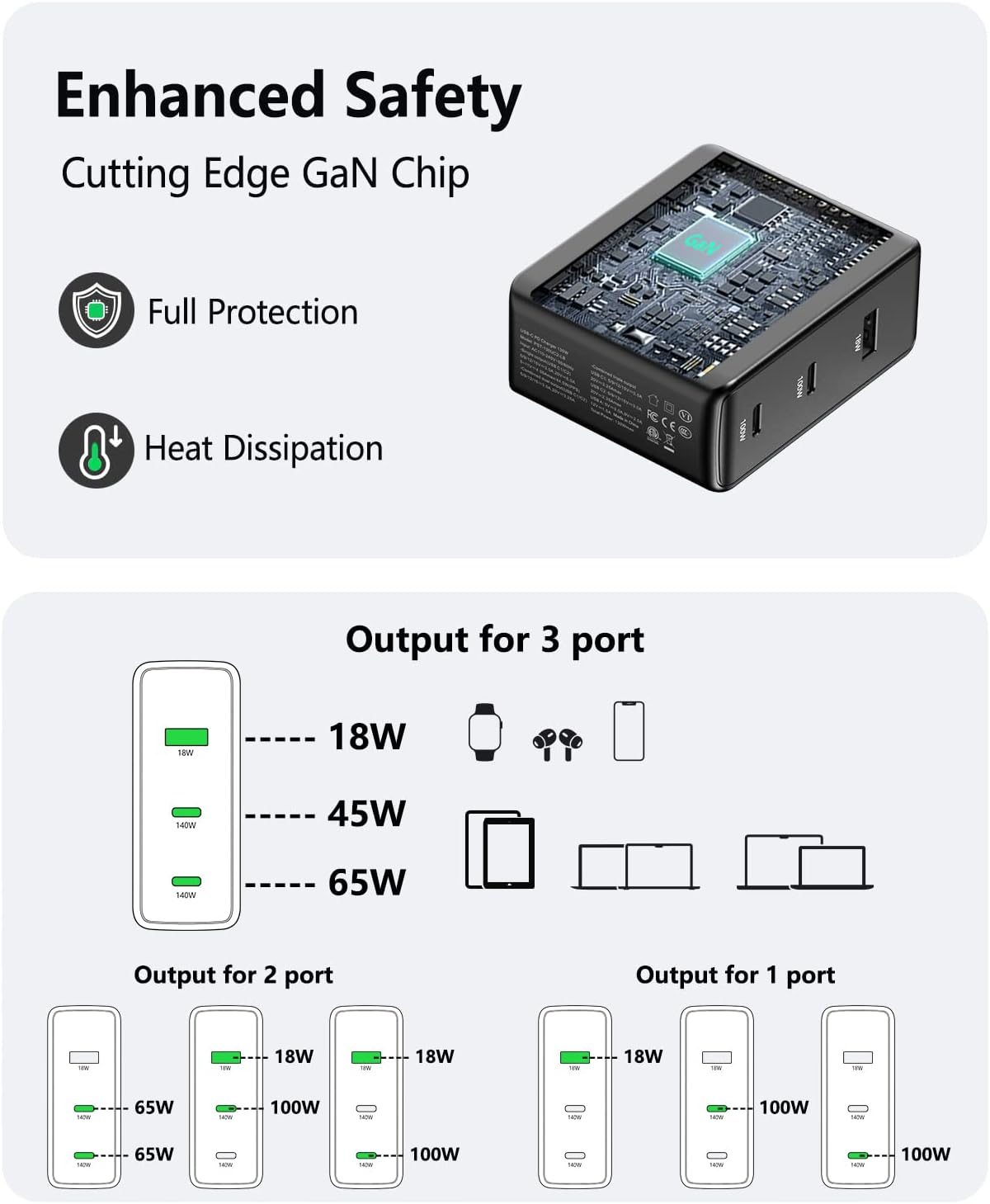

Image: A detailed diagram illustrating the power output configurations of the 130W USB C Charger when one, two, or three ports are in use, showing how wattage is dynamically allocated to connected devices.

호환성

This charger supports various fast charging protocols including Power Delivery 3.0, Quick Charge 4+, PPS, AFC, 5V2.4A, and BC1.2, ensuring wide compatibility with numerous devices. It is ideal for:

• 노트북: MacBook Pro, MacBook Air, Dell XPS, Lenovo Notebook, and other Type-C laptops.
• 휴대폰 및 태블릿: iPhone 14/13/12 series, Galaxy S22/S21 series, iPad (all models), Steam Deck, and more.
• 다른 장치들: Nintendo Switch, AirPods/AirPods Pro, MagSafe chargers, smartwatches, etc.

Image: A graphic displaying various devices compatible with the 130W USB C Charger, categorized by laptops (MacBook Pro, MacBook Air, Dell XPS, Lenovo), phones & tablets (iPhone, Galaxy, iPad), and other devices (Nintendo Switch, AirPods, MagSafe).

안전 및 신뢰성

The NXPGKEA 130W charger incorporates advanced safety features to protect your devices and ensure reliable operation:

• GaN III 기술: Utilizes the latest Gallium Nitride (GaN) technology, which allows for a smaller, more efficient charger with lower heat generation compared to traditional silicon-based chargers.
• 다중 보호 시스템: Built-in safeguards protect against over-current, short-circuit, and over-voltage, ensuring the safety of your devices during charging.
• PC(V0) Fire Retardant Material: 외부 casing is made from V0-grade fire-retardant PC material for enhanced safety.
• Built-in E-mark Chip: The included 100W USB-C cable features an E-mark chip to intelligently protect your device from sudden power spikes and ensure stable power delivery.

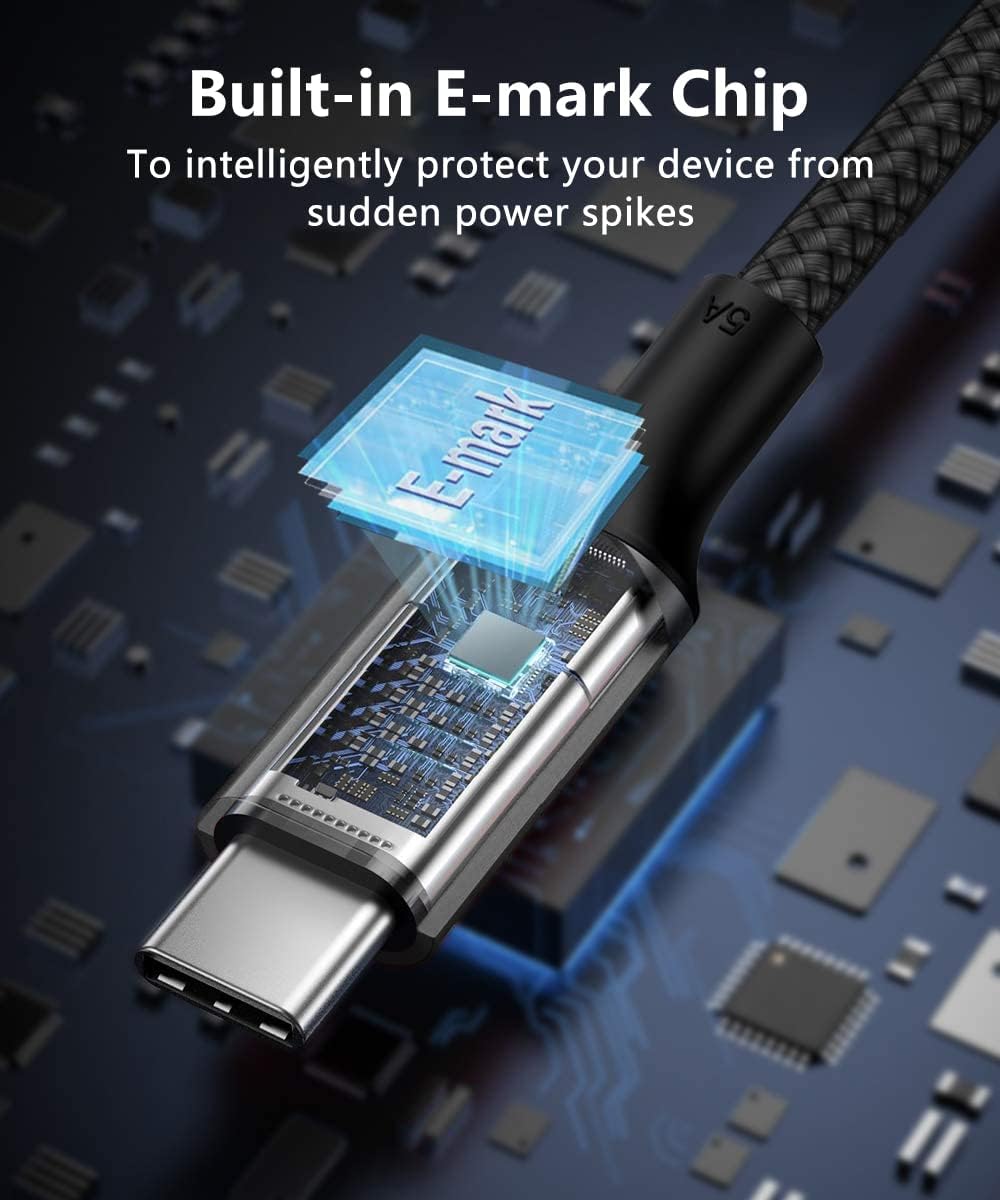

이미지: 자세한 view of the USB-C connector of the included cable, highlighting the integrated E-mark chip designed to provide intelligent protection against power fluctuations.

유지

충전기의 수명과 최적의 성능을 유지하려면 다음 유지 관리 지침을 따르십시오.

• 청소: 청소하기 전에 충전기를 전원 콘센트와 모든 기기에서 분리하세요. 부드럽고 마른 천으로 표면을 닦으세요. 액체 세제나 에어로졸은 사용하지 마세요.
• 저장: 직사광선이나 극한의 온도를 피하고 서늘하고 건조한 곳에 충전기를 보관하세요.
• 손질: 충전기를 떨어뜨리거나 강한 충격을 주지 마십시오. 충전기를 분해하거나 개조하지 마십시오.
• 케이블 관리: Avoid bending or crimping the charging cables excessively, especially near the connectors, to prevent internal damage.

문제 해결

충전기 사용 중 문제가 발생하면 다음의 일반적인 해결 방법을 참조하십시오.

위 해결 방법을 시도해 보신 후에도 문제가 지속되면 고객 서비스 센터로 문의하여 추가 지원을 받으시기 바랍니다.

명세서

보증 및 고객 지원

Your NXPGKEA 130W USB C Charger comes with a 12개월 보증 from the date of purchase. This warranty covers manufacturing defects and ensures trouble-free customer service.

For any questions, concerns, or warranty claims, please do not hesitate to contact our customer service team. We are committed to providing perfect assistance for every customer.

제조업체: L Lab Corporation (Hui Zhou) Limited

Please refer to your purchase platform or product packaging for specific contact details or visit the official NXPGKEA store page on Amazon for support options.
