Yamaha PS500 88-key Smart Digital Piano Instruction Manual

1. 서론

This manual provides essential information for the proper setup, operation, and maintenance of your Yamaha PS500 88-key Smart Digital Piano. The PS500 combines a realistic playing experience with advanced digital features, including Stream Lights technology and smart device connectivity. Please read this manual thoroughly to ensure optimal performance and longevity of your instrument.

그림 1: 전면 view of the Yamaha PS500 Digital Piano.

2. 설정

2.1 포장 해제 및 포함된 액세서리

모든 구성품을 포장에서 조심스럽게 꺼내세요. 다음 품목이 모두 있는지 확인하세요.

• Yamaha PS500 Digital Piano unit
• PA500C Power Adapter
• FC4A Sustain Pedal
• 보면대
• 이 사용 설명서

메모: The L-300 stand and LP-1 pedal accessories are sold separately and are not included with the standard package.

2.2 전원 연결

1. Connect the PA500C Power Adapter to the DC IN jack on the rear panel of the PS500.
2. 전원 어댑터를 표준 AC 콘센트에 꽂습니다.
3. Ensure the power switch on the rear panel is in the OFF position before connecting.

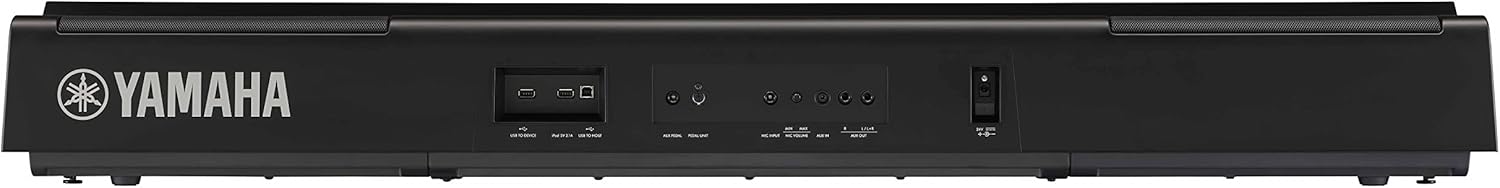

Figure 2: Rear panel showing power input, USB ports, and other connections.

2.3 서스테인 페달 연결

Connect the FC4A Sustain Pedal to the SUSTAIN jack on the rear panel of the PS500.

2.4 Smart Device Connectivity (Bluetooth)

The PS500 supports Bluetooth connectivity for integration with smart devices and dedicated applications.

1. Download the "Smart Pianist" and "flowkey" apps from your device's app store.
2. 스마트 장치에서 Bluetooth를 활성화하십시오.
3. Refer to the Smart Pianist app manual for detailed instructions on pairing your device with the PS500.

Figure 3: Yamaha PS500 connected to a smart device running the Smart Pianist app.

3. 사용 설명서

3.1 전원 켜기/끄기

To power on the PS500, press the power switch located on the rear panel. To power off, press the switch again.

3.2 Using Stream Lights Technology

The Stream Lights feature guides you by illuminating LEDs above each key.

• Four LED lights are positioned above each key.
• Lights move towards the keys to indicate the timing of the next note in a song.
• This feature is primarily used in conjunction with the Smart Pianist app for interactive lessons.

Figure 4: Detail of the Stream Lights feature above the piano keys.

3.3 Smart Pianist App Functions

Connecting your PS500 to the Smart Pianist app unlocks its full potential.

• 음성 선택: Access hundreds of voices and instrument sounds.
• 스타일: Utilize various accompaniment styles.
• 수업: Engage with interactive lessons and exercises.
• Audio to Score: Analyze songs from your music library to generate piano scores.
• 제어판: Adjust settings such as Voice Layers, Splits, Split Points, and Reverbs.
• 녹음: Record MIDI and audio performances directly through the app.

3.4 flowkey App Integration

The flowkey app provides an interactive platform for learning piano with a wide selection of songs.

• Learn songs at your own pace with instant feedback.
• Access a diverse library of musical pieces.
• The PS500 includes a 3-month subscription to flowkey.

Figure 5: flowkey app promotion indicating 3 months included with the purchase.

4. 주요 특징

• 88 GHS Weighted Keys: Provides a realistic acoustic piano feel, with heavier touch in the low end and lighter touch in the high end.
• CFX and Bösendorfer Imperial Piano Samp레: Offers high-quality sound reproductions of two renowned concert grand pianos.
• Stream Lights Technology: Visual guidance system with LEDs above each key to assist in learning and playing.
• 터치 제어판: Intuitive interface for direct control over various instrument functions.
• 스마트 장치 연결: Seamless integration with the Smart Pianist app via Bluetooth for enhanced control and learning.
• PA500C Power Adapter: Included for reliable power supply.
• FC4A Sustain Pedal: Included for expressive playing.

5. 유지관리

5.1 청소

• Wipe the instrument with a soft, dry cloth.
• 잘 지워지지 않는 먼지에는 약간의 d를 사용하세요.amp 천으로 닦은 후 물기를 닦아내세요.
• Avoid using chemical cleaners, waxes, or solvents, as these can damage the finish.

5.2 보관 및 취급

• Store the piano in a stable environment, away from direct sunlight, extreme temperatures, and high humidity.
• 악기 위에 무거운 물건을 올려 놓지 마십시오.
• When moving the piano, ensure it is properly supported to prevent damage.

6. 문제 해결

7. 사양

Figure 6: Dimensions and weight of the Yamaha PS500 Digital Piano.

8. 보증 및 지원

제품 보증에 대한 정보는 구매 시 포함된 보증서를 참조하거나 공식 Yamaha 웹사이트를 방문하세요. web대지.

For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact Yamaha customer support through their official channels.

• 야마하 공식 Web대지: www.yamaha.com
• 고객 지원: Refer to the contact information provided on the Yamaha web귀하의 지역에 대한 사이트.
