글레이셔 베이 모던 싱글 핸들 욕조/샤워 수전(모델 HD873X-6204) 사용 설명서

Brushed Nickel Finish with Valve Included

소개

This manual provides detailed instructions for the installation, operation, and maintenance of your Glacier Bay Modern Single-Handle Tub and Shower Faucet. Please read this manual thoroughly before beginning installation or use to ensure proper function and longevity of your product. This faucet features a sleek design, a 1.8 GPM WaterSense certified flow rate, a ceramic disc valve for durability, and a pressure balancing system for consistent water temperature.

Glacier Bay Modern Single-Handle Tub and Shower Faucet components in brushed nickel

이미지: 이상view of the Glacier Bay Modern Single-Handle Tub and Shower Faucet components, including the showerhead, control handle, and tub spout, all in a brushed nickel finish.

안전 정보

수도꼭지를 설치하거나 정비하기 전에 항상 주 물 공급을 차단하세요.
설치 시에는 안전 안경과 장갑을 착용하세요.
설치 과정의 어떤 부분이든 확실하지 않은 경우 자격을 갖춘 배관공에게 문의하세요.
모든 연결 부분이 안전하게 되어 누출을 방지하세요.
Do not overtighten connections, as this can damage the product.

패키지 내용

설치를 시작하기 전에 모든 구성 요소가 있는지 확인하세요.

샤워 헤드
샤워 팔
Control Handle and Escutcheon
Pressure Balancing Valve (Rough-in Valve)
다이버터가 있는 욕조 주둥이
장착 하드웨어
Plug for shower-only installation (if applicable)

폭발했다 view of Glacier Bay faucet components

이미지: 폭발된 view showing the individual components of the Glacier Bay tub and shower faucet, including the showerhead, handle, escutcheon, valve, and tub spout.

설정 및 설치

Professional installation is recommended. Ensure you have access to the plumbing behind the wall for valve installation.

설치 영역 준비: 메인 급수 밸브를 잠그세요. 작업 공간을 정리하고 필요한 모든 도구를 준비하세요.
러프인 밸브 설치:
Image: The Glacier Bay pressure balancing rough-in valve, showing the hot and cold water inlets and outlets.
Mount the pressure balancing valve body securely within the wall according to local plumbing codes. Connect the hot and cold water supply lines to the designated inlets on the valve. Connect the shower and tub outlet lines. Ensure the valve is level and properly secured.

Image: Diagram illustrating the Integral Stop feature on the shower valve, showing how to shut off water at the valve for maintenance without affecting the entire home's water supply.
This valve includes integral stops, allowing you to shut off water directly at the valve for maintenance without interrupting service to the entire home.
욕조 주둥이 설치:

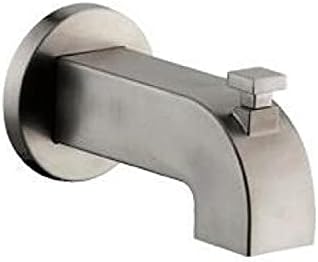

Image: The Glacier Bay tub spout in brushed nickel, featuring a diverter knob on top.

Thread the tub spout onto the tub drop pipe extending from the wall. Ensure it is securely tightened and sealed to prevent leaks. If installing a shower-only system, use the provided plug for the tub spout outlet on the valve.
Install the Shower Arm and Showerhead:

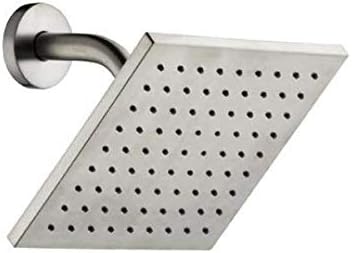

Image: A close-up of the square-shaped Glacier Bay showerhead in brushed nickel, showing the spray nozzles.
Apply plumber's tape to the threads of the shower arm. Thread the shower arm into the shower outlet in the wall. Tighten securely. Attach the showerhead to the shower arm, ensuring a tight seal.
Install the Escutcheon and Handle:
Image: The square escutcheon plate and single lever handle for the Glacier Bay faucet in brushed nickel.
Install the escutcheon plate over the valve body, securing it to the wall. Attach the handle to the valve stem according to the manufacturer's instructions, typically with a set screw.
누출 테스트: Once all components are installed, slowly turn on the main water supply and check all connections for leaks.

작동 지침

Your Glacier Bay faucet is designed for ease of use and water efficiency.

물 흐름 및 온도 제어: 하나의 레버로 물의 흐름과 온도를 모두 조절할 수 있습니다.
- 손잡이를 들어 올려 물을 틀면 수압이 높아집니다.
- 물을 잠그려면 손잡이를 아래로 누르세요.
- Rotate the handle left for hotter water and right for colder water.
다이버터 기능: 욕조 수도꼭지에서 샤워헤드로 물 흐름을 전환하려면 욕조 수도꼭지에 있는 전환 손잡이를 위로 당기세요. 다시 욕조 수도꼭지로 물이 흐르도록 하려면 손잡이를 아래로 내리세요.
워터센스 인증: This faucet is WaterSense certified with a 1.8 GPM flow rate, designed to conserve water without compromising performance.
Image: The WaterSense logo, indicating the product meets EPA criteria for water efficiency.
Pressure Balancing System: The integrated pressure balancing system maintains a consistent water temperature, preventing sudden changes due to fluctuations in hot or cold water supply.

유지

정기적인 청소와 관리는 수도꼭지의 마감과 기능을 오래 유지하는 데 도움이 됩니다.

마감재 청소: 브러시드 니켈 마감재는 부드러운 천으로 닦으십시오.amp 천을 사용하십시오. 연마성 세제, 독한 화학 물질 또는 수세미는 마감재를 손상시킬 수 있으므로 사용하지 마십시오.
샤워헤드 청소하기: Periodically clean the showerhead nozzles to remove mineral buildup. You can gently rub the rubber nozzles with your finger or use a soft brush. For stubborn buildup, soak the showerhead in a solution of white vinegar and water.
Ceramic Disc Valve: The ceramic disc valve is designed for long-lasting, drip-free performance and typically requires no maintenance.

문제 해결

문제	가능한 원인	해결책
Low water flow from showerhead or tub spout.	샤워기 노즐에 미네랄 침전물이 쌓였습니다. 차단 밸브가 부분적으로 닫혔습니다. 밸브에 이물질이 있습니다.	Clean showerhead nozzles. Ensure integral stops or main water supply valves are fully open. Flush the valve by removing the cartridge (consult a plumber if unsure).
물의 온도는 변동합니다.	Pressure balancing valve issue. Inconsistent hot/cold water supply pressure.	Verify proper installation of the pressure balancing valve. Consult a plumber to check home water pressure.
Faucet leaks from handle or spout.	느슨한 연결. Damaged O-rings or ceramic cartridge.	Check and tighten all connections (do not overtighten). Replace O-rings or ceramic cartridge (consult a plumber).
Diverter not working correctly.	전환 장치 내부에 미네랄 침전물이 쌓였습니다. Damaged diverter.	Clean the diverter mechanism. Replace the tub spout if the diverter is damaged.

명세서

모델 번호: HD873X-6204
상표: 글레이셔 베이
마치다: 브러시드 니켈
재료: Brass (Valve Body), Ceramic (Handle)
핸들 수 : 1
장착 유형: 벽걸이형
유량: 분당 1.8갤런(GPM)
인증: 워터센스 인증
샤워헤드 크기: 8 inches (square)
밸브 유형: Pressure Balancing, Ceramic Disc
품목 무게: 약 5.96파운드(2.71킬로그램)
패키지 크기: 9.09 x 8.82 x 7.17 인치

보증 및 지원

For warranty information or technical support, please refer to the documentation included with your purchase or contact Glacier Bay customer service. Keep your proof of purchase for warranty claims.
