DuraSonic 2.5L Digital Ultrasonic Cleaner

1. 서론

This manual provides essential information for the safe and effective operation of your DuraSonic 2.5L Digital Ultrasonic Cleaner. Please read these instructions thoroughly before initial use and retain them for future reference. This device is designed for professional cleaning of various items using ultrasonic waves and heat.

2. 안전 지침

• Always ensure the unit is placed on a stable, level, and heat-resistant surface.
• Do not operate the unit without liquid in the tank. Dry running can cause damage.
• Ensure the power cord is securely connected and not damaged. Do not use if the cord is frayed or damaged.
• Keep the unit away from water splashes or excessive humidity. Do not immerse the unit in water.
• Always unplug the unit from the power outlet before filling, emptying, cleaning, or performing any maintenance.
• Do not touch the tank or cleaning solution during operation, as it may become hot.
• 초음파 세척기에 적합한 세척액만 사용하십시오. 인화성, 부식성 또는 연마성 세척액은 사용하지 마십시오.
• 어린이와 허가받지 않은 사람의 손이 닿지 않는 곳에 보관하세요.
• Ensure adequate ventilation when operating, especially if using specialized cleaning solutions.

3. 패키지 내용

패키지에 모든 품목이 들어 있는지 확인하세요.

• DuraSonic 2.5L Digital Ultrasonic Cleaner Unit
• 스테인리스 스틸 청소 바구니
• 스테인레스 스틸 커버
• 전원 코드
• 사용 설명서

그림 3.1: The DuraSonic 2.5L Digital Ultrasonic Cleaner shown with its stainless steel basket, cover, and power cord.

4. 제품 오버view

The DuraSonic DS2.5L features a durable stainless steel tank and an intuitive digital control panel for precise cleaning operations.

그림 4.1: 앞쪽 view of the DuraSonic 2.5L Digital Ultrasonic Cleaner, highlighting the control panel and tank.

4.1 제어판 기능

그림 4.2: 상세한 view of the control panel, showing the display, temperature knob, and function buttons.

• 디지털 디스플레이: Shows preset and actual temperature, time, and heating status.
• 온도 조절 손잡이: Adjusts the desired heating temperature in Celsius or Fahrenheit.
• Degas Button: Initiates the degas function to remove dissolved gases from the cleaning solution, improving ultrasonic efficiency.
• Sweep Button: Activates the sweep function, which slightly varies the ultrasonic frequency to ensure uniform cleaning throughout the tank.
• +5 / -5 Buttons: Adjusts the cleaning time in minutes or seconds.
• 켜기/끄기 버튼: Powers the unit on or off and starts/stops the cleaning cycle.

4.2 Cleaning Basket

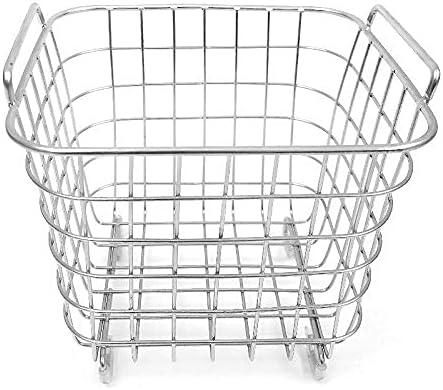

그림 4.3: The stainless steel cleaning basket, designed to hold items during ultrasonic cleaning.

The included stainless steel basket is used to hold items being cleaned, keeping them suspended in the solution and preventing them from resting directly on the tank bottom, which can impede ultrasonic action.

5. 설정

1. 놓기: Place the ultrasonic cleaner on a firm, level, and dry surface. Ensure there is adequate space around the unit for ventilation.
2. 전원 연결: 전원 코드를 장치에 연결한 다음 접지된 전기 콘센트에 꽂으세요.
3. 채우기 탱크: Open the cover and carefully fill the stainless steel tank with the appropriate cleaning solution. Ensure the liquid level is between the MIN and MAX marks inside the tank. Do not overfill or underfill.
4. 로드 항목: Place the items to be cleaned into the stainless steel basket. Lower the basket into the cleaning solution. Ensure items are fully submerged but not touching the tank bottom.
5. 덮개 닫기: Place the cover securely on the unit.

그림 5.1: 위에서 아래로 view showing the cleaning basket properly placed inside the tank, submerged in solution.

6. 사용 설명서

1. 전원 켜기: 를 누르세요 켜기/끄기 button to power on the unit. The digital display will illuminate.
2. 설정 온도: 회전하다 온도 조절 손잡이 to set the desired cleaning solution temperature. The display will show the preset temperature and the actual temperature. The heating indicator will light up when heating is active.
3. 청소 시간 설정: 사용하세요 +5 그리고 -5 buttons to adjust the cleaning duration. The display shows time in minutes and seconds.
4. Degas Function (Optional): For new solutions or after prolonged inactivity, press the 드가 button. This removes dissolved gases from the liquid, which can interfere with ultrasonic efficiency. Run for 5-10 minutes.
5. Sweep Function (Optional): 를 누르세요 스위프 button to activate the sweep function. This slightly modulates the ultrasonic frequency to provide more uniform cleaning throughout the tank, reducing standing waves.
6. 청소 시작: Once temperature and time are set, press the 켜기/끄기 button again to start the ultrasonic cleaning cycle. The timer will begin counting down.
7. 사이클 종료: The unit will automatically stop when the set time expires. An audible alert may sound.
8. 항목 제거: Carefully open the cover, lift the basket, and remove the cleaned items. Rinse them with clean water if necessary and dry thoroughly.
9. 전원 끄기 : 를 누르세요 켜기/끄기 button to turn off the unit. Unplug from the power outlet when not in use.

7. 유지관리

• 탱크 배수: After each use or when the solution becomes dirty, unplug the unit. Carefully pour out the used cleaning solution.
• 탱크 청소: Rinse the stainless steel tank with clean water. Use a soft cloth to wipe away any residue. Do not use abrasive cleaners or scrubbers.
• 외부 청소: 광고로 장치의 외부를 닦습니다.amp cloth. Avoid getting water into the control panel or ventilation openings.
• 저장: Ensure the unit is clean and dry before storing. Store in a cool, dry place away from direct sunlight.
• Basket and Cover: Clean the basket and cover with soap and water, rinse, and dry thoroughly.

8. 문제 해결

9. 사양

10. 보증 및 지원

The DuraSonic 2.5L Digital Ultrasonic Cleaner comes with a 2년 한정 보증 구매일로부터. 이 보증은 정상적인 사용 하에서 재료 및 제조상의 결함을 포함합니다.

For warranty claims, technical support, or service inquiries, please refer to the contact information provided with your purchase documentation or visit the official DuraSonic web대지.
