SEAFLO SFBP1-G500-01
SEAFLO 01 Series 500 GPH Bilge Pump
사용 설명서
Model: SFBP1-G500-01
1. 서론
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your SEAFLO 01 Series 500 GPH Bilge Pump. This 12V submersible pump is designed for reliable water evacuation in marine environments, featuring anti-airlock protection and durable construction. Please read this manual thoroughly before use to ensure optimal performance and longevity of your pump.
2. 안전 정보
Always observe basic safety precautions to reduce the risk of personal injury and damage to the pump or vessel.
- Ensure the power supply is disconnected before installing, servicing, or performing any maintenance on the pump.
- 볼륨을 확인하세요tage of the power source matches the pump's voltage rating (12V DC).
- All electrical connections must be waterproof and properly insulated to prevent corrosion and short circuits.
- Install a fuse of the correct amperage (5A for this model) in the positive lead to protect the pump and wiring.
- Do not run the pump dry for extended periods, as this can cause overheating and damage.
- 이 펌프는 물만 펌핑하도록 설계되었습니다. 인화성 액체, 화학 물질 또는 기타 위험 물질에는 사용하지 마십시오.
3. 제품 오버view
The SEAFLO 01 Series 500 GPH Bilge Pump is engineered for reliability and performance in demanding marine conditions.
주요 특징:
- Powerful 500 GPH Flow: Ensures efficient water evacuation.
- Anti-Airlock Protection: Prevents air from becoming trapped, ensuring consistent operation.
- Robust and Quiet Motor: Sealed motor designed for long life and low noise.
- Snap-Off Strainer Base: Allows for quick and easy cleaning and maintenance.
- Durable Marine-Grade Construction: Features a stainless steel shaft, moisture-tight seals, and blocked wiring for corrosion resistance.
- 완전 잠수정: Meets CE, RoHS, ISO 8846, and ISO 8849 standards for safe marine operation.
- 호환성: Operates with manual switches or float switches (not included).
제품 구성 :
The main unit of the SEAFLO 01 Series 500 GPH Bilge Pump, showcasing its compact design and integrated wiring.
Illustration of the pump's powerful 500 GPH flow rate, demonstrating its water expulsion capability.
상세한 view of the high-quality impeller, designed for durable and powerful water movement within the pump.
내부 view highlighting the robust and quiet motor, engineered for long-lasting and efficient operation.
The pump with its snap-off removable strainer base detached, illustrating the ease of maintenance and cleaning.

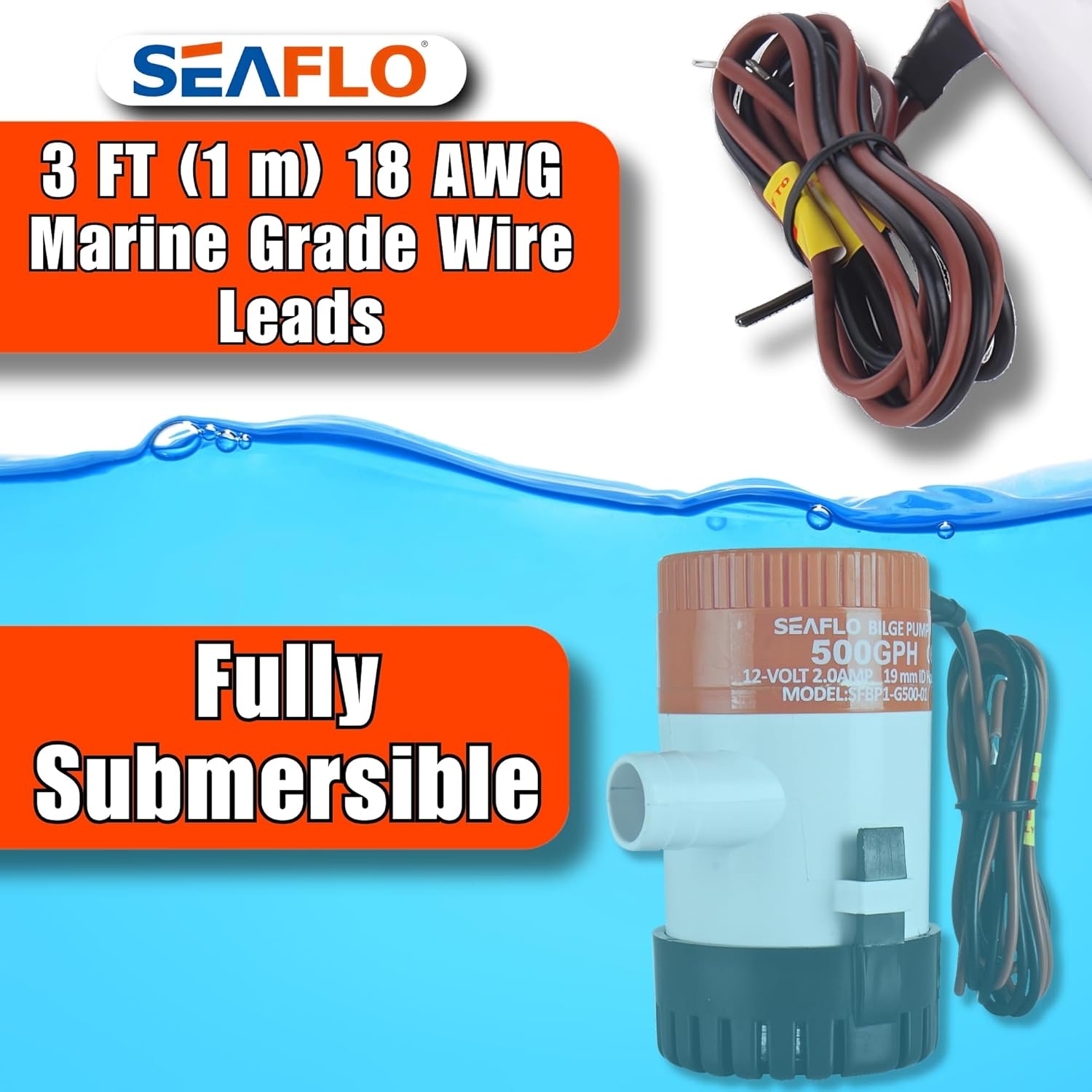

The pump is fully submersible and features 3 ft (1 m) 18 AWG marine-grade wire leads for reliable electrical connection in wet environments.
Close-up of the 3/4 inch nylon hose barb outlet, indicating the standard connection size for discharge hoses.
The pump is compatible with both manual switches and float switches, offering flexibility in control options.
공식 제품 비디오:
This video demonstrates the SEAFLO 500 GPH 01 Series Bilge Pump in operation, showcasing its water pumping capabilities and key features.
4. 사양
| 기인하다 | 값 |
|---|---|
| 모델 번호 | SFBP1-G500-01 |
| 권tage | 12V 직류 |
| 유량 | 500 GPH(시간당 갤런) |
| 출구 직경 | 3/4인치(19mm) |
| 맥스 헤드 | 6.56피트(2미터) |
| 현재 추첨 | 1.6A |
| 최대 무승부 | 4.0A |
| 전선 리드 길이 | 3.0피트(1미터) |
| 재료 | 플라스틱 |
| 품목 무게 | 0.45파운드(7.2온스) |
| 제품 치수 | 3.57인치 길이 x 2.77인치 너비 x 4.25인치 높이 |
| 인증 | CE, RoHS, ISO 8846, ISO 8849 |

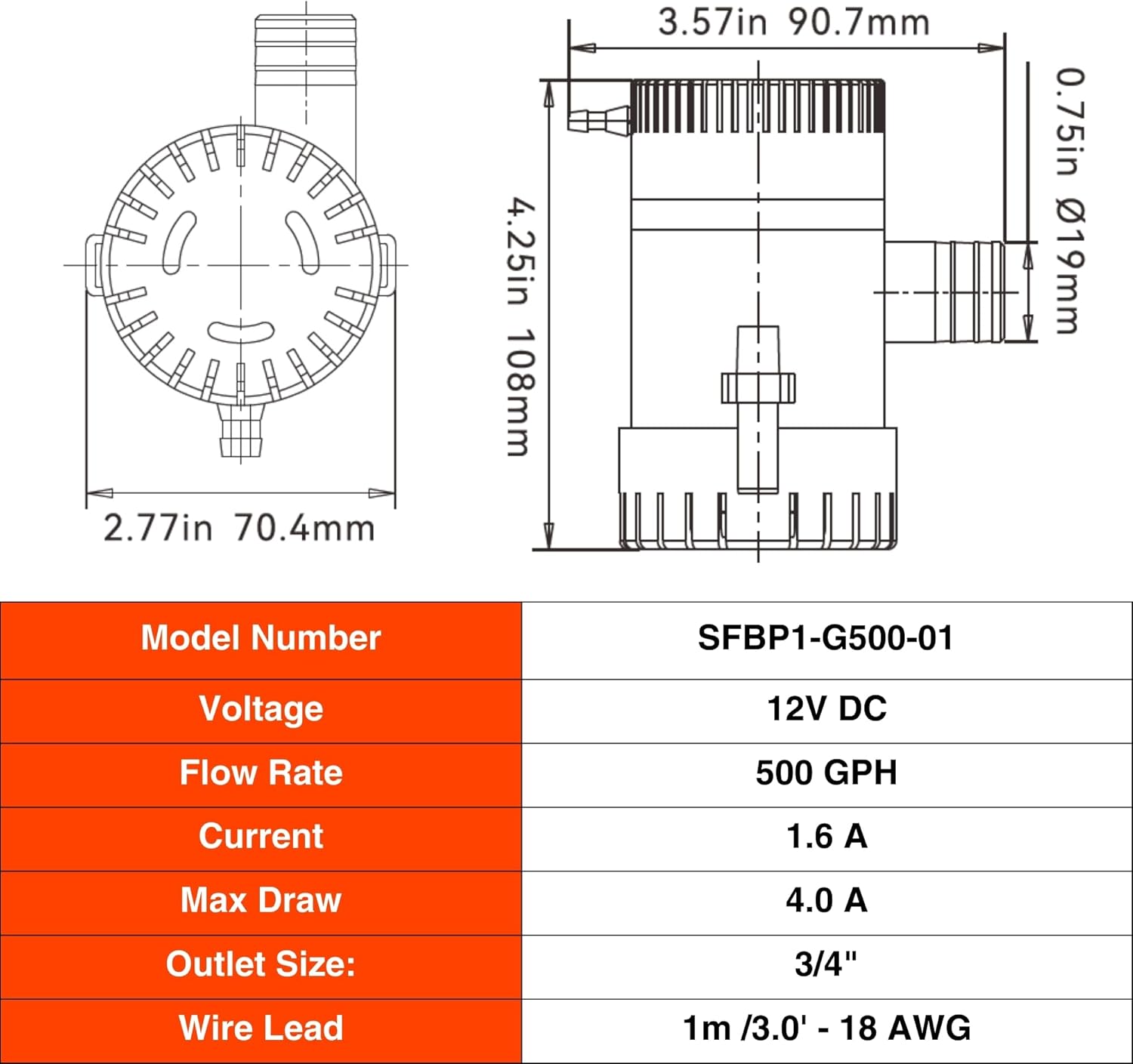

Detailed performance curve and flow rate table for the SEAFLO 500 GPH Bilge Pump, illustrating its efficiency under various conditions.
5. 설정 및 설치
Proper installation is crucial for the pump's performance and safety. Follow these general guidelines:
- 장착 위치: Choose a flat, stable surface in the lowest part of the bilge where water collects. Ensure the pump is easily accessible for inspection and maintenance.
- 안전한 장착: Use appropriate fasteners to secure the pump's base firmly to the mounting surface. The snap-off strainer base allows for easy removal of the motor cartridge for cleaning without detaching the entire base.
- 호스 연결: Connect a 3/4" (19 mm) ID hose to the pump's outlet barb. Secure the hose with a marine-grade hose clamp to prevent leaks. Route the hose upwards to a through-hull fitting, ensuring a continuous rise to prevent backflow.
- 배선:
- Connect the brown wire (positive) to a 12V DC power source through a fuse (recommended 5A).
- Connect the black wire (negative) to a common ground.
- If using a manual switch or float switch, wire it according to the switch manufacturer's instructions, ensuring it is rated for 12V DC and sufficient amp분노.
- All connections must be made with marine-grade, tinned copper wire and sealed with heat-shrink tubing or waterproof connectors to prevent corrosion.
- 테스트: After installation, briefly apply power to the pump to ensure it operates correctly and that there are no leaks in the hose connections.
6. 사용 설명서
The SEAFLO 01 Series 500 GPH Bilge Pump is a non-automatic pump, meaning it requires an external switch for activation.
- 수동 조작: Activate the pump by turning on the connected manual switch. Turn off the switch when the bilge is clear of water.
- 자동 작동(플로트 스위치 포함): If connected to a float switch (sold separately), the pump will automatically turn on when water reaches a certain level and turn off when the water level drops.
- Run Dry Protection: While the pump is designed to withstand brief periods of dry running, prolonged dry operation can lead to premature wear and damage. Avoid running the pump without water for extended durations.
7. 유지관리
Regular maintenance ensures the longevity and efficient operation of your bilge pump.
- Strainer Base Cleaning: Periodically inspect and clean the strainer base to remove debris such as leaves, hair, or other foreign objects that can clog the impeller and reduce pump efficiency. To clean, simply snap off the strainer base from the motor cartridge, clear any debris, and reattach.
- 임펠러 검사: While the strainer base is removed, inspect the impeller for any damage or excessive wear.
- 호스 및 연결: Check the discharge hose for kinks, blockages, or leaks. Ensure all electrical connections remain tight and corrosion-free.
- 겨울철 : In freezing climates, ensure the pump and associated plumbing are drained or protected from freezing to prevent damage.
8. 문제 해결
펌프가 예상대로 작동하지 않는 경우, 다음의 일반적인 문제 및 해결 방법을 참조하십시오.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 펌프가 작동하지 않음 | No power; Blown fuse; Loose wiring; Faulty switch | 배터리 용량 확인tage; Replace fuse; Inspect and tighten all electrical connections; Test or replace switch. |
| Pump runs but no water flow or low flow | Clogged strainer base/impeller; Kinked or blocked discharge hose; Air trapped in pump (airlock); Pump not fully submerged | Clean strainer base and impeller; Clear hose obstruction; Briefly lift and lower pump to release air; Ensure pump is fully submerged. |
| 펌프가 지속적으로 작동 | Faulty float switch (if installed); Backflow from discharge hose; Leak in bilge | Test or replace float switch; Install or check anti-siphon loop/check valve; Inspect bilge for water ingress. |
| 과도한 소음 또는 진동 | Debris in impeller; Loose mounting; Worn motor bearings | Clean impeller; Securely fasten pump; If noise persists, pump may need replacement. |
9. 보증 및 지원
The SEAFLO 01 Series 500 GPH Bilge Pump is backed by a 4년 한정 보증이 보증은 구매일로부터 정상적인 사용 및 서비스 조건 하에서의 재료 및 제조상의 결함에 적용됩니다.
For warranty claims, technical support, or any questions regarding your SEAFLO product, please contact SEAFLO customer service. Keep your proof of purchase for warranty validation.
더 자세한 정보를 원하시면 SEAFLO 공식 웹사이트를 방문하세요. web사이트를 방문하거나 현지 유통업체에 문의하세요.
