Jaclo G21-12-24-IC-PEW Inside Corner Grab Bar Installation and User Manual

소개

This manual provides detailed instructions for the safe installation, proper use, and maintenance of your Jaclo G21-12-24-IC-PEW Inside Corner Grab Bar. This product is designed to provide support and stability in bathroom environments, particularly within shower or bath areas. Please read all instructions carefully before installation and use to ensure optimal safety and performance.

안전 정보

• 전문 설치 권장: For maximum safety and structural integrity, professional installation by a qualified plumber or contractor is strongly recommended.
• 구조적 지지: The grab bar must be securely mounted to structural blocking or studs within the wall. Mounting to drywall alone is insufficient and can lead to serious injury.
• 중량 용량: Ensure the installed grab bar can support the intended user's weight. Consult local building codes and ADA guidelines for specific requirements.
• 정기 검사: Periodically check all mounting screws and connections to ensure they remain tight and secure. Do not use the grab bar if it feels loose or damaged.
• 용도: This grab bar is intended for support and balance assistance only. Do not use it for hanging heavy objects or as a step.
• 청소: Use only mild, non-abrasive cleaners. Harsh chemicals can damage the finish and compromise the material integrity.

패키지 내용

설치를 시작하기 전에 모든 구성 요소가 있는지 확인하세요.

• Jaclo G21-12-24-IC-PEW Inside Corner Grab Bar (1 unit)
• Mounting Hardware (screws, anchors - quantity may vary based on model and installation type)
• 설치 템플릿(포함된 경우)

설정 및 설치

필요한 도구 (포함되지 않음) : Drill, drill bits appropriate for mounting surface and hardware, stud finder, level, measuring tape, pencil, screwdriver.

1. 계획 배치: Determine the optimal height and location for the grab bar in the inside corner. Consider the user's height and specific needs. Ensure the chosen location allows for secure mounting into wall studs or adequate structural blocking.
2. Locate Studs/Blocking: Use a stud finder to locate and mark the center of the wall studs or structural blocking behind the finished wall surface where the grab bar will be mounted. For an inside corner grab bar, you will need secure points on both adjacent walls.
3. 드릴링 지점 표시: Hold the grab bar in the desired position or use the provided template. Use a level to ensure it is perfectly horizontal and vertical. Mark the exact drilling points for the mounting screws on both walls.
4. 드릴 파일럿 홀: Using a drill bit appropriate for your mounting hardware and wall material, carefully drill pilot holes at the marked locations. Ensure holes are deep enough for the screws but do not penetrate beyond the wall's structural elements.
5. Install Mounting Plates: If your grab bar has separate mounting plates, attach them to the wall using the provided screws. Ensure they are firmly secured.
6. Attach Grab Bar: Position the grab bar over the mounting plates or directly align it with the drilled holes. Secure the grab bar to the wall using the provided screws. Tighten all screws firmly but do not overtighten, which could strip the threads or damage the wall.
7. 보안 테스트: After installation, firmly pull on the grab bar in various directions to ensure it is absolutely secure and does not move. If there is any movement, re-evaluate the installation and tighten connections or reinforce mounting points as necessary.

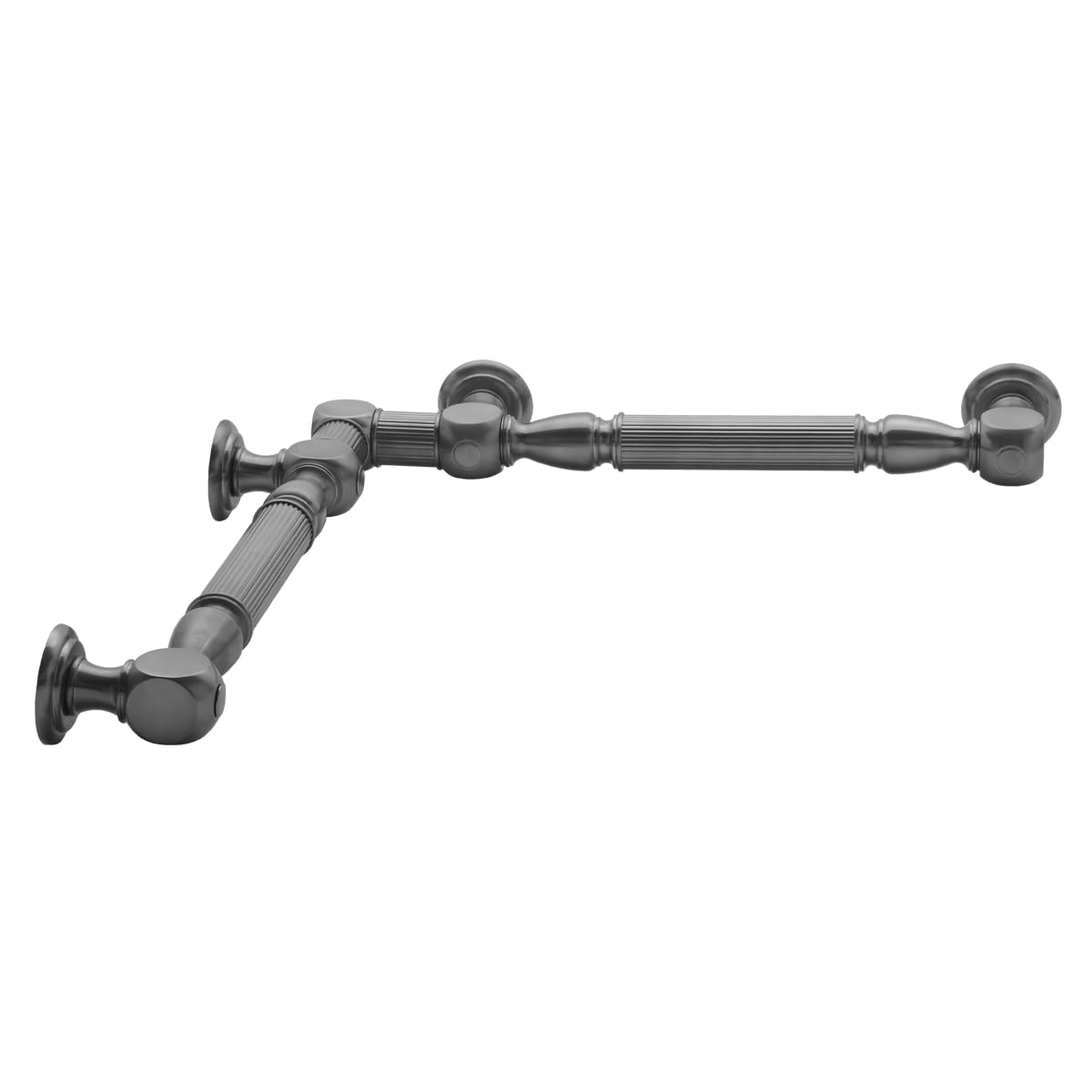

Image: Jaclo G21-12-24-IC-PEW Inside Corner Grab Bar. This image shows the grab bar in a pewter finish, designed for installation in an inside corner of a bathroom or shower.

작동 및 사용

The Jaclo G21-12-24-IC-PEW Inside Corner Grab Bar is designed to provide a stable handhold for balance and support when entering, exiting, or moving within a shower or bath area. Always grasp the bar firmly with your hand. Avoid sudden jerking motions or placing excessive, unsupported weight on the bar. Use it to steady yourself, not to pull yourself up with full body weight unless specifically designed and rated for such use and professionally installed to meet those standards.

유지

• 청소: Clean the grab bar regularly with a soft cloth and mild, non-abrasive soap and water. Rinse thoroughly and dry immediately to prevent water spots and maintain the finish.
• 가혹한 화학 물질을 피하세요: Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or any products containing bleach, acids, or solvents, as these can damage the finish.
• 정기적으로 검사하세요: Periodically check the grab bar for any signs of wear, corrosion, or looseness. If any issues are detected, address them immediately.

문제 해결

• 손잡이가 헐거워진 것 같아요:
  • Check all mounting screws. Tighten them carefully with a screwdriver.
  • If screws do not tighten or continue to feel loose, the mounting points in the wall may be compromised. Professional re-installation or reinforcement of the wall structure may be required. Do not use the grab bar until it is securely re-mounted.
• Finish Discoloration or Damage:
  • Ensure you are using only mild, non-abrasive cleaners as recommended in the Maintenance section.
  • If damage persists, contact Jaclo customer support for advice on finish care or potential replacement.

명세서

보증 및 지원

For warranty information, technical support, or to inquire about replacement parts, please contact Jaclo customer service directly. Refer to the official Jaclo web최신 연락처 정보와 보증 조건은 해당 사이트나 제품 포장에서 확인하세요.
