1. សេចក្តីផ្តើម
Thank you for choosing the ONESPORT OT07 Electric Bicycle. This manual provides essential information for the safe assembly, operation, and maintenance of your new e-bike. Please read this manual thoroughly before your first ride and keep it for future reference. Proper use and maintenance will ensure optimal performance and longevity of your bicycle.

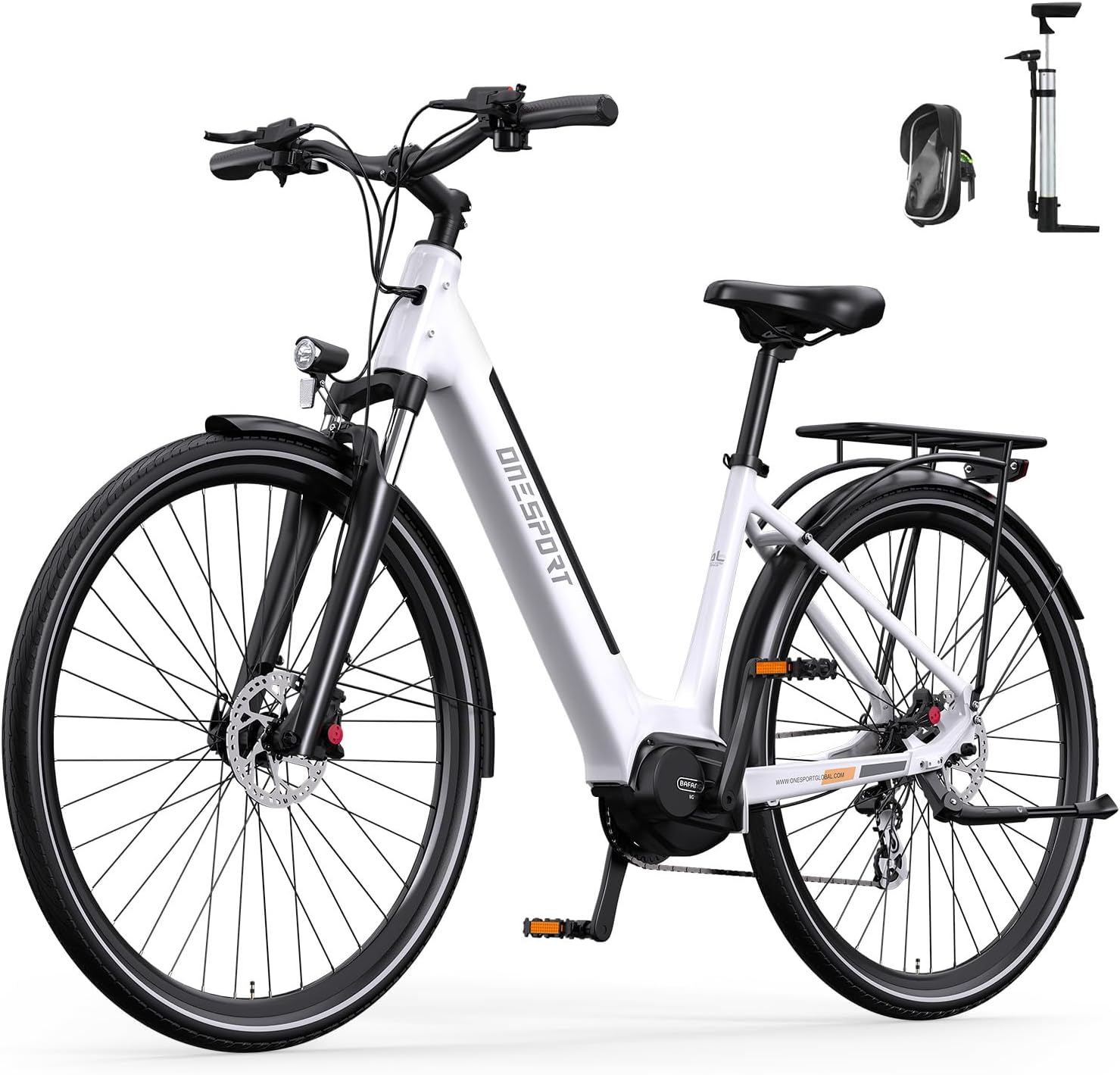

Image: The ONESPORT OT07 Electric Bicycle, showcasing its sleek design and integrated battery.
2. ការដំឡើងនិងការជួបប្រជុំគ្នា។
Your ONESPORT OT07 Electric Bicycle comes partially assembled. Follow these instructions carefully to complete the assembly process. It is recommended to have basic tools and a clean, open workspace.
General Assembly Guide (Eleglide T2 - for illustrative purposes)
Video: A general assembly guide for an electric bicycle (Eleglide T2 model). This video demonstrates common steps for unboxing and assembling an e-bike, including handlebar, pedal, and wheel installation. While the model shown is different, the principles apply to the ONESPORT OT07.
ជំហានសំខាន់ៗនៃការដំឡើង៖
- ដោះប្រអប់៖ Carefully remove the bicycle and all components from the packaging. Inspect for any damage.
- ការដំឡើងរបារដៃ៖ ភ្ជាប់ដៃចង្កូតទៅនឹងដង។ ត្រូវប្រាកដថាវានៅចំកណ្តាល និងរឹតឲ្យជាប់ល្អ។
- ការដំឡើងកង់ខាងមុខ៖ Install the front wheel, ensuring the brake rotor is correctly aligned with the caliper. Secure the wheel nuts.
- ការដំឡើងឈ្នាន់៖ Identify the left (L) and right (R) pedals. Thread them into the crank arms by hand, then tighten with a wrench. Note that the left pedal has a reverse thread.
- បង្គោលកៅអី និងកែប៖ Insert the seat post into the frame and adjust the saddle height to your comfort. Secure the quick-release lever.
- Lights and Fenders: Attach the front and rear lights, and fenders if not pre-installed. Ensure all connections are secure.
- ការបញ្ចូលថ្ម៖ Insert the battery into the frame and lock it with the provided key.
- ការត្រួតពិនិត្យចុងក្រោយ៖ Double-check all bolts and quick-release levers for tightness. Ensure brakes are functioning correctly and tires are inflated to the recommended pressure.
3. សេចក្តីណែនាំប្រតិបត្តិការ
Familiarize yourself with the controls and functions of your ONESPORT OT07 Electric Bicycle before riding.
LCD Display Functions:
The high-definition LCD display provides real-time information and allows you to control various settings.
Image: The smart LCD display showing speed, battery level, and pedal assist levels.
- បើក/បិទថាមពល៖ Press and hold the power button to turn the display and bike on or off.
- កម្រិតជំនួយឈ្នាន់៖ Use the '+' and '-' buttons to cycle through 5 levels of pedal assistance. Level 0 is no assist, Level 5 is maximum assist.
- ការបង្ហាញព័ត៌មាន៖ The display shows current speed, distance traveled (trip/odometer), battery level, and selected pedal assist level.
- ការគ្រប់គ្រងចង្កៀងមុខ៖ Press the light button on the display or handlebar control to turn the front and rear lights on/off.
របៀបជិះ៖
- របៀបជំនួយឈ្នាន់៖ The motor provides assistance as you pedal, making riding easier, especially on inclines. The level of assistance can be adjusted via the display.
- Riding Mode (No Assist): You can ride the bicycle like a traditional bike without any motor assistance.
ការផ្លាស់ប្តូរឧបករណ៍:
The ONESPORT OT07 features a professional 7-speed transmission system for smooth gear changes.
Image: Close-up of the 7-speed gear shifter on the handlebar.
Use the shifter on the right handlebar to change gears according to terrain and desired speed. Shift to lower gears for climbing and higher gears for flat terrain or descents.
២.១. លក្ខណៈសំខាន់ៗ
The ONESPORT OT07 Electric Bicycle is engineered with advanced components for a superior riding experience.
Powerful Mid-Drive Motor:
Equipped with a 250W mid-drive motor and a 65Nm torque sensor, the OT07 provides smooth and responsive power, easily conquering inclines up to 30°.
រូបភាព៖ លម្អិត view of the 250W mid-drive motor, highlighting its internal components.
Integrated Portable Battery:
The 36V 10.4AH integrated battery offers a range of 70-90 KM in pedal-assist mode and is waterproof and dust-resistant. It can be charged while installed or removed for convenience.
Image: A visual comparison highlighting the integrated and waterproof design of the ONESPORT battery.
ហ្វ្រាំងឌីសធារាសាស្ត្រ៖
For enhanced safety and control, the OT07 is equipped with hydraulic disc brakes, providing reliable stopping power in various conditions.
Image: Close-up of the hydraulic disc brake lever and caliper, emphasizing the braking system.
Puncture-Proof Tires & Front Suspension:
The 27.5-inch puncture-proof tires and front suspension fork ensure excellent grip, stability, and shock absorption for a comfortable ride on urban and uneven terrains.
Image: Detail of the 700x45c puncture-proof tires and the front suspension fork.
ស៊ុមអាលុយមីញ៉ូម៖
The full aluminum alloy frame is lightweight, durable, and corrosion-resistant, providing a solid ride and IPX4 water resistance for light rain conditions.
Image: A comparison illustrating the robust full aluminum alloy frame of the ONESPORT OT07.
5. ការថែទាំ
Regular maintenance is crucial for the safety and performance of your e-bike.
- សម្ពាធសំបកកង់៖ Check tire pressure before each ride. Maintain recommended PSI for optimal performance and safety.
- ហ្វ្រាំង៖ Regularly inspect brake pads and rotors for wear. Ensure brake levers are responsive and provide adequate stopping power. Adjust or replace components as needed.
- Chain and Gears: Keep the chain clean and lubricated. Check for proper gear shifting and adjust the derailleur if necessary.
- ការថែរក្សាថ្ម៖ Charge the battery fully before the first use. Avoid completely draining the battery. Store the battery in a cool, dry place when not in use. Do not recharge the battery indoors without proper ventilation.
- ការត្រួតពិនិត្យទូទៅ៖ Periodically check all bolts, nuts, and quick-release mechanisms for tightness. Ensure all electrical connections are secure.
6. ការដោះស្រាយបញ្ហា
នេះគឺជាបញ្ហាទូទៅមួយចំនួន និងដំណោះស្រាយសក្តានុពលរបស់ពួកគេ៖
| បញ្ហា | មូលហេតុដែលអាចកើតមាន | ដំណោះស្រាយ |
|---|---|---|
| ម៉ូទ័រមិនជួយ | Battery low or off; Pedal assist level 0; Loose electrical connection. | Charge battery; Turn on battery; Increase pedal assist level; Check connections. |
| ហ្វ្រាំងមានអារម្មណ៍ខ្សោយ | Worn brake pads; Air in hydraulic line; Misaligned caliper. | Replace pads; Bleed brakes (professional recommended); Adjust caliper. |
| ប្រអប់លេខមិនផ្លាស់ប្តូរដោយរលូនទេ។ | Derailleur out of adjustment; Dirty/dry chain; Bent hanger. | Adjust derailleur; Clean and lubricate chain; Inspect hanger for damage. |
| អេក្រង់មិនបើកទេ។ | Battery not connected or dead; Loose display cable. | Check battery connection and charge; Inspect display cable. |
7. លក្ខណៈបច្ចេកទេស
Detailed technical specifications for the ONESPORT OT07 Electric Bicycle.
Image: A diagram illustrating the dimensions and recommended user height for the ONESPORT OT07.
| លក្ខណៈ | លម្អិត |
|---|---|
| គំរូ | OT07 |
| ថាមពលម៉ូទ័រ | 250W Mid-Drive |
| កម្លាំងបង្វិលជុំ | 65Nm Torque Sensor |
| ថ្ម | 36V 10.4AH (374.4 Wh) Lithium-ion |
| ល្បឿនអតិបរមា | 25 គីឡូម៉ែត្រ / ម៉ោង។ |
| Range (Pedal-Assist) | 70-90 KM |
| ឧបករណ៍ | ប្រអប់លេខ ៧ ល្បឿន |
| ហ្វ្រាំង | ហ្វ្រាំងឌីសធារាសាស្ត្រ |
| សំបកកង់ | 27.5-inch Puncture-Proof (700mm wheel size) |
| សម្ភារៈស៊ុម | អាលុយមីញ៉ូម Alloy |
| ការផ្អាក | ការព្យួរផ្នែកខាងមុខ |
| ទម្ងន់ | 24 គីឡូក្រាម |
| Max Recommended Load | 120 គីឡូក្រាម |
| Min User Height | 170 សង់ទីម៉ែត្រ |
| លក្ខណៈពិសេស | Odometer, Digital Display, Front Light, Rear Light |
8. ការធានា និងការគាំទ្រ
ONESPORT is committed to providing high-quality products and excellent customer service.
- ការធានា៖ The ONESPORT OT07 Electric Bicycle comes with a limited 365-day warranty covering manufacturing defects.
- ត្រឡប់៖ A 14-day unconditional return policy is offered from the date of receipt.
- ជំនួយអតិថិជន៖ For any issues or inquiries, please contact ONESPORT customer service. We are committed to providing 100% satisfactory after-sales service.
