White-Rodgers 11D18-1 Well Immersion Single Control User Manual

Кіріспе

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the White-Rodgers 11D18-1 Well Immersion Single Control. This device is designed to monitor and control temperatures within a 100-240°F range, typically used in HVAC and water heating systems.

Please read this manual thoroughly before attempting to install or operate the control. Keep this manual for future reference.

Қауіпсіздік туралы ақпарат

WARNING: Risk of electric shock. Disconnect power before installation or servicing. Installation must be performed by a qualified technician in accordance with all local codes and ordinances.

• Always turn off the main power supply to the system before working on the control.
• Барлық сым қосылымдарының қауіпсіз екеніне және жергілікті электр кодтарына сәйкес келетініне көз жеткізіңіз.
• Do not operate the control if it appears damaged.
• This control is designed for specific applications. Do not use it for purposes other than those specified.

Өнім аяқталдыview

The White-Rodgers 11D18-1 is a well immersion single control designed for precise temperature regulation. It features an "Open On Rise" contact action, meaning the electrical contacts open when the temperature rises above the set point. This control is suitable for applications requiring temperature monitoring and switching within its specified range.

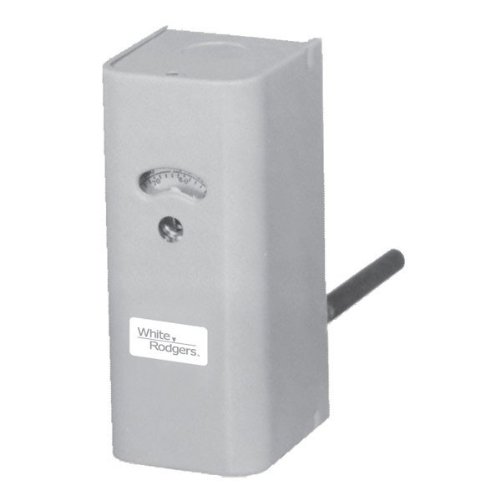

Image: White-Rodgers 11D18-1 Well Immersion Single Control. This image shows the compact design of the control unit, typically installed in a well for temperature sensing.

Негізгі ерекшеліктері:

• Well immersion design for accurate temperature sensing.
• Single control with "Open On Rise" contact action.
• Temperature range: 100-240°F.
• Сенімді жұмыс істеу үшін берік конструкция.

Орнату және орнату

Installation of the White-Rodgers 11D18-1 control requires knowledge of electrical systems and HVAC components. It is strongly recommended that installation be performed by a licensed professional.

Орнату қадамдары (жалпы нұсқаулық):

1. Қуатты ажырату: Ensure all power to the system where the control will be installed is completely shut off at the main breaker.
2. Орнату орнын дайындаңыз: Identify a suitable well or immersion point in the system (e.g., water heater, boiler pipe) where accurate temperature sensing is required.
3. Mount the Control: Securely mount the control unit to the well. Ensure a good thermal connection between the control's sensing element and the medium being measured.
4. Сымдар: Connect the control's terminals to the appropriate system wiring according to the system's wiring diagram and local electrical codes. Pay close attention to the "Open On Rise" contact configuration.
5. Қосылымдарды тексеру: Барлық сымдардың дұрыс полярлығы мен сенімді қосылымдарын екі рет тексеріңіз.
6. Қуатты қалпына келтіру: Орнату аяқталып, тексерілгеннен кейін жүйені қуаттандыруды қалпына келтіріңіз.
7. Сынақ операциясы: Test the control's functionality to ensure it operates as expected within the desired temperature range.

Refer to the specific wiring diagram provided with your system or consult a qualified technician for detailed wiring instructions.

Операция

The White-Rodgers 11D18-1 is a single-point control. Its operation is primarily based on its factory-set or adjustable temperature set point and its "Open On Rise" contact action.

Температураны орнату:

If the control features an adjustable set point, carefully rotate the adjustment dial or screw to the desired temperature within the 100-240°F range. Some models may be fixed-temperature controls and will not have an adjustment.

Contact Action:

• Below Set Point: The control's contacts remain closed, allowing current to flow to the connected device (e.g., a pump or burner).
• At or Above Set Point: When the sensed temperature reaches or exceeds the set point, the control's contacts open, interrupting the current flow to the connected device.
• Below Set Point (after opening): The contacts will re-close when the temperature drops sufficiently below the set point, typically with a differential (hysteresis) to prevent rapid cycling.

Monitor the system's temperature and the behavior of the connected equipment to ensure the control is functioning correctly.

Техникалық қызмет көрсету

The White-Rodgers 11D18-1 control is designed for reliable, low-maintenance operation. Regular inspection is recommended to ensure continued performance.

• Жылдық тексеру: At least once a year, visually inspect the control and its wiring for any signs of wear, corrosion, or damage.
• Тазалық: Ensure the area around the control and its well is free from dust, debris, or excessive moisture that could affect its operation or lifespan.
• Thermal Contact: Verify that the control's sensing element maintains good thermal contact with the medium it is monitoring.
• Сымдардың тұтастығы: Check that all electrical connections remain tight and secure.

Do not attempt to disassemble or repair the control yourself. If the control is faulty, it should be replaced by a qualified technician.

Ақаулықтарды жою

If you experience issues with your White-Rodgers 11D18-1 control, consider the following common troubleshooting steps. Always disconnect power before performing any checks.

If these steps do not resolve the issue, contact a qualified HVAC technician for further assistance.

Техникалық сипаттамалар

Кепілдік туралы ақпарат

White-Rodgers products are manufactured to high-quality standards. For specific warranty terms and conditions applicable to the 11D18-1 Well Immersion Single Control, please refer to the warranty statement included with your purchase or visit the official White-Rodgers webсайт. Кепілдік шағымдары үшін сатып алуды растайтын құжатты сақтаңыз.

Қолдау және байланыс

For technical assistance, replacement parts, or further information regarding your White-Rodgers 11D18-1 control, please contact White-Rodgers customer support or your authorized dealer.

Сіз әдетте өндірушінің ресми өкілінен байланыс ақпаратын таба аласыз webсайтында немесе өнімнің қаптамасында.

Note: Always provide the model number (11D18-1) when contacting support to ensure accurate assistance.
