katranji logoLCDA257S Closed – Loop Stepper Driver
User’s Manualkatranji LCDA257S Closed Loop Stepper Driver

Installation

  1. Electrical indicators
    Voltage input range : DC:20~50V (Recommended 36V or more)
    Maximum output current:6A
    Pulse form: pulse + direction, CW / CCW
    Logic input current:10~20mA
    Impulse response frequency:0~200KHZ
    Insulation resistance:500M
  2. Environmental indicators
    Save the temperature:-20C°~80C°
    Operating temperature:0C°~55C°
    Use humidity:90%RH(No condensation)
    Vibration frequency: Less than0.5G(4.9m/s?)10HZ~60HZ(Non-continuous operation)

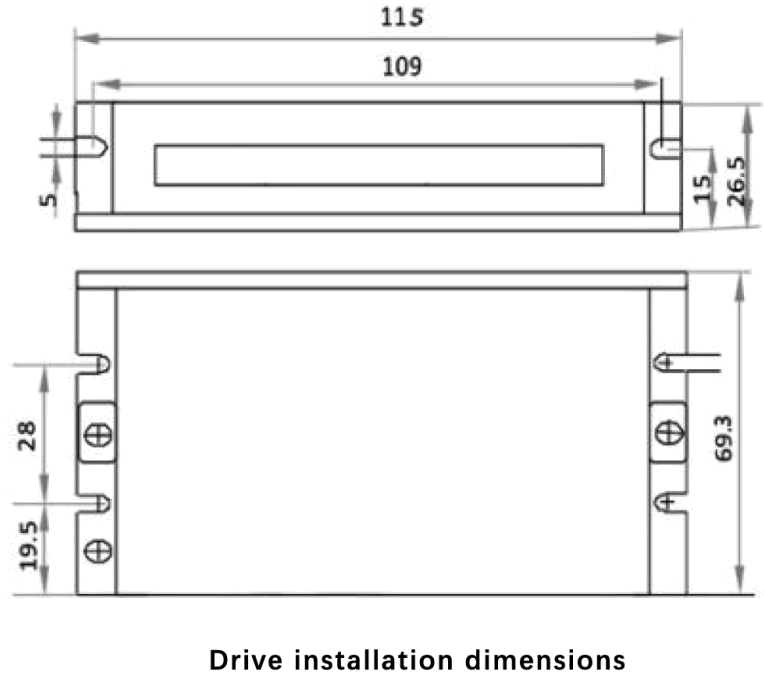

  3. Installation dimensions(unit mm)

katranji LCDA257S Closed Loop Stepper Driver - fig

Drive terminal description

Power terminal definition

Serial number symbol Functional definition
1 A+

Motor power line terminal wiring color See motor on the label



2 A—
3 B+
4 B-
5 +VDC DC power input terminal recommended DC 36V or more
6 GND

Drive control terminal definition

Pin symbol Description
1 PUL+ Pulse input positive
2 PUL- Pulse input negative
3 DIR+ Direction input positive
4 DIR- Direction input negative
5 ENA+ Enable input positive
Pin symbol Description
6 ENA- Enable input negative
7 ALM+ Alarm output positive
8 ALM- Alarm output negative

Drive encoder terminal definition

P i n symbol Colour Description
1 EB+ yellow Encoder B signal is positive
2 EB- green Encoder B signal is negative
3 EA+ black Encoder A signal is positive
4 EA- blue Encoder A signal is negative
5 VCC red Encoder + 5V input
6 EGND white Encoder power ground

katranji LCDA257S Closed Loop Stepper Driver - fig 1

Drive communication terminal definition

pin symbol Remarks
1 NC No definition
2 GND Signal ground
3 TXD RS232 Sending end
4 RXD RS232 Receiving end
5 GND Signal ground
6 +5V Power is positive

Drive and computer communication line connection

katranji LCDA257S Closed Loop Stepper Driver - fig 2

Control port wiring

katranji LCDA257S Closed Loop Stepper Driver - Contor port wiring

Pic 2 Common anode wiring method Pic 3 Common cathode wiring method

katranji LCDA257S Closed Loop Stepper Driver - connection

Pic 4 Differential signal input and output signal connection

Note: When the control signal voltage VCC = 24V, the current limiting resistor R = 3K;
When the control signal voltage VCC = 5V, the current limiting resistor R = 0;

Control signal timing diagram

katranji LCDA257S Closed Loop Stepper Driver - Control signalkatranji LCDA257S Closed Loop Stepper Driver - fig 3

Note: Hold time delay Brake delay time
Three, DIP switch setting

This series of drive current for the automatic tuning, so do not need to manually set the current, DIP switch corresponding functions are as follows:
Set the drive subdivision (see details on the driver
SW1~SW4 : are shell subdivision table)
SW5 ;: Set the motor direction
SW6 : Current self-tuning mode switch
SW7 : Working mode selection
SWS : Pulse input form selection
SW9 : Pulse edge selection

Four. Parameter settings

Common parameters are shown in the table below:

Parameter number Parameter Description Predetermined area
PA_002 Position loop low speed P 1~32767
PA_003 Position loop high speed P 1~32767
PA_004 Sped loop low speed P 1~32767
PA_005 Speed loop high speed P 1~32767
PA_006 Set the number of pulses per revolution 200~ 32767
PA_008 Position error limit 10~32767
PA_013 Rated current percentage 1~100
PA_015 Input filter switch 0~1
PA_016 Input filter time 0~ 32767
PA_017 Enable level selection 0~1
PA_018 Faulty state selection 0~1
PA 020 Pulse mode selection 0~65536
PA_021 Restore factory parameters 0~1
PA_028 Percentage of open loop torque 0~ 100
PA_029 Speed loop denounce time 0~65536
PA_030 Speed loop integral 1~100
