Hansgrohe Vernis Blend M35 Kitchen Mixer 210 User Manual

1. შესავალი

The Hansgrohe Vernis Blend M35 Kitchen Mixer 210 is designed to provide both aesthetic appeal and high functionality in your kitchen. This timeless chrome-finished mixer features a high spout, offering ample space for various kitchen tasks. Its robust construction and advanced features ensure reliable performance and ease of use.

This manual provides essential information for the proper installation, operation, and maintenance of your Hansgrohe Vernis Blend M35 Kitchen Mixer. Please read these instructions carefully before beginning installation or use, and retain them for future reference.

2. ძირითადი მახასიათებლები

• მუდმივი დიზაინი: Harmonious design with a high spout for an elegant kitchen aesthetic.
• კომფორტზონა 210: Provides significant space between the spout and the sink, facilitating the filling of large containers.
• Adjustable Swivel Spout: The spout's swivel range can be set to either 120° or 360° during installation, offering flexibility for different sink types.
• High-Quality Ceramic Cartridge: Ensures smooth and precise control of water flow and temperature, maintaining performance even after frequent use.
• AirPower ტექნოლოგია: Enriches water with air, creating a fuller, softer jet with less splashing.
• Durable Chrome Finish: A brilliant, easy-to-clean chrome surface that maintains its shine over time.
• მარტივი ინსტალაცია: Designed for quick and straightforward fitting with standard connections.
• Instantaneous Water Heater Compatible: Suitable for use with instantaneous water heaters.

სურათი 2.1: დასრულდაview of Hansgrohe Vernis Blend M35 features.

3. დაყენება და ინსტალაცია

Before installation, ensure you have all necessary tools and that the water supply is turned off. The mixer comes with flexible connection hoses and installation instructions.

3.1 წინასწარი ინსტალაცია

• Verify that the tap hole in your sink or countertop has a minimum diameter of approximately 35 mm.
• დარწმუნდით, რომ ინსტალაციის ადგილი სუფთა და ნარჩენებისგან თავისუფალია.
• Check that the included flexible connection hoses (G ⅜, DN15) are compatible with your existing angle valves.

3.2 მიქსერის მონტაჟი

1. Insert the mixer into the tap hole.
2. Secure the mixer from underneath the sink using the provided fastening components. Ensure it is stable and properly aligned.
3. Connect the flexible hoses to the hot and cold water supply lines. Tighten connections securely but do not overtighten.
4. Set the desired swivel range for the spout (120° or 360°) during installation according to your kitchen sink setup. This adjustment is typically made at the base of the mixer before final tightening.

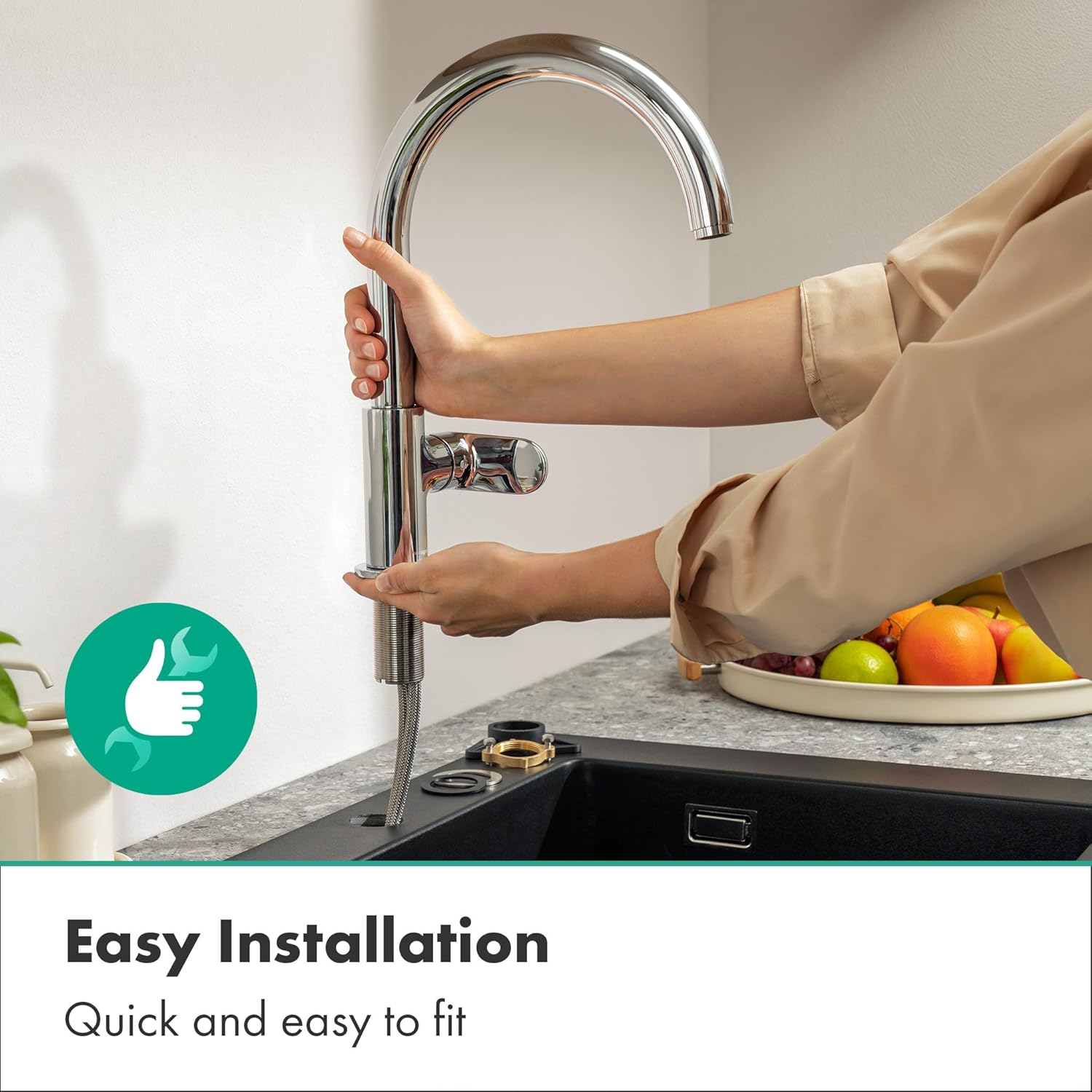

Image 3.1: Illustration of easy installation process.

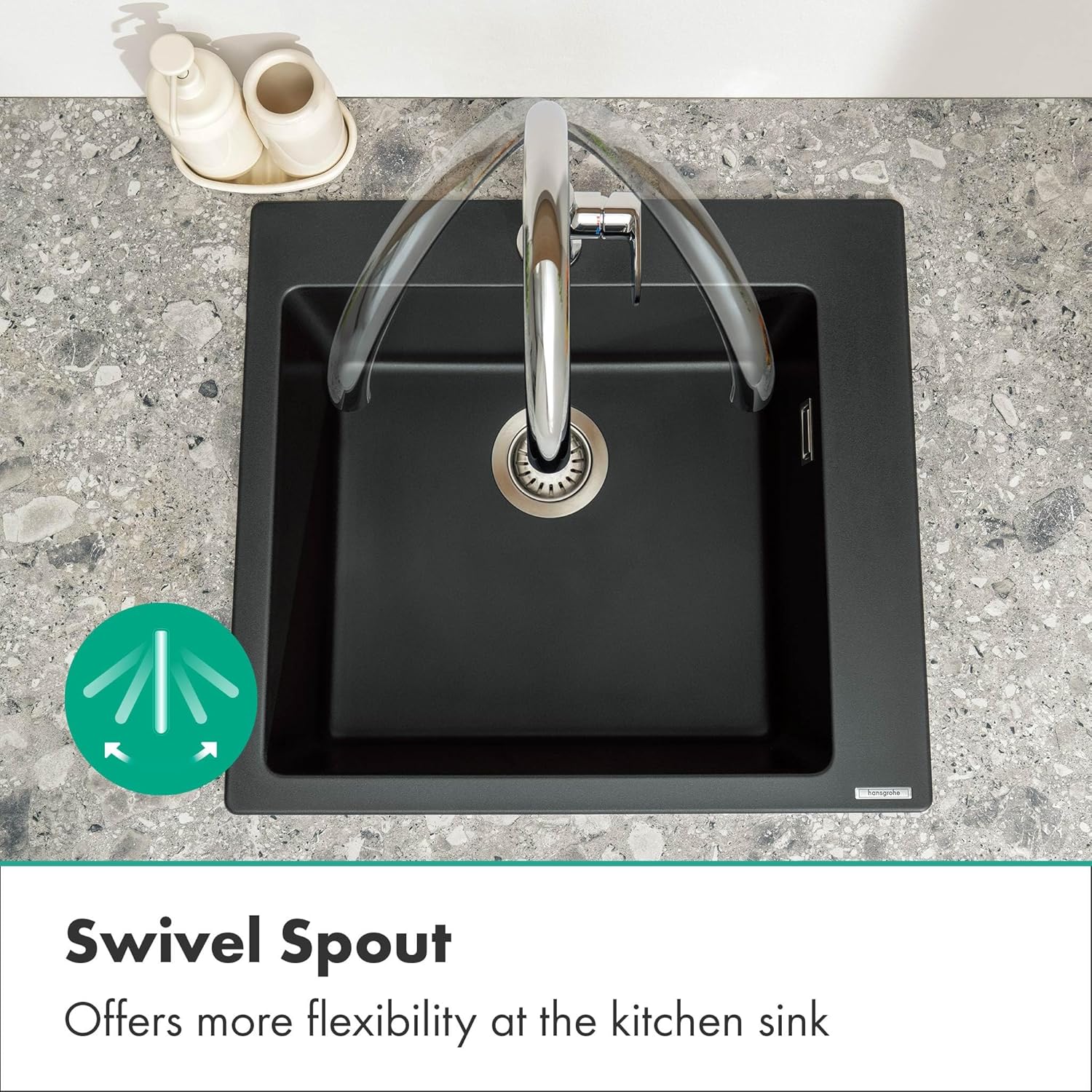

Image 3.2: Swivel spout flexibility.

4. ოპერაცია

The Hansgrohe Vernis Blend M35 Kitchen Mixer is operated via a single lever handle, allowing for intuitive control of water flow and temperature.

4.1 წყლის ნაკადის და ტემპერატურის კონტროლი

• To turn the water on or off, lift or push down the lever handle.
• To adjust the water temperature, move the lever handle left for hot water and right for cold water.
• The ceramic cartridge ensures smooth and precise adjustments, even with frequent use.

4.2 AirPower Function

The mixer incorporates Hansgrohe's AirPower technology, which enriches the water with air. This results in a softer, fuller water jet that reduces splashing and enhances the overall washing experience.

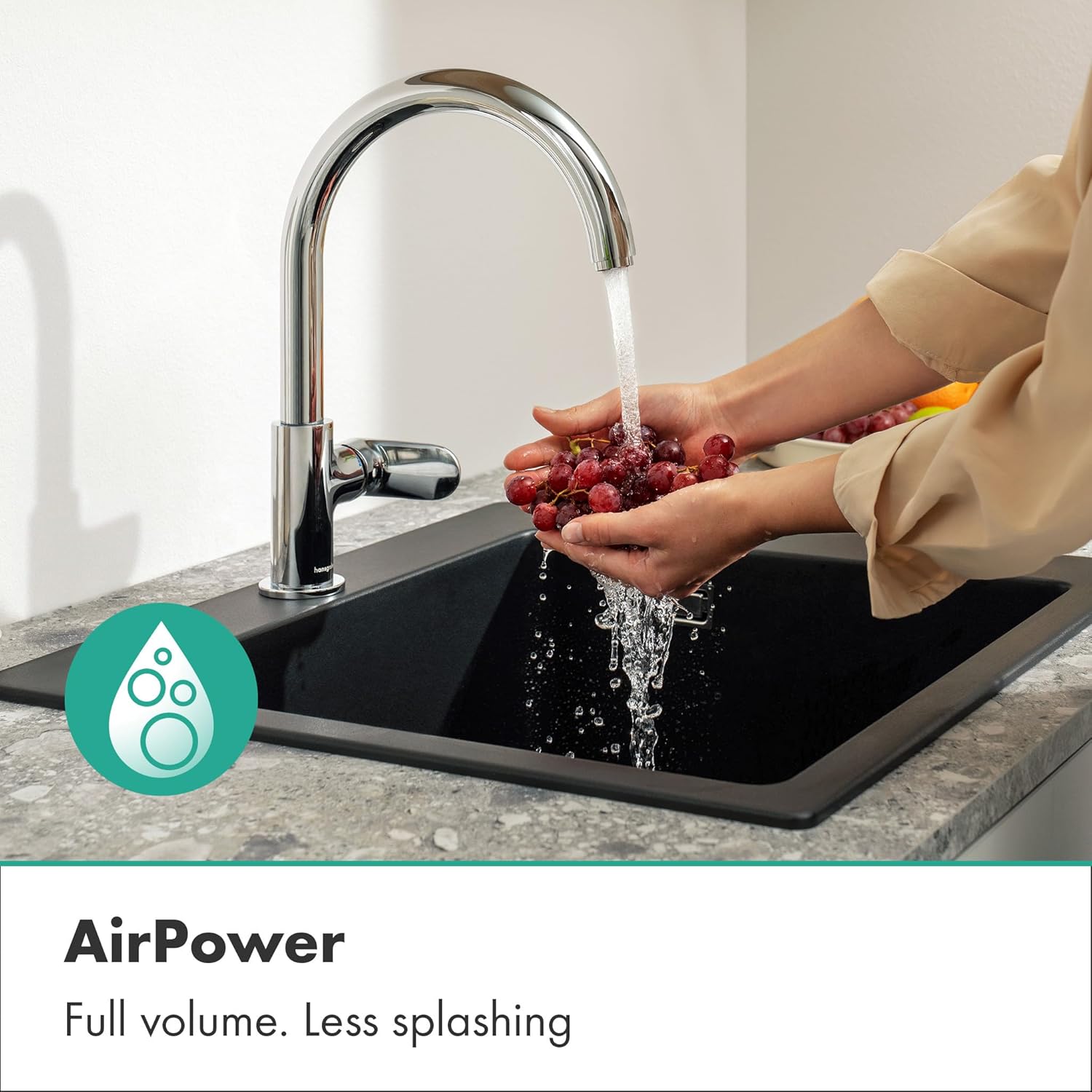

Image 4.1: AirPower technology for a full, less splashing water jet.

Image 4.2: ComfortZone providing ample space under the spout.

5. მოვლა

Regular cleaning and proper care will help maintain the appearance and functionality of your Hansgrohe Vernis Blend M35 Kitchen Mixer.

5.1 ზედაპირის გაწმენდა

• Clean the chrome surface with a soft cloth and a mild, non-abrasive cleaning agent.
• Avoid using cleaners containing alcohol, hydrochloric acid, formic acid, acetic acid, or phosphoric acid, as these can damage the finish.
• გაწმენდის შემდეგ კარგად ჩამოიბანეთ სუფთა წყლით და გაამშრალეთ რბილი ქსოვილით, რათა თავიდან აიცილოთ წყლის ლაქების დატოვება.

5.2 აერატორის მოვლა-პატრონობა

Periodically unscrew and clean the aerator (the tip of the spout) to remove any mineral deposits or debris that may affect water flow. Rinse it under running water and reattach it securely.

6. Დიაგნოსტიკა

If you encounter any issues with your kitchen mixer, please refer to the following common troubleshooting steps:

• დაბალი წყლის წნევა: Check if the main water supply is fully open. Inspect the aerator for clogs and clean if necessary. Ensure connection hoses are not kinked.
• გაჟონვა: Verify that all connections are securely tightened. Check the condition of seals and O-rings; replace if worn. If the leak is from the handle, the ceramic cartridge may need inspection or replacement.
• Difficulty Adjusting Temperature/Flow: This may indicate an issue with the ceramic cartridge. If cleaning the aerator does not resolve the issue, professional assistance may be required.

For persistent problems or issues not covered here, please contact Hansgrohe customer support or a qualified plumber.

7. სპეციფიკაციები

Detailed technical specifications for the Hansgrohe Vernis Blend M35 Kitchen Mixer 210 (Model 71870000):

Image 7.1: Technical drawing with dimensions.

8. გარანტია და მხარდაჭერა

Hansgrohe stands behind the quality of its products. Your Vernis Blend M35 Kitchen Mixer comes with comprehensive warranty coverage and support.

8.1 მწარმოებლის გარანტია

ეს პროდუქტი დაფარულია ა 5 წლიანი მწარმოებლის გარანტიაგთხოვთ, შეინახოთ შეძენის დამადასტურებელი საბუთი გარანტიის მოთხოვნებისთვის.

8.2 სათადარიგო ნაწილების ხელმისაწვდომობა

ამ მოდელის სათადარიგო ნაწილები ხელმისაწვდომია მაქსიმუმ 15 წელი after the product line's discontinuation, ensuring long-term usability and maintenance.

8.3 მომხმარებელთა მხარდაჭერა

For further assistance, technical support, or warranty inquiries, please visit the official Hansgrohe webსაიტზე ან დაუკავშირდით მათ მომხმარებელთა მომსახურების განყოფილებას. ასევე შეგიძლიათ ეწვიოთ Hansgrohe-ს მაღაზია Amazon-ზე დამატებითი ინფორმაციისთვის.
