導入
This manual provides detailed instructions for the setup, operation, and maintenance of your AceGamer Wireless Pocket Controller. Designed for multi-platform compatibility, this controller offers a compact and portable gaming experience across various devices.
箱の中身
- 1x AceGamer Wireless Pocket Controller
- 充電ケーブル x 1
- ユーザーマニュアル x 1
製品の特徴
Pocket-Sized Design with Lift-and-Lock Joysticks
The controller features an ultra-compact design (4.7" x 2.6" x 1.2") and is lightweight (3.3 oz), making it highly portable. The innovative lift-and-lock joystick mechanism allows you to retract the joysticks for protection during travel and extend them for immediate use.
Image: The AceGamer Wireless Pocket Controller demonstrating its compact size and dimensions, easily fitting into a pocket. Dimensions are shown as 4.7 inches by 2.6 inches by 1.2 inches, with a weight of 0.2 lbs.
画像: 詳細な view of the controller's precision lift-and-lock joysticks, illustrating how to flick a rear latch to retract them for storage.
幅広い互換性
This wireless controller is compatible with a broad range of devices, including Nintendo Switch, Switch 2, Switch Lite, Switch OLED, PC, iOS, Android, Steam Deck, tablets, and phones. It supports instant switching between X-Input (for PC/Windows) and Nintendo Switch modes. Additionally, it features one-button wake-up functionality for Switch and Switch 2 consoles.

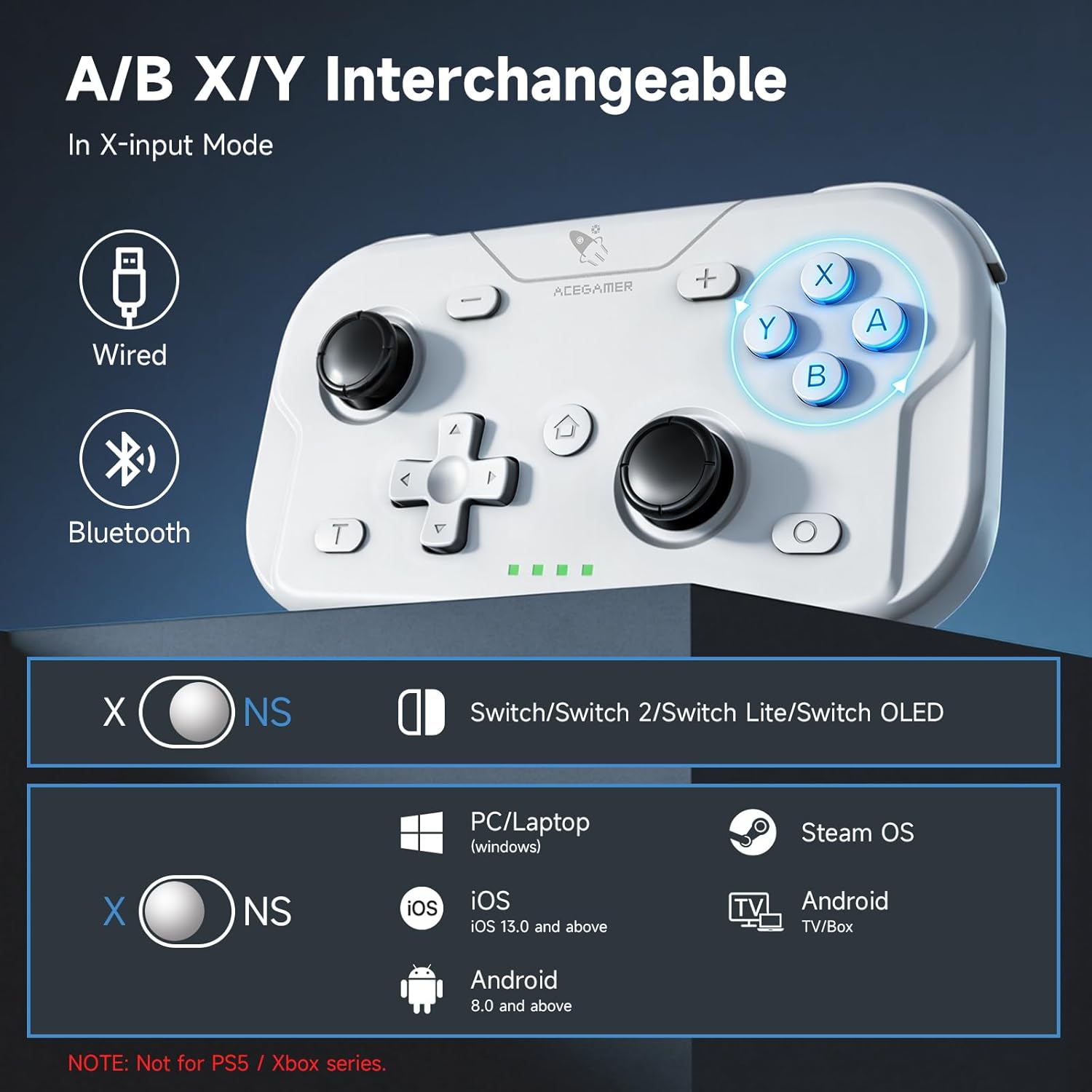

Image: The controller highlighting its compatibility with Nintendo Switch, PC/Laptop (Windows), iOS (13.0 and above), Steam OS, Android TV/Box, and Android (8.0 and above). It also shows the ABXY key interchange feature.
Precision Controls and Responsiveness
Experience precise control with 360° refined analog sticks that are free of dead zones. The built-in 6-axis gyroscope provides accurate motion sensing. Optimized buttons and triggers, combined with a 1000Hz polling rate, ensure instant response for an enhanced gaming experience.
Image: The AceGamer controller illustrating its 6-axis gyroscope feature, enabling precise movements and seamless integration into virtual environments, depicted with a racing game.
設定
コントローラーの充電
Before initial use, fully charge the controller using the provided charging cable. Connect the USB-C end of the cable to the controller and the USB-A end to a power source (e.g., computer USB port, USB wall adapter).
初期ペアリング（Bluetooth）
- コントローラーの電源がオフになっていることを確認してください。
- Press and hold the pairing button (usually located on the top or back of the controller) until the indicator lights begin to flash rapidly.
- On your device (Switch, PC, phone), navigate to the Bluetooth settings.
- Select the AceGamer controller from the list of available devices to pair.
- ペアリングされると、コントローラーのインジケーター ライトが点灯します。
操作手順
電源オン/オフ
- 電源オン: Press the Home button (or designated power button) to turn on the controller.
- 電源を切る： Press and hold the Home button for a few seconds, or if idle for an extended period, the controller will automatically power off.
デバイスへの接続
- ニンテンドースイッチ/スイッチ2: After initial pairing, press the Home button to wake up the console and automatically reconnect the controller.
- PC（ウィンドウズ）： Ensure the controller is in X-Input mode. Connect via Bluetooth or USB cable.
- iOS/Android: Ensure the controller is in the appropriate mode for mobile devices. Connect via Bluetooth through your device's settings.
モード切り替え
The controller supports one-key switching between X-Input mode (for PC/Windows) and Nintendo Switch mode. Refer to the indicator lights or on-screen prompts for the current mode.
Image: The AceGamer controller illustrating the one-key switch for changing between X-Input (X) and NS-Switch (S) modes, with a physical switch on the back.
One-Button Wake-up (N-S Mode)
In Nintendo Switch mode, you can wake up and reconnect your console by pressing the designated Home button on the controller.
Image: The AceGamer controller with a glowing Home button, indicating its one-button wake-up functionality for Nintendo Switch consoles.
ターボ機能
The Turbo function allows for rapid, repeated input of a button. To assign Turbo to a button, hold the ターボ key and then press your desired action button (A, B, X, Y, LB, RB, LT, RT).
You can adjust the firing speed on the fly: hold the ターボ key and move the right analog stick up or down to cycle through 5Hz, 12Hz (default), or 20Hz speeds. Note that Turbo settings may not be saved after the controller is powered off.
Image: The AceGamer controller highlighting the one-tap wake-up button and the 3-speed Turbo Rapid Fire function, with speeds of 5, 12 (default), and 20 shots/s.
振動調整
The controller features dual motor vibration for immersive force feedback. You can adjust the vibration intensity to four levels: 0%, 30%, 70% (default), and 100%. Note that vibration cannot be turned off completely in some modes, and mobile games may not support vibration.
Image: The AceGamer controller illustrating the four levels of vibration adjustment: 0%, 30%, 70% (default), and 100%, with visual representation of dual motor feedback.
ABXY Key Interchange
The ABXY button layout can be interchanged to match either PC game layouts or Nintendo Switch game layouts, providing flexibility for different gaming preferences. This feature is typically available in X-Input Mode. Note that these settings may not be saved after the controller is powered off.
Image: The AceGamer controller demonstrating the ABXY key value interchange feature, allowing users to switch between different button layouts.
メンテナンス
- クリーニング： コントローラーの清掃には、柔らかく乾いた布をご使用ください。刺激の強い化学薬品や研磨剤の使用は避けてください。
- ストレージ： Store the controller in a cool, dry place away from direct sunlight and extreme temperatures. Utilize the lift-and-lock joystick feature to protect the analog sticks when not in use or during transport.
- バッテリーのケア： バッテリーの寿命を延ばすには、コントローラーを頻繁に完全に放電させないでください。頻繁に使用しない場合でも、定期的に充電してください。
トラブルシューティング
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| コントローラの電源が入らない。 | バッテリー残量が少なくなりました。 | コントローラーを少なくとも 30 分間充電してください。 |
| Bluetooth経由でペアリングできません。 | コントローラーがペアリング モードになっていません。デバイスの Bluetooth がオフになっています。干渉が発生しています。 | Ensure controller is in pairing mode (flashing lights). Check device Bluetooth. Move closer to the device. Restart both controller and device. |
| ボタンやジョイスティックが反応しません。 | 接続の問題、ソフトウェアの不具合。 | Reconnect the controller. Restart the controller. Update device drivers if on PC. |
| 振動が機能しません。 | Vibration intensity set to 0%; game does not support vibration; mobile device limitation. | Adjust vibration intensity. Check game settings. Note that mobile games may not support vibration. |
仕様
- ブランド名: エースゲーマー
- モデル： Wireless Pocket Controller
- 対応デバイス: Android, iOS, Nintendo Switch, PC
- コントローラタイプ： ゲームパッド
- 追加機能: Motion Sensing (6-axis gyro), Multiuse, Rumble (Dual Vibration), Wireless (Bluetooth)
- ハードウェアプラットフォーム： Gaming Console, Smartphone, Steam Deck
- ポーリングレート: 1000Hz
- 色： 白
保証とサポート
AceGamer provides warranty service for this product. If you encounter any questions or problems with your Wireless Pocket Controller, please contact our customer support for assistance. We are committed to providing reliable support to ensure your gaming confidence.
For support, please visit the official AceGamer store or contact us through the platform where you purchased the product.
保証請求のために購入証明書を保管してください。
