PISEN CCC Mag-Safe Power Bank (Model TP-D178) User Manual

1. はじめに

Thank you for choosing the PISEN CCC Mag-Safe Power Bank, Model TP-D178. This portable charger is designed to provide convenient and efficient power for your mobile devices, featuring both Mag-Safe wireless charging and USB-C wired fast charging. Its compact design, integrated foldable stand, and comprehensive safety features make it an ideal companion for daily use and travel. This manual provides essential information for safe and optimal operation of your device.

An image showing the PISEN power bank with its foldable stand, highlighting its compact design and Mag-Safe compatibility.

2 製品の特徴

• デュアル充電モード: Supports up to 15W Mag-Safe wireless charging and 20W USB-C Power Delivery (PD) fast charging.
• 同時充電: Charge two devices concurrently (one wired, one wireless) with a shared total output of 15W.
• 一体型折りたたみスタンド: Conveniently props up your phone for hands-free view充電中に発生します。
• 強力な磁気接続： Built-in N52 magnets ensure precise alignment and secure attachment for Mag-Safe compatible devices.
• コンパクトで軽量: Measures 4.17 x 2.72 x 0.63 inches and weighs only 0.29 lb, making it highly portable.
• 高度な安全性: Features NTC & smart chip temperature control and multi-layered protections including overdischarge, input voltage、短絡、過電流、および過熱保護。
• Certified & Flight-Approved: 3C and UL2056 certified, and flight-approved for safe travel.

This image illustrates the two primary charging methods: Mag-Safe wireless charging for iPhones and USB-C wired charging for various devices, showing the power bank attached to a phone and connected via cable.

The power bank is shown in a travel setting, highlighting its compact size (4.17x2.72x0.63 inches) and light weight (0.29 lb), making it ideal for travel and flight-approved.

This image demonstrates the versatility of the integrated foldable stand, allowing the power bank to prop up a phone for hands-free use during various activities like video calls or watching content.

クローズアップ view of the power bank securely attached to a smartphone via its N52 magnets, ensuring stable and precise alignment for charging without overlapping the camera.

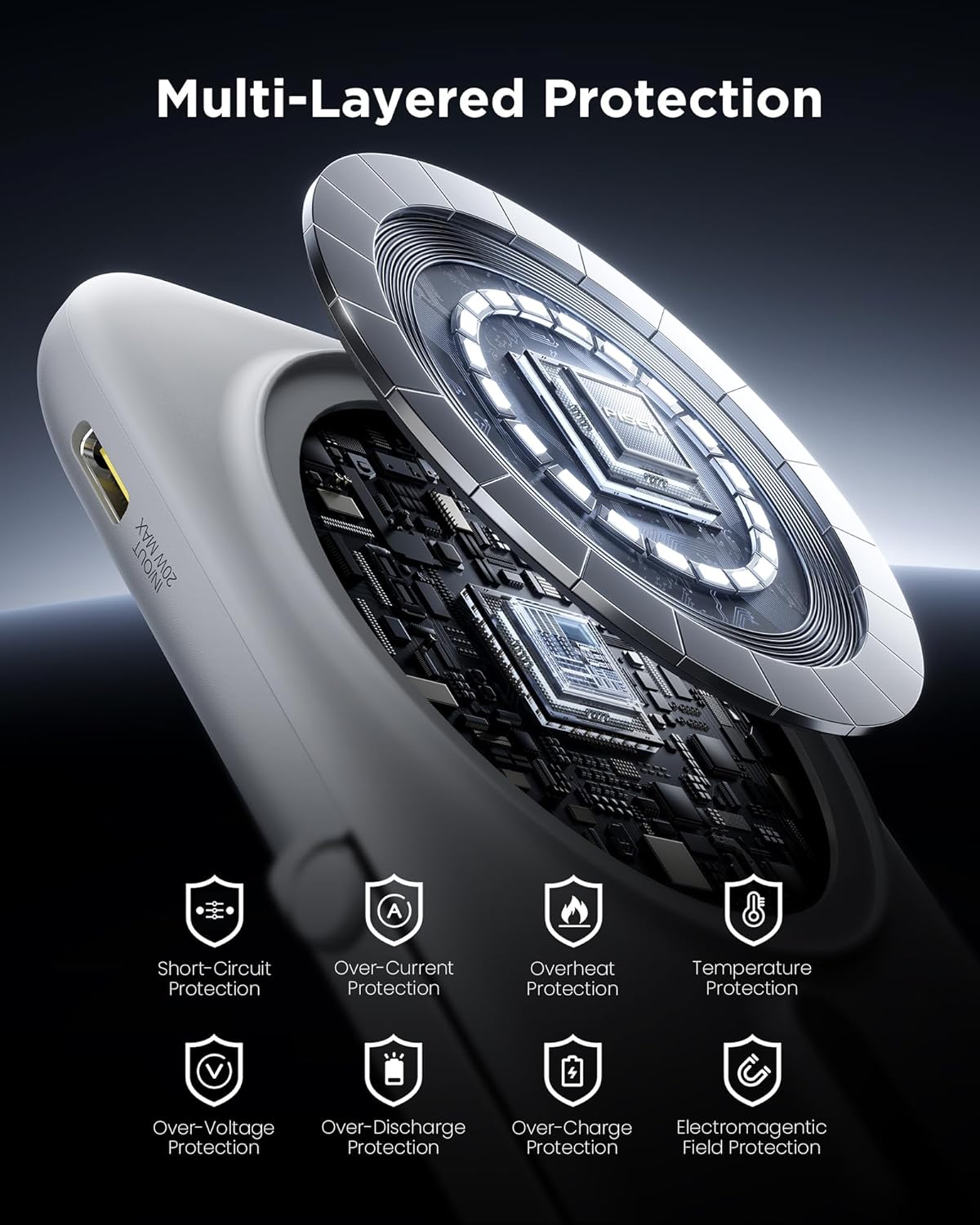

爆発した view showing the internal components and various safety features, including short-circuit, over-current, overheat, temperature, over-voltage、過放電、過充電、電磁場保護。

3. セットアップ

3.1 初期充電

1. Before first use, fully charge your PISEN power bank.
2. Connect the power bank to a USB-C power adapter (not included) using a USB-C to USB-C cable.
3. The LED indicators on the power bank will illuminate to show the charging status. All indicators will be solid when fully charged.

3.2 バッテリー残量の確認

電源ボタンを1回押すと、バッテリー残量を確認できます。LEDインジケーターが点灯し、現在の充電量が表示されます。

• 4つのLED: 75〜100%
• 3つのLED: 50〜75%
• 2つのLED: 25〜50%
• 1 LED: 0～25%

4. 操作手順

4.1 Mag-Safe Wireless Charging

1. Ensure your device is Mag-Safe compatible (e.g., iPhone 12 series and newer).
2. Align the PISEN power bank with the back of your Mag-Safe compatible device. The strong N52 magnets will snap it into place.
3. Wireless charging will begin automatically. The power bank supports 5W, 7.5W, 10W, and 15W wireless output, with 7.5W for iPhone series.
4. For optimal wireless charging, use without a phone case or with a Mag-Safe compatible magnetic phone case. Avoid cases thicker than 2.5mm or non-magnetic cases, as they may affect charging efficiency.

4.2 USB-C Wired Charging

1. Connect your device to the USB-C port on the power bank using a compatible USB-C to USB-C or USB-C to Lightning cable.
2. The power bank will automatically detect and begin charging your device at up to 20W PD fast charging.

4.3 同時充電

The power bank supports charging two devices simultaneously: one via Mag-Safe wireless and one via the USB-C port. The total shared output for simultaneous charging is 15W.

4.4 折りたたみ式スタンドの使用

Gently pull out the integrated metal stand from the back of the power bank. You can then prop up your phone in either portrait or landscape orientation for hands-free view充電しながら。

5. メンテナンス

• クリーニング： パワーバンクの表面を拭く際は、柔らかく乾いた布をご使用ください。刺激の強い化学薬品や研磨剤は使用しないでください。
• ストレージ： パワーバンクは、直射日光や極端な温度を避け、涼しく乾燥した場所に保管してください。
• 安全性： Avoid dropping, disassembling, or exposing the power bank to water or fire. Keep out of reach of children.
• バッテリーのケア： バッテリー寿命を延ばすには、定期的に使用しない場合でも、少なくとも 3 か月に 1 回はパワーバンクを完全に充電および放電してください。

6。 トラブルシューティング

• パワーバンクが充電されない: Ensure the USB-C cable and power adapter are functioning correctly and properly connected. Try a different cable or adapter.
• デバイスがワイヤレスで充電されない: Check if your device is Mag-Safe compatible. Ensure there are no foreign objects between the power bank and your device. Remove thick or non-magnetic phone cases.
• USB-C経由でデバイスが充電されない: Verify the cable is securely connected to both the power bank and your device. Try a different USB-C cable.
• 充電が遅い: Ensure you are using a fast-charging compatible cable and power adapter for optimal input/output speeds. Simultaneous charging may reduce individual device charging speeds.
• 磁気接続が弱い: Ensure your device is Mag-Safe compatible. Remove any non-magnetic cases or cases that are too thick.
• Power bank gets warm during use: It is normal for the power bank to become slightly warm during charging or discharging. If it becomes excessively hot, discontinue use and contact support.

7. 仕様

8. 保証とサポート

8.1 保証情報

The PISEN CCC Mag-Safe Power Bank (Model TP-D178) comes with a 1年間保証 ご購入日から1年間有効です。この保証は製造上の欠陥を保証し、通常の使用状況において製品が規定の性能基準を満たすことを保証します。保証請求の際は、購入証明書を保管してください。

8.2 カスタマーサポート

For any questions, technical assistance, or warranty inquiries, PISEN offers 24/7 professional support. Please visit the official PISEN website or refer to the contact information provided with your product packaging to reach our customer service team.
