VOOPEAK TC07 Trail Camera User Manual

導入

This manual provides detailed instructions for the setup, operation, and maintenance of your VOOPEAK TC07 Trail Camera. Designed for outdoor use, this camera features advanced dual-lens technology, 4K video recording, 60MP image capture, solar power, starlight night vision, and convenient app control via WiFi and Bluetooth. Please read this manual thoroughly to ensure optimal performance and longevity of your device.

製品終了view

The VOOPEAK TC07 Trail Camera is engineered for superior wildlife monitoring and outdoor surveillance. Key features include:

• Advanced Dual-Lens & Starlight Night Vision: Independent day and night lenses provide clear, realistic photos/videos during the day and incredibly clear color photos/videos in low light conditions at night.
• 4K 30FPS UHD Videos & 60MP Clear Images: Equipped with a 6-layer high-quality glass lens, Sony IMX458 image sensor, and Novatek 96670 image denoising technology for natural and authentic wildlife capture. Supports various video resolutions including 4K 30fps, 2K 60fps, and 1080P.
• H.265 Video Recording and Loop Recording: Utilizes H.265 for clearer, smoother video, saving up to 80% of memory card storage. Loop recording ensures continuous operation by overwriting the oldest file■SDカードがいっぱいになったとき。
• WiFi Bluetooth Connection and APP Control: Built-in hotspot allows connection to the camera's WiFi via a free mobile app. Adjust settings and preview media directly from your smartphone within a limited range of approximately 30ft.
• Solar Powered and Dual Powered: Features an integrated 1800mAh solar panel for continuous power with just one hour of sunlight daily. Also supports 8 AA dry batteries for extended operation, offering an environmentally friendly and cost-effective solution.

箱の中身

Upon unpacking your VOOPEAK TC07 Trail Camera, please ensure all the following items are present:

• VOOPEAK TC07 Trail Camera
• 取り付けストラップ
• USBケーブル
• ユーザーマニュアル
• Solar Power Bank Manual
• Mounting Accessories (screws, wall mount)

Image: The VOOPEAK TC07 Trail Camera and its included accessories, such as the mounting strap, USB cable, and manuals, are displayed.

設定

1. ソーラーパネルの設置

Ensure the solar panel is securely attached to the top of the camera. It is recommended to charge the solar panel for 6-8 hours before initial use.

Image: The VOOPEAK TC07 Trail Camera with its integrated solar panel is shown in an outdoor setting, highlighting its power source.

2. バッテリーの取り付け

カメラを開くasing and insert 8 new AA LR6 alkaline batteries into the designated slots. Ensure correct polarity.

3. SDカードのインストール

Insert a U3 speed SD card (up to 128GB, not included) into the SD card slot. It is crucial to format the SD card before first use to ensure compatibility and optimal performance.

4. カメラの初期設定

Switch the camera to "SETUP" mode. Navigate through the menu to format the SD card. Adjust basic settings such as date, time, and preferred image/video resolution.

カメラの操作

1. アプリのダウンロードと接続

Download the "Hunting 4K Pro" app from your device's app store (iOS & Android compatible). Enable Bluetooth on your phone to connect to the camera's hotspot. Once connected via Bluetooth, you can then connect to the camera's WiFi network (e.g., "Hunting 4K") to access live view および設定。

Image: The VOOPEAK TC07 Trail Camera is shown mounted on a tree, with a smartphone displaying the app interface for WiFi connection and control.

2.アプリの設定

Through the app, you can customize various camera settings, including image size (up to 60MP), video resolution (up to 4K), PIR interval, PIR sensitivity, and more. Ensure to save your changes after adjusting settings.

3. Viewメディアのアップロードとダウンロード

The app allows you to preview photos and videos stored on the camera's SD card. You can also download selected media directly to your smartphone.

4. Daytime and Nighttime Operation

The camera automatically switches between its UHD lens for daytime recording and a dedicated night vision lens for nighttime. The starlight night vision feature captures clear color images in low light, while infrared provides black and white footag完全な暗闇の中で。

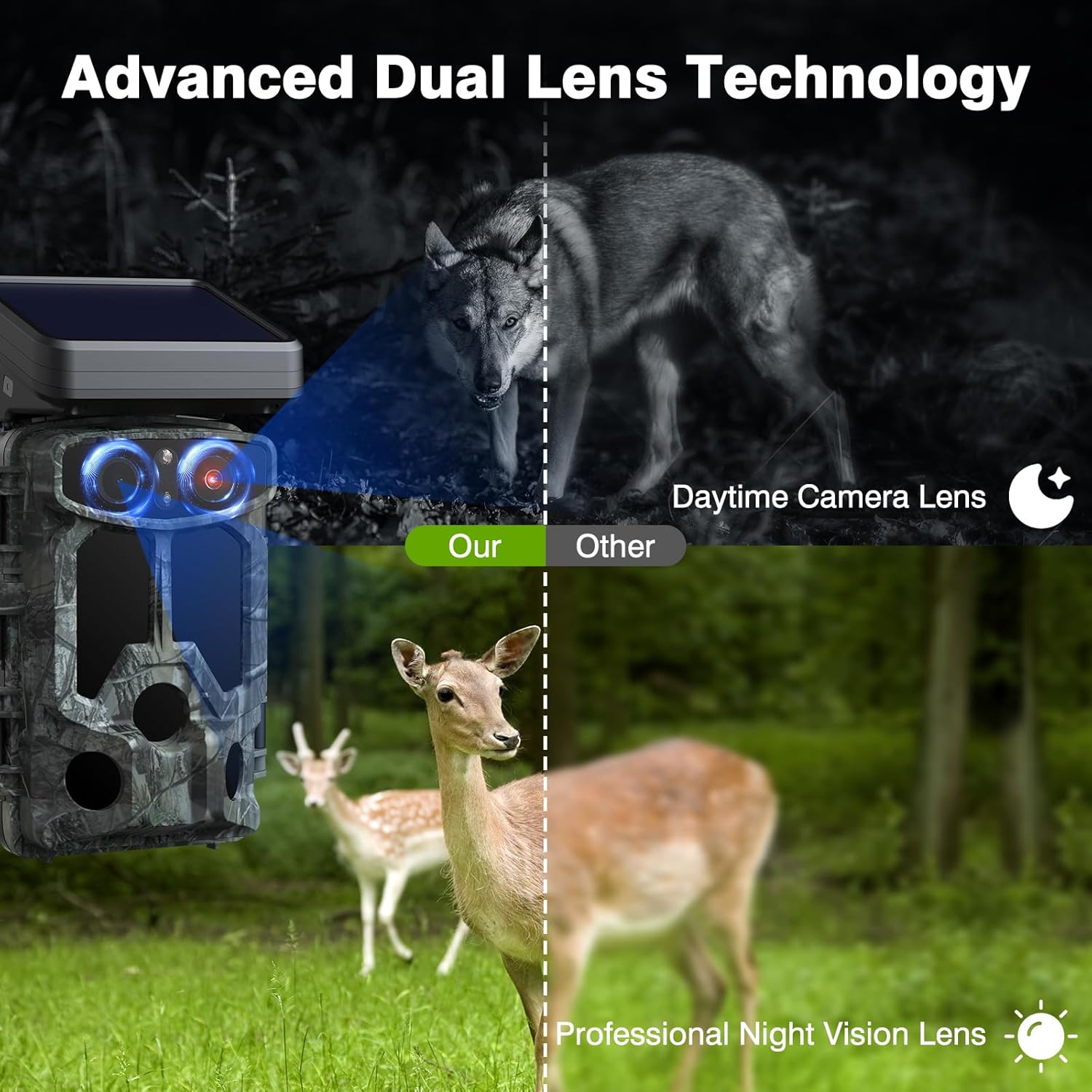

Image: The VOOPEAK TC07 Trail Camera's dual-lens system is illustrated, showing how it captures clear images of a wolf at night and deer during the day.

Image: A fox is shown captured by the VOOPEAK TC07 Trail Camera using starlight night vision (color) and infrared night vision (black and white).

メンテナンス

• クリーニング： Regularly clean the camera lenses and solar panel with a soft, dry cloth to ensure clear images and efficient charging.
• バッテリーチェック: Periodically check the battery level via the camera's screen or app. Replace AA batteries as needed. The solar panel helps maintain charge, reducing the frequency of battery replacement.
• SDカード管理: Format the SD card regularly (after backing up important files) to prevent data corruption and ensure smooth recording.
• 環境保護: The camera is IP66 waterproof, but avoid submerging it in water. Ensure all latches are securely closed when deployed outdoors.

トラブルシューティング

• カメラがオンにならない: Check if the solar panel is charged or if the AA batteries are correctly inserted and have sufficient power.
• 画像/ビデオの品質が悪い: Ensure lenses are clean and free from obstructions. Check resolution settings in the camera menu or app.
• WiFi/Bluetooth 接続の問題: Ensure your phone's Bluetooth and WiFi are enabled. Confirm you are within the 30ft range of the camera. Restart both the camera and your phone if issues persist.
• SDカードエラー: Reformat the SD card (after backing up data). If the issue continues, try a different compatible SD card.
• 動き検出が機能しない: Adjust PIR sensitivity settings. Ensure the PIR sensors are not obstructed.

仕様

保証とサポート

For warranty information, technical support, or any inquiries regarding your VOOPEAK TC07 Trail Camera, please refer to the contact details provided with your product packaging or visit the official VOOPEAK webサイト。 保証請求に備えて購入時のレシートを保管しておいてください。
