Upstreman 7.0 Cu.Ft Convertible Upright Freezer (Model UP--70) Instruction Manual

導入

This manual provides essential information for the safe and efficient operation of your Upstreman 7.0 Cu.Ft Convertible Upright Freezer, Model UP--70. Please read it thoroughly before installation and use, and retain it for future reference.

画像: 正面 view of the Upstreman 7.0 Cu.Ft Upright Freezer.

安全情報

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. Ensure the appliance is properly grounded. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Keep ventilation openings clear of obstruction.

設定

1. 開梱と設置

Remove all packaging materials. Place the freezer on a firm, level surface away from direct sunlight and heat sources. Allow adequate space around the unit for proper ventilation (at least 4 inches on sides and back, 8 inches on top).

画像: Examples of freezer placement in a garage, kitchen, and apartment, highlighting its versatility.

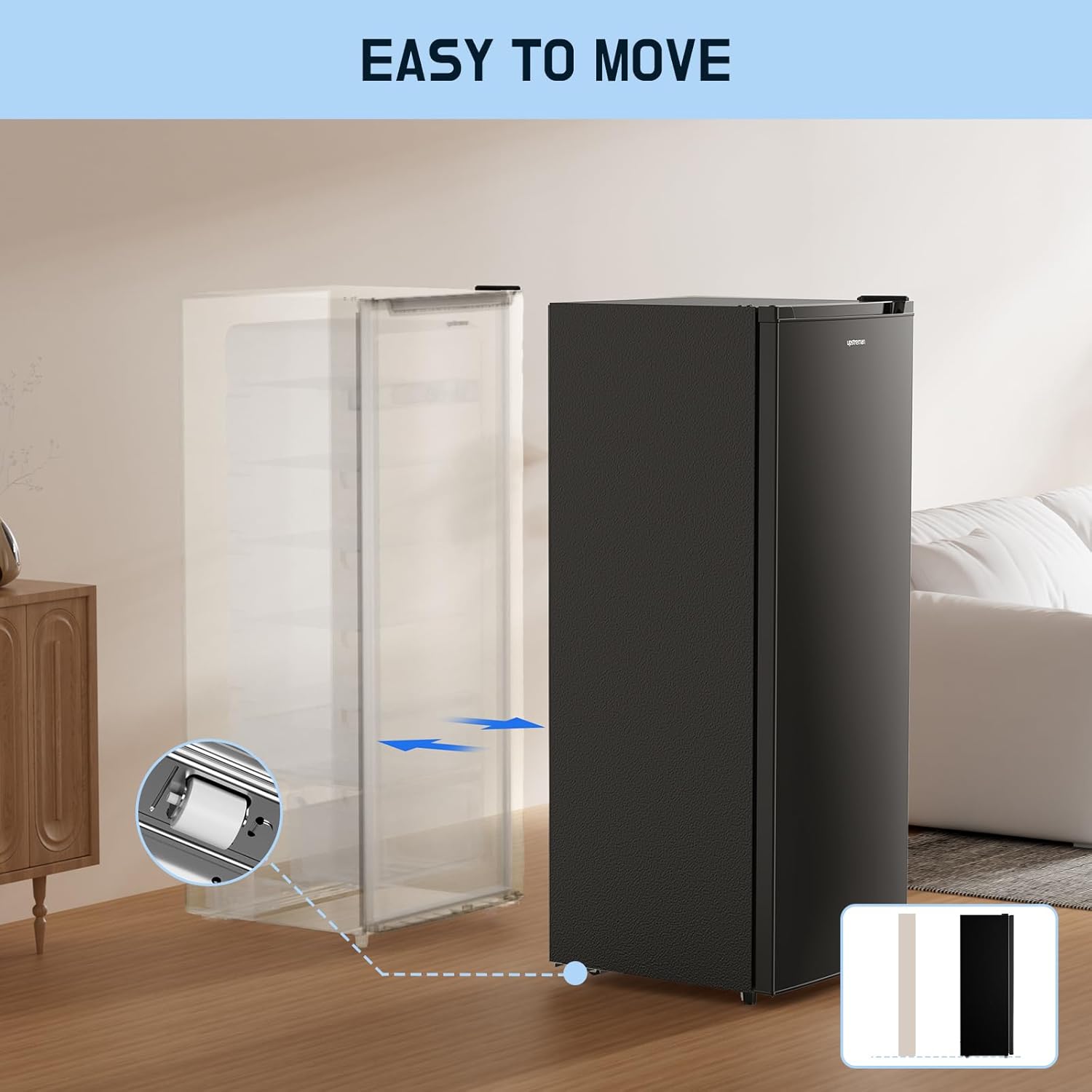

Image: The freezer demonstrating ease of movement with integrated wheels.

2. 機器の水平調整

Adjust the leveling feet at the bottom of the freezer to ensure it is stable and level. This prevents vibrations and ensures proper door sealing.

画像: 詳細 view of the adjustable leg for leveling the freezer.

3. ドアの反転

The door is reversible and can be adjusted to open from either the left or right side to suit your space requirements. Refer to the detailed instructions in the full manual for this procedure.

Image: Diagram illustrating the reversible door feature of the freezer.

4. 初回電源投入

After placement and leveling, wait at least 2-4 hours before plugging the unit into a power outlet. This allows the refrigerant to settle. Set the temperature control to the desired setting.

操作手順

1. Temperature Control (Convertible Function)

This appliance features a convertible temperature control, allowing it to function as either a freezer or a refrigerator. Use the control dial to select your desired mode and temperature range:

• 冷凍モード: -7.60°F ～ 6.80°F (-22°C ～ -14°C)
• 冷蔵庫モード: 37.94°F ～ 46.94°F (3.3°C ～ 8.3°C)

Image: Visual representation of the convertible design, displaying temperature settings for both refrigerator and freezer modes.

2. Adjustable Shelves and Crisper Drawer

The freezer includes 5 glass shelves and a crisper drawer. The shelves can be removed or repositioned to accommodate items of various sizes, such as pizza boxes or tall bottles. The crisper drawer is ideal for keeping fruits and vegetables fresh when in refrigerator mode.

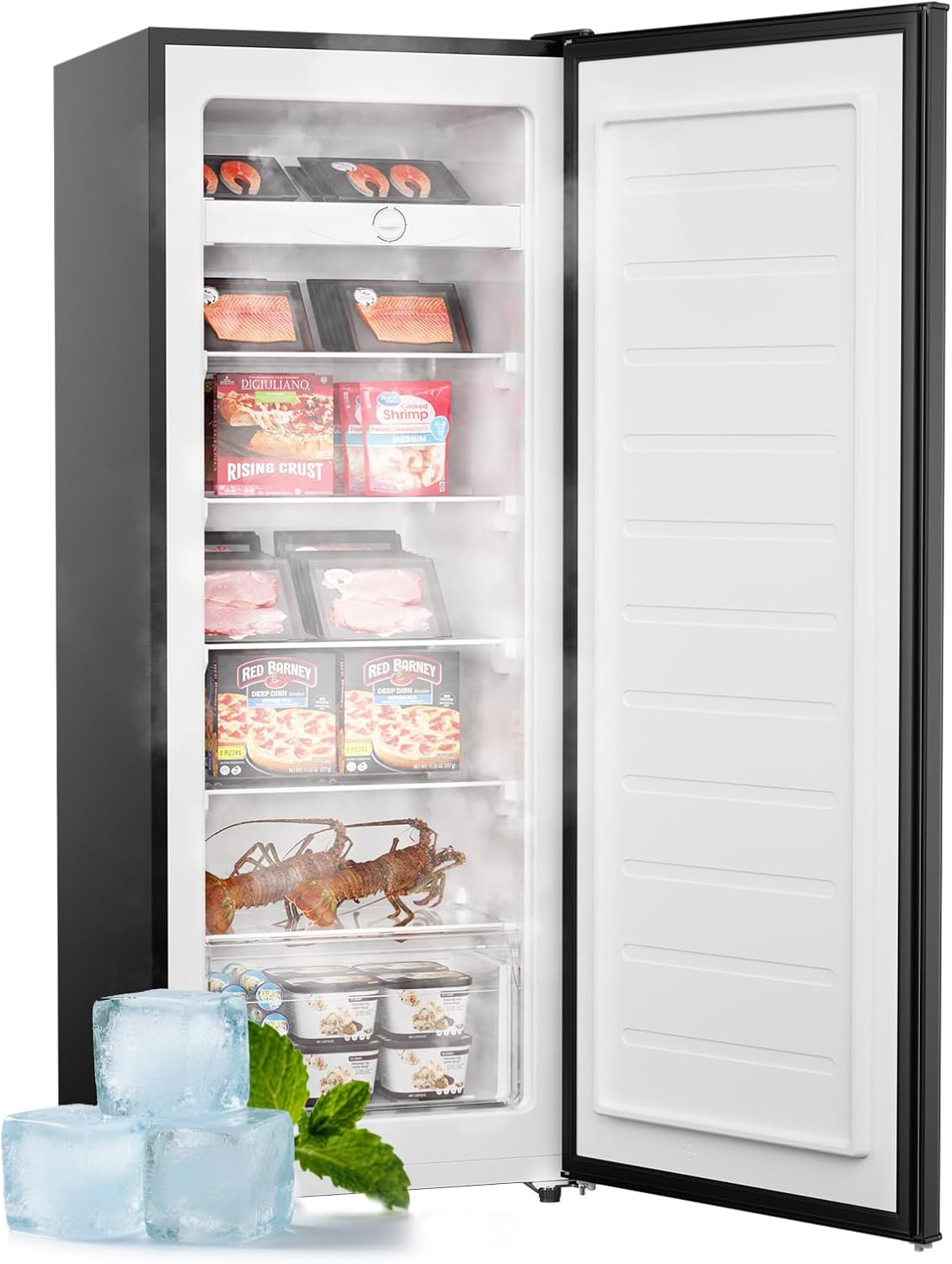

Image: Interior of the freezer, showcasing the adjustable shelves and crisper drawer filled with various food items.

3.アイストレイ

An ice tray is included for convenient ice production.

メンテナンス

1. 清掃

Regularly clean the interior and exterior of the freezer with a mild detergent and warm water. Ensure the unit is unplugged before cleaning. Do not use abrasive cleaners or sharp objects.

2.霜取り

This is a manual defrost unit. When frost accumulates to about 1/4 inch (6 mm) thickness, defrost the unit. A removable defrost tool is included. Unplug the unit, remove all food, and allow the frost to melt naturally. Do not use electrical heaters or sharp instruments to speed up defrosting.

3. エネルギー効率

To maximize energy efficiency, ensure the door seal is tight, avoid frequent door openings, and keep the condenser coils clean.

トラブルシューティング

仕様

Image: The freezer with its height and width dimensions clearly marked.

公式製品ビデオ

保証とサポート

For warranty information and customer support, please refer to the documentation included with your product or visit the official Upstreman webサイト。 保証請求に備えて購入時のレシートを保管しておいてください。
