1.製品オーバーview
The Veetop 1/4 Inch TRS to XLR Male Cable is designed for high-quality, balanced audio signal transmission. This cable converts a balanced 1/4" TRS output to a balanced 3-pin XLR input, making it ideal for connecting various professional audio equipment such as mixers, active speakers, microphones, and amplifiers。
この画像はクローズアップを表示しています view of the Veetop 1/4 inch TRS connector and the 3-pin XLR male connector, highlighting their robust construction and gold-plated tips.
2. 主な特徴
- Balanced Audio Transmission: Converts a balanced 1/4" TRS output to a balanced XLR input. XLR pin 1 connects to the 1/4" plug sleeve (Ground), XLR pin 2 to the 1/4" plug tip (Hot), and XLR pin 3 to the 1/4" plug ring (Cold). This configuration ensures optimal signal integrity and noise rejection.
- 優れた音質: Constructed with multi-layers of shielding to minimize signal interference and provide maximum cancellation of hum and noise, ensuring stable and pristine audio transmission.
- 耐久性のある構造: Features a high-strength black aluminum alloy die-cast housing and gold-plated connections. The 20 AWG Oxygen-Free Copper (OFC) core delivers clear sound. The XLR connector includes a self-locking design, tested for over 60,000 plug and pull cycles, offering resistance to deformation and rust.
- Professional Grade Connectors: Heavy-duty 24K gold-plated XLR and 6.35mm connectors eliminate signal loss and static noise, enhance durability, and improve signal transmission. The copper shell further blocks interference, preserving sound quality.
- 幅広い互換性: Compatible with equipment featuring 3-pin XLR connectors and 6.35mm sockets, including mixers, cameras, amplifiers, soundboxes, microphones, and power amplifiers。
A cross-section diagram illustrating the multi-layer construction of the cable, featuring a pure copper core, PE insulation, strong tensile cotton, copper foil shielding, oxygen-free copper shielding, and a durable PVC jacket for optimal signal integrity and noise reduction.
Visual representation of key features: multiple shielding for interference reduction, oxygen-free copper wire for clear signal transmission, and gold-plated connectors for corrosion resistance and improved conductivity.
3. セットアップと接続
3.1 Understanding Balanced Connections
This cable is designed for balanced audio connections, which help to reduce noise over longer cable runs. The 1/4" TRS (Tip-Ring-Sleeve) connector and the 3-pin XLR connector are wired as follows:
- XLR Pin 1: Connected to the 1/4" plug sleeve (Ground)
- XLR Pin 2: Connected to the 1/4" plug tip (Hot/Positive)
- XLR Pin 3: Connected to the 1/4" plug ring (Cold/Negative)

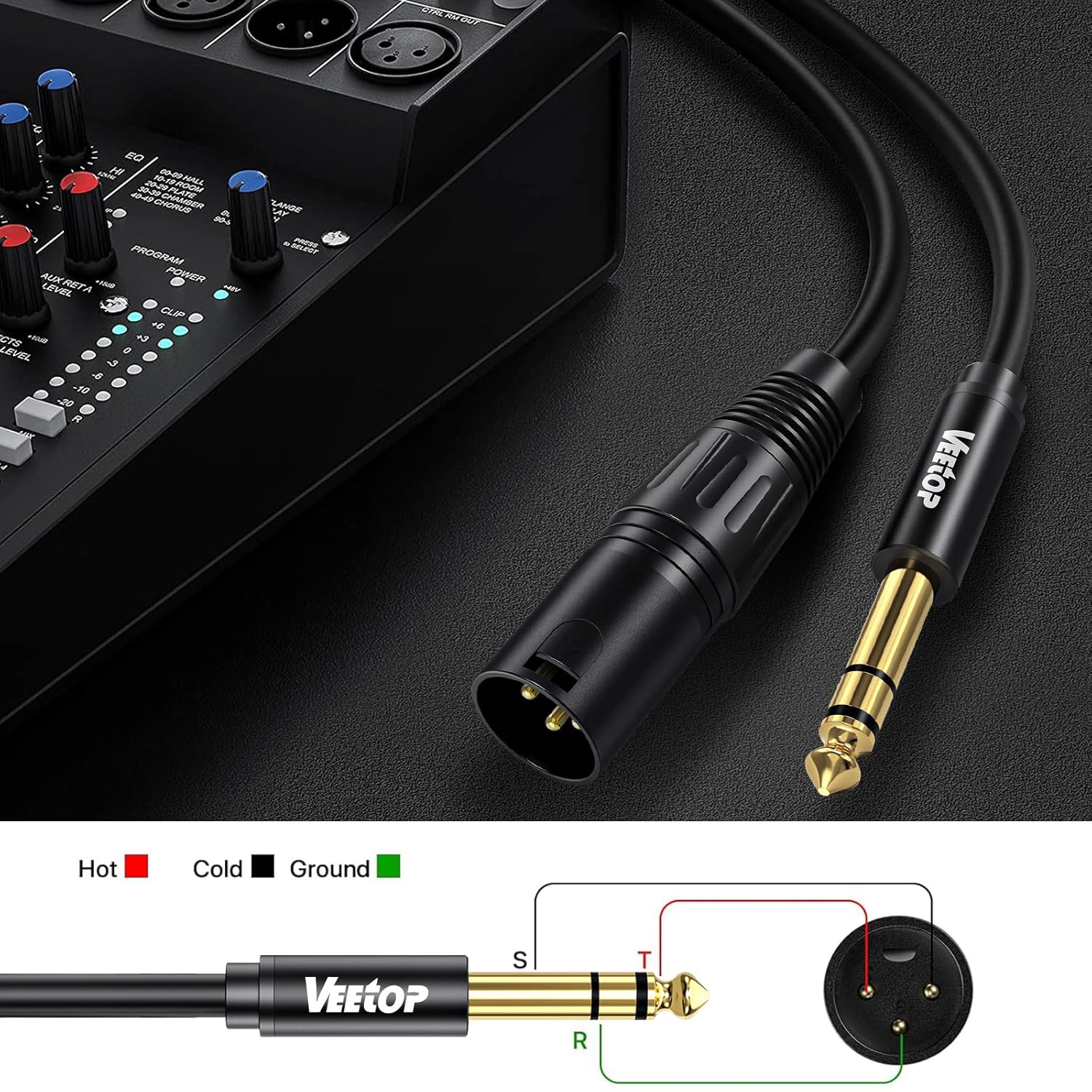

This image shows the Veetop cable alongside a diagram detailing the balanced wiring: XLR pin 1 to 1/4 inch sleeve (Ground), XLR pin 2 to 1/4 inch tip (Hot), and XLR pin 3 to 1/4 inch ring (Cold).
3.2 オーディオ機器への接続
To connect your audio equipment using the Veetop 1/4 Inch TRS to XLR Male Cable:
- Identify the 1/4" TRS output on your source device (e.g., audio interface, electronic keyboard, guitar amplifier）。
- Identify the 3-pin XLR input on your destination device (e.g., mixer, active speaker, microphone preamplifier）。
- Insert the 1/4" TRS plug firmly into the corresponding output jack.
- Insert the XLR male plug firmly into the corresponding input jack. Ensure the XLR connector's self-locking mechanism engages for a secure connection.
- Verify all connections are secure before powering on or adjusting audio levels.
The cable is shown connected to an audio mixer, demonstrating a typical setup for transmitting audio signals from a 1/4 inch TRS output to an XLR input.
Watch this video for a visual guide on the Veetop Professional XLR Cable's features and compatibility with various audio equipment.
4. 操作手順
Once connected, ensure your audio devices are powered on and configured correctly for input/output. Adjust volume levels gradually to avoid sudden loud noises. The balanced design of this cable helps maintain signal integrity over distances, reducing the likelihood of interference during operation.
A user is shown in a home studio environment, utilizing the Veetop cable to connect a microphone to an audio interface or computer, illustrating a common operational scenario.
5. メンテナンスとケア
Proper care extends the life and performance of your cable:
- クリーニング： Use a soft, dry cloth to wipe the cable and connectors. Avoid abrasive cleaners or solvents.
- ストレージ： Coil the cable loosely when not in use. Avoid tight coiling or sharp bends, which can damage the internal wiring. Store in a cool, dry place away from direct sunlight and extreme temperatures.
- 取り扱い： Always grasp the connector housing when plugging or unplugging the cable, not the cable itself. This prevents strain on the connection points.
- 検査： Periodically check the connectors and cable jacket for any signs of wear, damage, or corrosion.
6。 トラブルシューティング
6.1 音が出ない
- 接続を確認してください: Ensure both the 1/4" TRS and XLR connectors are fully and securely plugged into their respective ports.
- Verify Equipment Power: Confirm that all connected audio devices (mixer, speaker, microphone, etc.) are powered on and functioning correctly.
- 入出力設定： Check the input and output settings on your audio devices to ensure the correct channels are selected and levels are not muted or set too low.
- 別のケーブルでテストします。 If possible, test your setup with a known working cable to rule out issues with the cable itself or the connected equipment.
6.2 ハム音またはノイズ
- Balanced Connection: Ensure both devices support balanced connections and are properly configured. This cable is designed for balanced signals; using it with unbalanced equipment may introduce noise.
- グラウンド ループ: A hum can indicate a ground loop. Try connecting all audio equipment to the same power outlet or using a ground loop isolator if the issue persists.
- 干渉： Keep the cable away from power cables, fluorescent lights, and other sources of electromagnetic interference.
- ケーブルの完全性: Inspect the cable for any visible damage or kinks that might compromise its shielding.
7. 仕様
| ブランド | ヴィートップ |
| コネクタタイプ | XLR, 1/4 Inch TRS (6.35mm) |
| ケーブルタイプ | XLR |
| 対応デバイス | Speaker, Mixer, Camera, Amplifier, Soundbox, Microphone, Power Amplifier, Electronic Keyboard, Electric Guitar |
| 特集 | Data Transfer, Weatherproof (Note: 'Data Transfer' refers to audio signal transfer, 'Weatherproof' indicates durability) |
| 推奨用途 | Professional audio signal transmission, active speakers, mixers |
| 色 | 黒 |
| コネクタの性別 | Male-to-Male (1/4" TRS Male to XLR Male) |
| データ転送速度 | 10 Gigabits Per Second (Note: This specification typically applies to digital data cables; for audio, it implies high bandwidth capability for signal integrity.) |
| ピンの数 | 3 (for XLR) |
| 外側素材 | Aluminum Alloy, Copper, PVC |
| アイテム重量 | 11.7オンス |
| 商品型番 | 5da52f35-275e-44b6-8885-2eab39719e84 |
イラストショーasing the wide compatibility of the cable with various audio devices such as microphones, speakers, mixers, amplifiers, electronic keyboards, and electric guitars.
8. 保証とサポート
Veetop products are manufactured to high standards and undergo rigorous quality control. For information regarding warranty coverage, technical support, or any product-related inquiries, please refer to the contact information provided with your purchase or visit the official Veetop webサイトでご確認ください。保証請求のために購入証明書を保管してください。
