Beurer BM54 上腕血圧計 ユーザーマニュアル
モデル: BM54
導入
The Beurer BM54 Blood Pressure Machine is an upper arm monitor designed for accurate tracking of blood pressure and pulse. This comprehensive kit includes the main unit, an automatic cuff, necessary batteries, and a portable storage case. Key features include Bluetooth syncing capability with the Beurer Health Manager Pro app, arrhythmia detection, a clear risk indicator, an averaging function for measurements, an extra-large (XXL) display for easy readability, and storage for up to 120 memory spaces across two distinct user profiles.
安全情報
Before using the Beurer BM54 Blood Pressure Monitor, it is crucial to read the entire instruction manual thoroughly. This ensures proper operation and helps prevent potential hazards. Always follow the directions for use provided in this manual. Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition.
含まれるもの
Your Beurer BM54 package contains the following components:
- 1 x Upper Arm Blood Pressure Monitor (BM54)
- 1 x Universal Cuff (suitable for arm circumferences 8.6 inches - 17.3 inches)
- 1 xストレージポーチ
- 1.5V 単4電池4本
- クイックスタートガイド x 1
- 取扱説明書 x 1

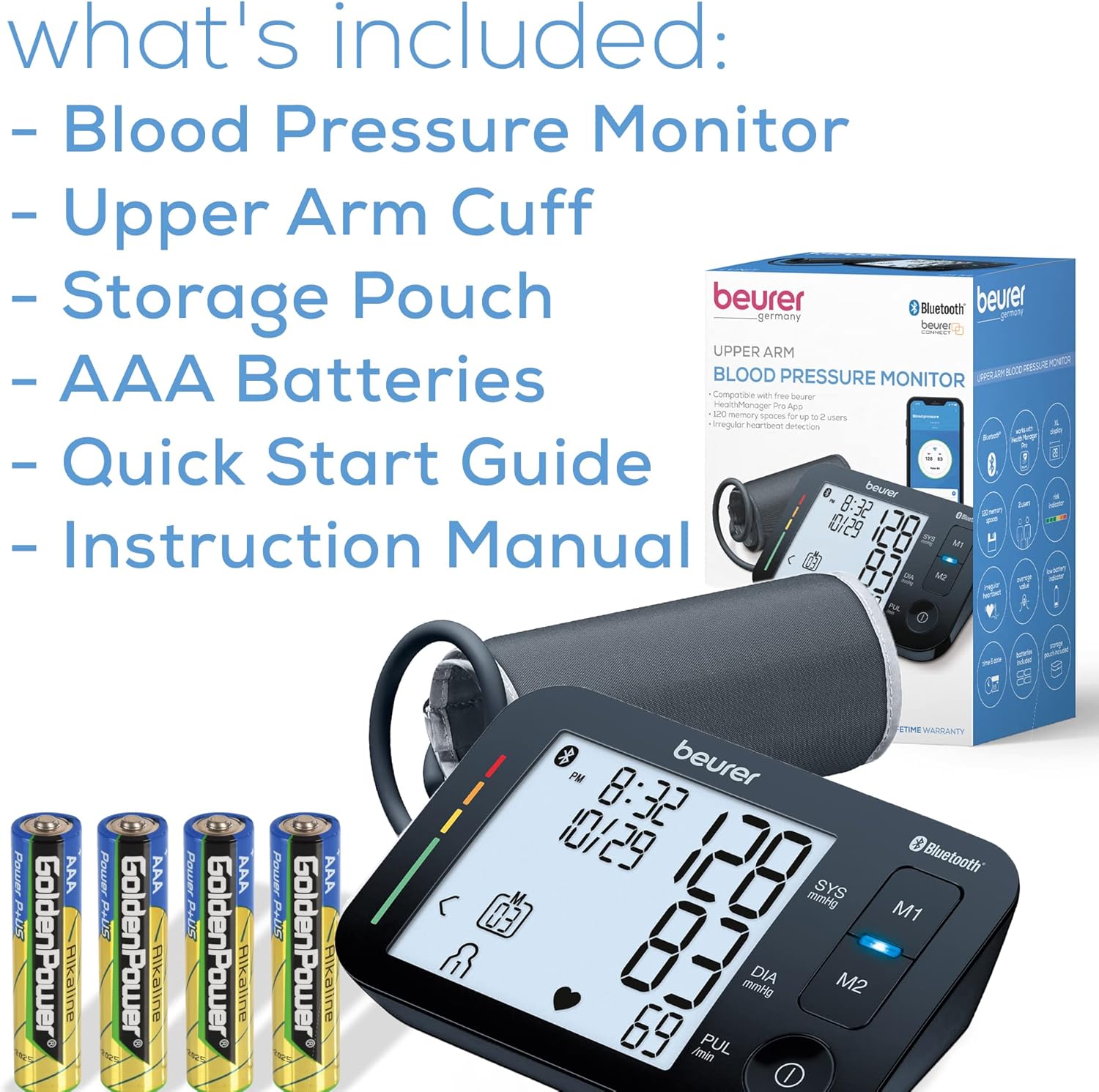

Image: All components included with the Beurer BM54 Blood Pressure Monitor.
設定
1. バッテリーの取り付け
The device comes with 4 x 1.5 V AAA batteries. Open the battery compartment on the back of the monitor and insert the batteries, ensuring correct polarity (+/-). Close the compartment securely.
2. デバイスの初期設定
Upon first use or after battery replacement, you may need to set the year, date, and time. Refer to the Quick Start Guide or the full Instruction Manual for detailed steps on navigating the device's settings using the available buttons.
3. Cuff Application
Proper cuff placement is essential for accurate readings. The universal cuff is designed to fit arm circumferences from 8.6 inches to 17.3 inches. Place the cuff on your bare upper arm, approximately 2-3 cm above the elbow joint, ensuring the air tube runs down the inside of your arm. The cuff should be snug but not overly tight, allowing two fingers to fit underneath.
Image: Correct application of the adjustable universal cuff.
4. Bluetooth Pairing with Health Manager Pro App
To utilize the Bluetooth functionality and track your data over time, download the free Beurer Health Manager Pro app on your smartphone. Follow the in-app instructions to pair your BM54 monitor. This allows for unlimited digital memory through wireless transfer of your measurements.
Image: Bluetooth compatibility with the Beurer Health Manager Pro App for data management.
操作手順
1.測定を行う
Sit comfortably with your back supported and feet flat on the floor. Rest your arm on a table so the cuff is at heart level. Press the power button to turn on the device. Select user 1 or 2 if applicable. The cuff will automatically inflate and deflate, and your blood pressure and pulse readings will be displayed on the XXL LCD screen.
Image: The large, easy-to-read XXL LCD display of the Beurer BM54 monitor.
2. ディスプレイの読み取り値の理解
ディスプレイには 3 つの主な値が表示されます。
- SYS（収縮期血圧）： 上の数字は、心臓が鼓動しているときの動脈内の圧力を示します。
- DIA（拡張期血圧）： 下の数字は、心拍間の動脈内の圧力を示します。
- PUL（脈拍数）： 1 分あたりの心拍数です。
3. Risk Indicator
The BM54 features a color-coded risk indicator on the left side of the display. This indicator categorizes your blood pressure results based on guidelines set by the World Health Organization (WHO), allowing for quick interpretation of high or low readings.
Image: The risk indicator categorizes results by color for easy understanding.
4. 不整脈検出
The device is equipped with arrhythmia detection. If an irregular heart rate is detected during measurement, the BM54 will alert you, helping to track vital signs and potential heart rhythm disturbances.
Image: The monitor detects irregular heartbeat disturbances (arrhythmia).
5. メモリ機能とユーザープロfiles
The BM54 can store up to 120 memory spaces for measurements, supporting up to two individual users. This allows for long-term tracking of blood pressure trends for multiple individuals. The device also saves recorded measurements and outputs average values of previous measurements.
Image: The device offers 120 memory spaces and supports up to 2 users.
Image: The device calculates and displays average values of recorded measurements.
メンテナンス
Beurer BM54 血圧モニターの寿命と精度を確保するには、次のメンテナンス ガイドラインに従ってください。
- クリーニング： Wipe the monitor and cuff with a soft, slightly damp 布で拭いてください。研磨剤入りの洗剤を使用したり、デバイスを水に浸したりしないでください。
- ストレージ： Store the device and cuff in the provided storage pouch in a cool, dry place, away from direct sunlight and extreme temperatures.
- バッテリー交換: ディスプレイに電池残量低下のインジケーターが表示されたら、すべての電池を交換してください。使用済みの電池は、地域の規制に従って廃棄してください。
- 落下を避ける: 落下や衝撃による損傷を防ぐため、デバイスを慎重に取り扱ってください。
トラブルシューティング
If you encounter issues with your Beurer BM54, refer to the following common troubleshooting tips:
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| デバイスの電源が入らない。 | 電池が切れているか、正しく挿入されていません。 | 電池の極性を確認するか、新しい AAA 電池と交換してください。 |
| 不正確な測定値。 | カフの配置が不適切、測定中の動き、または姿勢が不適切。 | Ensure cuff is correctly applied, remain still and quiet during measurement, and sit in a relaxed, upright position. Consult a healthcare professional if readings consistently seem off. |
| Bluetoothのペアリングが失敗します。 | Bluetooth is off on phone, app not open, or device not in pairing mode. | Ensure Bluetooth is enabled on your smartphone, open the Beurer Health Manager Pro app, and follow the app's instructions for device pairing. Restart both devices if necessary. |
| Time/Date incorrect after setup. | Incorrect setting procedure or device reset. | Refer to the instruction manual for precise steps to set the time and date. Some users reported initial difficulty; ensure each step is followed carefully. |
仕様
Detailed specifications for the Beurer BM54 Upper Arm Blood Pressure Monitor:
- 製品寸法: 5.5 x 3.7 x 1.9インチ
- 商品の重量: 12.8オンス
- 商品モデル番号: BM54
- ブランド： ボイラー
- 含まれるコンポーネント: Blood Pressure Monitor, Universal Cuff, Storage Pouch, 4 x AAA Batteries
- 電源: 電池駆動
- 用途: 上腕
- 表示タイプ: Large LCD Display (XXL)
- 袖口サイズ： Universal (8.6 in - 17.3 in)
- メモリスペース: 120 for up to 2 users
- 特徴： Bluetooth connectivity, Arrhythmia Detection, Risk Indicator, Averaging Function
- 年齢範囲（説明）: アダルト
Image: Dimensions of the Beurer BM54 monitor.
公式製品ビデオ
Video: BM54 Blood Pressure Monitor Product Highlights. This video provides a visual overview of the monitor's key features and benefits, including automatic measurement, Bluetooth connectivity, risk indicator, memory functions, and cuff details.
保証とサポート
The Beurer BM54 Upper Arm Blood Pressure Monitor comes with a Limited Lifetime Warranty, ensuring long-term reliability and support for your device. For any product inquiries, technical assistance, or warranty claims, please refer to the contact information provided in your Quick Start Guide or visit the official Beurer North America website. The product is also clinically proven and may be FSA/HSA eligible.
Image: Clinically Proven and FSA/HSA Eligible status of the Beurer BM54.
