1. はじめに
The SMART SENSOR AR600E is a precision instrument designed for accurate measurement of overhead line heights, including power lines, communication cables, and tree heights. This device is suitable for various applications in construction sites, utility maintenance, and forestry. It features a digital display, selectable measurement units, and the ability to switch between BOT (Bottom) and TOP measurement modes. Additionally, it includes a temperature measurement function.
Please read this manual thoroughly before operating the device to ensure correct usage and to maximize its performance and lifespan.
2. 主な特徴
- Digital Display for clear readings.
- Selectable Display Units.
- BOT/TOP Mode Switching for versatile measurement scenarios.
- Temperature Measurement Function.
- Measurement Range: 3-23 meters.
- Horizontal Measurement Range: 3-18 meters.
- Resolution: ±5mm (<10m) | ±10mm (>10m).
- Minimum Gap Wire: 150mm.
- Automatic Power Off feature to conserve battery.
- Backlight Display for low-light conditions.
- バッテリーレベルインジケーター。
3. セットアップ
3.1 開梱
Carefully remove the AR600E device from its packaging. Verify that all components are present and undamaged. The package should contain the AR600E unit and a 9V battery (if included).
3.2 バッテリーの取り付け
- デバイスの電池ボックスのカバーを見つけます。
- カバーをスライドさせるか、ねじを外して開きます。
- 正しい極性（+ 端子と - 端子）を確認して、新しい 9V 電池を挿入します。
- 電池カバーをしっかりと閉じてください。
Note: Always use a fresh 9V battery for optimal performance. Replace the battery when the low battery indicator appears on the display.
3.3初期電源オン
Press the power button to turn on the device. The digital display should illuminate, and the device will perform a self-test. If the display does not turn on, check the battery installation.
4. 操作手順
4.1 一般的な測定手順
- デバイスの電源をオンにします。
- Select the desired measurement unit (e.g., meters, feet) if applicable, using the unit selection button.
- Aim the device at the target object (e.g., overhead line, tree branch). Ensure a clear line of sight.
- Press the measurement button. The device will emit a signal and display the measured height on the digital screen.
- For accurate readings, hold the device steady during measurement.
4.2 BOT (Bottom) Mode
In BOT mode, the device measures the height of the lowest 6 cables. This mode is ideal for determining the clearance of the lowest conductors from the ground.
- To activate BOT mode, press the Mode button until "BOT" is indicated on the display.
- Aim the device at the lowest cable and take a measurement.
4.3 TOP (Top) Mode
In TOP mode, the device measures the height of the highest 6 cables. This mode is useful for assessing the overall height of a multi-conductor system or the highest point of a tree.
- To activate TOP mode, press the Mode button until "TOP" is indicated on the display.
- Aim the device at the highest cable or point and take a measurement.
4.4温度測定
The AR600E can also measure ambient temperature. This feature is automatically displayed or can be accessed via a dedicated button (refer to device specific button layout if available).
4.5 自動電源オフ
To conserve battery life, the device will automatically power off after a period of inactivity. Press the power button to turn it back on.
4.6 バックライトディスプレイ
The backlight can be activated for improved visibility in low-light conditions. This is typically controlled by a dedicated button or automatically activated upon power on.

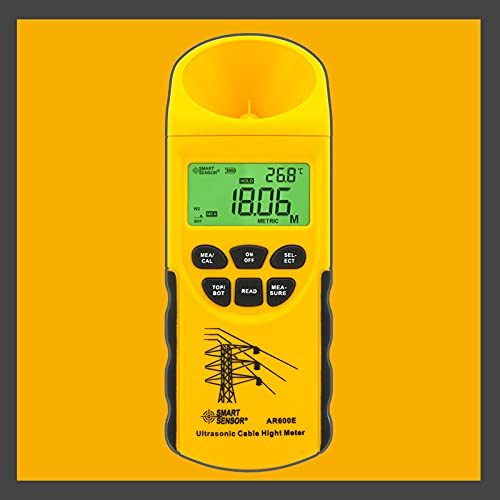

Figure 1: SMART SENSOR AR600E Overhead Line Height Meter. This image shows the device's main body, digital display, and the lens used for height measurement.
5. メンテナンス
- クリーニング： Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the lens is clean for accurate measurements.
- ストレージ： When not in use for extended periods, remove the battery to prevent leakage. Store the device in a cool, dry place, away from direct sunlight and extreme temperatures.
- バッテリー交換: Replace the 9V battery promptly when the low battery indicator appears to ensure consistent performance.
- 衝撃を避ける: Protect the device from drops and impacts, as this can damage internal components and affect accuracy.
6。 トラブルシューティング
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| デバイスの電源が入りません。 | バッテリーが切れているか、正しく取り付けられていません。 | Check battery polarity, replace with a new 9V battery. |
| 不正確な測定。 | Dirty lens, unstable aiming, object out of range, environmental interference. | Clean the lens. Ensure stable aiming. Verify target is within 3-23m range. Avoid strong electromagnetic fields. |
| ディスプレイが暗くなったり、ちらついたりします。 | バッテリー残量が少なくなりました。 | 9V電池を交換してください。 |
| デバイスの電源が予期せずオフになります。 | Automatic power-off activated, low battery. | This is a normal feature. If it happens too frequently, replace the battery. |
7. 仕様
- ブランド： スマートセンサー
- モデル： AR600E
- 測定範囲: 3～23メートル
- Horizontal Measurement Range: 3～18メートル
- 解決： ±5mm (<10m) | ±10mm (>10m)
- Minimum Gap Wire: 150mm
- 動作温度: -10°C ～ 40°C (14°F ～ 104°F)
- 電源: 9Vバッテリー
- 自動電源オフ： はい
- バックライトディスプレイ： はい
- バッテリーインジケーター: はい
- 重さ： 205グラム
- 寸法: 75 x 72 x 200mm
8. 保証情報
Specific warranty details are not provided in the product information. Please refer to your purchase documentation or contact the retailer for warranty terms and conditions.
9. サポート
For technical support, service, or further inquiries, please contact your local distributor or the point of purchase. Contact information for SMART SENSOR is not provided in this document.
