1. はじめに
This manual provides essential information for the safe and proper installation, operation, and maintenance of your Dell 180 Watt Power Supply Unit (PSU). This specific model, 1TG7T, is designed for use with Dell Optiplex 3050, 5050, and 7050 SFF (Small Form Factor) systems. Please read this manual thoroughly before attempting any installation or service.
2. 安全情報
怪我や機器の損傷を防ぐために、常に次の安全上の注意事項を守ってください。
- 電気による危険: 電源には高電圧が内蔵されているtagコンポーネント。PSUを開けないでください。asing. 修理は資格のある担当者のみが行う必要があります。
- 電源を切る: Always disconnect the computer from the main power outlet before installing, removing, or servicing the power supply.
- 静電気： Use an anti-static wrist strap or take other anti-static precautions when handling the PSU to prevent damage to sensitive electronic components.
- 換気： Ensure proper airflow around the PSU and within the computer case to prevent overheating. Do not block ventilation openings.
- 互換性: Use only power supplies compatible with your system's specifications. Incompatible PSUs can cause damage.
3.製品オーバーview

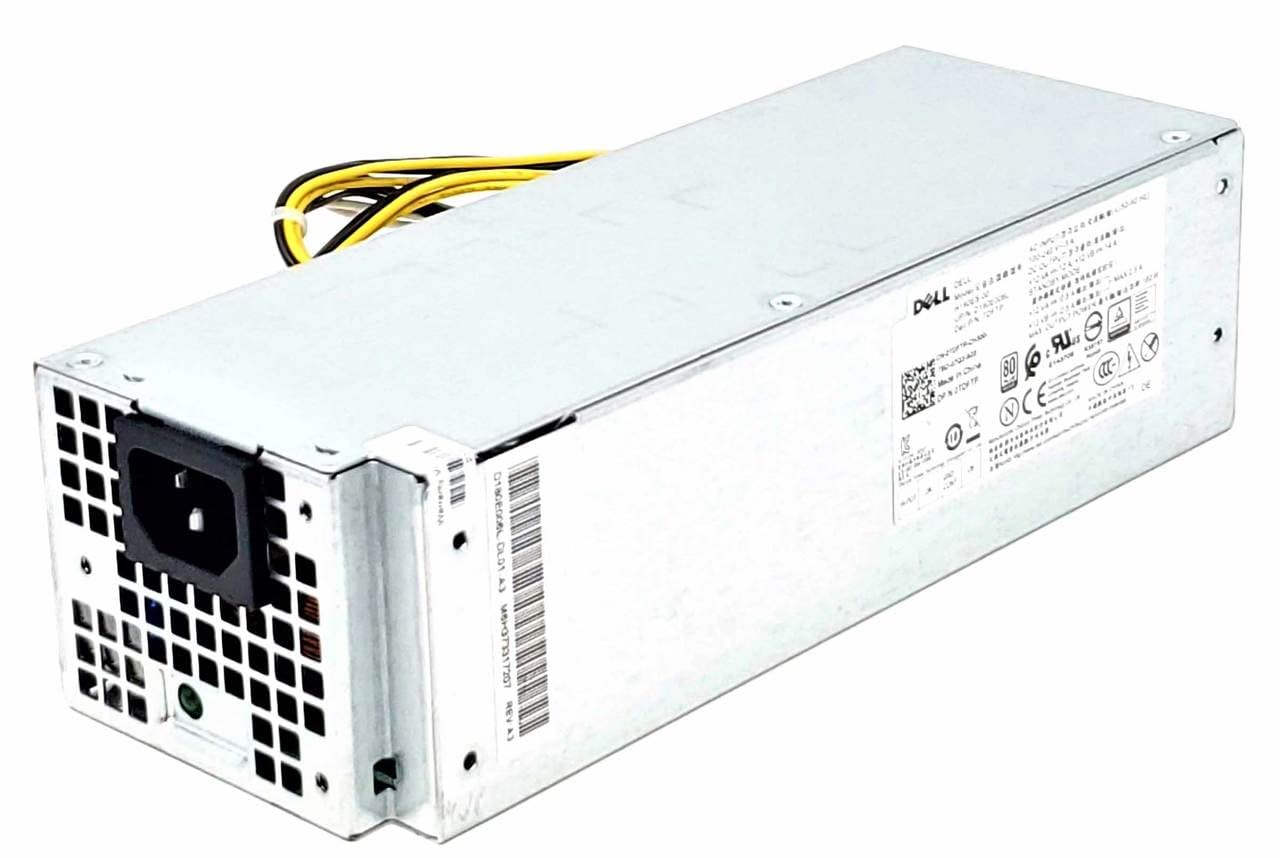

Image: Dell 180W Power Supply Unit (Model: 1TG7T). This image displays the external casing of the power supply, showing the AC power input connector, ventilation grilles, and the bundle of output cables. The Dell branding and regulatory labels are visible on the side.
The Dell 180W Power Supply Unit (part numbers 1TG7T, 66P44, C5YYV, TDFTP, 082DRM) is an internal component designed to convert AC power from a wall outlet into DC power required by the computer's components. It features a compact design suitable for Small Form Factor (SFF) desktop computers.
4. セットアップとインストール
Installation of an internal power supply requires technical knowledge and should ideally be performed by a certified technician. If you proceed with self-installation, follow these general steps:
- システムを準備する:
- Shut down the computer completely and disconnect the power cord from the wall outlet.
- Disconnect all peripheral devices (monitor, keyboard, mouse, etc.).
- Open the computer case according to your system's service manual.
- 古い PSU を削除します (該当する場合)。
- Carefully disconnect all power cables from the motherboard, graphics card, hard drives, and other components.
- Unscrew the old PSU from the computer chassis.
- Gently slide the old PSU out of the case.
- 新しいPSUをインストールします。
- Slide the new Dell 180W PSU into the designated bay in the computer chassis.
- 適切なネジで PSU を固定します。
- Connect the main 24-pin ATX power connector to the motherboard.
- 4 ピンまたは 8 ピンの CPU 電源コネクタをマザーボードに接続します。
- Connect SATA power cables to hard drives and SSDs.
- Connect any other necessary power cables (e.g., PCIe for graphics cards, if applicable, though this PSU is 180W and likely for integrated graphics systems).
- 最終ステップ:
- Ensure all cables are securely connected and routed to avoid obstructing airflow.
- コンピューターのケースを閉じます。
- Reconnect the power cord and peripheral devices.
- Power on the system to verify functionality.
Refer to your specific Dell Optiplex system's service manual for detailed, model-specific installation instructions.
5. 運営原則
The Dell 180W PSU operates automatically once installed and connected to a power source. It continuously supplies stable DC voltage to all connected computer components. The PSU is designed to regulate voltage and protect against overcurrent, overvoltage, and short circuits, ensuring the safe operation of your system. Its 80 PLUS Bronze certification indicates high energy efficiency, converting a significant percentage of AC power into usable DC power, thus reducing wasted heat and electricity consumption.
6. メンテナンス
Minimal maintenance is required for the power supply unit itself. However, general computer maintenance practices contribute to its longevity:
- ほこりの除去: Periodically clean the interior of your computer case, including the PSU's fan and ventilation grilles, using compressed air. Ensure the computer is powered off and unplugged before cleaning.
- 換気： Ensure the computer is placed in a well-ventilated area, away from direct sunlight or heat sources, to prevent overheating of internal components, including the PSU.
- ケーブル管理 Proper cable management inside the case improves airflow and prevents cables from interfering with the PSU fan.
7。 トラブルシューティング
If you experience issues with your computer's power, consider the following:
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| コンピュータの電源が入りません。 | Loose power cable, faulty wall outlet, PSU failure. | Check power cable connections. Test wall outlet. If still no power, PSU may need replacement. |
| System randomly shuts down or reboots. | Overheating, unstable power, failing PSU. | Ensure proper ventilation. Check for dust buildup. If issues persist, PSU may be failing. |
| Burning smell or smoke from computer. | Component failure, including PSU. | ただちに電源を切断してください。 Do not attempt to power on. Seek professional assistance. |
| PSU からのファンの騒音が大きい。 | Dust buildup, failing fan bearing. | Clean PSU fan. If noise persists, fan may be failing, requiring PSU replacement. |
For complex issues, it is recommended to consult a qualified computer technician or Dell support.
8. 仕様
| 特徴 | 詳細 |
|---|---|
| ブランド | デル |
| モデル番号 | 7242920000 (Also known as 1TG7T, 66P44, C5YYV, TDFTP, 082DRM) |
| 出力ワットtage | 180ワット |
| 製品寸法（長さ x 幅 x 高さ） | 9.7 x 6.5 x 1.1 インチ (24.6 x 16.5 x 2.8 cm) |
| アイテム重量 | 8.32ポンド（3.77kg） |
| 互換性 | Dell Optiplex 3050, 5050, 7050 SFF systems |
| 効率評価 | 80 PLUS Bronze (implied by "BRZ D8 LTON" in title, common for Dell PSUs) |
9. 保証とサポート
For information regarding warranty coverage, technical support, or service for your Dell Power Supply Unit, please refer to the documentation provided with your original Dell system or visit the official Dell support webサイトをご覧ください。製品のシリアル番号またはサービス番号を必ずご確認ください。 tag readily available when contacting support.
サポート リソースは通常、次の場所にあります。 www.dell.com/support
