מדריך למשתמש תלת אופן חשמלי של Viribus

1. הקדמה

Thank you for choosing the Viribus Electric Tricycle. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new electric tricycle. Please read this manual thoroughly before first use and retain it for future reference.

The Viribus Electric Tricycle is designed for comfortable and convenient adult transportation, featuring a powerful 350W (Peak 700W) front hub motor, a removable 468Wh battery, and a 7-speed derailleur system. It offers three riding modes: throttle, pedal assist, and manual pedaling, providing versatility for various riding conditions.

Figure 1.1: Viribus Electric Tricycle (Aqua) with accessories.

2. מידע בטיחות

Your safety is paramount. Always wear a helmet when riding. Adhere to all local traffic laws and regulations. Perform pre-ride checks before each use.

• בטיחות סוללה: The 468Wh battery is UL 2271 certified for safety. Do not attempt to open or modify the battery pack. Use only the provided charger.
• בְּלִימָה: Familiarize yourself with the disc brake system. Test brakes before each ride. Tricycles handle differently than two-wheel bicycles, especially when turning.
• הגבלת משקל: Do not exceed the maximum weight recommendation of 330 lbs (150 kg). This includes the rider and any cargo in the basket.
• רְאוּת: Ensure the high-intensity LED headlight and horn are functional, especially when riding in low light conditions.
• לחץ אוויר בצמיגים: יש לשמור על לחץ אוויר נכון בצמיגים לביצועים ובטיחות מיטביים. עיין בדופן הצמיג לקבלת לחץ אוויר מומלץ.

Figure 2.1: UL2271 Certified Battery for enhanced safety.

3. Assembly and Components

The Viribus Electric Tricycle features a dual-chain design with a pre-installed gearbox to simplify assembly. While some assembly is required, this design aims to reduce the typical assembly time.

3.1 מרכיבי מפתח

•

  Handlebars & Controls: Equipped with light control, twist throttle control, and horn control for intuitive operation. The LCD display is mounted centrally for easy viewing.

•

  Front Hub Motor & Disc Brake: The 350W (Peak 700W) front hub motor provides electric assistance, while the disc brake ensures reliable stopping power.

•

  Spacious Rear Basket: Capable of accommodating up to 110 lb (50 kg) of cargo, ideal for shopping or carrying personal items.
•

  אביזרים כלולים: Comes with a battery charger and a combination lock for security.

3.2 שלבי הרכבה (הנחיות כלליות)

While specific assembly instructions are typically provided in a separate guide, here is a general overview of common steps:

1. פרקו את כל הרכיבים וודאו זאת מול רשימת האריזה.
2. Attach the handlebars to the stem.
3. Install the front wheel and secure the disc brake caliper.
4. Mount the rear basket.
5. Install the seat post and saddle.
6. Connect the battery and check all electrical connections.
7. Perform a thorough safety check of all bolts, nuts, and quick releases.

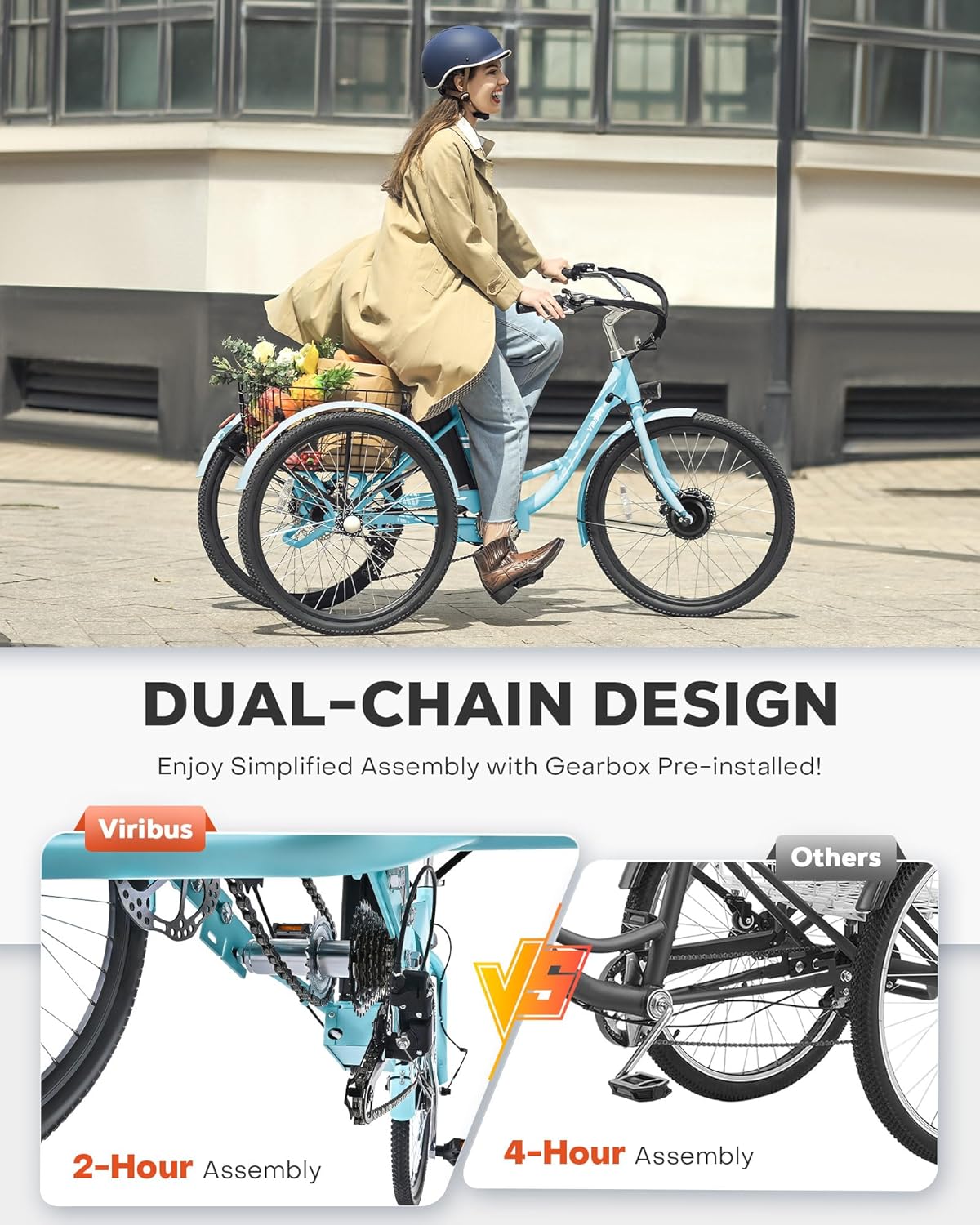

Figure 3.1: Dual-Chain Design for simplified assembly.

4. הוראות הפעלה

4.1 טעינת הסוללה

Before first use, fully charge the battery. Connect the charger to the battery charging port, then plug the charger into a standard wall outlet. The indicator light on the charger will change when charging is complete. A full charge provides a range of up to 31 miles on full throttle or 55-60 miles with pedal assist.

4.2 מצבי רכיבה

Your Viribus Electric Tricycle offers three distinct riding modes:

• מצב מצערת: Engage the twist throttle for electric power without pedaling. Maximum speed is 15.5 mph.
• Pedal Assist (PAS) Mode: The motor provides assistance as you pedal. There are five assistance levels (7.5, 9.5, 11, 13, 15.5 mph). Select the desired level using the controls on the handlebar display.
• שליטה ידנית: Ride the tricycle like a traditional bicycle, using the 7-speed Shimano derailleur for gear changes. No electric assistance is provided in this mode.

Figure 4.1: Three ways to ride your electric tricycle.

4.3 פונקציות תצוגת LCD

The intuitive LCD display provides key information during your ride:

• מד סוללה: Always know your current charge level.
• מַד מְהִירוּת: Tracks your current speed in MPH.
• רמת PAS: מציין את רמת סיוע הדיווש שנבחרה (1-5).
• מַד מֶרְחָק: Displays your trip's distance and total distance traveled.

Figure 4.2: Intuitive controls and LCD display.

4.4 החלפת הילוכים

The 7-speed Shimano derailleur allows you to adjust your pedaling effort to different terrains. Use the thumb shifter on the handlebar to change gears. Shift to lower gears for inclines and higher gears for flat terrain or downhill riding.

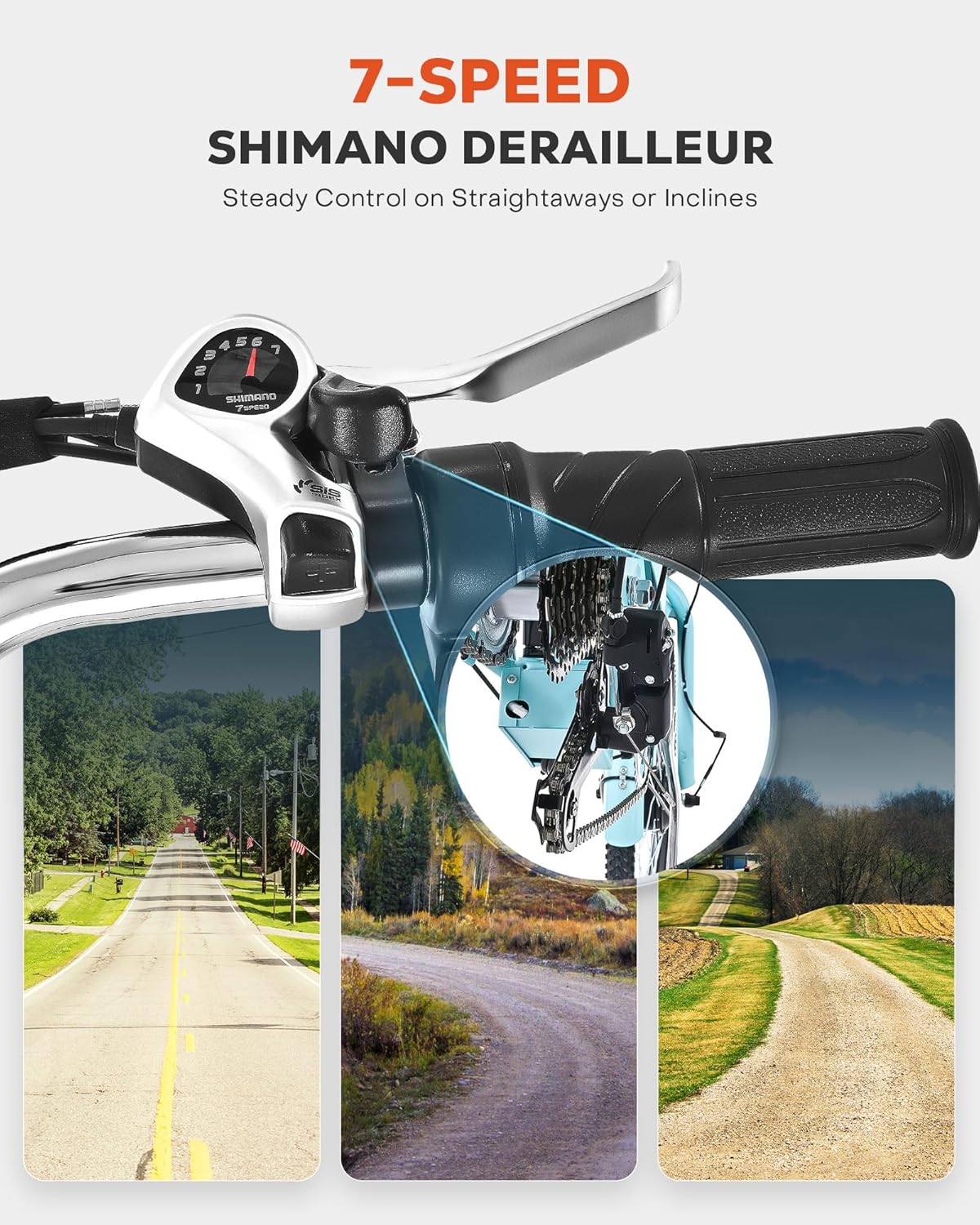

Figure 4.3: 7-Speed Shimano Derailleur for steady control.

5. תחזוקה

Regular maintenance ensures the longevity and safe operation of your electric tricycle.

• טיפול בסוללה:
  • טען את הסוללה באופן קבוע, גם אם אינה בשימוש, כדי לשמור על בריאותה.
  • Store the battery in a cool, dry place. Avoid extreme temperatures.
  • אין לפרוק את הסוללה לחלוטין לפני טעינה מחדש.
• צמיגים: Check tire pressure before each ride. The 1.95-inch wide tires provide stability, but proper inflation is crucial for performance and preventing flats. Inspect tires for wear and damage.
• בַּלָמִים: Regularly inspect the disc brakes for wear on pads and rotors. Ensure brake levers engage smoothly and provide adequate stopping power. Adjust as needed.
• שרשרת ומערכת הנעה: Keep the chain clean and lubricated. Inspect the 7-speed derailleur for proper alignment and smooth shifting.
• מחברים: Periodically check all nuts, bolts, and screws for tightness. Loose fasteners can lead to unsafe conditions.
• ניקוי: נקה את התלת אופן עם מודעהamp מטלית וסבון עדין. הימנעו משטיפה בלחץ גבוה ישירות על רכיבים חשמליים.

6. פתרון תקלות

סעיף זה מטפל בבעיות נפוצות שאתה עשוי להיתקל בהן. עבור בעיות שאינן מופיעות כאן, אנא צור קשר עם תמיכת הלקוחות.

7. מפרטים

Key technical specifications for the Viribus Electric Tricycle:

Figure 7.1: Tricycle dimensions and recommended rider height.

8. אחריות ותמיכה

For detailed warranty information, please refer to the documentation included with your purchase or visit the official Viribus website. If you require technical assistance, replacement parts, or have questions regarding your electric tricycle, please contact Viribus customer support through their official channels.

Note: Keep your purchase receipt and serial number (usually located on the frame) readily available when contacting support.
