מדריך למשתמש של חיישן טמפרטורה של תרמוסטט מקורי של מקרר ומקפיא של סמסונג

מָבוֹא

This manual provides essential information for the proper installation, operation, and maintenance of your Samsung Genuine Fridge Freezer Thermostat Temperature Sensor. Please read this manual thoroughly before attempting any installation or repair to ensure safe and effective use.

המוצר נגמרview

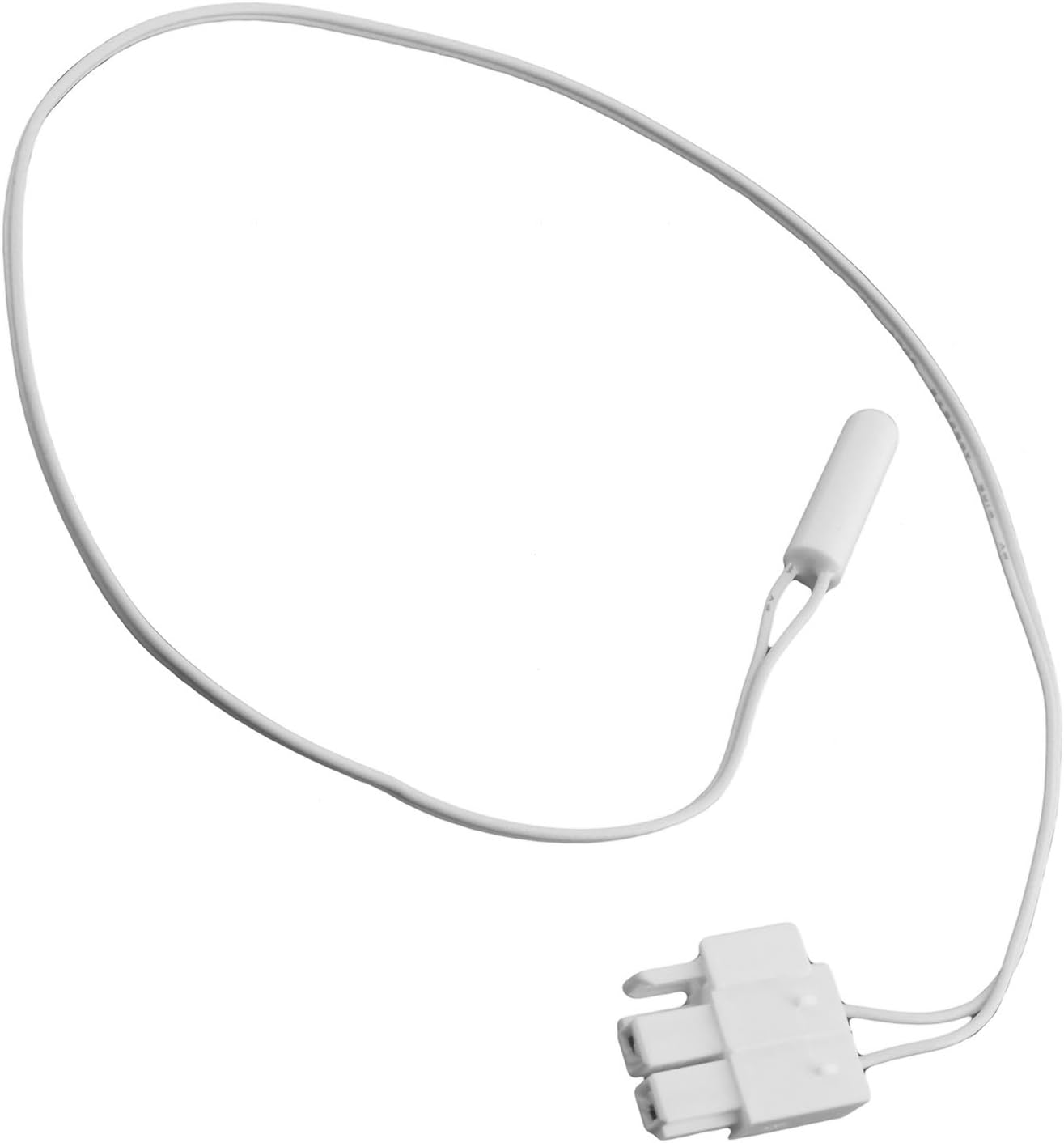

Image: A white Samsung Genuine Fridge Freezer Thermostat Temperature Sensor, consisting of a long white wire, a cylindrical sensor tip, and a white two-pronged connector at the end. The wire forms a large loop, showcasing the full length of the component.

The Samsung Genuine Fridge Freezer Thermostat Temperature Sensor is a critical component designed to accurately measure and regulate the temperature within your Samsung refrigerator or freezer. This sensor ensures optimal cooling performance and energy efficiency by communicating temperature data to the appliance's control system. It is a direct replacement part for various Samsung models.

מידע בטיחות

תמיד יש לתת עדיפות לבטיחות בעת עבודה עם מכשירי חשמל. אי ציות להנחיות בטיחות אלה עלול לגרום להתחשמלות, שריפה או פגיעה גופנית.

• נתק חשמל: Always unplug the refrigerator/freezer from the power outlet before attempting any installation, repair, or maintenance.
• טכנאי מוסמך: Installation and repair should ideally be performed by a qualified technician. If you are not confident in your abilities, seek professional assistance.
• חלקים מקוריים: Use only genuine Samsung replacement parts to ensure compatibility and proper functioning.
• טפל בזהירות: The sensor and wiring are delicate. Handle them carefully to avoid damage.
• חשמל סטטי: Discharge any static electricity from your body before handling electronic components by touching a grounded metal object.

התקנה והתקנה

This section outlines the general steps for replacing the thermostat temperature sensor. Specific steps may vary depending on your refrigerator/freezer model. Refer to your appliance's specific service manual for detailed instructions.

1. הֲכָנָה:
   • Unplug the refrigerator/freezer from the wall outlet.
   • Empty the refrigerator/freezer of all food items and shelves to gain access to the sensor location.
   • Locate the existing temperature sensor. Its location varies by model but is often found near the evaporator coils or within the fresh food/freezer compartment.
2. Removal of Old Sensor:
   • Carefully disconnect the electrical connector of the old sensor.
   • Unclip or unmount the sensor from its housing or mounting bracket.
   • Gently pull the sensor wire through any grommets or channels.
3. Installation of New Sensor:
   • Thread the wire of the new sensor through the same channels and grommets as the old one.
   • Mount the new sensor securely in the designated location. Ensure it is positioned correctly to accurately read the internal temperature.
   • Connect the electrical connector of the new sensor firmly. Ensure a secure connection.
4. הרכבה מחדש ובדיקה:
   • Replace any removed shelves or components.
   • Plug the refrigerator/freezer back into the power outlet.
   • Allow several hours for the appliance to reach its set temperature and verify proper operation.

פֶּתֶק: If you encounter resistance or difficulty during any step, do not force components. Consult a professional technician or your appliance's specific service manual.

הוראות הפעלה

The Samsung Genuine Fridge Freezer Thermostat Temperature Sensor operates automatically once installed. Its primary function is to continuously monitor the internal temperature of your refrigerator or freezer and send this data to the appliance's control board.

• ויסות אוטומטי: The sensor works in conjunction with the control board to activate or deactivate the compressor and fan as needed, maintaining the desired temperature settings.
• אין אינטראקציה עם המשתמש: This component does not require direct user interaction for its operation. Its function is entirely internal and automatic.
• תצוגת טמפרטורה: The temperature displayed on your appliance's control panel is a reading influenced by this sensor.

תַחזוּקָה

The thermostat temperature sensor itself requires minimal maintenance. However, ensuring the surrounding environment is clean can help prolong its lifespan and ensure accurate readings.

• שמור על אזור נקי: Periodically clean the interior of your refrigerator/freezer, especially around the sensor's location, to prevent dust or debris buildup that could obstruct its function.
• הימנע מנזק פיזי: Be careful when loading or unloading items in the appliance to avoid accidentally hitting or damaging the sensor or its wiring.
• ניקוי מכשירי חשמל ביתיים באופן קבוע: Follow your refrigerator/freezer's general cleaning guidelines to maintain overall appliance health.

פתרון בעיות

If your refrigerator or freezer is experiencing temperature-related issues, the temperature sensor might be a contributing factor. Here are some common symptoms and potential solutions.

כתב ויתור: Troubleshooting steps are general guidelines. Always consult a qualified technician for complex issues or if you are unsure about performing a repair.

מפרטים

אחריות ותמיכה

For information regarding warranty coverage for your Samsung Genuine Fridge Freezer Thermostat Temperature Sensor, please refer to the warranty documentation provided with your original Samsung appliance or contact Samsung customer support directly.

תמיכת לקוחות של סמסונג:

• בקרו באתר הרשמי של סמסונג webאתר עבור האזור שלך.
• Navigate to the "Support" or "Contact Us" section.
• Provide your appliance model number and the part's ASIN (B018XMYYL2) for faster assistance.

פֶּתֶק: Warranty terms and support availability may vary by region and product. Keep your purchase receipt as proof of purchase.
