1. מידע בטיחות חשוב
Please read all instructions carefully before using the appliance. Keep this manual for future reference. Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualified installer, service agency, or the gas supplier.
- בטיחות חשמל: Ensure the oven is properly grounded. Do not operate with a damaged power cord or plug.
- בטיחות ילדים: Keep children away from the oven during operation and cooling. The oven door and surfaces can become very hot.
- סכנת צריבה: Always use oven mitts when handling hot dishes or oven racks. Do not touch hot surfaces directly.
- סכנת שריפה: Never store flammable materials in or near the oven. Clean up spills immediately to prevent smoke or fire.
- ניקוי פירוליטי: Ensure the oven is completely empty before starting a pyrolytic cleaning cycle. Remove all accessories and food residues.
2. המוצר נגמרview
The Brandt FP1061X is a 53-liter multifunction electric oven designed for built-in installation. It features pyrolytic self-cleaning and a range of cooking functions to suit various culinary needs.

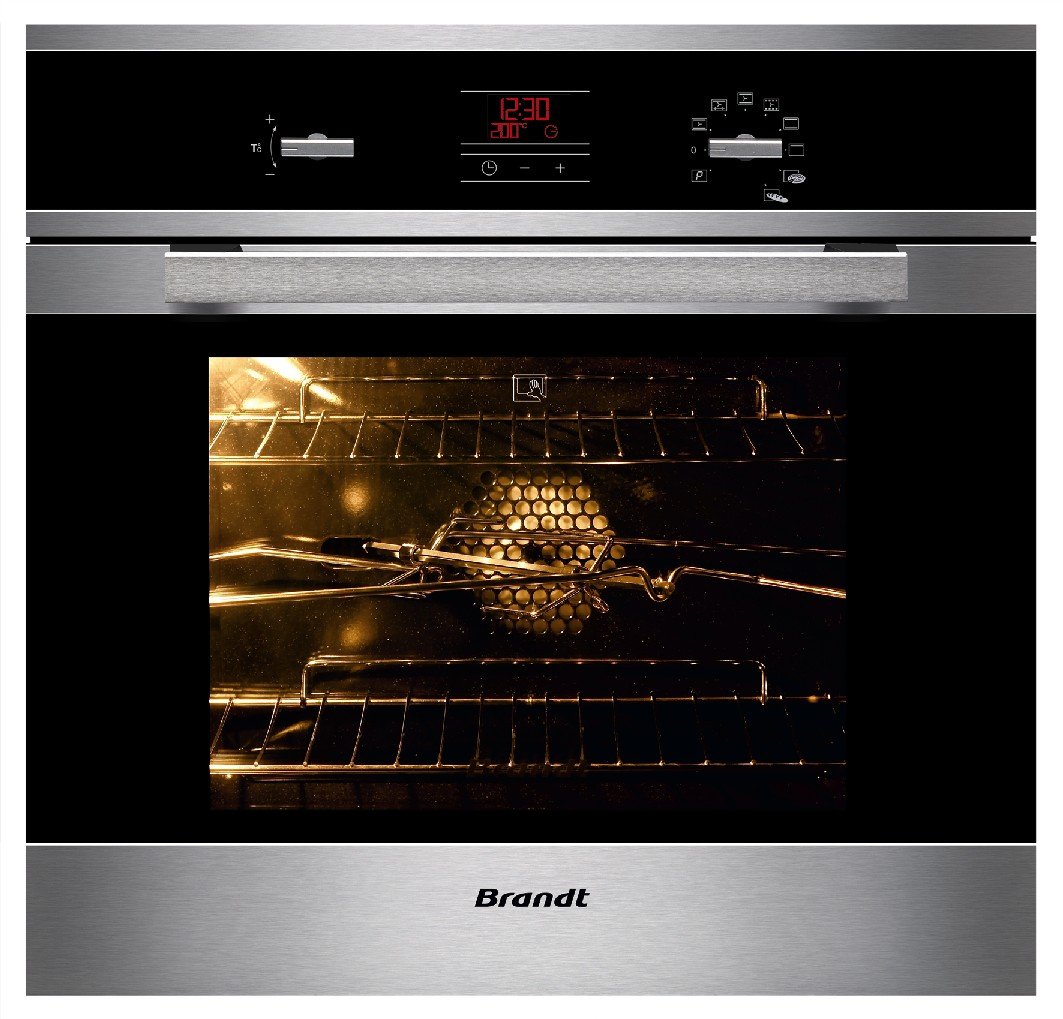

תמונה 1: חֲזִית view of the Brandt FP1061X Electric Oven. This image shows the stainless steel and black finish, the control panel, and the oven door.
תכונות עיקריות:
- יְכוֹלֶת: 53 Liters net volume.
- מצבי בישול: 10 multifunction cooking modes, including fan-assisted, grill, rotisserie, pizza, and bread functions.
- ניקוי: Pyrolytic self-cleaning system for effortless maintenance.
- לִשְׁלוֹט: Electronic programmer with temperature regulation and real-time temperature display.
- בְּטִיחוּת: Cold door (4 panes of glass) for enhanced safety during operation.
- לְעַצֵב: Stainless steel and black finish with a full glass inner door.
- אביזרים: Includes 2 grids and a 20mm deep baking tray.
3. התקנה והתקנה
The Brandt FP1061X oven is designed for built-in installation. It is highly recommended that installation be performed by a qualified technician to ensure proper electrical connection and ventilation.
דרישות התקנה:
- Niche Dimensions (HxWxD): 58.5 cm x 56 cm x 55 cm (22.83 in x 22.05 in x 21.65 in).
- אספקת חשמל: 220-240 V AC, 50 Hz, 16 A. Total power: 3385 W.
- אוורור: יש לוודא אוורור נאות סביב המכשיר בהתאם לתקנות המקומיות.
- פִּלוּס: The oven must be installed on a level surface to ensure proper operation and door alignment.
After installation, remove all packaging materials and protective films from the oven interior and exterior. Clean the oven interior with a damp בד לפני השימוש הראשון.
4. הוראות הפעלה
This section provides general guidance on operating your Brandt FP1061X oven. Refer to the control panel for specific button functions and display indicators.
שימוש ראשון:
- Before cooking food, heat the empty oven for approximately 30 minutes at 200°C (392°F) to burn off any manufacturing residues. Ensure the kitchen is well-ventilated during this process.
- הניחו לתנור להתקרר, ולאחר מכן נגב את החלק הפנימי עם מודעהamp בַּד.
הגדרת השעה:
עם החיבור הראשון או לאחר הפסקת חשמלtage, the clock display will flash. Use the designated buttons (usually '+' and '-') to set the current time. Confirm the setting as per the display instructions.
בחירת פונקציית בישול:
- Turn the function selector knob to choose your desired cooking mode (e.g., Fan-assisted, Grill, Conventional).
- Turn the temperature selector knob to set the desired temperature. The electronic programmer will display the real-time temperature.
- For timed cooking, use the timer function on the electronic programmer to set the cooking duration. The oven will switch off automatically once the time expires.
- The oven features a recommended temperature function (Préconisation de la T°C) which may suggest optimal temperatures for selected modes.
פונקציות מיוחדות:
- גְרִיל: אידיאלי להשחמת וציפוי פריך של מנות.
- רוטיסרי: Use with the included rotisserie accessory for even roasting of poultry or larger cuts of meat.
- פיצה/לחם: Specific modes optimized for baking pizzas and bread, often utilizing bottom heat and fan assistance.
5. ניקיון ותחזוקה
Regular cleaning and proper maintenance will ensure the longevity and optimal performance of your Brandt FP1061X oven.
ניקוי עצמי פירוליטי:
- Remove all accessories (grids, trays, rotisserie) from the oven cavity.
- Wipe away any large food spills or residues.
- סגור היטב את דלת התנור.
- Select the pyrolytic cleaning function on the control panel. The oven will heat to a very high temperature (around 500°C / 932°F) to burn off food residues, turning them into ash.
- During the cycle, the oven door will lock automatically for safety. Do not attempt to open it.
- Once the cycle is complete and the oven has cooled down, wipe away the ash with a damp בַּד.
- Ensure good ventilation during and after the pyrolytic cycle.
ניקיון כללי:
- חִיצוֹנִי: Clean the stainless steel and black exterior surfaces with a soft cloth and a mild, non-abrasive cleaner.
- דלת תנור: The full glass inner door can be cleaned with a glass cleaner. For thorough cleaning, the inner glass pane may be removable (refer to specific instructions in the full manual if available).
- אביזרים: Wash grids and trays with warm soapy water or in a dishwasher.
- נורה: If the interior light bulb needs replacement, ensure the oven is unplugged and cool. Consult a qualified technician if unsure.
6. פתרון תקלות
לפני פנייה לתמיכת הלקוחות, אנא עיינו בבעיות הנפוצות ובפתרונות הבאות:
| בְּעָיָה | סיבה אפשרית | פִּתָרוֹן |
|---|---|---|
| התנור לא מתחמם. | No power supply; incorrect settings; door not closed properly. | Check power connection and circuit breaker. Verify cooking mode and temperature settings. Ensure door is fully closed. |
| התצוגה מציגה קוד שגיאה. | תקלה פנימית; בעיית חיישן. | Turn off the oven at the main power supply for a few minutes, then restart. If the error persists, contact customer support. |
| ניקוי פירוליטי לא מתחיל. | Oven door not properly closed; accessories still inside. | Ensure the oven door is fully latched. Remove all racks, trays, and other accessories. |
| בישול לא אחיד. | מיקום רשת שגוי; תנור עמוס יתר על המידה; גוף חימום פגום. | Use recommended rack positions. Avoid overcrowding the oven. If problem persists, contact service. |
For issues not listed here or if solutions do not resolve the problem, please contact Brandt customer support.
7. מפרט טכני
| תכונה | מִפרָט |
|---|---|
| מותג | ברנדט |
| מספר דגם | FP1061X |
| סוּג | תנור מובנה חשמלי |
| קיבולת (נטו) | 53 ליטר |
| צֶבַע | נירוסטה ושחור |
| שיטת חימום | Multifunction (Fan-assisted, Grill, etc.) |
| סוג ניקוי | פירוליטי |
| כוח מוחלט | 3385 W |
| כוח תנור | 2100 W |
| כרך ידtage | 220-240 וולט AC |
| תֶדֶר | 50 הרץ |
| נוֹכְחִי | 16 א |
| מחלקת אנרגיה | A |
| מידות (HxWxD) | 59.2 ס"מ x 59.2 ס"מ x 60.9 ס"מ (23.3 אינץ' x 23.3 אינץ' x 24.0 אינץ') |
| Built-in Niche Dimensions (HxWxD) | 58.5 ס"מ x 56 ס"מ x 55 ס"מ (22.83 אינץ' x 22.05 אינץ' x 21.65 אינץ') |
| מִשׁקָל | 34 ק"ג (75 פאונד) |
| חוֹמֶר | נירוסטה |
| תכונות מיוחדות | Pyrolytic self-cleaning, Electronic programmer, Cold door (60°C), Real-time temperature display, Interior lighting. |
8. אחריות ותמיכת לקוחות
Your Brandt FP1061X oven comes with a manufacturer's warranty and dedicated customer support.
מידע על אחריות:
- אחריות סטנדרטית: 1 year on parts.
- אנא שמור את הוכחת הרכישה שלך עבור תביעות אחריות.
- The warranty covers manufacturing defects under normal use. It does not cover damage due to misuse, improper installation, or unauthorized repairs.
תמיכת לקוחות:
For technical assistance, service requests, or warranty inquiries, please contact Brandt's specialized customer support. Refer to the official Brandt webבאתר או במסמכי הרכישה שלך לקבלת פרטי יצירת קשר.
Note: Information in this manual is subject to change without notice. For the most up-to-date information, please refer to the official Brandt website or the full product manual provided with your appliance.
