1. הקדמה
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Speedaire 5VC89 Desiccant Air Dryer. Please read this manual thoroughly before using the product and retain it for future reference. Proper understanding and adherence to these instructions will ensure optimal performance and longevity of the unit.
2. מידע בטיחות חשוב
Always observe basic safety precautions to reduce the risk of injury or damage. This device operates with compressed air, which can be hazardous if not handled correctly.
- Ensure the air supply is disconnected before performing any maintenance or service.
- Do not exceed the maximum incoming pressure of 175 psi.
- Operate the dryer within the specified temperature range (Max. Operating Temp. 125°F).
- Wear appropriate personal protective equipment (PPE) when working with compressed air systems.
- התקן את היחידה באזור מאוורר היטב.
3. המוצר נגמרview
The Speedaire 5VC89 is a desiccant air dryer designed to remove moisture from compressed air, achieving an ISO Class 3 dew point of -4°F. This unit is suitable for branch line applications requiring dry air to protect pneumatic tools and equipment from corrosion and damage caused by moisture.

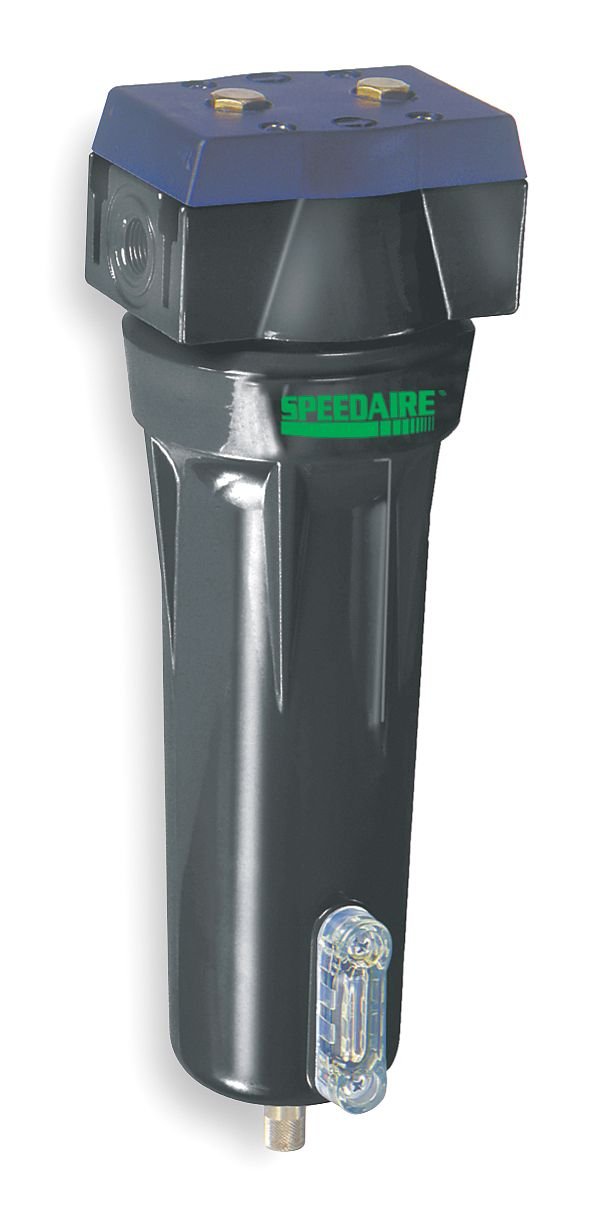

Image 1: The Speedaire 5VC89 Desiccant Air Dryer. This image shows the compact, cylindrical design of the air dryer, featuring a dark gray body, a blue top cap with brass fittings, and a clear sight glass near the bottom for desiccant monitoring.
4. התקנה
Follow these steps for proper installation of your desiccant air dryer:
- פריקת אריזה: הוציאו בזהירות את המייבש מאריזתו. בדקו אם יש נזקים במהלך המשלוח.
- הַרכָּבָה: Mount the dryer vertically in a secure location, ensuring it is easily accessible for maintenance.
- קֶשֶׁר: Connect the compressed air inlet to the designated port and the outlet to your pneumatic system. The unit features a 1/4 inch NPT connection size. Ensure all connections are tight and leak-free.
- כיוון זרימת אוויר: Verify that the air flow direction matches the arrows indicated on the dryer body.
- בדיקה ראשונית: Before applying full pressure, slowly introduce air to check for any leaks.
5. תפעול
Once installed, the Speedaire 5VC89 Desiccant Air Dryer operates automatically to remove moisture from your compressed air supply.
- זרימת אוויר: The dryer is designed for a maximum flow rate of 5 cfm. Exceeding this rate may reduce drying efficiency.
- נקודת טל: The unit maintains a dew point of -4°F, providing ISO Class 3 air quality.
- לַחַץ: Ensure the incoming air pressure does not exceed 175 psi.
- טֶמפֶּרָטוּרָה: The maximum operating temperature is 125°F. Operating above this temperature can affect performance and desiccant life.
6. תחזוקה
Regular maintenance is crucial for the continued performance of your desiccant air dryer.
- החלפת חומר יובש: The dryer uses Silica Gel desiccant material. The desiccant will change color (typically from blue to pink) as it absorbs moisture, indicating saturation. Replace the desiccant when a significant portion has changed color. The bowl size is 1 Lb.
- Bowl Inspection: Periodically inspect the rugged metal bowl for any signs of damage or corrosion.
- בִּיוּב: Ensure any condensate drain (if applicable to your setup) is functioning correctly.
- רכיב סינון: If your system includes a pre-filter, ensure its element is replaced according to its manufacturer's recommendations.
7. פתרון תקלות
עיין בטבלה שלהלן לקבלת בעיות נפוצות ופתרונות אפשריים להן.
| בְּעָיָה | סיבה אפשרית | פִּתָרוֹן |
|---|---|---|
| Moisture in air line after dryer | Saturated desiccant | Replace desiccant material. |
| Moisture in air line after dryer | Air flow exceeds dryer capacity | Reduce air flow or install a larger capacity dryer. |
| Moisture in air line after dryer | Improper installation (e.g., reverse flow) | Verify correct air flow direction as indicated on the unit. |
| דליפות אוויר | חיבורים רופפים | Tighten all NPT connections. Use thread sealant if necessary. |
8. מפרטים
Detailed technical specifications for the Speedaire 5VC89 Desiccant Air Dryer:
| מִפרָט | עֵרֶך |
|---|---|
| מספר דגם | 5VC89 |
| Total Capacity - Air Treatment | 2,300 קוב רגל |
| Max. Flow - Air Treatment | 5 cfm |
| Connection Size - Air Treatment | 1/4 ב-NPT |
| Dew Point - Air Treatment | -4 Degrees F |
| Max. Incoming Pressure - Air Treatment | 175 psi |
| ISO Class - Air Treatment | 3 |
| Max. SCFM @ 100 PSI | 5 |
| מקסימום טמפ 'הפעלה. | 125 מעלות ו |
| Desiccant Material | סיליקה ג'ל |
| חומר קערה | Rugged Metal |
| גודל קערה | 1 ליברות |
| גוֹבַה | 12 אינץ' |
| רוֹחַב | 4 1/8 אינץ' |
| מידות המוצר | 23 x 8 x 5 אינץ'; 8 פאונד |
| בַּקָשָׁה | Branch Lines |
| יַצרָן | SPEEDAIRE |
9. מידע על אחריות
Specific warranty details for the Speedaire 5VC89 Desiccant Air Dryer are not provided in this manual. Please refer to the product packaging, the official Speedaire website, or contact your authorized dealer for comprehensive warranty terms and conditions.
10. תמיכת לקוחות
For technical assistance, replacement parts, or further inquiries regarding your Speedaire 5VC89 Desiccant Air Dryer, please contact Speedaire customer support or your local authorized distributor. Contact information can typically be found on the manufacturer's official webתיעוד האתר או המוצר.
