KKT KOLBE Barista Pure Fully Automatic Coffee Machine User Manual

Introduzione

Welcome to the world of premium coffee with your new KKT KOLBE Barista Pure fully automatic coffee machine. This manual provides essential information for the safe operation, setup, maintenance, and troubleshooting of your appliance. Please read it thoroughly before first use and keep it for future reference.

Istruzioni di sicurezza

Per garantire un funzionamento sicuro, osservare quanto segue:

• Collegare sempre l'apparecchio a una presa di corrente dotata di messa a terra.
• Non immergere l'apparecchio, il cavo di alimentazione o la spina in acqua o altri liquidi.
• Keep children away from the appliance, especially when it is in operation or contains hot liquids.
• Prestare attenzione quando si maneggiano superfici calde e vapore.
• Scollegare l'apparecchio prima di pulirlo e quando non lo si utilizza per lunghi periodi.
• Non utilizzare l'apparecchio se danneggiato o malfunzionante. Contattare l'assistenza clienti per ricevere assistenza.

Prodotto finitoview

The KKT KOLBE Barista Pure is designed for convenience and quality, offering a range of features for your coffee enjoyment.

The KKT KOLBE Barista Pure coffee machine, showcasing its sleek black and silver design on a kitchen counter.

Close-up of the digital touchscreen interface with icons for various coffee drinks and functions.

Caratteristiche principali:

• 4 Direct Drinks: Espresso, Coffee Creme, MyCoffee, and Americano, available as hot or cold brew.
• Montalatte integrato: For preparing cappuccino, latte macchiato, and other milk-based specialties.
• 7-Stage Grinder: Grinds fresh coffee beans to your preferred fineness, enhancing aroma and reducing bitterness.
• My-Coffee Function: Allows saving personalized coffee settings for quick access.
• Automatic Cleaning Programs: Ensures hygienic operation and easy maintenance.
• Removable Brew Group: Semplifica la pulizia e la manutenzione.
• Pompa professionale da 15 bar: Delivers optimal pressure for intense coffee extraction.
• Beccuccio caffè regolabile: Accommodates various cup and glass sizes.
• Quiet Grinder: Operates silently for an undisturbed coffee experience.

Diagram showing the dimensions of the KKT KOLBE Barista Pure coffee machine: 470mm depth, 220mm width, 370mm height.

Included accessories: water filter, measuring spoon, cleaning brush, cleaning cloth, water hardness test strips, and user manual.

Impostare

1. Disimballaggio e posizionamento

• Rimuovere tutti i materiali di imballaggio.
• Posizionare la macchina su una superficie stabile, piana e resistente al calore.
• Garantire un'adeguata ventilazione attorno all'apparecchio.

2. Riempimento del serbatoio dell'acqua

A person removing the water tank from the side of the coffee machine to fill it.

• Rimuovere il serbatoio dell'acqua dal lato della macchina.
• Riempire il serbatoio con acqua fresca e fredda del rubinetto fino al segno MAX.
• Insert the water filter (if not already installed) and place the tank back into the machine.

3. Riempimento del contenitore dei fagioli

A person pouring coffee beans into the top bean container of the machine.

• Open the lid of the bean container on top of the machine.
• Fill with whole coffee beans. Do not use ground coffee in this container.
• Adjust the grinder setting using the dial inside the bean container to your desired fineness (1 for fine, 7 for coarse).

4. Initial Cleaning Cycle

• After filling water and beans, switch on the machine.
• The machine will prompt you to perform an initial cleaning cycle. Follow the on-screen instructions.
• This process primes the system and ensures optimal coffee quality from the first brew.

Istruzioni per l'uso

1. Interfaccia touchscreen

The intuitive touchscreen display allows for easy selection of your desired beverages and settings.

2. Preparazione del caffè

To brew a coffee specialty:

1. Place a cup or glass under the coffee spout.
2. Select your desired drink (Espresso, Coffee, Americano, MyCoffee, Cold Brew) from the touchscreen.
3. You can adjust coffee strength and volume before brewing, if desired.
4. Premere il pulsante di avvio per iniziare la preparazione.

Espresso being dispensed from the machine into a white ceramic cup.

A selection of coffee drinks, including espresso, coffee crema, and Americano, prepared by the machine.

3. Funzione di infusione fredda

The Barista Pure offers a refreshing Cold Brew option:

• Select 'Cold Brew' from the menu.
• Place a glass with ice cubes under the spout for an immediate chilled coffee.

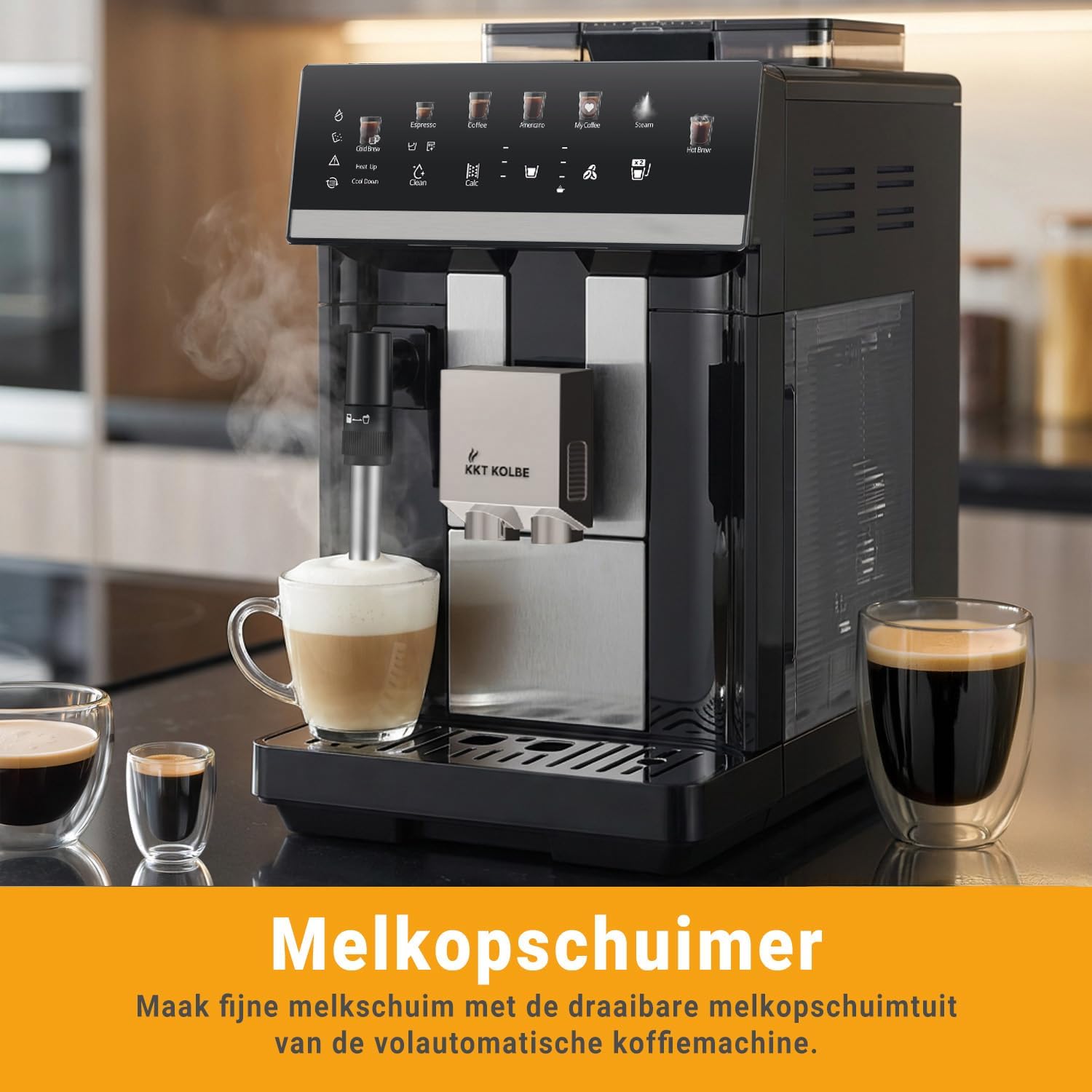

4. Utilizzo del montalatte

A person using the integrated milk frother to create foam for a coffee drink.

Un primo piano view of rich, creamy milk foam in a glass.

• Riempi una lattiera con latte freddo.
• Position the milk frother nozzle into the milk.
• Select the 'Steam' function on the touchscreen.
• Once the desired foam consistency is achieved, turn off the steam.
• Immediately clean the frother nozzle after use to prevent milk residue buildup.

5. Adjustable Coffee Spout

Image illustrating the adjustable height of the coffee spout to accommodate different cup sizes.

The coffee spout can be manually adjusted up or down to fit various cup and glass heights, minimizing splashes and maintaining coffee temperature.

Manutenzione e pulizia

Una manutenzione regolare garantisce la longevità e le prestazioni ottimali della tua macchina da caffè.

1. Programmi di pulizia automatica

• The machine features automatic rinsing and cleaning cycles. Follow the prompts on the display.
• Svuotare e pulire regolarmente il vassoio raccogligocce e il contenitore dei fondi di caffè.

2. Removable Brew Group

• Spegnere la macchina e staccare la spina.
• Open the service door and carefully remove the brew group.
• Rinse the brew group thoroughly under lukewarm running water. Do not use detergents.
• Lasciarlo asciugare completamente all'aria prima di reinserirlo.

3. Decalcificazione

• La macchina indicherà quando è necessario procedere alla decalcificazione.
• Utilizzare una soluzione decalcificante adatta, studiata appositamente per le macchine da caffè.
• Follow the instructions provided with the descaling agent and the machine's display prompts.

4. Sostituzione del filtro dell'acqua

• Replace the water filter regularly as indicated by the machine or every two months, whichever comes first.
• Refer to the water filter packaging for specific replacement instructions.

Risoluzione dei problemi

If you encounter issues with your KKT KOLBE Barista Pure, please refer to the following common solutions. For more detailed troubleshooting, consult the comprehensive manual included with your product.

Specifiche

Garanzia e supporto

Your KKT KOLBE Barista Pure coffee machine comes with a manufacturer's warranty. For detailed information regarding warranty terms, conditions, and duration, please refer to the warranty card included in your product packaging or visit the official KKT KOLBE websito.

For technical support, spare parts, or any questions not covered in this manual, please contact KKT KOLBE customer service. Contact details can typically be found on the manufacturer's websito o nella documentazione di acquisto.
