SHA CERLIN Queen Platform Bed Frame (Model XH80369CMMQ) User Manual

1. Informazioni importanti sulla sicurezza

Si prega di leggere attentamente tutte le istruzioni prima del montaggio e dell'uso. Conservare il manuale per riferimento futuro.

• Capacità di peso: Do not exceed the maximum weight capacity of 900 pounds for this bed frame.
• Regolazione della testiera: Exercise caution when adjusting the headboard to prevent injury. Ensure all fasteners are securely tightened after adjustment.
• Montaggio: Assemble the bed frame on a soft, clean surface to prevent damage to the product or your floor. Two adults are recommended for assembly, although one adult can complete it in under 60 minutes.
• Manutenzione: Controllare regolarmente tutti i bulloni e le viti per assicurarsi che siano ben serrati. Serrare nuovamente se necessario.
• Bambini: Durante il montaggio, tenere le parti di piccole dimensioni lontano dalla portata dei bambini per evitare rischi di soffocamento.

2. Prodotto finitoview

The SHA CERLIN Queen Platform Bed Frame (Model XH80369CMMQ) is designed for comfort and stability. It features an adjustable headboard, velvet upholstery, and a robust metal frame with wooden slat support, eliminating the need for a box spring.

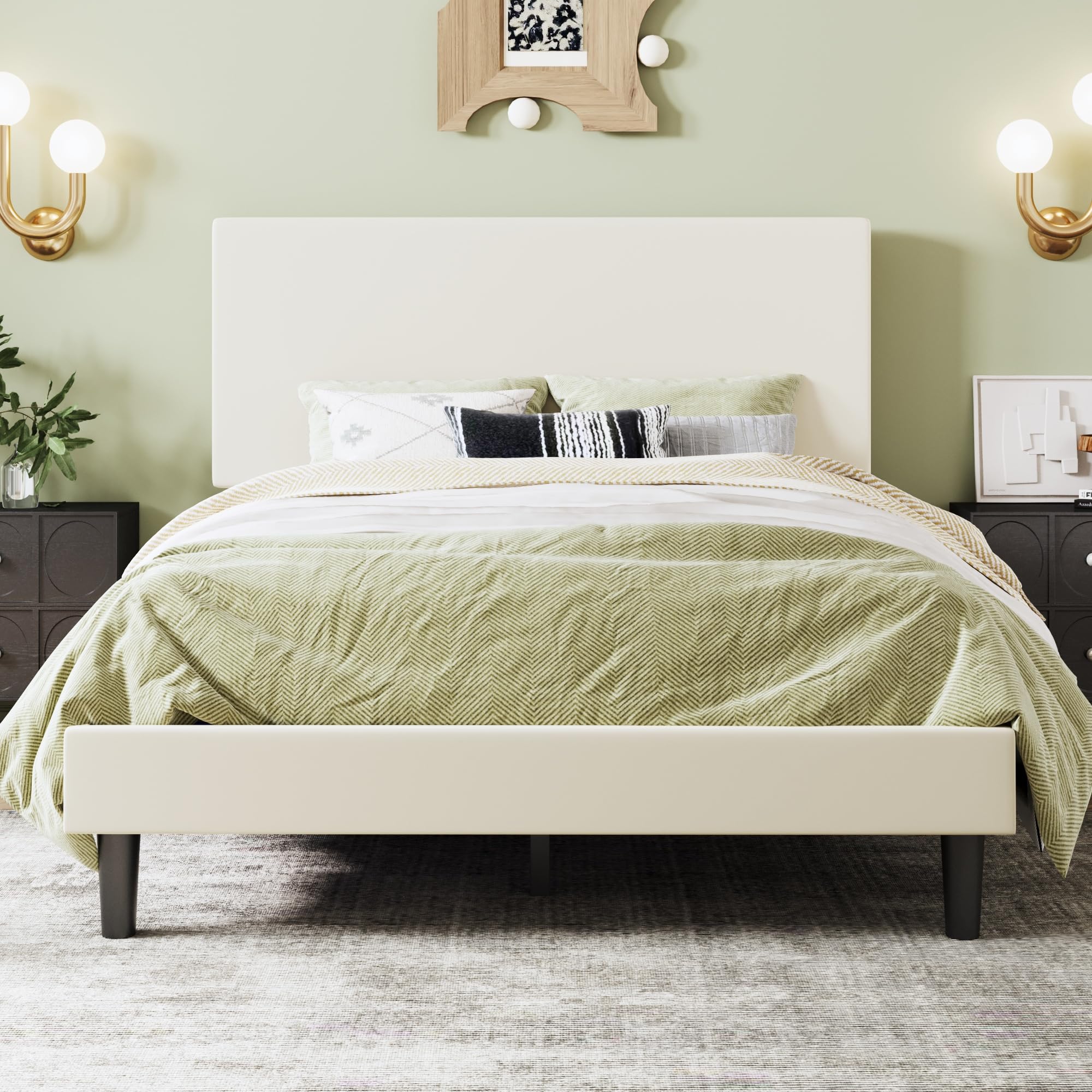

Figure 2.1: SHA CERLIN Queen Platform Bed Frame (Soft Cream)

2.1 Caratteristiche principali

• Testiera regolabile: Two-level adjustment from 47 inches to 51 inches to accommodate various mattress heights.
• Rivestimento in velluto: Premium textured boucle fabric for a soft and luxurious feel.
• Costruzione robusta: High-grade metal frame with reinforced center support legs for enhanced durability and stability.
• Non è necessario alcun box spring: Durable wooden slats provide direct mattress support.
• Contenitori sotto il letto: 7.9 inches of clearance for convenient storage or robot vacuum access.
• Riduzione del rumore: Anti-noise foams and Velcro strips on slats minimize squeaking.

2.2 Dimensioni e componenti del prodotto

Figure 2.2: Product Dimensions (Queen Size: 81.5"L x 62.8"W x 47"-51"H)

• Overall Dimensions (L x W x H): 81.5" x 62.8" x 47"-51"
• Headboard Height Adjustment: 47" to 51"
• Under-bed Clearance: 7.9"
• Capacità di peso: 900 libbre
• Recommended Mattress Thickness: 8" - 14"
• Included Components: Headboard, Bed Frame, Wooden Slats

3. Installazione e assemblaggio

This bed frame is designed for easy assembly. All necessary tools and hardware are included. Please follow the step-by-step instructions carefully.

3.1 Prima di iniziare

• Liberare uno spazio libero per l'assemblea.
• Lay out all components on a soft, clean surface (e.g., carpet or blanket) to prevent scratches.
• Verify all parts are present against the included parts list. If any parts are missing or damaged, contact customer support.

3.2 Fasi di assemblaggio (guida generale)

Refer to the detailed, illustrated instructions provided in your product packaging for specific assembly steps. The general process involves:

1. Fissare le guide laterali alla testiera e alla pediera.
2. Installare la trave di supporto centrale e le gambe.
3. Secure the wooden slats to the frame using the provided fasteners and Velcro strips.
4. Adjust the headboard height to your preference.
5. Ensure all connections are tight before placing the mattress.

Figure 3.1: Wooden Slats and Metal Supporting Frame Detail

The wooden slats are designed with Velcro strips for easy and secure installation, reducing movement and noise.

Figure 3.2: Sturdy Metal Structure with 3 Central Legs for enhanced stability.

The bed frame incorporates three central support legs for superior stability compared to designs with only one central leg.

4. Istruzioni per l'uso

Once assembled, the SHA CERLIN bed frame is ready for use. No special operation is required beyond placing your mattress.

4.1 Headboard Adjustment

The headboard can be adjusted to two different heights (47 inches or 51 inches) to best suit your mattress thickness and aesthetic preference. To adjust:

1. Rimuovere il materasso dalla struttura del letto.
2. Loosen the bolts connecting the headboard to the side rails.
3. Carefully slide the headboard to the desired height.
4. Serrare nuovamente saldamente tutti i bulloni.
5. Sostituisci il materasso.

Figure 4.1: Adjustable Headboard (47" and 51" height options)

4.2 Posizionamento del materasso

Place your mattress directly onto the wooden slats. A box spring is not required. For optimal comfort and fit, a mattress thickness between 8 and 14 inches is recommended.

5. Manutenzione e cura

Una cura adeguata prolungherà la durata e l'aspetto del tuo giroletto SHA CERLIN.

5.1 Pulizia

• Rivestimento in tessuto: Wipe with a dry cloth to remove dust. For spills, blot immediately with a clean, dry cloth. Avoid harsh chemicals or abrasive cleaners.
• Cornice metallica: Cancella con pubblicitàamp panno e sapone neutro se necessario. Asciugare accuratamente.

5.2 Integrità strutturale

• Periodically check all bolts, screws, and connections to ensure they are tight. Loose fasteners can lead to instability and noise.
• Avoid dragging the bed frame when moving it. Lift the frame to prevent damage to the legs and frame structure.

6. Risoluzione Dei Problemi

Se riscontri problemi con la struttura del tuo letto, consulta i seguenti problemi comuni e le relative soluzioni.

If the problem persists after attempting these solutions, please contact SHA CERLIN customer support.

7. Specifiche

8. Garanzia e supporto

SHA CERLIN is committed to providing high-quality products. For warranty information or customer support, please refer to the contact details provided with your purchase or visit the official SHA CERLIN websito.

• Assistenza clienti: For assistance with assembly, missing parts, or product inquiries, please contact SHA CERLIN customer support.
• Prova di acquisto: Si prega di conservare la prova d'acquisto per eventuali reclami in garanzia.

You can visit the SHA CERLIN Store on Amazon for more information: Negozio SHA CERLIN
