1. Introduzione

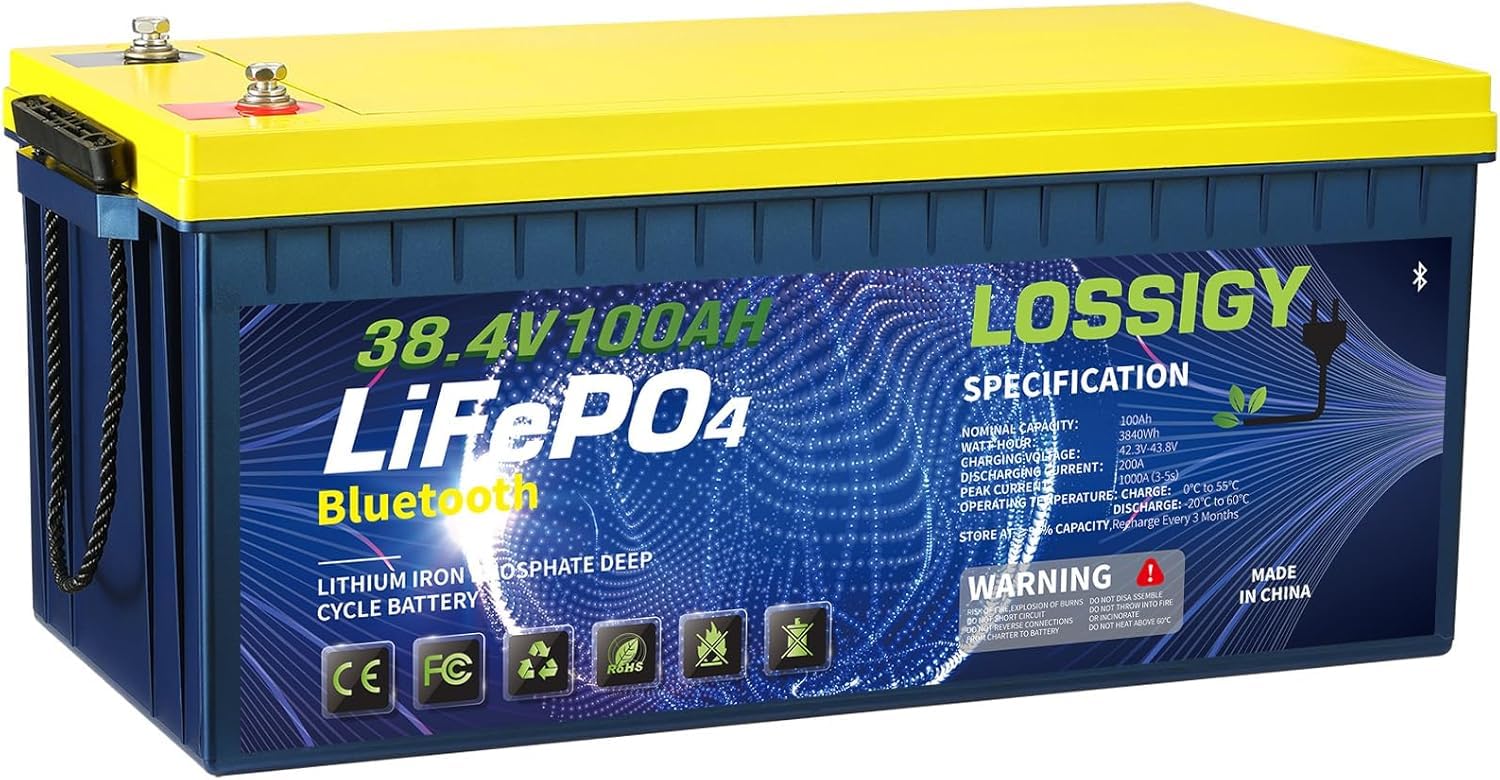

Welcome to the instruction manual for your LOSSIGY 36V 100Ah LiFePO4 Lithium Battery. This manual provides essential information for the safe and efficient use, installation, and maintenance of your battery. Please read it thoroughly before operation to ensure proper handling and to maximize the lifespan of your product.
2. Importanti istruzioni di sicurezza
Failure to follow these safety instructions can result in serious injury, property damage, or damage to the battery. Always exercise caution when handling batteries.
- Do not throw the battery into fire or incinerate it.
- Non invertire i collegamenti positivo e negativo.
- Non cortocircuitare i terminali della batteria.
- Do not heat the battery above 60°C (140°F).
- Non smontare il pacco batteria.
- Use only a compatible LiFePO4 charger designed for 36V lithium batteries.
- Tenere la batteria fuori dalla portata dei bambini.
- Avoid direct contact with battery terminals and wear appropriate personal protective equipment (PPE) when handling.
- Assicurare una ventilazione adeguata durante la carica o la scarica della batteria.
- In case of damage, swelling, or leakage, immediately disconnect the battery and contact customer support.
3. Caratteristiche del prodotto
- Advanced BMS System: Equipped with a built-in 200A Bluetooth Battery Management System (BMS) featuring automatic cell balancing. This system allows for safe parallel connection to form larger capacity 36V battery banks. Note: These batteries cannot be connected in series.
- Cellule di grado A: Constructed with high-quality automotive-grade A LiFePO4 cells, ensuring higher energy density, stable performance, and greater power output.
- Installazione semplice: Designed for straightforward installation and portability, offering a more convenient solution compared to traditional lead-acid batteries.
- Durata di vita estesa: Provides a long cycle life of at least 4000 cycles. The integrated BMS effectively protects the battery from damage due to high/low temperature, short circuits, over-current, and over-discharge.
4. Specifiche
| Parametro | Valore |
|---|---|
| Capacità nominale | 100 Ah |
| Wattora | 3840 Wh |
| Volume Nominaletage | 36V |
| Volume di caricatage Gamma | 42.6V - 43.8V |
| Vol carica completatage Gamma | 40.2V - 41.4V |
| BMS | 200A |
| Corrente continua massima | 100A |
| Corrente di picco | 1000A |
| Grado di impermeabilità | Grado di protezione IP65 |
| Temperatura di esercizio (carica) | 32°F ~ 113°F (0°C ~ 45°C) |
| Temperatura di esercizio (scarica) | -4 ° F ~ 140 ° F (-20 ° C ~ 60 ° C) |
| Temperatura di conservazione | Temperatura: da -10°C a 122°C (da 12°F a 50°F) |
| Dimensioni del prodotto (L x P x A) | 20.47 x 10.59 x 8.66 pollici (520 x 269 x 220 mm) |
| Peso | 30 kg / 66.9 libbre |
| Terminali | Removable M8 stud terminal (8mm / 5/16 inch bolt, 16mm / 5/8 inch length) |
5. Configurazione e installazione
Before beginning installation, ensure the battery is fully charged and all connection points are clean and secure. Always wear appropriate safety gear.
5.1. Connecting in Parallel
This battery is designed to be connected in parallel to increase the overall capacity of your 36V battery bank. This is suitable for applications requiring higher amp-ore.
- Ensure all batteries have similar voltage levels before connecting them in parallel.
- Connect all positive terminals together and all negative terminals together.
- Use appropriate gauge cables for your specific application to safely handle the expected current.
- Important: Do not connect these batteries in series. Connecting in series can damage the battery's internal components and will void the product warranty.
5.2. Connessione terminale
The battery is equipped with removable M8 stud terminals. Use the provided bolts and washers for secure electrical connections.
- Ensure all connections are tight to prevent arcing, overheating, and potential damage.
- If possible, use a torque wrench to tighten terminals to the manufacturer's recommended specifications. If not available, tighten until snug, then apply an additional quarter turn.
- Apply anti-corrosion grease to the terminals after connection for enhanced protection against environmental factors.
6. Istruzioni per l'uso
6.1. Ricarica
To charge your LOSSIGY LiFePO4 battery, use a dedicated LiFePO4 charger that provides a voltage nell'intervallo compreso tra 42.6 V e 43.8 V.
- Collegare il cavo positivo del caricabatteria al terminale positivo della batteria e il cavo negativo al terminale negativo della batteria.
- Monitor the charging process, especially during the initial charges, to ensure proper operation.
- The built-in BMS will provide protection against overcharging and undercharging, but it is good practice to use a charger with appropriate settings.
- Charge the battery within the recommended operating temperature range of 32°F ~ 113°F (0°C ~ 45°C).
6.2. Scarica
The battery is capable of delivering a maximum continuous current of 100A and a peak current of 1000A for short durations.
- Operate the battery within the recommended discharge temperature range of -4°F ~ 140°F (-20°C ~ 60°C).
- Avoid drawing current beyond the specified maximum continuous or peak current ratings to prevent damage to the battery and connected equipment.
- The BMS will automatically protect the battery from over-discharge, disconnecting the load if the voltage scende troppo in basso.
7. Manutenzione e conservazione
7.1. Controlli regolari
- Periodically inspect the battery for any signs of physical damage, loose connections, or corrosion on the terminals.
- Keep the battery's exterior clean and dry.
7.2. Conservazione
For optimal long-term storage, store the battery at approximately 50% of its charge capacity and recharge it every 3 months to maintain cell health.
- Conservare la batteria in un luogo fresco e asciutto, lontano dalla luce solare diretta, da fonti di calore e da temperature estreme.
- The recommended storage temperature range is 10°F ~ 122°F (-12°C ~ 50°C).
- Ensure that the terminals are protected to prevent accidental short circuits during storage.
8. Guida alla risoluzione dei problemi
This section provides solutions for common issues you might encounter with your battery.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Batteria non in carica | Charger not connected properly, faulty charger, BMS protection activated (e.g., due to extreme temperature) | Check all charger connections. Test the charger with another device if possible. Allow the battery to reach the recommended charging temperature range. |
| La batteria non si scarica / Nessuna potenza in uscita | BMS protection activated (e.g., over-discharge, over-current, extreme temperature), load too high, short circuit | Reduce the load on the battery. Allow the battery to reach the recommended operating temperature. Check for any short circuits in the system. Recharge the battery if it's in over-discharge protection. |
| Basso volumetage uscita | Battery is discharged, cell imbalance | Recharge the battery fully. The built-in BMS will automatically balance the cells during the charging process. |
| Bluetooth not connecting to app | App issue, battery is off, out of range, interference | Restart the Bluetooth application on your device. Ensure the battery is powered on. Move your device closer to the battery. Check for other Bluetooth devices causing interference. |
9. Garanzia e assistenza clienti
LOSSIGY provides a Garanzia del produttore di 5 anno per questo prodotto, coprendo i difetti di materiali e di fabbricazione in condizioni di normale utilizzo.
In addition to the warranty, LOSSIGY offers 90 days of worry-free after-sales service E 24-hour online professional technical support. Should you encounter any issues or require assistance, please do not hesitate to contact our customer service team for the fastest possible solution.
For warranty claims, technical assistance, or general inquiries, please refer to the contact information provided with your purchase or visit the official LOSSIGY websito.
