Introduzione
This manual provides detailed instructions for the installation, operation, and maintenance of your HOMEDEC Dual Shower System. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. This system features a 16x32 inch ceiling rainfall shower head, dual 6 inch wall-mounted shower heads, a 4-way thermostatic diverter valve, body jets, and a handheld shower.
Informazioni sulla sicurezza
Always turn off the main water supply before beginning any installation or maintenance. Ensure all connections are secure to prevent leaks. If you are unsure about any step, consult a qualified plumber. Do not use abrasive cleaners on the product finish.
Contenuto della confezione
Verificare che tutti i componenti siano presenti prima dell'installazione:
- 16x32 inch Ceiling Rainfall Shower Head
- Dual 6 inch Wall-Mounted Shower Heads
- 4-Way Thermostatic Diverter Valves (x2)
- Body Jets (8 pieces)
- Handheld Showers (2 pieces)
- Mounting Hardware and Hoses
Configurazione e installazione
Professional installation is recommended for this dual shower system. Ensure your plumbing system is compatible with NPT 3/4" high-flow hot/cold inlets and NPT 1/2" outlets.
1. Dual Shower Zones
Figure 1: Illustration of the dual shower zone setup.
The system is designed for two independent shower zones, allowing simultaneous use. Plan your plumbing layout to accommodate two distinct sets of controls and outlets.
2. 16x32 inch Ceiling Rainfall Shower Head Installation
Figure 2: Ceiling Shower Head Installation Options and Spray Modes.
The 16x32 inch ceiling shower head offers two installation methods:
- Installazione a soffitto: The extensions can be adjusted to lengths of 16, 13, or 10 inches from the ceiling.
- Installazione nascosta: Applicable for patchwork ceilings, requiring hanging bars for support.
Ensure the ceiling structure can support the weight of the shower head and plumbing.
3. Thermostatic Diverter Valve Installation
Figure 3: Thermostatic Diverter Valve Details.
Install the 4-way thermostatic diverter valves according to standard plumbing practices. These valves feature NPT 3/4" inlets for hot and cold water and NPT 1/2" outlets for the various shower functions. The thermostatic cartridge is designed to maintain a stable water temperature, typically preset to 100°F (38°C), to prevent scalding.
4. 6 inch Wall-Mounted Shower Head, Body Jets, and Handheld Shower Installation

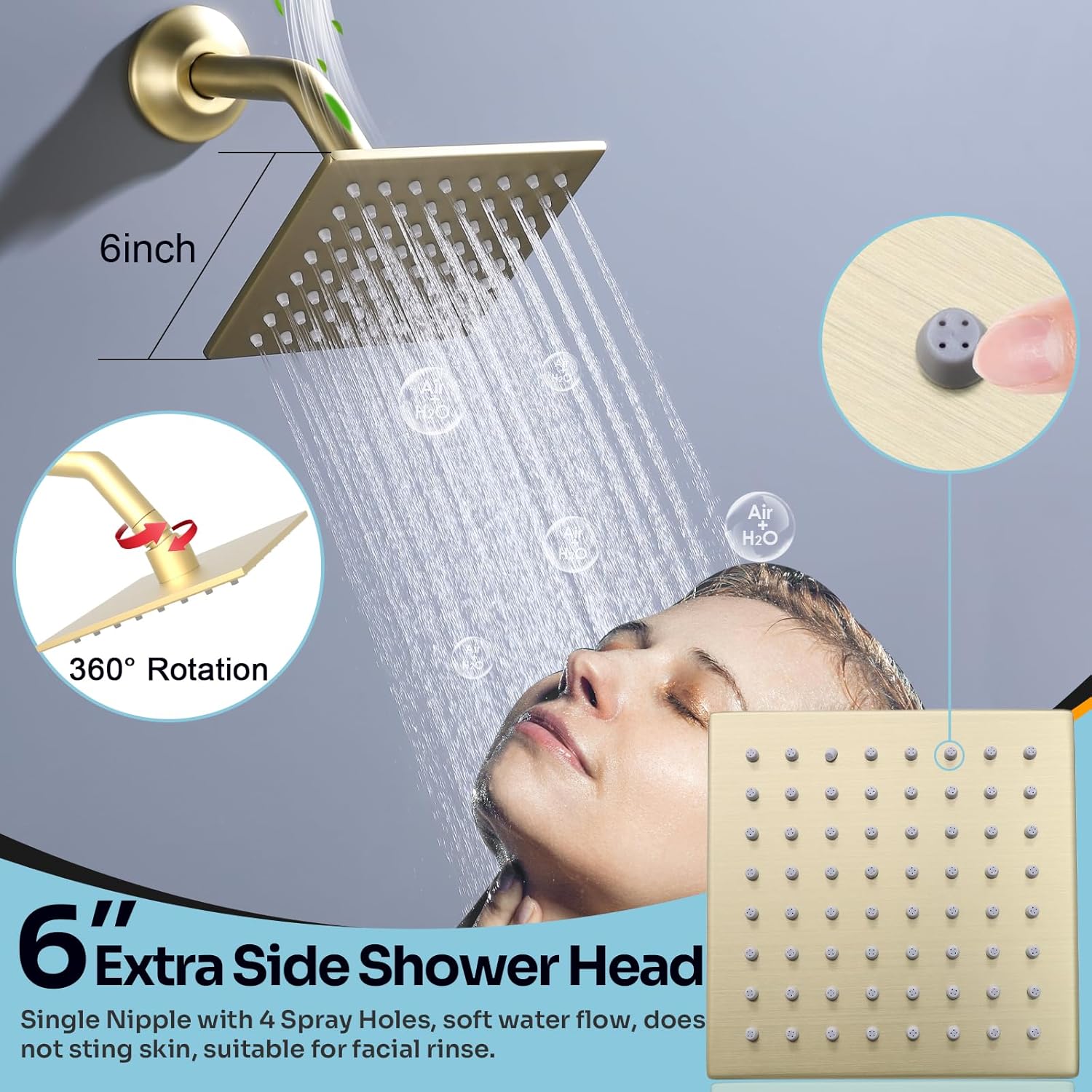

Figure 4: 6 inch Wall-Mounted Shower Head.
Figure 5: Body Jets and Handheld Shower.
Install the dual 6 inch wall-mounted shower heads, 8 body jets, and 2 handheld showers in their desired positions. The wall-mounted shower heads rotate 360 degrees for adjustable spray angles. The body jets are angle-adjustable and feature soft silicone nozzles for easy cleaning. The handheld showers also offer flexible angle adjustment.
5. Plumbing Diagram
Figure 6: Plumbing Connection Diagram.
Refer to the plumbing diagram for correct connections of hot and cold water inlets and outlets for each shower function. Ensure all NPT connections are properly sealed to prevent leaks.
Istruzioni per l'uso
Your HOMEDEC Dual Shower System offers multiple functions for a customized showering experience.
1. Water Temperature Control
The thermostatic diverter valve allows you to set and maintain a consistent water temperature. Rotate the temperature control knob to adjust the desired temperature. The valve is designed to prevent sudden temperature fluctuations.
2. Shower Function Selection
Each 4-way diverter valve controls the flow to different shower components. Rotate the selector knobs to activate the desired functions:
- Ceiling Shower Head: Select between Rain mode, Mist mode, or a combination of Rain + Mist.
- Wall-Mounted Shower Heads: Activate the dual 6 inch shower heads. These can be rotated 360 degrees to direct the spray.
- Getti corporei: Turn on the body jets for a massage experience. Adjust their angle as needed.
- Doccia portatile: Use the handheld shower for targeted rinsing. The angle can be adjusted for comfort.
Multiple functions can be used simultaneously, depending on water pressure and system configuration.
Manutenzione
Regular maintenance ensures optimal performance and extends the life of your shower system.
1. Pulizia della finitura
Clean the brushed gold finish with a soft, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish. For stubborn spots, a mild soap solution can be used, followed by rinsing and drying.
2. Cleaning Shower Head Nozzles
The shower head nozzles and body jets are made with soft silicone for easy cleaning. To remove mineral deposits or clogs, gently rub the silicone nozzles with your finger or a soft brush. This helps maintain consistent water flow.
3. Cartuccia termostatica
If you experience issues with temperature regulation, the thermostatic cartridge may need inspection or replacement. This is a specialized component and should be handled by a qualified professional.
Risoluzione dei problemi
Fare riferimento ai seguenti problemi comuni e alle relative soluzioni:
- Bassa pressione dell'acqua: Check if the main water supply is fully open. Ensure no debris is clogging the shower head nozzles or filters. Verify that your home's water pressure is adequate for a multi-function shower system.
- Temperatura dell'acqua non costante: Ensure the hot and cold water inlets are correctly connected. If the issue persists, the thermostatic cartridge may require professional inspection or replacement.
- Perdite: Check all connections for tightness. If leaks persist from within the wall, professional plumbing assistance is required.
- No Water Flow from a Specific Function: Ensure the diverter knob for that function is fully engaged. Check for any blockages in the specific outlet.
For issues not listed here, please contact HOMEDEC customer service.
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | HDC-H-014* |
| Marca | HOMEDEC |
| Colore | Oro spazzolato |
| Dimensioni del prodotto | 32.3 x 16.5 x 13.8 inches (Overall System) |
| Ceiling Shower Head Size | 16x32 pollici |
| Wall-Mounted Shower Head Size | 6 inches (Dual) |
| Valvola deviatrice | 4-Way Thermostatic (x2) |
| Connessioni di ingresso | NPT 3/4 inch (Hot/Cold) |
| Connessioni di uscita | NPT 1/2 inch |
| Getti del corpo | 8 pieces, Angle Adjustable |
| Handheld Showers | 2 pieces, Adjustable Angle |
| Materiale | Solid Brass Casting (Valves), SUS 304 Stainless Steel (Handheld) |
| Batterie richieste | NO |
Garanzia
HOMEDEC provides a 5-year warranty for this product. This warranty covers manufacturing defects and material flaws under normal use and service. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, misuse, abuse, accident, or unauthorized repairs.
Assistenza clienti
For any inquiries, technical assistance, or warranty claims, please contact HOMEDEC customer service. Our dedicated team is available to address your concerns and aims to respond within 24 hours.
Informazioni sui contatti: Please refer to the HOMEDEC official websito o nella documentazione di acquisto per i dettagli di contatto più aggiornati del servizio clienti.
