Pinmoco 63-inch Fireplace TV Stand with 18-inch Electric Fireplace User Manual
Model: L104660FP-WHBEPM
Introduzione
Thank you for choosing the Pinmoco 63-inch Fireplace TV Stand. This manual provides essential information for the safe assembly, operation, and maintenance of your new entertainment center with an integrated 18-inch electric fireplace. Please read all instructions carefully before use and retain this manual for future reference.
Informazioni importanti sulla sicurezza
ATTENZIONE: la mancata osservanza di queste istruzioni di sicurezza può provocare incendi, scosse elettriche o lesioni.
- Avoid placing heavy objects on the top shelves to prevent tip-over.
- Keep flammable materials at least 3 feet away from the fireplace.
- Always unplug the fireplace when not in use or when leaving the room.
- Do not operate the fireplace if it feels hot to the touch.
- Keep children and pets away from the fireplace area.
- Assicurarsi che l'unità sia posizionata su una superficie stabile e piana.
- Do not block air vents on the fireplace unit.
Prodotto finitoview
The Pinmoco 63-inch Fireplace TV Stand is designed to accommodate televisions up to 80 inches, offering both aesthetic appeal and functional storage. It features an 18-inch electric fireplace with adjustable heat and flame settings, along with LED lighting for enhanced ambiance. The unit includes storage cabinets and adjustable shelves.
Caratteristiche principali:
- Design 2 in 1: Combines a 63-inch TV stand with an 18-inch electric fireplace.
- Safe & Energy-Efficient Fireplace: Heats up to 400 sq. ft., adjustable temperature (62–92°F), flame color/dimmer options, overheating protection, FCC/ETL certified.
- Durable & Heavy-Duty Build: Constructed from premium P2 particle board with a 200 lbs weight capacity.
- Large Storage & Adjustable Shelves: Features a cabinet and 3-level LED open shelves for organization and display.
- Design moderno: Marble-textured finish, sleek lines, and acrylic side panels.
Dimensioni e capacità del prodotto

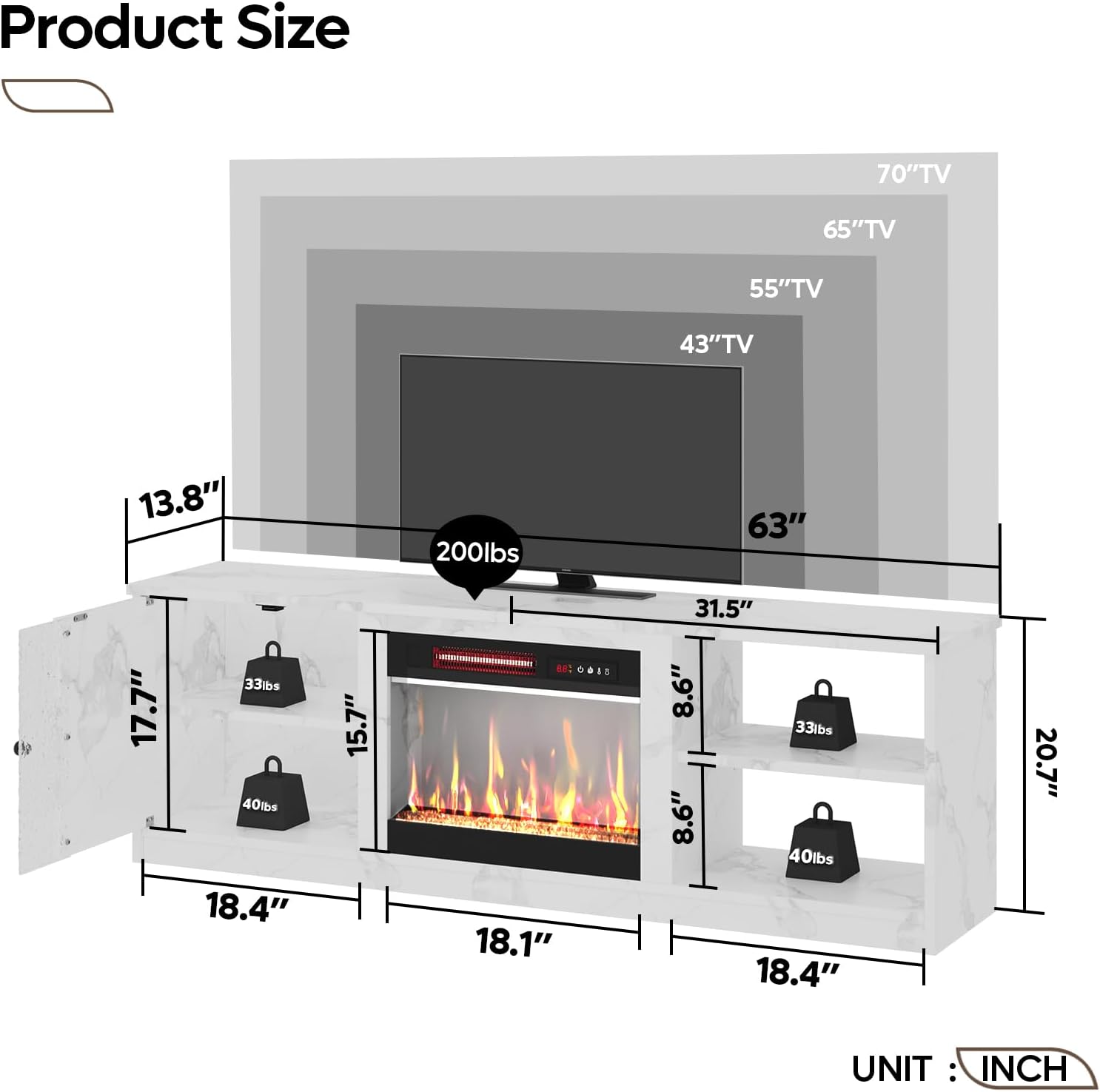

Figura 1: Dimensioni del prodotto e compatibilità con la TV. This diagram illustrates the overall dimensions of the TV stand, including its 63-inch width and 20.7-inch height. It also shows the internal dimensions of the storage compartments and the 18.1-inch width of the fireplace insert. The diagram indicates compatibility with TVs up to 80 inches and a maximum weight capacity of 200 lbs for the top surface.
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | Pinmoco |
| Numero di modello | L104660FP-WHBEPM |
| Colore | Bianco |
| Dimensioni del prodotto | 160 x 35 x 53 cm (63 x 13.8 x 20.7 pollici) |
| Capacità massima di peso | 200 libbre |
| Materiale | Legno ingegnerizzato |
| Caratteristiche speciali | Unbreakable, 18-inch electric fireplace, LED lights |
| Peso dell'articolo | 30.2 kg |
| Usi consigliati | Entertainment Media |
| Tipo di montaggio | Montaggio a pavimento |
| Componenti inclusi | 18-inch electric fireplace, TV stand, LED lights |
Installazione e assemblaggio
This TV stand requires assembly. Please ensure all parts are present before beginning. It is recommended to assemble the unit on a soft, clean surface to prevent scratches.
General Assembly Steps (Refer to included hardware and diagram for detailed instructions):
- Disimballare i componenti: Estrarre con cautela tutti i componenti dall'imballaggio e verificarli con l'elenco dei componenti.
- Montare il telaio: Connect the main structural panels using the provided hardware.
- Installa scaffali: Insert adjustable shelves into the desired positions within the side cabinets.
- Integrate Fireplace Insert: Carefully slide the 18-inch electric fireplace into its designated central opening. Ensure it is securely seated.
- Porte di collegamento: Mount the cabinet doors, ensuring proper alignment and smooth operation.
- Installare l'illuminazione a LED: Follow the specific instructions for attaching and connecting the LED light strips to the designated areas.
- Posizionamento: Place the assembled TV stand on a level surface, ensuring adequate clearance for ventilation around the fireplace.
Note: Detailed, step-by-step assembly instructions with diagrams are provided in the separate assembly guide included with your product.
Istruzioni per l'uso
Funzionamento del camino elettrico
Figure 2: Electric Fireplace Features. This image highlights the key features of the 18-inch electric fireplace insert, including its heating capacity of 400 sq. ft., a 0.5-9 hour timer, adjustable temperature settings from 62°F to 92°F, and overheating protection. It also notes that the flame and heat functions can be used independently.
Il camino elettrico può essere azionato tramite il pannello di controllo presente sull'unità o tramite il telecomando incluso.
- Accensione/spegnimento: Premere il pulsante di accensione per accendere o spegnere il camino.
- Impostazioni di calore: Adjust the temperature between 62°F and 92°F. The heating function can be used independently of the flame effect.
- Effetti della fiamma:
- Colore della fiamma: Select from 7 different flame colors.
- Luminosità: Adjust the flame brightness with 5 levels.
- Velocità della fiamma: Choose from 5 flame speed settings.
- Timer: Impostare il timer di funzionamento su un intervallo compreso tra 0.5 e 9 ore.
- Protezione contro il surriscaldamento: L'unità è dotata di una funzione di spegnimento automatico in caso di surriscaldamento.
Figure 3: Remote Control and Flame Customization. This image displays the remote control used to operate the electric fireplace, highlighting its capabilities for adjusting 7 flame colors, 5 brightness levels, and 5 flame speed settings. It also shows the LED lighting options with 7 main colors and 22 dynamic modes.
Funzionamento dell'illuminazione a LED
The integrated LED lighting system can be controlled to enhance the ambiance of your living space.
- Selezione del colore: Choose from 7 main LED colors.
- Modalità dinamiche: Scegli tra 22 modalità di illuminazione dinamica per ottenere vari effetti.
- Control the LED lights using the provided remote control.
Figure 4: Storage Cabinet and LED Shelves. This image illustrates the storage capabilities of the TV stand, featuring a cabinet and open shelves. The shelves are illuminated by LED lights, providing an attractive display for media devices, gaming consoles, and decorative items. The design emphasizes a clutter-free look.
Manutenzione
Regular maintenance will ensure the longevity and optimal performance of your TV stand and electric fireplace.
- Pulizia del supporto: Pulire le superfici con un panno morbido, damp panno. Evitare prodotti chimici aggressivi o detergenti abrasivi che potrebbero danneggiare la finitura.
- Pulizia del camino: Ensure the fireplace is unplugged and cool before cleaning. Use a soft, dry cloth to wipe the glass and exterior. Do not spray liquids directly onto the unit.
- Ventilazione: Periodically check that the air intake and exhaust vents of the fireplace are clear of dust and debris to ensure proper airflow.
- Cavi elettrici: Inspect the power cord for any signs of damage. Do not use the unit if the cord is damaged.
Risoluzione dei problemi
If you encounter issues with your Pinmoco Fireplace TV Stand, refer to the following common problems and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il camino non si accende. | No power, power switch off, circuit breaker tripped. | Assicurarsi che l'unità sia collegata, controllare la presa a muro, ripristinare l'interruttore automatico. |
| Nessun calore, ma le fiamme sono visibili. | Heat function not activated, thermostat set too low, overheating protection activated. | Activate heat function, increase thermostat setting, unplug unit for 15 minutes to reset overheating protection. |
| Telecomando non funzionante. | Batterie scariche, ostruzione, telecomando fuori portata. | Replace batteries, remove obstructions, ensure remote is within operating range (max 49ft). |
| Le luci LED non funzionano. | Collegamento allentato, problema di alimentazione. | Check all LED strip connections, ensure power supply is connected. |
Se il problema persiste dopo aver provato queste soluzioni, contattare l'assistenza clienti.
Garanzia e assistenza clienti
Pinmoco products are manufactured with quality and durability in mind. For specific warranty details, please refer to the warranty card included with your purchase or contact Pinmoco customer service.
For technical assistance, missing parts, or any other inquiries, please contact our customer support team:
- Websito: Pinmoco Official Store on Amazon
- E-mail: [Insert Customer Service Email Here - if available]
- Telefono: [Insert Customer Service Phone Number Here - if available]
Please have your model number (L104660FP-WHBEPM) and purchase date ready when contacting support.
