COSTWAY 3-Wheel Foldable Pet Stroller Instruction Manual

Introduzione

Thank you for choosing the COSTWAY 3-Wheel Foldable Pet Stroller. This manual provides essential information for the safe assembly, operation, and maintenance of your pet stroller. Designed for small to medium-sized dogs and cats, this stroller offers a comfortable and secure way to transport your pet during walks and travels. Please read these instructions carefully before use and retain them for future reference.

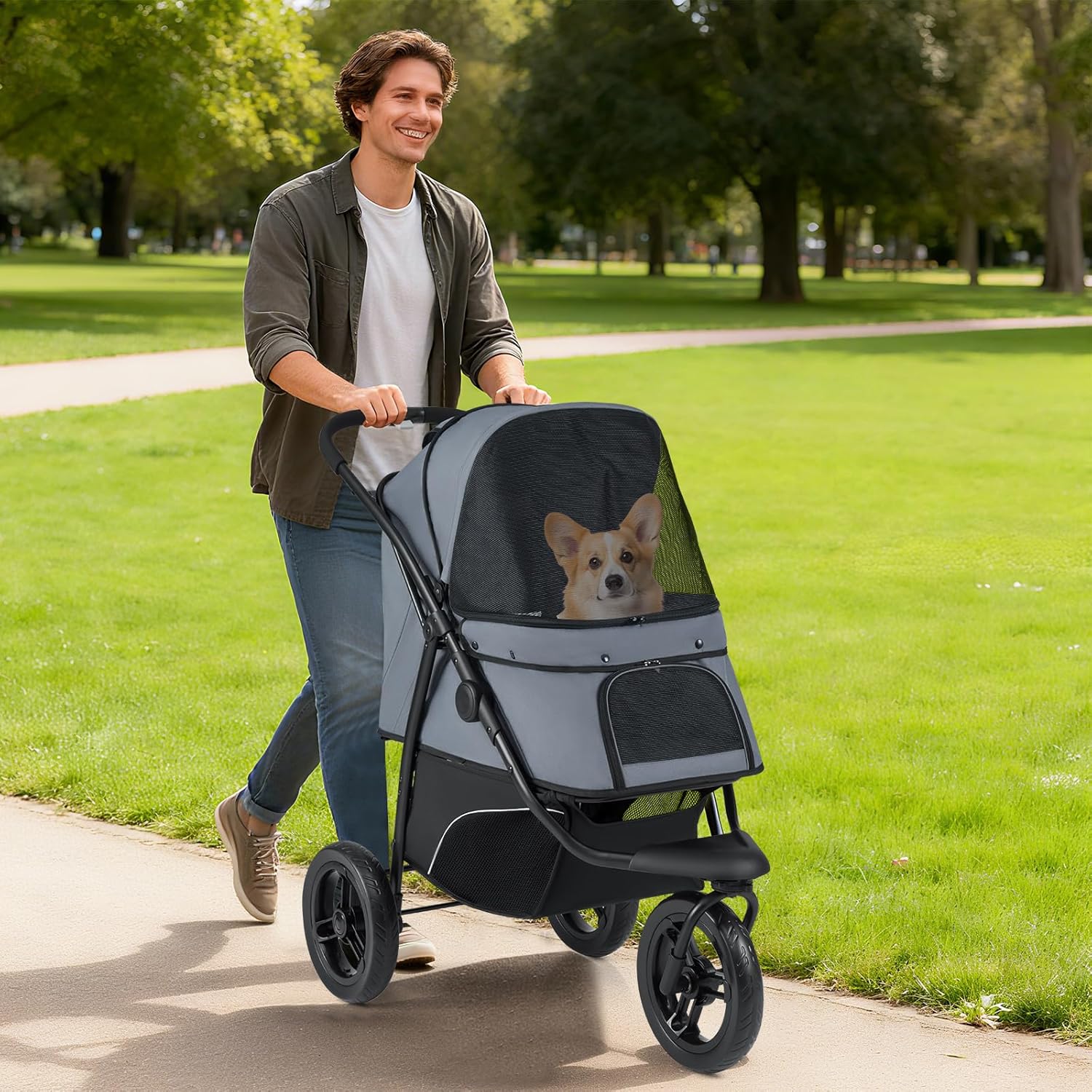

Image: The COSTWAY 3-Wheel Foldable Pet Stroller, showcasinil suo design generale e la sua funzionalità.

Informazioni sulla sicurezza

• Always ensure your pet is securely fastened inside the stroller using the integrated safety leash.
• Non superare la capacità di peso massima di 25 kg (55 libbre).
• Non lasciare mai il tuo animale domestico incustodito nel passeggino, soprattutto in pendenza o vicino al traffico.
• Inserire i freni quando il passeggino è fermo.
• Prima di ogni utilizzo, ispezionare regolarmente il passeggino per verificare la presenza di parti allentate, danni o usura.
• Tenere le dita e le mani lontane dalle parti mobili durante la piegatura e l'apertura.

Contenuto della confezione

Verificare che tutti i componenti siano presenti prima del montaggio:

• Telaio per passeggino
• Main Carriage Fabric
• Ruota anteriore (1)
• Ruote Posteriori (2)
• Removable Padded Cushion
• Manuale di istruzioni

Impostare

1. Apertura del telaio: Place the folded stroller on a flat surface. Release any locking buckles. Lift the handle until the frame clicks into its fully open position. Ensure all locking mechanisms are engaged.
2. Montaggio delle ruote:
       a. Ruote posteriori: Insert the rear wheels into the axle until they click securely into place. The quick-release hubs facilitate easy attachment.
       b. Ruota anteriore: Insert the front wheel assembly into the designated slot at the front of the stroller until it locks.
3. Installazione del carrello: Ensure the fabric carriage is properly attached to the frame, securing all snaps or zippers as designed.
4. Inserting the Cushion: Place the removable padded cushion inside the pet compartment for added comfort.

Image: Close-up details of the quick-release wheels, safety leash, and fabric material, illustrating ease of setup.

Istruzioni per l'uso

Piegare il passeggino

To fold the stroller for storage or transport, lift the push handle on both sides simultaneously. The stroller will collapse into a flat, compact size. Secure it with the integrated locking buckles to prevent accidental unfolding.

Image: Visual guide demonstrating the one-click quick folding mechanism for easy storage and transport.

Funzionamento del freno

The stroller features a convenient single-foot brake system on the rear wheels. To engage the brakes, press down firmly on the brake pedal located between the rear wheels. To release, lift the pedal. Always ensure the brakes are engaged when the stroller is stationary.

Image: Illustration of the universal front wheel and the single-foot brake system on the rear wheels, highlighting its adaptability to different terrains.

Regolazione della capottina

The adjustable canopy provides sun protection and customizable shade for your pet. Simply adjust the canopy to the desired position by moving it forward or backward along its frame.

Image: Visual representation of the adjustable canopy, showing how it can be positioned for optimal pet comfort.

Pet Comfort and Ventilation

The stroller is designed with breathable mesh sides, a skylight, a front zippered door, and a back mesh window to ensure optimal airflow and visibility for your pet. The front door can be opened for easy access, and the skylight allows you to check on your pet.

Image: Details of the mesh panels and openings designed to provide ventilation and visibility for pets.

Utilizzo delle funzionalità di archiviazione

Utilize the back pockets and the bottom storage basket to carry essentials such as treats, water bottles, toys, or personal items.

Image: Close-up of the storage pockets, basket, padded cushion, and handle for user convenience.

Manutenzione

• Pulizia del tessuto: The 600D Oxford cloth can be spot cleaned with a mild detergent and warm water. Allow to air dry completely. Do not machine wash or tumble dry.
• Telaio di pulizia: Pulisci la struttura metallica con un pannoamp stoffa. Evitare detergenti abrasivi.
• Manutenzione delle ruote: Controllare periodicamente le ruote per verificare la presenza di detriti e assicurarsi che girino liberamente. Lubrificare gli assi se necessario.
• Magazzinaggio: Quando non viene utilizzato, conservare il passeggino in un luogo asciutto e fresco, lontano dalla luce solare diretta.

Risoluzione dei problemi

• Il passeggino non si apre/chiude senza problemi: Ensure all locking mechanisms are disengaged before folding and fully engaged after unfolding. Check for any obstructions.
• Le ruote sono rigide o cigolano: Clean any debris from the wheel axles. Apply a small amount of silicone-based lubricant if needed.
• Brakes are not engaging: Controllare che non vi siano ostruzioni attorno al meccanismo del freno. Assicurarsi che il pedale del freno sia completamente premuto.
• Pet compartment feels unstable: Verify that the frame is fully locked into position and all fabric attachments are secure.

Specifiche

Per le specifiche dettagliate del prodotto, fare riferimento alla tabella sottostante:

Immagine: Dimensionale suview of the pet stroller, indicating its size and weight capacity.

Informazioni sulla garanzia

For detailed warranty information, please refer to the retailer where you purchased the COSTWAY 3-Wheel Foldable Pet Stroller or visit the official COSTWAY websito. I termini e le condizioni della garanzia possono variare in base alla regione e al rivenditore.

Assistenza clienti

If you have any questions, require assistance with assembly, or need troubleshooting support, please contact COSTWAY customer service. Contact details can typically be found on the product packaging or the official COSTWAY websito.
