Sannover Anita 9.4 kW Sealed Pellet Stove User Manual

1. Introduzione

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Sannover Anita 9.4 kW Sealed Pellet Stove. Please read these instructions carefully before using the appliance and keep them for future reference.

The Anita pellet stove is a compact and efficient heating solution designed for optimal performance and energy savings. It features double combustion, ventilated air, and an integrated ambient probe for precise temperature control.

2. Istruzioni di sicurezza

Importante: For your safety and the safety of others, it is strongly recommended that the installation and annual maintenance of this appliance be performed by a qualified professional, even if local regulations do not strictly require it.

• Always ensure proper ventilation in the installation area.
• Non conservare materiali infiammabili vicino alla stufa.
• Regularly inspect the flue system for any blockages or damage.
• The igniter (bougie) is a consumable part and is not covered by warranty. The initial igniter is pre-installed.
• In case of any malfunction, switch off the stove immediately and contact a qualified technician.

3. Contenuto della confezione

Your Sannover Anita 9.4 kW Pellet Stove package includes the following components:

• Sannover Anita 9.4 kW Sealed Pellet Stove
• Telecomando
• Ø 80/125 Connection Kit, including:
  • 1 Tubo flessibile per il collegamento dell'aspirazione dell'aria
  • 1 raccordo a T 90° (attacco femmina)
  • 6 Unione clamps
  • 1 raccordo a T (attacco maschio)
  • 1 Collare da parete piatto regolabile
  • 1 Condotto da 0.5 metri
  • 1 Condotto da 1 metri
  • 2 Rosette di finitura
  • 1 Uscita orizzontale regolabile

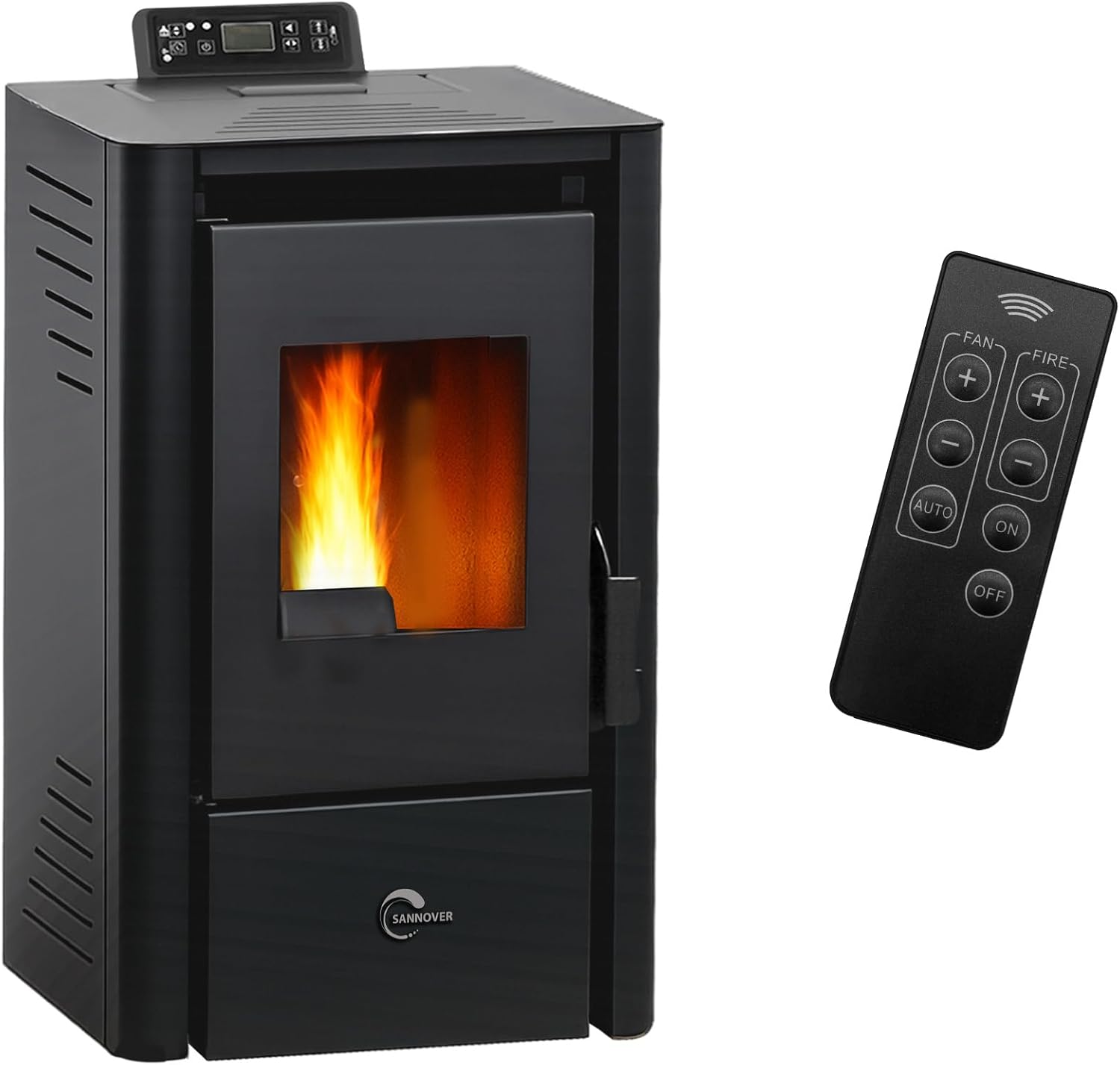

Image 1: Sannover Anita 9.4 kW Sealed Pellet Stove and its remote control. The stove is black with a glass door showing flames, and a control panel on top. The remote control has buttons for fan, fire, auto, on, and off.

4. Configurazione e installazione

The Sannover Anita pellet stove is designed for sealed (ventouse) flue gas evacuation. Proper installation is crucial for safety and efficiency.

• Installazione professionale: It is mandatory for the installation of your pellet stove to be carried out by a qualified professional to ensure compliance with current regulations and to validate the manufacturer's warranty.
• Flue System Requirements: For a sealed (ventouse) outlet installation in France, a minimum vertical height of 2 meters is required between the T-piece and the ventouse outlet hole. The provided installation kit allows for adjustment to meet this height requirement, and installations exceeding 2 meters are possible.
• Penetrazione del muro: To create a ventouse outlet on the facade, a core drill is required to make the necessary opening.

Image 2: The Sannover Anita 9.4 kW pellet stove positioned in a modern living room next to a sofa, demonstrating a typical installation setting. The stove is black, compact, and blends with the room decor.

5. Istruzioni per l'uso

The Anita pellet stove is designed for ease of use with advanced features for optimal heating.

• Livelli di potenza: The stove offers 5 power levels, allowing you to adjust the heat output according to your needs.
• Programmazione: Utilize the weekly programming system and the included remote control to set operating schedules and modes that fit your lifestyle.
• Sonda ambientale integrata: The built-in ambient probe helps maintain a consistent and comfortable room temperature.
• Fare il pieno: The pellet tank has a capacity of 8 kg, providing up to 10 hours of autonomy on a single fill, depending on the power level.
• Caratteristiche: The stove incorporates double combustion technology, ventilated air for efficient heat distribution, a large crucible, and a rear smoke outlet. It operates very quietly.

6. Manutenzione

Regular maintenance ensures the longevity and efficient operation of your pellet stove.

• Manutenzione professionale annuale: Your pellet stove must be serviced annually by a qualified professional. This is crucial for safety, efficiency, and warranty validation.
• Rimozione della cenere: The stove features a removable ash pan for easy cleaning. Regularly empty the ash pan to prevent buildup and maintain optimal combustion.
• Pulizia generale: Keep the exterior of the stove clean. Ensure the air intake and exhaust vents are free from obstructions.

7. Risoluzione Dei Problemi

If you encounter issues with your Sannover Anita pellet stove, consider the following:

• Nessuna accensione: Check the pellet level in the hopper. Ensure the igniter (bougie) is functioning. Remember, the igniter is a consumable part.
• Combustione scadente: Verify that the ash pan is not full and that the crucible is clean. Check for any obstructions in the air intake or flue system.
• Codici di errore: Refer to the stove's display for any error codes and consult a qualified technician if the issue persists.
• Rumori insoliti: Turn off the stove and inspect for any loose parts or obstructions.

For complex issues or persistent problems, always contact a qualified professional for diagnosis and repair.

8. Specifiche

Technical specifications for the Sannover Anita 9.4 kW Sealed Pellet Stove:

Image 3: Energy label for the Sannover Anita 9.4 kW pellet stove, showing an A+ energy efficiency rating and a nominal power of 8.2 kW.

9. Garanzia e supporto

Your Sannover Anita pellet stove comes with the following warranty coverage:

• Garanzia legale di conformità: You benefit from a legal conformity warranty for two years from the date of delivery.
• Garanzia del produttore: For certain products, a manufacturer's warranty may apply, typically for two years, covering spare parts. This manufacturer's warranty is only valid if the installation and fault diagnosis have been carried out by a qualified professional in accordance with current standards.
• Esclusioni: The igniter (bougie) is considered a consumable part and is not covered by warranty.

For support or warranty claims, please contact your retailer or a qualified Sannover service professional.
