Introduzione
Thank you for choosing the Dowinx Ergonomic Office Chair, Model LS-66W1-02A. This chair is designed to provide optimal comfort and support for extended periods of sitting, whether for work or gaming. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your chair.

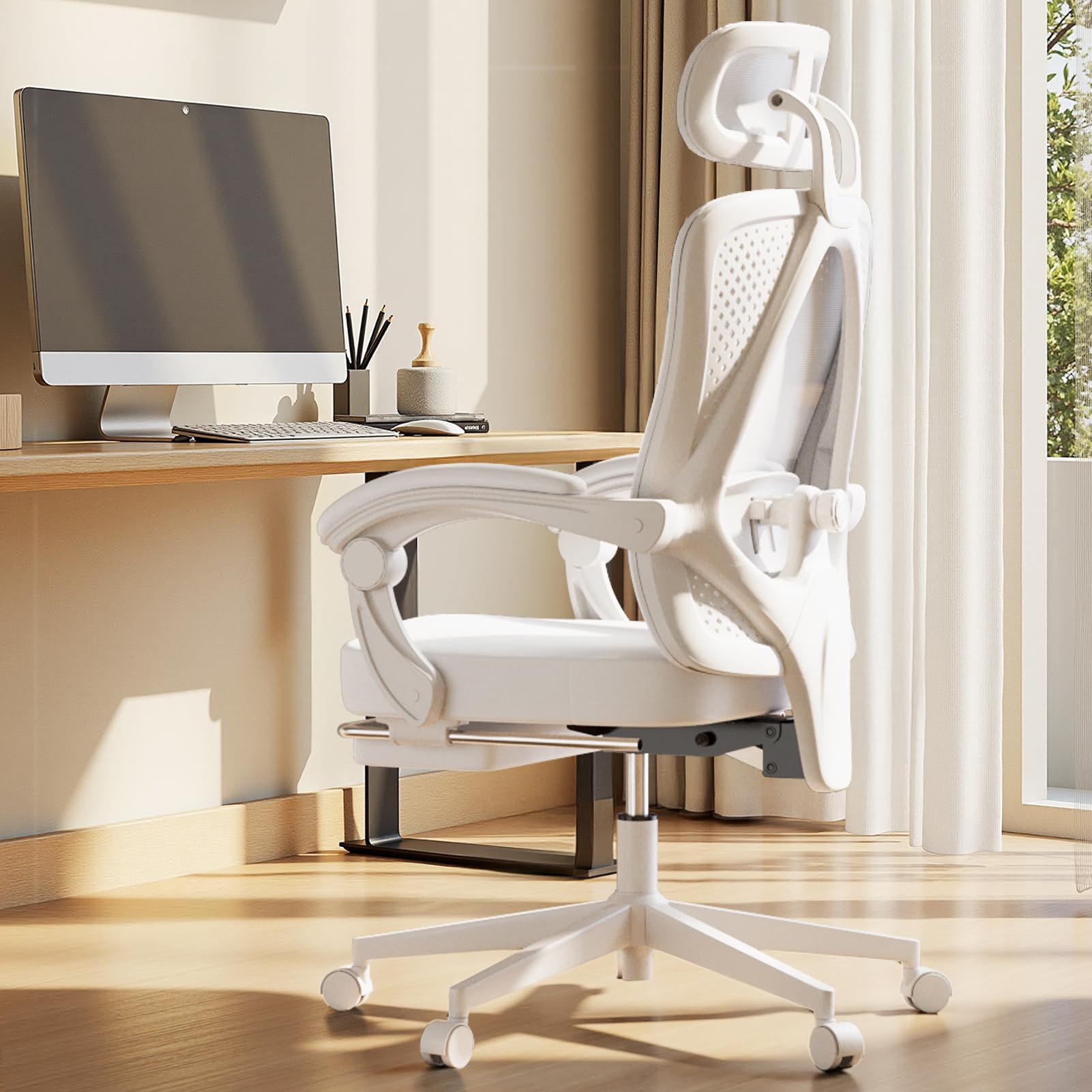

Image: The Dowinx Ergonomic Office Chair, Model LS-66W1-02A, in white, showcasing its design and features in an office environment.
Contenuto della confezione
Prima del montaggio, verificare che tutti i componenti elencati di seguito siano presenti nella confezione. Se qualche componente risulta mancante o danneggiato, contattare l'assistenza clienti.
- Schienale della sedia
- Seat Base with Ottoman
- Braccioli (sinistro e destro)
- Cilindro di sollevamento a gas
- Base a cinque stelle
- Ruote (5 pezzi)
- Poggiatesta
- Meccanismo di supporto lombare
- Assembly Hardware Kit (screws, washers, etc.)
- Chiave esagonale
- Assembly Instructions (Japanese and English)
Image: An exploded diagram illustrating all individual components of the chair and their respective dimensions.
Installazione e assemblaggio
Assembly of the Dowinx office chair is designed to be straightforward and can typically be completed by one person using the included tools and instructions. Follow these general steps:
- Attach Casters to the Five-Star Base: Insert each caster into the holes at the end of each leg of the five-star base until it clicks securely into place.
- Inserire il cilindro di sollevamento a gas: Place the gas lift cylinder into the central hole of the five-star base.
- Fissare i braccioli alla base del sedile: Secure the left and right armrests to the underside of the seat base using the provided screws and hex wrench. Ensure they are firmly attached.
- Fissare lo schienale alla base del sedile: Align the backrest with the seat base and secure it using the designated screws.
- Montare il gruppo sedile sul pistone a gas: Posizionare con attenzione il sedile e lo schienale assemblati sul cilindro di sollevamento a gas, assicurandosi che siano centrati e stabili.
- Installare il poggiatesta: Fissare il poggiatesta alla parte superiore dello schienale.
- Install Lumbar Support: Position the lumbar support mechanism on the backrest as per the instructions.
Refer to the detailed assembly instructions provided in your package for specific diagrams and screw placements.
Istruzioni per l'uso
Your Dowinx office chair offers several adjustable features to customize your seating experience:
Regolazione dell'altezza
To adjust the chair's height, locate the lever on the right side beneath the seat. Pull the lever up while sitting to lower the chair, or pull it up while standing to raise the chair. Release the lever at your desired height.
Reclining Function (90° to 140°)
The chair can recline from 90° to 140°. To recline, pull the lever on the left side beneath the seat upwards and lean back. Release the lever to lock the backrest in your preferred angle. The armrests are designed to move in conjunction with the recline, providing continuous arm support.
Image: Visual representation of the chair's reclining capability, showing angles from 90 to 140 degrees.
Poggiatesta regolabile
The headrest can be adjusted vertically by 6 cm and swivels up to 50° to provide optimal neck and head support. Adjust it to match your height and preferred angle for maximum comfort.
Immagine: dettagliata view of the headrest adjustments, including vertical movement and swivel angles.
Supporto lombare regolabile
The lumbar support can be adjusted both vertically and horizontally to conform to the natural S-curve of your spine. Adjust it to provide firm yet comfortable support to your lower back.
Image: Visual guide to adjusting the lumbar support for personalized back comfort.
Pouf retrattile
For enhanced relaxation, pull out the integrated ottoman from beneath the seat. Extend it fully to support your legs when reclining. Push it back in when not in use to save space.
Image: A user demonstrating the retractable ottoman in its extended position, providing leg support.
Manutenzione
Regular maintenance will help prolong the life and appearance of your Dowinx office chair:
- Pulizia del tessuto a rete: Use a soft brush or vacuum cleaner to remove dust and debris. For stains, gently wipe with a damp cloth and mild soap, then blot dry. Avoid harsh chemicals.
- Pulizia della base e delle rotelle: Wipe the five-star base and casters with a damp cloth. Periodically check casters for tangled hair or debris and clean as needed to ensure smooth movement.
- Serraggio dei dispositivi di fissaggio: Over time, screws and bolts may loosen. Periodically check all fasteners and tighten them with the hex wrench provided to maintain stability.
- Evitare la luce solare diretta: Prolonged exposure to direct sunlight can cause fading and material degradation. Position your chair away from direct sunlight when possible.
- Capacità di peso: Do not exceed the recommended weight capacity of 135 kg (297 lbs) to prevent damage and ensure safety.
Risoluzione dei problemi
Se riscontri problemi con la tua sedia, fai riferimento ai seguenti problemi comuni e alle relative soluzioni:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La sedia non si regola in altezza | Malfunzionamento del cilindro di sollevamento del gas o leva non innestata. | Assicurarsi che la leva di regolazione dell'altezza sia completamente innestata. Se il problema persiste, potrebbe essere necessario sostituire il cilindro di sollevamento a gas. Contattare l'assistenza clienti. |
| La sedia traballa o sembra instabile | Viti allentate o pavimento irregolare. | Controllare e serrare tutte le viti di montaggio. Assicurarsi che la sedia sia posizionata su una superficie piana e uniforme. |
| Le rotelle non girano fluidamente | Detriti incastrati nelle rotelle o rotelle danneggiate. | Rimuovere eventuali capelli o detriti dalle ruote girevoli. Se le ruote sono danneggiate, potrebbe essere necessario sostituirle. |
| Lo schienale non si reclina o non si blocca | Meccanismo di reclinazione bloccato o leva non innestata. | Ensure the recline lever is fully engaged and not obstructed. Do not force the mechanism. |
If these solutions do not resolve the issue, please contact Dowinx customer support for further assistance.
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | Dowinx |
| Numero di modello | LS-66W1-02A (also referred to as LS-66WB01-02) |
| Colore | Bianco |
| Materiale | Maglia |
| Dimensioni del prodotto (P x L x A) | 51 cm x 53 cm x 130 cm (20.1 pollici x 20.9 pollici x 51.2 pollici) |
| Peso dell'articolo | 16.5 kg (36.4 libbre) |
| Profondità del sedile | 51 cm (20.1 pollici) |
| Angolo di reclinazione | Da 90° a 140° |
| Regolazione del poggiatesta | 6 cm vertical, 50° swivel |
| Regolazione del supporto lombare | Verticale e orizzontale |
| Stile del braccio | Linked Armrests |
| Ruote | Ruote silenziose in PU |
| Base | Sturdy Steel Five-Star Base |
| Assemblaggio richiesto | SÌ |
| Paese di origine | Cina |
Image: Technical drawing with all key dimensions of the chair.
Garanzia e assistenza clienti
Dowinx is committed to providing high-quality products and excellent customer service. Your chair comes with a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact our customer support.
If you have any questions, concerns, or require assistance with assembly, operation, or troubleshooting, please do not hesitate to contact our dedicated customer support team. We are ready to provide prompt assistance to ensure your satisfaction.
Informazioni sui contatti: Please refer to your purchase receipt or the Dowinx official websito per i dettagli di contatto più aggiornati dell'assistenza clienti.
