1. Informazioni sulla sicurezza
Please read and understand all safety instructions before installing, operating, or maintaining this heater. Failure to follow these instructions may result in electric shock, fire, property damage, or serious injury.
- Collegamento elettrico: This heater requires a 240V hardwired electrical connection. Installation must be performed by a qualified electrician in accordance with all local electrical codes.
- Cablaggio: Use #8 75°C copper wire (not included) and ensure a 45A fuse capacity for stable operation.
- Protezione contro il surriscaldamento: The heater is equipped with dual overheat protection, which automatically shuts off the heating element if internal temperatures become too high. If this occurs, allow the unit to cool before attempting to restart. Investigate and resolve the cause of overheating.
- Distanze: Maintain adequate clearance from combustible materials. Refer to installation instructions for specific distances.
- Solo per uso interno: This heater is designed for indoor use in garages, workshops, basements, and storage spaces. Do not use outdoors or in wet/damp posizioni.
- Supervisione: Non lasciare la stufa incustodita durante il funzionamento. Tenere bambini e animali domestici lontani dalla stufa.
- Manutenzione: Scollegare l'alimentazione prima di effettuare qualsiasi operazione di manutenzione o pulizia.
2. Prodotto finitoview
The OYLUS Electric Garage Heater is a heavy-duty heating solution designed for various indoor environments. It features robust construction and advanced controls for efficient and safe operation.
Immagine: Frontale view of the OYLUS Electric Garage Heater in grey.
Caratteristiche principali:
- Powerful Dual Heat Settings: Offers 5000W and 7500W heating options for rapid and consistent warmth.
- Controllo preciso della temperatura: Adjustable thermostat range from 45°F to 95°F with ±1°F accuracy, displayed on an LED screen.
- Smart Remote Operation: Full-function remote control for adjusting temperature, modes, timer (1-12 hours), and °C/°F settings.
- Dual Overheat Protection: Enhances safety by automatically shutting off the heating element if temperatures rise too high.
- Flusso d'aria regolabile: Features a three-angle adjustable mounting bracket and multi-directional louvers to direct heat where needed.
- Post-Shutdown Fan: Fan runs for an additional 90 seconds after power-off to safely release residual heat and cool components.
- Industrial-Grade Steel Shell: Durable construction for long-term use in demanding environments.
Image: Illustration highlighting 7500W maximum power, safety certification, overheating protection, and powerful heat generation.
Componenti inclusi:
- OYLUS Electric Garage Heater Unit
- Telecomando
- Manuale dell'utente (questo documento)
Image: A person carrying the heater by its integrated handle, demonstrating its portability.
Immagine: Primo piano view of the heater's rear, showcasing its industrial-grade steel shell and fan.
Image: Diagram illustrating the internal power generation components and high-wattage output of 7500W.
Applicazioni consigliate:
This heater is suitable for various indoor heavy-duty applications, including:
- Garage
- Laboratori
- Seminterrati
- Magazzini
- Fabbriche
- Serre
- Fattorie
Image: Collage showing the heater's versatility in various industrial and agricultural settings like warehouses, factories, greenhouses, and farms.
3. Configurazione e installazione
Proper installation is crucial for the safe and efficient operation of your OYLUS Electric Garage Heater. It is recommended that a qualified electrician perform the hardwired installation.
Requisiti elettrici:
- Voltage: 240 Volt (CA)
- Ampera: 31.25 Amps
- Cablaggio: Requires #8 75°C copper wire (purchased separately).
- Fuse Capacity: Requires a 45A fuse capacity.
- Ensure the electrical circuit can safely handle the heater's load.
Opzioni di montaggio:
The heater can be mounted on a wall, ceiling, or used as a floor-standing unit. The adjustable mounting bracket allows for flexible positioning.

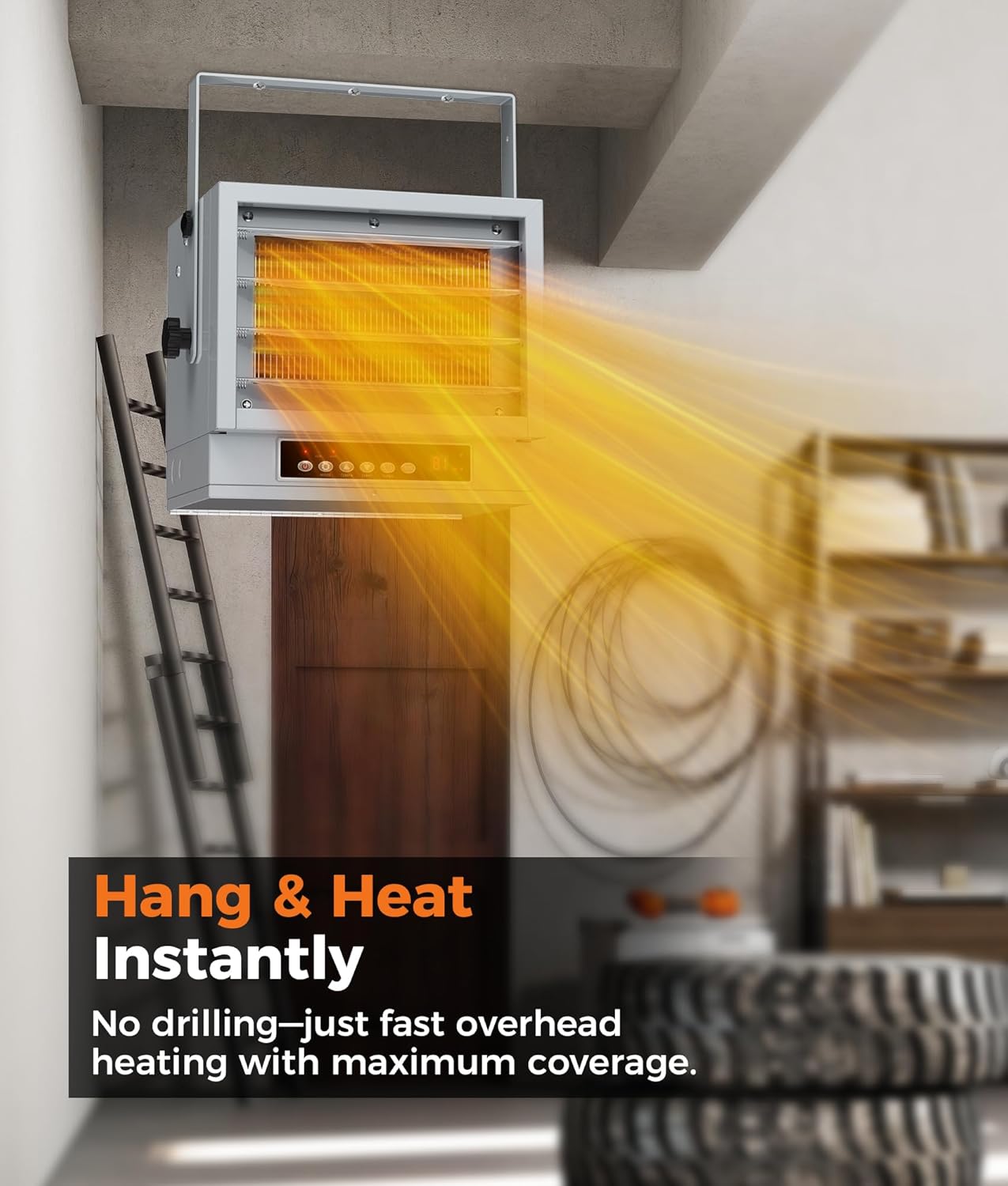

Image: The heater ceiling-mounted, illustrating overhead heating with maximum coverage.
Regolazione della direzione del flusso d'aria:
The heater features a three-angle adjustable mounting bracket and multi-directional louvers to customize heat output and target specific areas.
Image: Diagram illustrating the 3-way adjustable airflow direction and how to customize heat output.
Image: Visual representation of the adjustable louvers and the adjustable mounting angle of the heater.
4. Istruzioni per l'uso
Your OYLUS Electric Garage Heater can be operated using the control panel on the unit or the included remote control.
Pannello di controllo e funzioni remote:
Image: Close-up of the heater's control panel, showing buttons for On/Off, Mode, Temperature adjustment, Timer, and unit selection (°F/°C).
- ACCESO/SPENTO: Accende o spegne il riscaldatore.
- DIREZIONI: Switches between 5000W (Low Heat) and 7500W (High Heat) settings.
- TEMP+ / TEMP-: Adjusts the desired temperature setting (45°F–95°F).
- TIMER: Sets the operating timer from 1 to 12 hours.
- °C/°F: Alterna la visualizzazione della temperatura in gradi Celsius e Fahrenheit.
Image: Graphic illustrating the smart digital thermostat's precise temperature control, showing a stable temperature curve compared to others.
Utilizzando la funzione timer:
The 1-12 hour timer allows for scheduled operation, ideal for warming up a space before use or for overnight heating.
Image: The heater with a graphic indicating a 12-hour timer function, controlled by the remote.
Raffreddamento post-spegnimento:
After the heater is powered off, the internal fan will continue to run for approximately 90 seconds. This feature is designed to safely dissipate residual heat from the heating elements and internal components, extending the lifespan of the unit.
Video ufficiale del prodotto:
Video: An official product video demonstrating the OYLUS Electric Garage Heater's features, including remote control, temperature adjustment, timer, and adjustable airflow. Duration: 0:37.
5. Manutenzione
Regular maintenance ensures optimal performance and longevity of your heater. Always disconnect the power supply before performing any maintenance.
- Pulizia: Pulire periodicamente l'esterno del riscaldatore con un panno morbido e asciutto.amp panno. Non usare detergenti abrasivi o solventi.
- Rimozione della polvere: Use a vacuum cleaner with a brush attachment to gently remove dust from the air intake and output grilles. Ensure no debris obstructs airflow.
- Ispezione: Ispezionare regolarmente il cablaggio elettrico per verificare la presenza di eventuali danni o usura. In caso di danni, contattare un elettricista qualificato per la riparazione.
- Magazzinaggio: Se si conserva la stufa per un periodo prolungato, assicurarsi che sia pulita e asciutta. Conservarla in un luogo fresco e asciutto, lontano dalla luce solare diretta e dall'umidità.
6. Risoluzione Dei Problemi
If you encounter issues with your OYLUS Electric Garage Heater, refer to the following common troubleshooting steps:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il riscaldatore non si accende. | No power supply, tripped circuit breaker, faulty wiring. | Check the circuit breaker and ensure the heater is properly hardwired. Consult a qualified electrician if wiring issues are suspected. |
| Il riscaldamento si spegne inaspettatamente. | Overheat protection activated, obstructed airflow. | Allow the heater to cool down. Ensure there are no obstructions around the heater and that proper clearances are maintained. Clean any dust or debris from grilles. |
| Riscaldamento insufficiente. | Incorrect heat setting, thermostat set too low, room size too large for heater capacity. | Ensure the heater is set to 7500W (High Heat). Adjust the thermostat to a higher temperature. Verify the heater's capacity is appropriate for the space. |
| Telecomando non funzionante. | Batterie scariche, ostruzione tra telecomando e riscaldatore. | Replace remote control batteries. Ensure a clear line of sight between the remote and the heater's receiver. |
If the problem persists after attempting these solutions, contact OYLUS customer support or a qualified technician.
7. Specifiche
| Specificazione | Dettaglio |
|---|---|
| Marca | OLIVO |
| Numero di modello | IFH12A-50#EWH-0105-G |
| Codice UPC | 607609477471 |
| Voltage | 240 Volt (CA) |
| Amprabbia | 31.25 Amps |
| Potenza termica | 7500 Watt (massimo) |
| Impostazione della temperatura minima | 45 gradi Fahrenheit |
| Impostazione della temperatura massima | 95 gradi Fahrenheit |
| Dimensioni dell'articolo (P x L x A) | 12.2"P x 16.54"L x 12.8"A |
| Peso dell'articolo | 19.9 libbre |
| Uso interno/esterno | Al chiuso |
| Tipo di montaggio | Ceiling Mount (also suitable for wall/floor) |
| Metodo di riscaldamento | Convezione |
| Caratteristiche speciali | Temperatura regolabile, risparmio energetico, riscaldamento rapido, protezione dal surriscaldamento, telecomando |
8. Garanzia e supporto
For warranty information, technical support, or to purchase replacement parts, please refer to the warranty card included with your product or visit the official OYLUS websito. Conserva la ricevuta d'acquisto come prova d'acquisto.
Produttore: OLIVO
Contatto: Refer to the contact information provided in your product packaging or on the manufacturer's websito.
