VEVOR 12-Inch Dual Fuel Outdoor Pizza Oven

Introduzione

This manual provides essential instructions for the safe and efficient operation of your VEVOR 12-Inch Dual Fuel Outdoor Pizza Oven. Designed for versatility, this oven allows you to cook with either wood/pellets or propane gas, offering a range of culinary experiences from authentic wood-fired flavors to convenient gas cooking. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and longevity of your appliance.

Caratteristiche principali:

• Capacità di doppio carburante: Operates with wood, pellets, or propane gas for flexible cooking options.
• Riscaldamento rapido: Reaches 600°F in approximately 15 minutes, with a maximum temperature of 1000°F.
• Cottura veloce: Capable of baking pizzas in as little as 90 seconds.
• Costruzione durevole: Features a 3-layer design with a 430 stainless steel shell and thick insulation for heat retention.
• Termometro integrato: For precise temperature monitoring.
• Design portatile: Lightweight and includes a carry bag for easy transport.

Informazioni sulla sicurezza

AVVERTIMENTO: La mancata osservanza di queste istruzioni di sicurezza può comportare rischi di incendio, esplosione o ustione, con conseguenti danni alla proprietà, lesioni personali o morte.

• Solo per uso esterno: Questo apparecchio è progettato esclusivamente per l'uso all'aperto. Non utilizzare in ambienti chiusi o al chiuso.
• Liquidazione: Maintain a minimum distance of 3 feet (1 meter) from combustible materials (e.g., wooden decks, fences, walls, trees).
• Superficie stabile: Always place the oven on a level, stable, non-combustible surface.
• Ventilazione: Ensure adequate ventilation. Do not block the chimney or air vents.
• Bambini e animali domestici: Tenere bambini e animali domestici lontani dal forno caldo.
• Superfici calde: The oven surfaces become extremely hot during operation. Use heat-resistant gloves and appropriate tools.
• Gestione del carburante: When using propane, ensure the gas tank is placed on a stable surface away from heat sources. Check for leaks before each use. When using solid fuels, only use approved wood pellets, wood chips, or charcoal.
• Non lasciare mai incustodito: Non lasciare il forno incustodito durante l'uso.
• Extinguishing Fires: Tenere a portata di mano un estintore o una fonte d'acqua.
• Raffreddare: Lasciare raffreddare completamente il forno prima di pulirlo, spostarlo o riporlo.

Elenco dei componenti

Prima del montaggio, assicurarsi che tutti i componenti siano presenti e integri. Fare riferimento allo schema seguente per l'identificazione.

• 1 x Pizza Oven Main Body
• 1 x Gas Tray Assembly
• 1 x Pellet Scoop
• 1 x Borsa per il trasporto
• 1 x Door Panel Assembly
• 1 x Pizza Stone (12 x 12 inch)

Figura 1: Included Components and Dimensions

This image displays the VEVOR pizza oven main unit, along with its accessories: a gas tray assembly, a pellet scoop, a carrying bag, and a door panel assembly. Key dimensions are overlaid, indicating a product size of 29.5 x 15.4 x 26.0 inches (750 x 390 x 660 mm).

Impostare

Assembly typically requires only a screwdriver and takes approximately one hour, primarily for unpacking and securing minor components.

1. Disimballaggio: Carefully remove all components from the packaging. Keep all screws and small parts organized.
2. Legs and Chimney: Attach the foldable legs and the chimney to the main oven body. Ensure they are securely fastened.
3. Pannello porta: Install the door panel assembly onto the front opening of the oven.
4. Posizionamento della pietra per pizza: Carefully slide the 12x12 inch cordierite pizza stone into the oven chamber.
5. Fuel System Attachment:
   • Per gas propano: Connect the gas tray assembly to the designated port at the rear of the oven. Ensure the connection is tight and check for any gas leaks using a soapy water solution. Connect the other end to a standard propane tank.
   • For Wood/Pellets: Insert the pellet scoop/fuel tray into the rear fuel chamber.
6. Posizionamento: Place the assembled oven on a stable, non-combustible outdoor surface, ensuring adequate clearance from all combustible materials.

Figura 2: Assembled Oven and Accessories

This image shows the VEVOR pizza oven fully assembled with its chimney and legs extended. Alongside the oven, the gas hose with regulator, a pellet scoop, and the carrying bag are displayed, illustrating the complete package for dual-fuel operation and portability.

Istruzioni per l'uso

Your VEVOR pizza oven is designed for efficient and versatile cooking. Follow these steps for optimal performance.

Preriscaldamento

1. Selezione del carburante: Choose your desired fuel source: propane gas or wood/pellets.
2. Ignition (Propane): Turn the gas control knob to the 'ON' position and ignite the burner using the integrated igniter or a long lighter. You may need to press and hold the knob for a few seconds for the flame to establish.
3. Ignition (Wood/Pellets): Fill the fuel tray with wood pellets, small wood chips, or charcoal. Ignite the fuel using a fire starter.
4. Monitorare la temperatura: Close the oven door and allow the oven to preheat. The built-in thermometer will indicate the internal temperature. Aim for approximately 600°F (315°C) for pizza, which typically takes about 15 minutes. The oven can reach up to 1000°F (540°C).

Cucina

1. Prepara da mangiare: While the oven preheats, prepare your pizza or other dishes.
2. Inserisci cibo: Once the desired temperature is reached, carefully slide your food onto the hot pizza stone using a pizza peel.
3. Monitorare e ruotare: Cooking times are very fast. For pizzas, rotate the pizza every 30-45 seconds to ensure even cooking and prevent burning, especially the crust closest to the flame. A pizza can cook in as little as 90 seconds.
4. Rimuovere il cibo: Once cooked to your preference, carefully remove the food using the pizza peel.

Figura 3: Semplici passaggi operativi

This composite image illustrates the operational flow of the pizza oven. It shows a hand filling the fuel tray, the ignition process, a pizza cooking inside the oven, a hand checking and rotating the pizza with a peel, and finally, a slice of delicious, cooked pizza being enjoyed. This highlights the simplicity of using the oven for outdoor cooking.

Figura 4: Pizza Cooking and Features

This image features the VEVOR pizza oven with a pizza cooking inside, emphasizing its capability to cook a 12-inch pizza. A close-up of the built-in thermometer is shown, along with icons indicating its compatibility with both pellet and propane gas fuels.

Manutenzione

Una manutenzione regolare garantisce la longevità e le prestazioni ottimali del tuo forno per pizza.

• Raffreddare: Lasciare sempre raffreddare completamente il forno prima di procedere alla pulizia o alla manutenzione.
• Pulizia esterna: Pulisci l'esterno in acciaio inossidabile con un pannoamp panno e detergente delicato. Evitare detergenti abrasivi che possono graffiare la superficie.
• Pulizia della pietra per pizza: Once cool, scrape off any burnt food residue from the pizza stone. For stubborn stains, you can gently scrub with a stiff brush and warm water. Do not use soap on the pizza stone, as it can be absorbed and affect food taste. Allow the stone to air dry completely before next use.
• Ash Removal (Solid Fuel): After the oven has cooled, remove the ash tray and dispose of ash safely.
• Gas Burner Maintenance (Propane): Periodically check the gas burner for any blockages or debris. Ensure the gas hose and regulator are in good condition.
• Magazzinaggio: When not in use, store the oven in a dry, protected area. Utilize the included carry bag for convenient and protected storage, especially during transport or off-season.

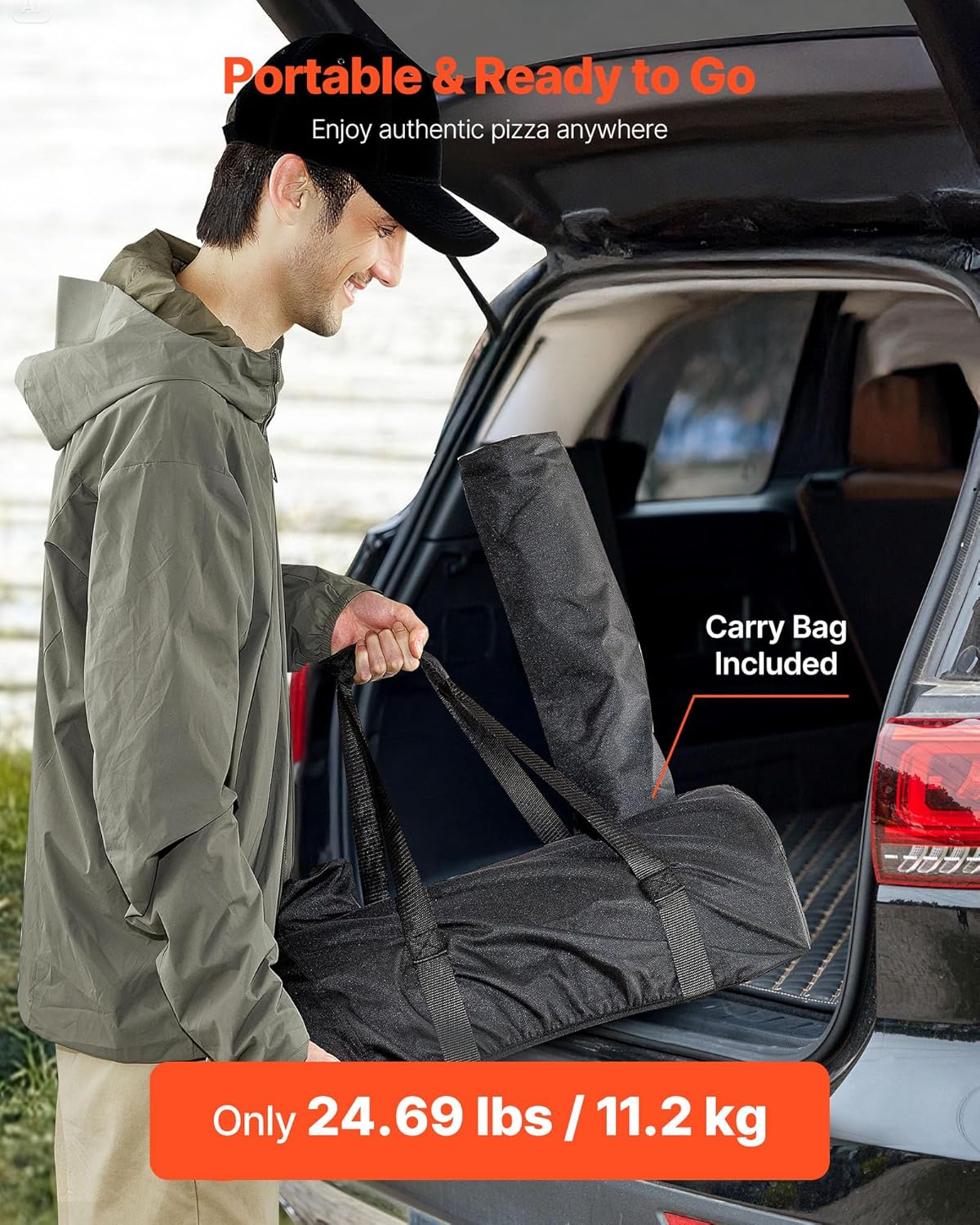

Figura 5: Portable Design with Carry Bag

This image shows an individual effortlessly placing the VEVOR pizza oven, neatly packed in its black carry bag, into the trunk of a car. This highlights the oven's lightweight and portable design, making it suitable for various outdoor activities.

Risoluzione dei problemi

Se riscontri problemi con il tuo forno per pizza VEVOR, consulta i seguenti problemi comuni e le relative soluzioni:

Specifiche

Figura 6: Superior Thermal Insulation

This diagram details the three-layer construction of the oven: an outer layer of 430 stainless steel, a middle layer of ceramic fiber insulation, and an inner layer of 430 stainless steel. It also highlights the 10 mm (0.4 inch) thickness of the cordierite pizza stone, emphasizing the oven's heat retention capabilities.

Garanzia e supporto

I prodotti VEVOR sono progettati per garantire durata e prestazioni. Per dettagli specifici sulla garanzia, consultare la scheda di garanzia inclusa con il prodotto o visitare il sito ufficiale VEVOR. websito.

If you require technical assistance, have questions about operation, or need to report a defect, please contact VEVOR customer support. You can find contact information on the VEVOR brand store page or through your purchase platform.

Negozio del marchio VEVOR: Visita lo Store VEVOR su Amazon
