1. Introduzione
Thank you for choosing the DinoFire USB Type C Wireless Presentation Clicker. This device is designed to enhance your presentations with its dual Bluetooth and 2.4GHz RF connectivity, versatile USB-A and USB-C compatibility, and ergonomic design. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance.
Image: The DinoFire USB Type C Wireless Presentation Clicker, a sleek black device with control buttons.
2. Informazioni sulla sicurezza
- Sicurezza laser: Do not point the laser beam directly at people or animals. Avoid direct eye exposure to the laser beam. This product uses a Class 2 laser.
- Gestione della batteria: Use only specified AAA batteries. Do not mix old and new batteries, or different types of batteries. Dispose of used batteries according to local regulations.
- Magazzinaggio: Tenere il dispositivo lontano da temperature estreme, luce solare diretta e umidità.
- Bambini: Tenere fuori dalla portata dei bambini.
3. Impostazione
3.1. Installazione della batteria
- Individuare il coperchio del vano batteria sul retro del presentatore.
- Far scorrere il coperchio per aprirlo.
- Inserire due batterie AAA (non incluse) nel vano, assicurandosi della corretta polarità (+/-).
- Chiudere saldamente il coperchio del vano batterie.

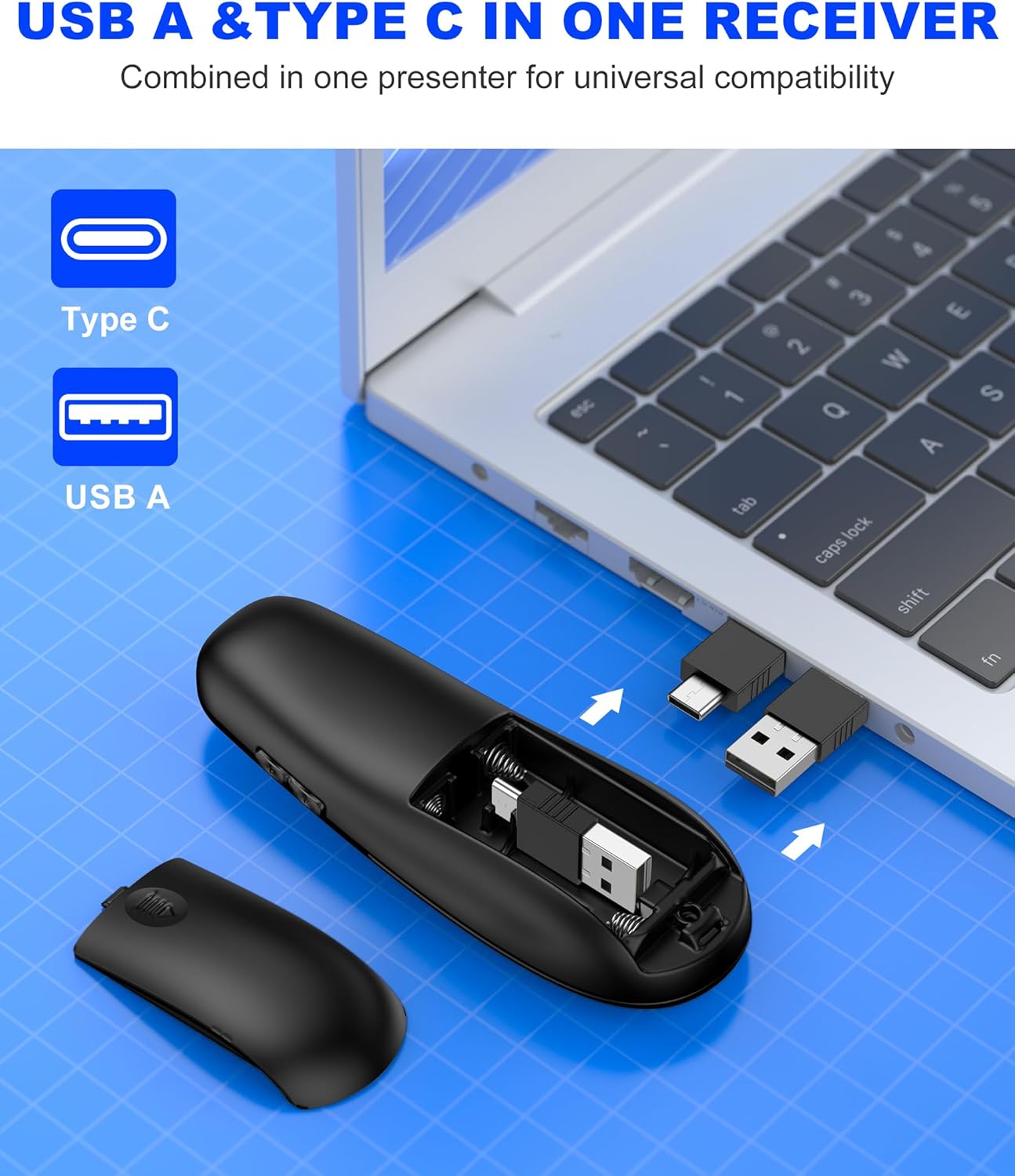

Image: The presenter showing the battery compartment and the integrated USB receiver storage.
3.2. Connecting via USB Receiver (2.4GHz RF Mode)
- Open the battery compartment cover and remove the integrated USB receiver. This receiver features both USB-A and USB-C connectors for broad compatibility.
- Plug the appropriate connector (USB-A or USB-C) of the receiver into an available USB port on your computer.
- Turn on the presenter using the ON/OFF switch located on the side.
- The computer should automatically detect and install the necessary drivers. The presenter is now ready for use in 2.4GHz RF mode.
Image: Close-up of the dual USB-A and USB-C receiver, highlighting its versatile design.
3.3. Connessione tramite Bluetooth (modalità BT)
- Ensure the presenter is turned on.
- Premere e tenere premuto il tasto COLLEGARE button (usually a small circular button near the laser pointer) for a few seconds until the indicator light flashes, indicating pairing mode.
- Sul computer, vai alle impostazioni Bluetooth e cerca nuovi dispositivi.
- Select "DinoFire Presenter" (or similar name) from the list of available devices to pair.
- Once paired, the indicator light on the presenter will stop flashing and remain solid. The presenter is now ready for use in Bluetooth mode.
- To switch between BT and RF modes, simply press the dedicated BT/RF switch button on the presenter.
4. Istruzioni per l'uso
The DinoFire Wireless Presentation Clicker offers a range of functions to control your presentations effectively.
- Pagina su/giù: Utilizzare i pulsanti freccia (▲ / ▼) to navigate through your presentation slides.
- Puntatore laser: Press the dedicated laser button (often a triangle icon) to activate the bright laser light for highlighting key areas.
- Full/Black Screen: A dedicated button allows you to toggle between a full screen display and a black screen to draw audience attention.
- Controllo del volume: Adjust the audio volume of your computer directly from the presenter.
- Attivazione collegamento ipertestuale: Activate hyperlinks within your presentation with a dedicated button.
- Window Switching: Seamlessly switch between open windows on your computer.
- Modalità di sospensione automatica: The presenter automatically enters sleep mode after 30 seconds of inactivity to conserve energy. Press any button to wake it up.
Image: Diagram illustrating the various functions of the presentation clicker buttons, including page navigation, window switching, hyperlink, and volume control.
5 Caratteristiche
- BT & RF 2.4 GHz Dual Modes: Quickly switch between Bluetooth and 2.4GHz RF modes for flexible connectivity with various devices.
- Plug & Play USB A & C Connectors: Equipped with dual USB-A/USB-C connectors combined in one receiver for universal compatibility with laptops and desktop computers.
- Design ergonomico: Features a curved design for a comfortable grip, allowing for extended use without discomfort.
- Portata wireless a controllo lungo: Enjoy a maximum wireless control range of 164 feet (50 meters), providing freedom to move around the room during presentations.
- Bright Laser Light: The integrated laser pointer helps to effectively highlight content on your slides.
Image: Illustration showing the presenter's long control range, indicating up to 164 feet for wireless control and 628 feet for laser light.
Image: A hand holding the presenter, illustrating its comfortable, ergonomic grip.
6. Manutenzione
- Pulizia: Utilizzare un panno morbido e asciutto per pulire la superficie del presentatore. Non utilizzare detergenti abrasivi o solventi.
- Magazzinaggio: When not in use, store the USB receiver inside the presenter's battery compartment to prevent loss. Store the presenter in a cool, dry place.
- Sostituzione della batteria: Replace batteries when the indicator light shows low power or when the device becomes unresponsive.
7. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Presenter not responding (RF Mode) | USB receiver not properly connected or not detected. | Assicurati che il ricevitore USB sia completamente inserito in una porta USB funzionante. Prova una porta USB diversa. |
| Presenter not responding (Bluetooth Mode) | Non abbinato o fuori portata. | Ensure Bluetooth is enabled on your computer. Re-pair the device following the Bluetooth connection steps. Move closer to the computer. |
| Il puntatore laser non funziona | Low battery or laser button not pressed. | Replace batteries. Ensure the laser button is pressed firmly. |
| Portata wireless corta | Interference or obstacles. | Minimize obstacles between the presenter and the receiver. Avoid using near other wireless devices that may cause interference. |
| Presenter automatically enters sleep mode too quickly | This is normal behavior for energy saving. | Press any button to wake the presenter from sleep mode. |
8. Specifiche
- Marca: DinoFuoco
- Nome modello: AAA+USB A&C+BT
- Model Number (Mfr Part Number): WP506
- Tecnologia di connettività: Bluetooth, Radio Frequency (2.4GHz)
- Max Wireless Control Range: 164 piedi (50 metri)
- Dispositivi compatibili: Laptops, Desktop Computers (Bluetooth-enabled)
- Ricevitore: Dual USB-A / USB-C
- Tipo di batteria: 2 batterie AAA (non incluse)
- Caratteristica speciale: Ergonomic Design, Laser Pointer, Dual Mode Connectivity
- Colore: Nero
9. Garanzia e supporto
The DinoFire USB Type C Wireless Presentation Clicker comes with a Garanzia di 3 anno.
For technical support, troubleshooting assistance, or warranty claims, please contact DinoFire customer service through the retailer where the product was purchased or visit the official DinoFire websito per le informazioni di contatto.
Produttore: Shenzhen Qixun Space Technology Co., Ltd.
